19100-03720 PUMP ASSY, INJECTI Calibration Data


Rating:
16
Buy PUMP ASSY, INJECTI 19100-03720 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
TRUCK EM100
Engine
EM100
Serial start-end
8610--8612
Info
Injector Nozzle
093500-2180
Injector nozzle: 0935002180

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Timer assy, automa
Pump assy, fuel fe
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
NB6,R812
01.002
BODY ASSY, INJECTI
NB6
02.003
COVER, BEARING
DUMMY
01.004
TIMER ASSY, AUTOMA
SP
01.004
TIMER ASSY, AUTOMA
SP -9309
01.004
TIMER ASSY, AUTOMA
*1 9310-
01.005
PUMP ASSY, FUEL FE
KE22
01.006
COUPLING ASSY
SD,*1 -8804
01.006
COUPLING ASSY
SD,*1 8805-
01.007
COUPLING ASSY
SD,*1
01.008
GOVERNOR ASSY, MEC
R722

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-03720
PUMP ASSY, INJECTI
NB6,R812
22010-4780 HINO
003
[01]
BODY ASSY, INJECTI
NB6
22110-1700A HINO
004
[01]
GOVERNOR ASSY, MEC
R812
005
[08]
BOLT, W/WASHER
M6,L14
22815-1620A HINO
006
[01]
COVER, CONTROL RAC
22114-1240A HINO
007
[01]
TIMER ASSY, AUTOMA
SP
22510-2080A HINO
008
[01]
NUT, TIMER ROUND
22825-1110A HINO
009
[01]
O-RING
ID27.7
22817-1050A HINO
010
[01]
WASHER, COUNTERSUN
T1.5ID18
22877-1190A HINO
011
[01]
KEY, WOODRUFF
W5,H7.5
22891-1070A HINO
012
[01]
PUMP ASSY, FUEL FE
KE22
22570-1220A HINO
014
[01]
WASHER, COPPER PLA
T1.5
96542-2150A HINO
016
[01]
COUPLING ASSY
SD -9604
22610-1280B HINO
016
[01]
COUPLING ASSY
SD 9604-
22610-1480A HINO
017
[02]
WASHER
T1
22847-1940A HINO
018
[01]
VALVE ASSY, OVERFL
1.5-1.8K -9008
22107-1190A HINO
018
[01]
VALVE ASSY, OVERFL
1.5-1.8K 9008-
22107-1090A HINO
021
[01]
BRACKET, STOP WIRE
22343-1900A HINO
022
[02]
CAP
FOR MAX.SPEED
22323-1210A HINO
025
[02]
BOLT, W/WASHER
M6,L12 9212-
22815-1500A HINO

Include in ##:

19100-03720 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-03720
22010-4780
PUMP ASSY, INJECTI
1910003720
22010-4780
HINO
PUMP ASSY, INJECTI

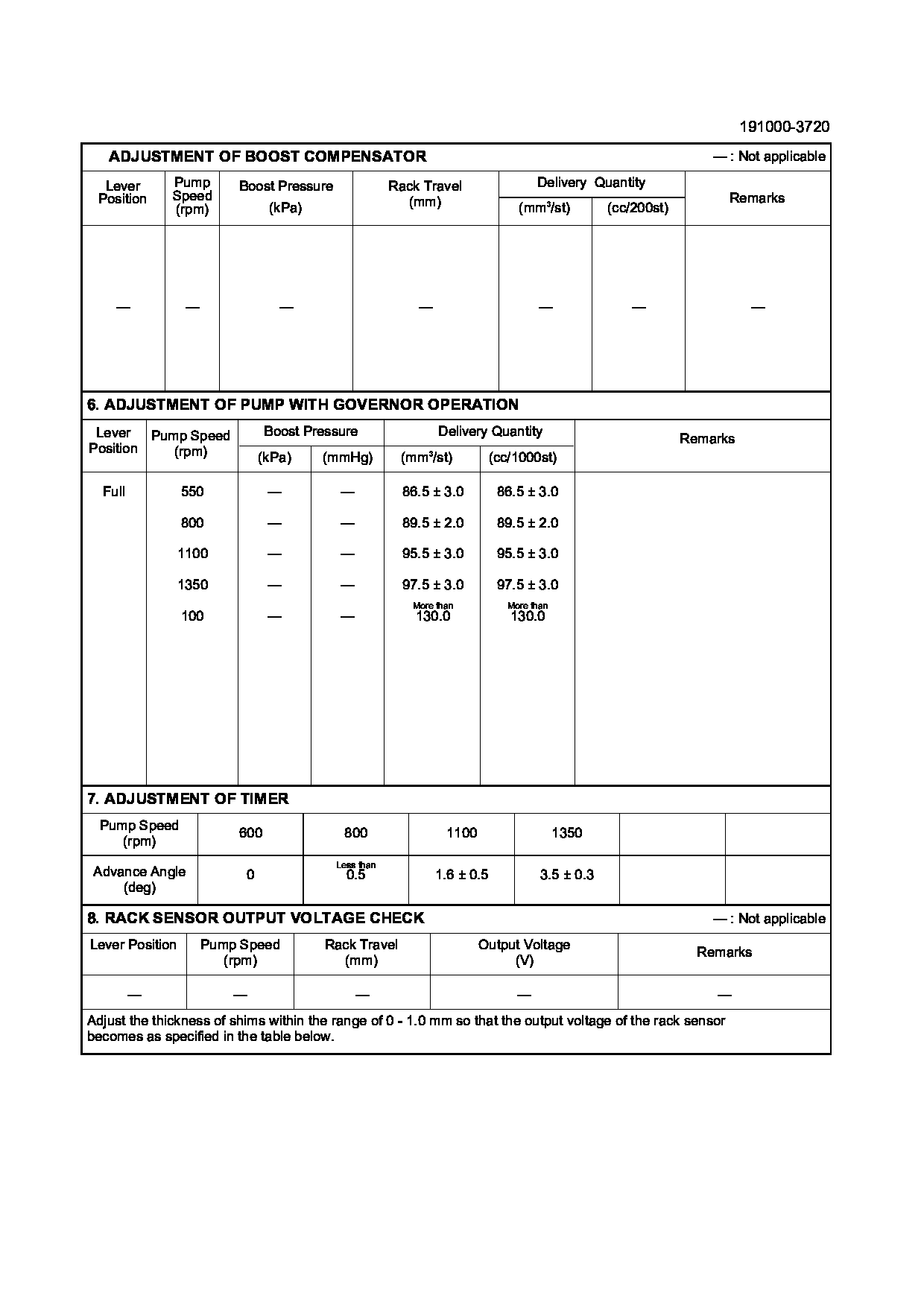

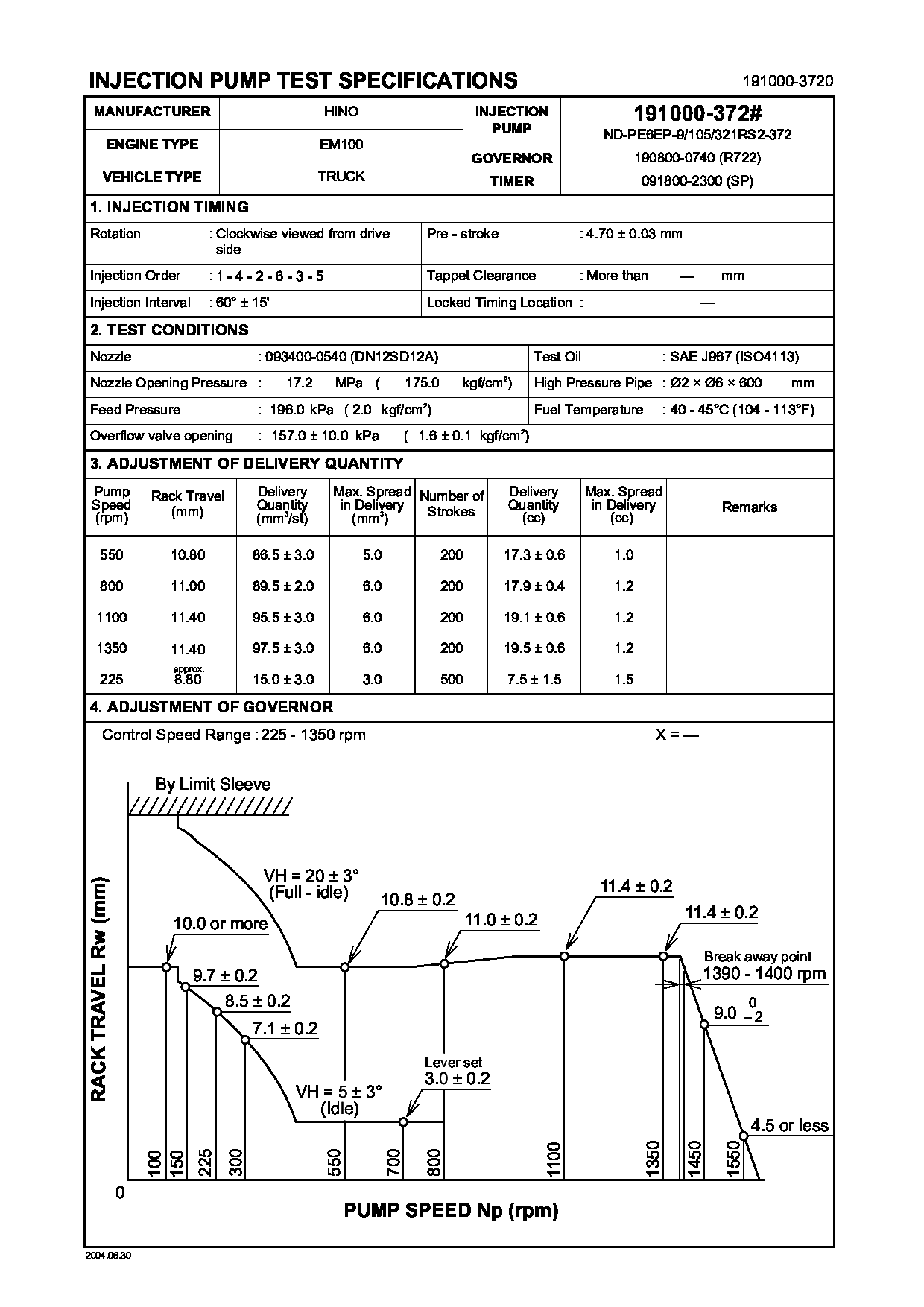

Test Calibration Data:

1910003720 22010-4780
