19080-06230 GOVERNOR ASSY, MEC Denso Cross


Rating:
32
Buy GOVERNOR ASSY, MEC 19080-06230 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

KIT List:

Part name
Kit1
Kit2
Governor assy, mec
Governor assy, mec
Governor assy, mec
Governor assy, mec

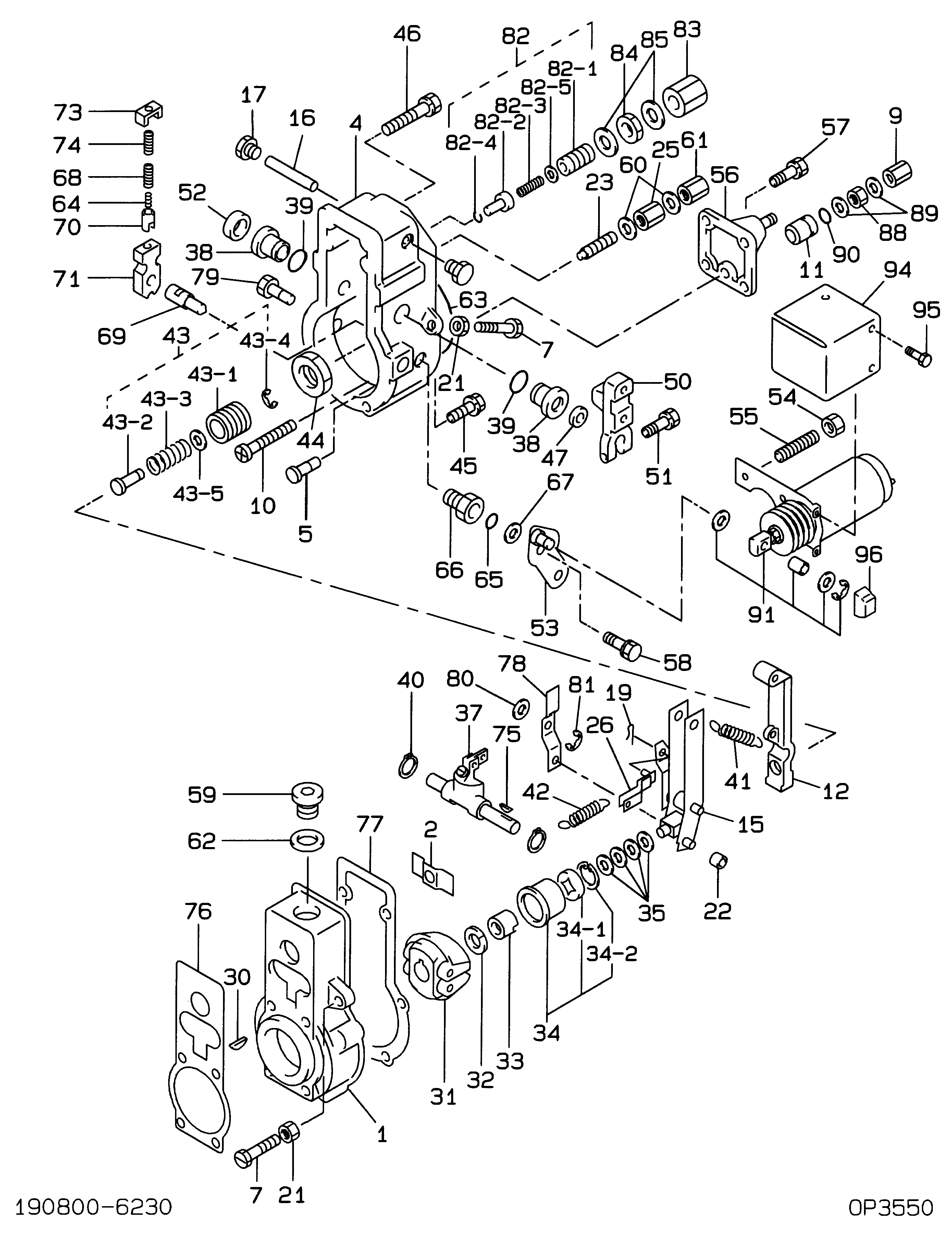

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19080-06230
GOVERNOR ASSY, MEC
RSV
001
[01]
HOUSING SUB-ASSY,
002
[01]
PLATE
004
[01]
COVER, GOVERNOR
005
[01]
PIN, STOP
007
[02]
SCREW, ADJUSTING
M8,L57
009
[01]
NUT, CAP
L15.5
010
[01]
SCREW, STROKE ADJU
011
[01]
BUSHING
012
[01]
LEVER ASSY, TENSIO
015
[01]
LEVER ASSY, CONTRO
L/R:2
016
[01]
SHAFT, LEVER SUPPO
017
[02]
PLUG, SCREW
019
[01]
PIN, SPLIT
D2,L10
021
[02]
NUT, HEXAGON, W/HO
M6
022
[01]
SLIDER, SUPPORTING
023
[01]
CAPSULE, FULL STOP
025
[01]
NUT, ADAPTER LOCK
026
[01]
SHACKLE ASSY
030
[01]
KEY, WOODRUFF
031
[01]
FLYWEIGHT ASSY
032
[01]
WASHER, SPRING
T2.5
033
[01]
NUT, ROUND
M12L12.5
034
[01]
SLEEVE SUB-ASSY, F
034-001
[01]
PLATE, THRUST
034-002
[01]
RING, HOLE SNAP
OD30
035
[4C]
WASHER, PLATE, SK
T0.2
035
[4C]
WASHER, PLATE, SK
T0.3
035
[4C]
WASHER, PLATE, SK
T0.4
035
[4C]
WASHER, PLATE, SK
T0.1
035
[4C]
WASHER, PLATE, SK
T1.0
037
[01]
LEVER ASSY, SWIEVE
038
[02]
BUSHING, LEVER
039
[02]
O-RING
ID15.8
040
[02]
WASHER, SNAP
ID15
041
[01]
SPRING, SPEED CONT
042
[01]
SPRING, START
043
[01]
ADAPTER ASSY
043-001
[01]
SCREW, ADPTER
043-002
[01]
ADAPTER
043-003
[01]
SPRING, MECHANICAL
043-004
[01]
E-RING
043-005
[1C]
WASHER, PLATE, SK
T0.1
043-005
[1C]
WASHER, PLATE, SK
T0.25
043-005
[1C]
WASHER, PLATE, SK
T0.5
043-005
[1C]
WASHER, PLATE, SK
T0.2
043-005
[1C]
WASHER, PLATE, SK
T1.0
044
[01]
NUT, ADAPTER LOCK
045
[04]
BOLT, W/WASHER
M6,L40
046
[02]
BOLT, W/WASHER
M6,L50
047
[01]
SEAL, OIL
050
[01]
LEVER, ADJUSTING
051
[01]
BOLT, W/WASHER
M6,L22
052
[01]
CAP, LEVER
053
[01]
LEVER SUB-ASSY, ST
054
[03]
NUT, HEXAGON
M6,L7.5
055
[03]
BOLT, STUD
M6,L29.6
056
[01]
PLATE SUB-ASSY, CO
057
[01]
BOLT, W/WASHER
M6,L20
058
[01]
BOLT, W/WASHER
M6,L12.5
059
[01]
PLUG, SCREW
060
[02]
WASHER, AIR BLEEDE
T1.6
061
[01]
NUT, CAP
062
[01]
WASHER, COPPER PLA
T1.5
063
[01]
PACKING, RUBBER PL
064
[01]
SPRING, B
OD3.6
065
[01]
O-RING
ID9.0
066
[01]
BUSHING, BEARING
067
[01]
SHIM
T0.4
068
[01]
SPRING, B
OD6.6
069
[01]
SHAFT, MECHANICAL
070
[01]
CUP, SPRING
071
[01]
LEVER, SUPPORT
073
[01]
PLATE, CAP
074
[01]
SPRING, B
OD8.6
075
[01]
KEY, WOODRUFF
076
[01]
GASKET
077
[01]
GASKET
078
[01]
LEVER SUB-ASSY
079
[01]
PIN, TORQUE CONTRO
080
[01]
WASHER, PLATE
T0.5
081
[01]
E-RING
082
[01]
ADAPTER ASSY
082-001
[01]
SCREW, ADJUSTING
082-002
[01]
ADAPTER
082-003
[01]
SPRING, MECHANICAL
082-004
[01]
RING, HOLE SNAP
OD12
082-005
[1C]
WASHER, PLATE, SK
T0.1
082-005
[1C]
WASHER, PLATE, SK
T0.25
082-005
[1C]
WASHER, PLATE, SK
T0.5
082-005
[1C]
WASHER, PLATE, SK
T0.2
082-005
[1C]
WASHER, PLATE, SK
T1.0
083
[01]
CAP
084
[01]
NUT, HEXAGON, W/HO
085
[02]
WASHER, COPPER PLA
T1,FOR M16
088
[01]
NUT, HEXAGON
M8
089
[02]
WASHER, COPPER PLA
T1
090
[01]
O-RING
ID12.3
091
[01]
OVER-HAUL KIT, GOV
094
[01]
PLATE
095
[03]
BOLT, W/WASHER
M5,L8
096
[01]
COVER

Include in ##:

09300-05990 as GOVERNOR ASSY, MEC
19080-06230 GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
19080-06230

GOVERNOR ASSY, MEC




Information:

start by:a) remove pistons 1. Remove bearings (3) from the connecting rod and connecting rod cap.2. Remove retainer ring (1) with tool (A).3. Remove pin (2) and connecting rod (4) from the piston. 4. Remove the piston rings (5) from the piston with tool (B). Clean the piston ring grooves on the pistons with an acceptable ring groove cleaning tool. See USE OF PISTON PIN BEARING REMOVAL AND INSTALLATION TOOLS, SPECIAL INSTRUCTIONS, Form No. SMHS7295.5. Heat the connecting rod (4) in an oven to a temperature of 350°-500°F (177°-260°C). Never use a direct flame to heat a connecting rod. 6. Put connecting rod (4) in position on the base plate of tooling (C). Put a new rod pin bearing (6) on the adapter part of tooling (C). The old bearing is pushed out by tooling (C) as the new bearing is installed.7. Use tooling (C) to push the new bearing into the connecting rod until the push adapter of tooling (C) makes full contact with the connecting rod surface.8. Use a pin boring machine to make the rod pin bearing the correct size. The bore in the new rod pin bearing must be 2.0012 .0003 in. (50.830 0.008 mm).9. Check the clearance between the ends of the piston rings. See PISTONS AND RINGS in SPECIFICATIONS.10. Install the oil ring spring in the oil ring groove of the piston. The oil ring is to be installed over the spring with the oil ring end gap 180° from the oil ring spring joint. 11. Install the oil ring on the piston with tool (B).12. Install the second (intermediate) piston ring with the side that has the identification "UP-2" toward the top of the piston with tool (B).13. Install the first (top) piston ring with the side that has the identification "UP-1" toward the top of the piston with tool (B). After the installation of all three piston rings, put the piston rings in position so the end gaps are 120° apart. 14. Put the piston in position on connecting rod (4). Put clean engine oil on pin (2) and install the pin. Install retainer rings (1) with tool (A). Make sure the retainer rings are in the grooves of the piston.15. Install bearings (3) in the connecting rod and connecting rod cap.end by:a) install pistons
