09300-06480 PUMP ASSY, INJECTI Calibration Data


Rating:
10
Buy PUMP ASSY, INJECTI 09300-06480 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
Construction machine 4M40
Engine
4M40
Serial start-end
9911-
Info
Injector Nozzle
093500-6900
Injector nozzle: 0935006900

KIT List:

Part name
Kit1
Kit2
Pump assy, fuel fe
1922900060
Body assy, injecti
1904400320
Governor assy, mec
1908900170
Governor assy, mec
1908900170

Components :

00.001
PUMP ASSY, INJECTI
09300-06480 MITSUBISHI
A3,RSV
01.002
PUMP ASSY, FUEL FE
09210-01291 MITSUBISHI
KS
01.003
BODY ASSY, INJECTI
19010-01650 MITSUBISHI
A4
01.004
GOVERNOR ASSY, MEC
19080-06230 MITSUBISHI
RSV
01.005
GOVERNOR ASSY, MEC
19080-06890 MITSUBISHI
RSV

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09300-06481
PUMP ASSY, INJECTI
A3,RSV
006
[01]
19010-01650
BODY ASSY, INJECTI
A4
007
[01]
19080-06230
GOVERNOR ASSY, MEC
RSV -0206
007
[01]
19080-06890
GOVERNOR ASSY, MEC
RSV 0207-
008
[01]
94901-40210
WASHER, COUNTERSUN
T1.5ID14
009
[01]
94913-00210
KEY, WOODRUFF
T3.985
010
[01]
09185-10641
GEAR, TIMER DRIVIN
011
[01]
09210-01291
PUMP ASSY, FUEL FE
KS
012
[01]
09001-20220
NUT, TIMER ROUND
013
[01]
91518-08221
BOLT, W/WASHER
M8,L22
014
[06]
91418-06161
BOLT, W/WASHER
M6,L16
015
[01]
09001-80090
COVER, CONTROL RAC
016
[01]
09006-00521
COVER SUB-ASSY, TI
017
[04]
94901-15020
WASHER, STEEL PLAT
FOR M10
018
[04]
90258-10001
WASHER, SPRING
M10
019
[04]
91266-10081
NUT, HEXAGON
M10
020
[01]
94914-02840
O-RING
ID74.1
021
[01]
09255-10771
BLOCK, COUPLING
022
[04]
90258-08001
WASHER, SPRING
FOR M8
023
[04]
94904-04471
BOLT, HEXAGON
M8,L14.5

Cross reference number



Part num
Firm num
Firm
Name
09300-06480

PUMP ASSY, INJECTI

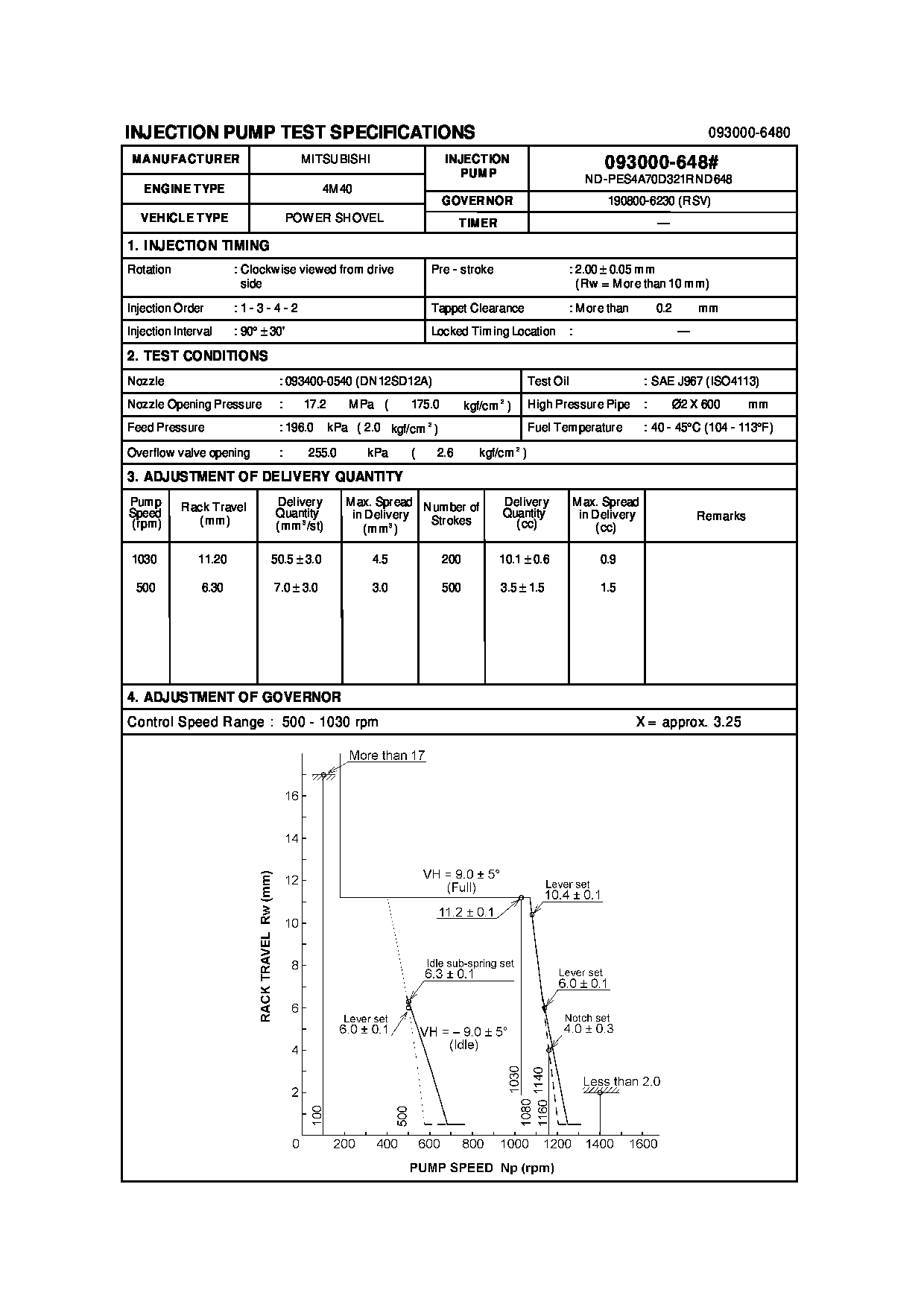

Test Calibration Data:

Get Full test data file
0930006480 ME108432
EE6480
EE6480
