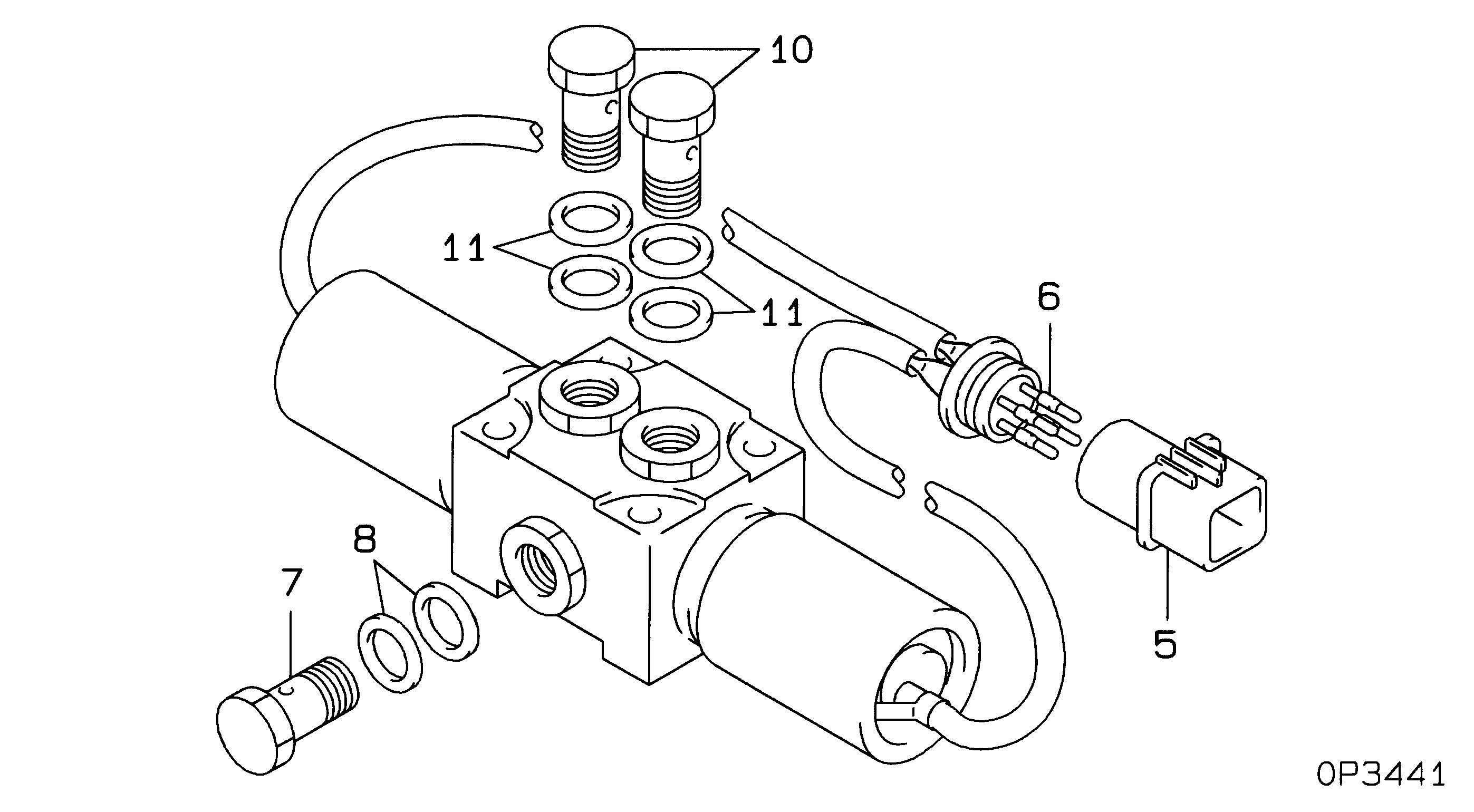

Information valve assy, timing Denso
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09636-00170
VALVE ASSY, TIMING
ME728097
MITSUBISHI
Include in ##:
Cross reference number
Part num
Firm num
Firm
Name
09636-00170
ME728097
VALVE ASSY, TIMING
0963600170
ME728097
MITSUBISHI
VALVE ASSY, TIMING
Information:
Illustration 1 g02004767
(1) Ring for Identification (2) 228-7094 O-Ring Seal (3) 345-3399 Injector Sleeve An oversized injector sleeve will be introduced in order to improve the life cycle of the cylinder heads. The new sleeve has an oversized outside diameter, which does not allow the injector sleeve to fit the standard bore. The oversized sleeve will have an added ring that is located around the middle of the insert for identification. Also, the new sleeve will require a larger bottom O-ring. Refer to Illustration 1.
Illustration 2 g02004793
(4) Identification markThe remanufactured cylinder head has an identification mark that is located on the top of the cylinder head. This mark indicates the cylinders that have the oversized inserts.
