Rating:

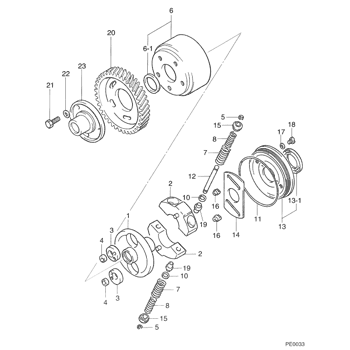

Information timer assy, automa Denso
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09180-04440
TIMER ASSY, AUTOMA
SA2
S2251-03240
HINO
Include in ##:
Cross reference number
Part num
Firm num
Firm
Name
09180-04440
S2251-0324
TIMER ASSY, AUTOMA
0918004440
S2251-03240
HINO
TIMER ASSY, AUTOMA
0918004440
S2251-03240-A
HINO
TIMER ASSY, AUTOMA
Information:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The new 583-9296 Gasket replace the former 553-1133 Gasket.Note: The former part number listed is for reference only and may differ.The new gasket is adaptable to the above machines back to first production.
Illustration 1 g06432905
Cross pattern
Illustration 2 g06432913
Square pattern
Apply nickel anti-seize to the bolts.
Hand tighten all bolts.
Using the cross pattern (1-2-3-4), torque each bolt to 25 N m (18 lb ft).
Using the cross pattern (1-2-3-4), torque each bolt to 65 N m (48 lb ft).
Using the cross pattern (1-2-3-4), torque each bolt to 125 N m (92 lb ft).
Using the square pattern (1-3-2-4), torque each bolt to 125 20 N m (92 15 lb ft).
