Buy TIMER ASSY, AUTOMA 09180-03211 genuine, new aftermarket engine parts with delivery

Information timer assy, automa Denso

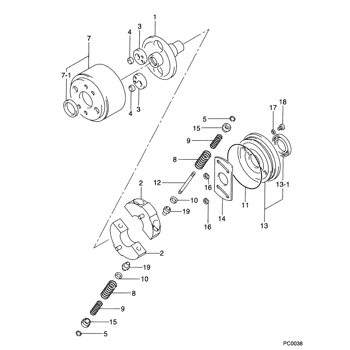

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09180-03211

TIMER ASSY, AUTOMA

SA2

22510-2460 HINO

001

[01]

09181-11400

HUB, TIMER

002

[02]

09183-60740

WEIGHT SUB-ASSY, T

003

[02]

09189-50270

CAM, TIMER

004

[02]

09189-50280

CAM, TIMER

005

[04]

94907-10880

WASHER, SNAP

ID6.4

22518-1110A HINO

007

[01]

09184-00970

FLANGE, TIMER DRIV

-9406

007

[01]

09184-01080

FLANGE, TIMER DRIV

9407-

22513-2440A HINO

007-001

[01]

94915-02600

SEAL, OIL

ID34.6 -9406

22827-1490A HINO

007-001

[01]

94915-02910

SEAL, OIL

ID33.6 9407-

22827-1680A HINO

008

[4C]

09181-92170

SPRING, TIMER

K3.7

008

[4C]

09181-92180

SPRING, TIMER

K3.9

22515-4440A HINO

009

[04]

09181-80340

SPRING, TIMER SUB

K0.3

010

[8C]

94901-38180

WASHER, PLATE, SK

T0.5

22885-5870A HINO

010

[8C]

94901-38190

WASHER, PLATE, SK

T0.6

22885-5880A HINO

010

[8C]

94901-38200

WASHER, PLATE, SK

T0.7

22885-5890A HINO

010

[8C]

94901-38910

WASHER, PLATE, SK

T0.8

010

[8C]

94901-38920

WASHER, PLATE, SK

T0.9

011

[01]

94914-06430

O-RING

ID120

012

[02]

09188-40110

SUPPORT, TIMER SPR

22535-1140A HINO

013

[01]

09187-00160

COVER SUB-ASSY, TI

-9406

013

[01]

09187-00210

COVER SUB-ASSY, TI

9407--0505

22867-1830A HINO

013

[01]

09187-00250

COVER SUB-ASSY, TI

0506-

013-001

[01]

94915-02610

SEAL, OIL

ID37.3 -9406

22827-1500A HINO

013-001

[01]

94915-02920

SEAL, OIL

ID36.6 9407-

22827-1690A HINO

014

[01]

09186-70270

PLATE, TIMER DRIVI

22513-2270A HINO

015

[04]

09181-70310

SEAT

22517-1510A HINO

016

[02]

09188-20060

ROLLER, TIMER

22522-1060A HINO

017

[02]

94901-81020

WASHER, COPPER PLA

22867-1500A HINO

018

[02]

09186-20010

SCREW, TIMER HUB

22865-1270A HINO

019

[04]

09181-70320

SEAT

Include in ##:

09180-03211 as TIMER ASSY, AUTOMA

19100-09412 PUMP ASSY, INJECTI

19100-09561

Cross reference number

Part num

Firm num

Firm

Name

09180-03211

22510-2460

TIMER ASSY, AUTOMA
