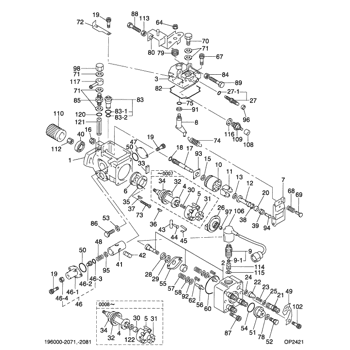

09642-80050 SEAT, DELIVERY VAL Denso Cross

DO NOT adjust the linkage so the treadle can be used to shut off the engine. If the operator is in a standing position and places a foot on the treadle, the engine could be unexpectedly shut off, creating a situation where the machine can be difficult to control.
814B, 815B, 816B, 966D
1. Set governor shaft to the off position (approximately 35° right of twelve o'clock) and attach lever (1).2. Adjust cable assembly (2) to within 3 mm (.12 in) of the end of travel and tighten bulkhead (3) nuts to ... 100 15 N m (75 11 lb ft)3. With pedal (4) in off position (approximately 66 3° up from floor plate) attach cable assembly (2) to lever (6).4. Tighten bulkhead nuts at pedal end of cable assembly to ... 100 15 N m (75 11 lb ft)5. Set governor lever (1) to high idle and adjust bolt (5) until it contacts pedal.528
1. Move governor shaft (3) to Shutoff position and install lever (2) on shaft (3) at angle shown.2. Position pedal assembly (1) to dimension A above stop (4) by adjusting rod assembly (5). Dimension A ... 49 1 mm (1.93 .04 in)3. Tighten nut (6) to a torque of ... 45 7 N m (33 5 lb ft)
