19600-06240 PUMP ASSY, INJECTI Denso Cross


Rating:
74
Buy PUMP ASSY, INJECTI 19600-06240 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
COASTER 1HZ
Engine
1HZ
Serial start-end
1412-
Info
Injector Nozzle
093500-6890
Injector nozzle: 0935006890

KIT List:

Part name
Kit1
Kit2
Pump assy, injecti
0960100541

Components :

00.001
PUMP ASSY, INJECTI
19600-06240 TOYOTA
01.002
BELLOWS ASSY, PNEU
09071-00790 TOYOTA
01.003
RING SUB-ASSY, ROL
09618-00030 TOYOTA
01.004
GOVERNOR ASSY, TOR
09627-00891 TOYOTA
STD-SP
01.005
SHIM, PLUNGER ADJU
09640-60020 TOYOTA
DUMMY
01.005
SHIM, PLUNGER ADJU
09640-60020 TOYOTA
T1.9(*1)

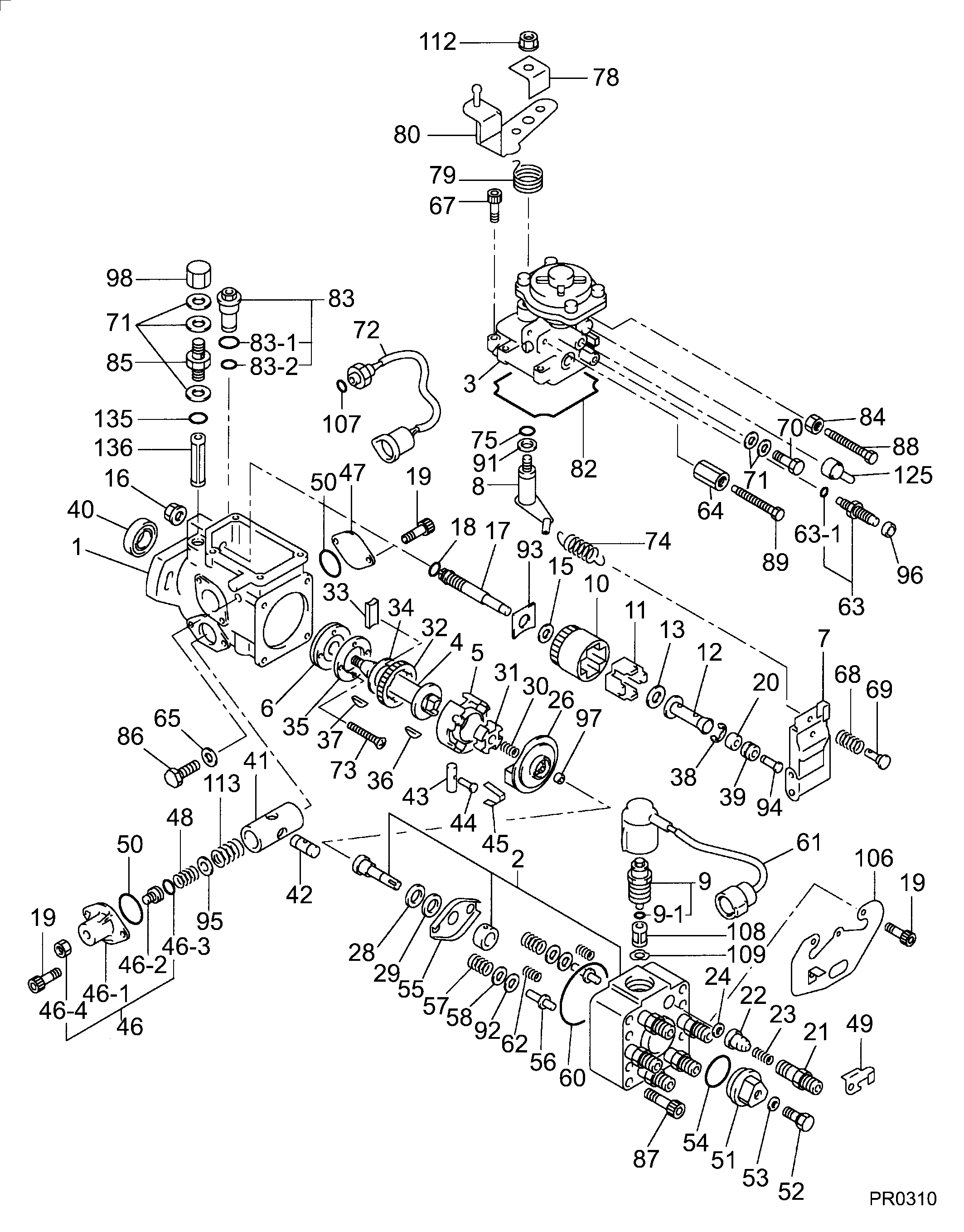

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-06240
PUMP ASSY, INJECTI
22100-17A40 TOYOTA
001
[01]
09611-00232
HOUSING SUB-ASSY,
22101-54200 TOYOTA
002
[01]
09640-01500
HEAD SUB-ASSY, DIS
22140-17810 TOYOTA
003
[01]
09071-00790
BELLOWS ASSY, PNEU
22680-1C201 TOYOTA
004
[01]
09612-10110
SHAFT, DRIVE
22170-55130 TOYOTA
005
[01]
09618-00030
RING SUB-ASSY, ROL
SEE COMPONENT
22108-17010 TOYOTA
006
[01]
09614-00030
PUMP SUB-ASSY, FUE
22505-54010 TOYOTA
007
[01]
09627-00891
GOVERNOR ASSY, TOR
STD-SP
22350-17050 TOYOTA
008
[1C]
09645-00050
SHAFT SUB-ASSY, GO
22740-21910 TOYOTA
008
[1C]
09645-00440
SHAFT SUB-ASSY, GO
R17.5
22740-58480 TOYOTA
009
[01]
09603-00540
SOLENOID ASSY, FUE
FCV,24V
22390-56291 TOYOTA
009-001
[01]
09604-90350
O-RING
ID14.4
22193-5D191 TOYOTA
010
[01]
09626-00050
HOLDER SUB-ASSY, F
22741-54020 TOYOTA
011
[04]
09626-30060
FLYWEIGHT, DISTRIB
22745-5B640 TOYOTA
012
[01]
09625-20230
SLEEVE, GOVERNOR
22316-64640 TOYOTA
013
[01]
09626-50030
WASHER, FLYWEIGHT
ROUND TYPE
22753-54020 TOYOTA
015
[01]
09626-50020
WASHER, FLYWEIGHT
T1.30
22753-54010 TOYOTA
016
[01]
09625-40050
NUT, GOVERNOR SHAF
M10,L SCREW
22722-54470 TOYOTA
017
[01]
09625-10020
SHAFT, GOVERNOR MA
W/O LST
22384-54010 TOYOTA
018
[01]
94914-02930
O-RING
ID 8
90099-14049 TOYOTA
019
[07]
09644-90110
BOLT, SOCKET
M6,L16
22395-56351 TOYOTA
020
[01]
09625-50020
RING, GOVERNOR SLE
22147-54290 TOYOTA
021
[06]
09643-00180
VALVE SUB-ASSY, SN
22190-6A680 TOYOTA
022
[06]
09642-00520
VALVE SUB-ASSY, DI
22104-6A640 TOYOTA
023
[06]
09642-70010
SPRING, DELIVERY V
22148-54010 TOYOTA
024
[06]
09642-60070
GASKET, DELIVERY V
22149-56351 TOYOTA
026
[01]
09623-00580
CAMPLATE SUB-ASSY,
22130-1C050 TOYOTA
028
[01]
09624-50020
PLATE, PLUNGER, LW
22163-54010 TOYOTA
029
[01]
09624-40040
PLATE, PLUNGER, UP
22162-54010 TOYOTA
030
[01]
09622-40040
SPRING, COUPLING
22659-64150 TOYOTA
031
[01]
09622-20020
COUPLING
22632-54010 TOYOTA
032
[01]
09612-40030
GEAR, GOVERNOR DRI
22341-54010 TOYOTA
033
[02]
09612-60020
JOINT, RUBBER
22169-54180 TOYOTA
034
[01]
09612-50010
WASHER, DRIVE SHAF
22161-54010 TOYOTA
035
[01]
09614-70052
COVER, FEED PUMP
22511-58650 TOYOTA
036
[01]
94913-00260
KEY, WOODRUFF
T3.980
90099-13017 TOYOTA
037
[01]
94913-00300
KEY, WOODRUFF
T4.023
90099-13018 TOYOTA
038
[01]
90577-02000
E-RING
D2
90096-90024 TOYOTA
039
[01]
94910-02860
BEARING, BALL
OD8
90099-10148 TOYOTA
040
[01]
09603-90040
SEAL, 0IL
22544-64740 TOYOTA
041
[01]
09619-01530
PISTON ASSY, TIMER
22582-1C180 TOYOTA
042
[01]
09621-30020
SUB-PISTON, TIMER
22657-54010 TOYOTA
043
[01]
09620-50020
PIN, TIMER SLIDE
22655-54010 TOYOTA
044
[01]
09621-60120
STOPPER, TIMER SLI
L16.4
22658-17840 TOYOTA
045
[01]
09621-10080
CLIP, TIMER
L/ DITCH
22656-17840 TOYOTA
046
[01]
09621-00870
COVER SUB-ASSY, TI
TIMER COVER
22790-17020 TOYOTA
046-001
[01]
09621-80870
COVER, TIMER
22612-17020 TOYOTA
046-002
[01]
09621-60110
STOPPER, TIMER SLI
22658-17020 TOYOTA
046-003
[01]
09604-90290
O-RING
ID 8.8
22193-17020 TOYOTA
046-004
[01]
94905-05010
NUT, HEXAGON
M10,L4
90099-05225 TOYOTA
047
[01]
09621-80270
COVER, TIMER
22612-56350 TOYOTA
048
[1C]
09620-81511
SPRING, TIMER, OUT
K0.18,GREEN
22615-17552 TOYOTA
048
[1C]
09620-81980
SPRING, TIMER, OUT
K0.16,VIOLET
22615-5C122 TOYOTA
048
[1C]
09620-81990
SPRING, TIMER, OUT
K0.17,RED
22615-5C123 TOYOTA
048
[1C]
09620-82170
SPRING, TIMER, OUT
K0.19,BLACK
22615-1C050 TOYOTA
048
[1C]
09620-81491
SPRING, TIMER, OUT
K0.2,PINK
22615-17550 TOYOTA
049
[01]
09602-90950
CLIP, CONNECTOR SU
22172-6A330 TOYOTA
050
[02]
09604-90400
O-RING
ID27.5
22193-17840 TOYOTA
051
[01]
09641-70040
PLUG, DISTRIBUTIVE
22176-54020 TOYOTA
052
[01]
09641-80020
BOLT, DISTRIBUTIVE
M8,L19.7
22128-54010 TOYOTA
053
[01]
09642-60030
GASKET, DELIVERY V
FOR HEAD PLUG
22149-56200 TOYOTA
054
[01]
09604-90510
O-RING
ID30
22193-54772 TOYOTA
055
[01]
09624-70010
SHEET, PLUNGER SPR
22145-54010 TOYOTA
056
[02]
09623-70010
GUIDE SUB-ASSY, PL
22192-54010 TOYOTA
057
[02]
09623-60040
SPRING, PLUNGER
K10
22144-54190 TOYOTA
058
[02]
09624-60010
SHEET, PLUNGER SPR
22143-54010 TOYOTA
060
[01]
94914-02980
O-RING
ID60
90099-14053 TOYOTA
061
[01]
09604-50660
WIRE SUB-ASSY
22751-17640 TOYOTA
062
[02]
09627-90010
SPRING, LEVER SUPP
K1.03
22314-54010 TOYOTA
063
[01]
09648-00010
SMOKE SET SUB-ASSY
063-001
[01]
09604-90470
O-RING
ID 7.5
22193-54771 TOYOTA
064
[01]
94905-04800
NUT, HEXAGON
M6,L15
90099-05190 TOYOTA
065
[02]
09642-60130
GASKET, DELIVERY V
22149-54771 TOYOTA
067
[04]
09644-90020
BOLT, SOCKET
M6,L35
22395-54010 TOYOTA
068
[01]
09628-90420
SPRING, GOVERNOR I
22317-17040 TOYOTA
069
[01]
09626-70030
SHEET, GOVERNOR SP
22369-54010 TOYOTA
070
[01]
09602-00030
SCREW SUB-ASSY, OV
W/FILTER
22160-64010 TOYOTA
071
[05]
09024-10010
WASHER, AIR BLEEDE
T1.6
22119-77020 TOYOTA
072
[02]
07630-02020
PICKUP ASSY, TACHO
83180-36050 TOYOTA
073
[02]
94900-20420
SCREW, COUNTERSUNK
M4,L28
90099-00723 TOYOTA
074
[01]
09626-10970
SPRING, SPEED CONT
K0.25
22726-17010 TOYOTA
075
[01]
09604-90300
O-RING
ID 6.5
22193-54770 TOYOTA
078
[01]
09644-50011
GUIDE, RETURN SPRI
MARK 1
22728-54010 TOYOTA
079
[01]
09644-40021
SPRING, RETURN
22322-54020 TOYOTA
080
[1C]
09643-52470
LEVER SUB-ASSY, AD
MARK 247
22701-56350 TOYOTA
080
[1C]
09643-53830
LEVER SUB-ASSY, AD
MARK 383
22701-17010 TOYOTA
080
[1C]
09643-53840
LEVER SUB-ASSY, AD
MARK 384
22701-17011 TOYOTA
082
[01]
09644-60100
GASKET, GOVERNOR C
22774-54270 TOYOTA
083
[01]
09616-00050
VALVE SUB-ASSY, RE
22180-58200 TOYOTA
083-001
[01]
09604-90180
O-RING
ID10
22193-54561 TOYOTA
083-002
[01]
09604-90500
O-RING
ID 7.5
22193-5D192 TOYOTA
084
[01]
09634-20010
NUT, LOCK
M6,L5
22775-77121 TOYOTA
085
[01]
09602-10190
SCREW, OVERFLOW
22569-17140 TOYOTA
086
[02]
09626-90020
BOLT, GOVERNOR LIN
M8,L19
22739-54020 TOYOTA
087
[04]
09644-90070
BOLT, SOCKET
M6,L45
22395-58200 TOYOTA
088
[01]
94904-50210
BOLT, HEXAGON, W/
M6,L62
90099-04954 TOYOTA
089
[01]
94904-50240
BOLT, HEXAGON, W/
M6,L70
90099-04335 TOYOTA
091
[01]
09627-30140
WASHER, GOVERNOR T
T0.5
22378-64010 TOYOTA
092
[2C]
09624-80010
SHIM, PLUNGER SPRI
T0.5
22182-54010 TOYOTA
092
[2C]
09624-80020
SHIM, PLUNGER SPRI
T0.8
22183-54010 TOYOTA
092
[2C]
09624-80030
SHIM, PLUNGER SPRI
T1.0
22184-54010 TOYOTA
092
[2C]
09624-80040
SHIM, PLUNGER SPRI
T1.2
22185-54010 TOYOTA
092
[2C]
09624-80050
SHIM, PLUNGER SPRI
T1.5
22186-54010 TOYOTA
092
[2C]
09624-80060
SHIM, PLUNGER SPRI
T1.8
22187-54010 TOYOTA
092
[2C]
09624-80070
SHIM, PLUNGER SPRI
T2.0
22188-54010 TOYOTA
092
[2C]
09624-80080
SHIM, PLUNGER SPRI
T0.9
22182-17010 TOYOTA
092
[2C]
09624-80090
SHIM, PLUNGER SPRI
T1.1
22182-17011 TOYOTA
092
[2C]
09624-80100
SHIM, PLUNGER SPRI
T1.3
22182-17012 TOYOTA
092
[2C]
09624-80110
SHIM, PLUNGER SPRI
T1.4
22182-17013 TOYOTA
092
[2C]
09624-80130
SHIM, PLUNGER SPRI
T1.7
092
[2C]
09624-80140
SHIM, PLUNGER SPRI
T1.9
092
[2C]
09624-80150
SHIM, PLUNGER SPRI
T2.1
092
[2C]
09624-80220
SHIM, PLUNGER SPRI
T1.6
092
[2C]
09624-80230
SHIM, PLUNGER SPRI
T0.2
092
[2C]
09624-80240
SHIM, PLUNGER SPRI
T0.3
092
[2C]
09624-80250
SHIM, PLUNGER SPRI
T0.4
092
[2C]
09624-80260
SHIM, PLUNGER SPRI
T0.6
092
[2C]
09624-80270
SHIM, PLUNGER SPRI
T0.7
093
[1C]
09626-60100
WASHER, GOVERNOR G
T1.05
22713-54010 TOYOTA
093
[1C]
09626-60110
WASHER, GOVERNOR G
T1.25
22714-54010 TOYOTA
093
[1C]
09626-60120
WASHER, GOVERNOR G
T1.45
22715-54010 TOYOTA
093
[1C]
09626-60130
WASHER, GOVERNOR G
T1.65
22716-54010 TOYOTA
093
[1C]
09626-60140
WASHER, GOVERNOR G
T1.85
22717-54010 TOYOTA
093
[1C]
09626-60150
WASHER, GOVERNOR G
T1.55
093
[1C]
09626-60160
WASHER, GOVERNOR G
T1.75
093
[1C]
09626-60170
WASHER, GOVERNOR G
T2.05
093
[1C]
09626-60270
WASHER, GOVERNOR G
T1.3
093
[1C]
09626-60280
WASHER, GOVERNOR G
T1.4
093
[1C]
09626-60290
WASHER, GOVERNOR G
T1.5
093
[1C]
09626-60300
WASHER, GOVERNOR G
T1.6
093
[1C]
09626-60310
WASHER, GOVERNOR G
T1.15
093
[1C]
09626-60320
WASHER, GOVERNOR G
T1.2
093
[1C]
09626-60330
WASHER, GOVERNOR G
T1.7
093
[1C]
09626-60340
WASHER, GOVERNOR G
T1.8
094
[1C]
09625-60400
PLUG, GOVERNOR SLE
L3.0
22787-64641 TOYOTA
094
[1C]
09625-60410
PLUG, GOVERNOR SLE
L3.1
22787-64642 TOYOTA
094
[1C]
09625-60420
PLUG, GOVERNOR SLE
L3.2
22787-64643 TOYOTA
094
[1C]
09625-60430
PLUG, GOVERNOR SLE
L3.3
22787-54026 TOYOTA
094
[1C]
09625-60440
PLUG, GOVERNOR SLE
L3.4
22787-54027 TOYOTA
094
[1C]
09625-60450
PLUG, GOVERNOR SLE
L3.5
22787-54028 TOYOTA
094
[1C]
09625-60460
PLUG, GOVERNOR SLE
L3.6
22787-54029 TOYOTA
094
[1C]
09625-60470
PLUG, GOVERNOR SLE
L3.7
22787-54030 TOYOTA
094
[1C]
09625-60480
PLUG, GOVERNOR SLE
L3.8
22787-54031 TOYOTA
094
[1C]
09625-60490
PLUG, GOVERNOR SLE
L3.9
22787-54032 TOYOTA
094
[1C]
09625-60500
PLUG, GOVERNOR SLE
L4.0
22787-54033 TOYOTA
094
[1C]
09625-60510
PLUG, GOVERNOR SLE
L4.1
22787-64640 TOYOTA
094
[1C]
09625-60520
PLUG, GOVERNOR SLE
L4.2
22787-64680 TOYOTA
095
[01]
09621-40190
WASHER, TIMER SENS
22625-17540 TOYOTA
096
[01]
09644-80300
COLLAR, SMOKE SET
22749-56350 TOYOTA
097
[1C]
09640-60020
SHIM, PLUNGER ADJU
T1.9
22179-54010 TOYOTA
097
[1C]
09640-60750
SHIM, PLUNGER ADJU
T2.23
22179-17069 TOYOTA
097
[1C]
09640-60910
SHIM, PLUNGER ADJU
T2.55
22179-17146 TOYOTA
097
[1C]
09640-60510
SHIM, PLUNGER ADJU
T2.88
22179-17049 TOYOTA
097
[1C]
09640-60580
SHIM, PLUNGER ADJU
T3.2
22179-17055 TOYOTA
098
[01]
94905-50300
NUT, CAP
M12
90099-05161 TOYOTA
106
[01]
09647-10401
BRACKET SUB-ASSY,
22601-17140 TOYOTA
107
[01]
09604-90190
O-RING
ID14.8
22193-64750 TOYOTA
108
[01]
09653-00071
FILTER, SUB-ASSY
22602-56350 TOYOTA
109
[01]
09606-40110
WASHER
T0.2
22689-56350 TOYOTA
112
[01]
94905-61680
NUT
M6,L6.5
90179-06009 TOYOTA
113
[01]
09620-81370
SPRING, TIMER, OUT
K1.7
22615-17030 TOYOTA
125
[01]
09646-80180
CAP RUBBER
22777-54291 TOYOTA
135
[01]
09604-90460
O-RING
ID 6.5
22193-5B320 TOYOTA
136
[01]
09653-00111
FILTER, SUB-ASSY
22602-5B320 TOYOTA

Include in ##:

19600-06240 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19600-06240
22100-17A4
PUMP ASSY, INJECTI
1960006240
22100-17A40
TOYOTA
PUMP ASSY, INJECTI




Have questions with 19600-06240?





Group cross 19600-06240

Back to top
