19600-05600 PUMP ASSY, INJECTI Denso Cross


Rating:
8
Buy PUMP ASSY, INJECTI 19600-05600 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
agricultural machine E4DG-TD
Engine
E4DG-TD
Serial start-end
0601-
Info
Injector Nozzle
093500-7940
Injector nozzle: 0935007940

KIT List:

Part name
Kit1
Kit2
Pump assy, injecti
0960100620

Components :

00.001
PUMP ASSY, INJECTI
19600-05600 ISEKI
-0606
00.001
PUMP ASSY, INJECTI
19600-05600 ISEKI
0606-
01.002
RING SUB-ASSY, ROL
09618-00390 ISEKI
01.003
COMPENSATOR SUB-AS
09649-01810 ISEKI
02.004
COVER SUB-ASSY, GO
09644-01890 ISEKI

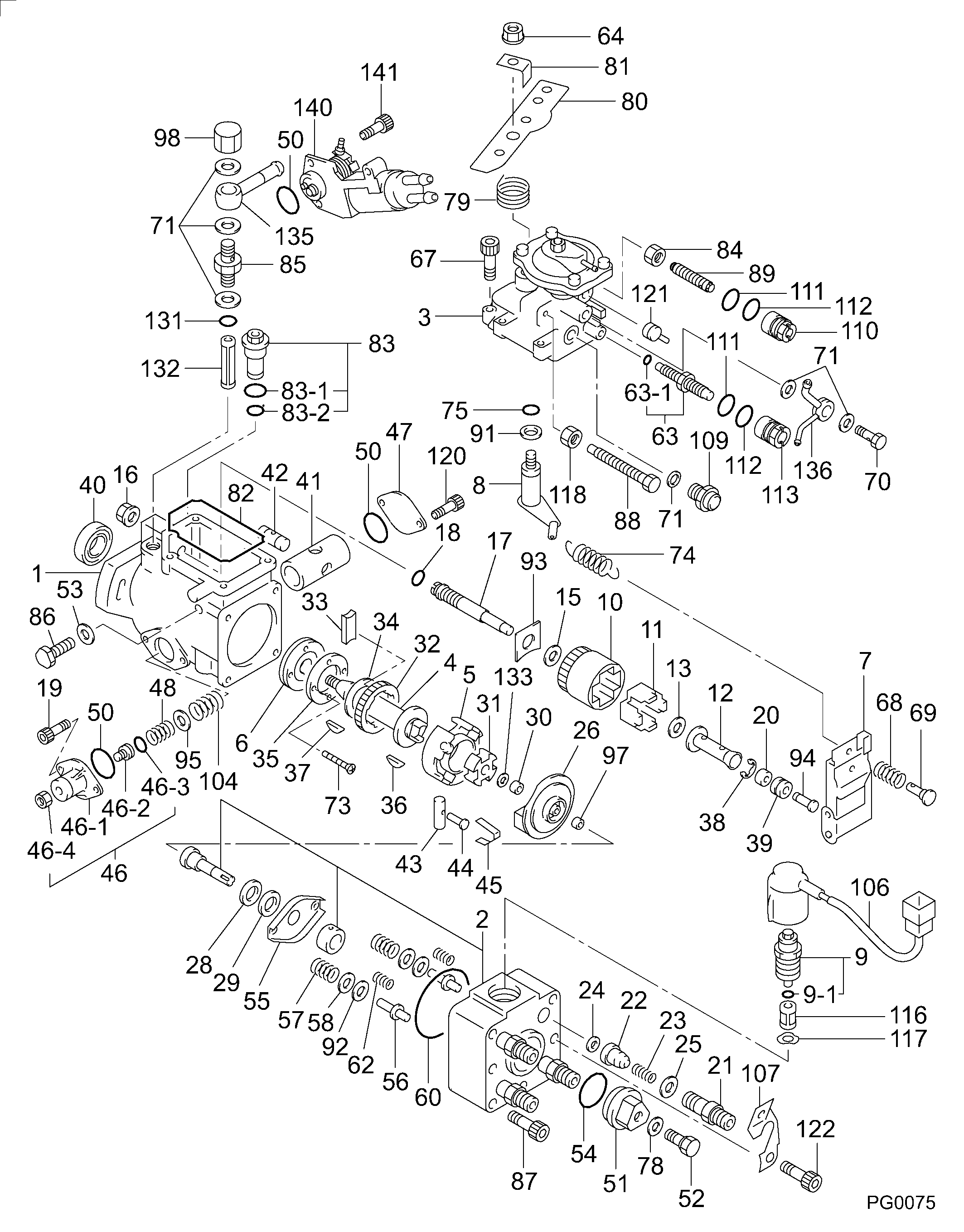

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-05601
PUMP ASSY, INJECTI
-0606
000
[01]
19600-05602
PUMP ASSY, INJECTI
0606-
001
[01]
09611-01420
HOUSING SUB-ASSY,
002
[01]
09640-01240
HEAD SUB-ASSY, DIS
003
[01]
09649-01810
COMPENSATOR SUB-AS
004
[01]
09612-10330
SHAFT, DRIVE
005
[01]
09618-00390
RING SUB-ASSY, ROL
006
[01]
09614-00030
PUMP SUB-ASSY, FUE
007
[01]
09627-02230
GOVERNOR ASSY, TOR
008
[1C]
09645-00480
SHAFT SUB-ASSY, GO
MARK31
008
[1C]
09645-00700
SHAFT SUB-ASSY, GO
MARK65
009
[01]
09603-00520
SOLENOID ASSY, FUE
009-001
[01]
09604-90350
O-RING
ID14.4
010
[01]
09626-00050
HOLDER SUB-ASSY, F
011
[04]
09626-30050
FLYWEIGHT, DISTRIB
CHROMIUM-PLATED
012
[01]
09625-20450
SLEEVE, GOVERNOR
013
[01]
09626-50030
WASHER, FLYWEIGHT
ROUND TYPE
015
[1C]
09626-50020
WASHER, FLYWEIGHT
T1.30
015
[1C]
09626-50050
WASHER, FLYWEIGHT
T1.32
015
[1C]
09626-50060
WASHER, FLYWEIGHT
T1.28
016
[01]
09625-40050
NUT, GOVERNOR SHAF
M10,L SCREW
017
[01]
09625-10020
SHAFT, GOVERNOR MA
W/O LST
018
[01]
94914-02930
O-RING
ID 8
020
[01]
09625-50020
RING, GOVERNOR SLE
021
[04]
09642-50190
HOLDER, DELIVERY V
022
[04]
09642-00960
VALVE SUB-ASSY, DI
023
[04]
09642-70050
SPRING, DELIVERY V
024
[04]
09642-60070
GASKET, DELIVERY V
025
[04]
09642-80010
SEAT, DELIVERY VAL
026
[01]
09623-00370
CAMPLATE SUB-ASSY,
028
[01]
09624-50020
PLATE, PLUNGER, LW
029
[01]
09624-40040
PLATE, PLUNGER, UP
030
[01]
09622-50010
SPACER, COUPLING
031
[01]
09622-20070
COUPLING
032
[01]
09612-40030
GEAR, GOVERNOR DRI
033
[02]
09612-60020
JOINT, RUBBER
034
[01]
09612-50010
WASHER, DRIVE SHAF
035
[01]
09614-70040
COVER, FEED PUMP
036
[01]
94913-00260
KEY, WOODRUFF
T3.980
037
[1C]
94913-00300
KEY, WOODRUFF
T4.023
037
[1C]
94913-00310
KEY, WOODRUFF
T4.018
037
[1C]
94913-00320
KEY, WOODRUFF
T4.013
037
[1C]
94913-00330
KEY, WOODRUFF
T4.008
037
[1C]
94913-00340
KEY, WOODRUFF
T4.003
037
[1C]
94913-00350
KEY, WOODRUFF
T3.998
037
[1C]
94913-00360
KEY, WOODRUFF
T3.993
037
[1C]
94913-00370
KEY, WOODRUFF
T3.988
038
[01]
90577-02000
E-RING
D2
039
[01]
94910-02860
BEARING, BALL
OD8
040
[01]
09603-90040
SEAL, 0IL
D30,T6
041
[01]
09619-01650
PISTON ASSY, TIMER
042
[01]
09621-30020
SUB-PISTON, TIMER
043
[01]
09620-50060
PIN, TIMER SLIDE
044
[01]
09621-60120
STOPPER, TIMER SLI
L16.4
045
[01]
09621-10080
CLIP, TIMER
L/ DITCH
046
[01]
09621-00870
COVER SUB-ASSY, TI
TIMER COVER
046-001
[01]
09621-80870
COVER, TIMER
046-002
[01]
09621-60110
STOPPER, TIMER SLI
046-003
[01]
09604-90290
O-RING
ID 8.8
046-004
[01]
94905-05010
NUT, HEXAGON
M10,L4
047
[01]
09621-81030
COVER, TIMER
048
[1C]
09620-81491
SPRING, TIMER, OUT
K0.2,PINK
048
[1C]
09620-81501
SPRING, TIMER, OUT
K0.22,BLUE
048
[1C]
09620-81850
SPRING, TIMER, OUT
K0.24,YELLOW
048
[1C]
09620-82090
SPRING, TIMER, OUT
K0.26,WHITE
048
[1C]
09620-82700
SPRING, TIMER, OUT
K0.28
050
[03]
09604-90400
O-RING
ID27.5
051
[01]
09641-70040
PLUG, DISTRIBUTIVE
052
[01]
09641-80060
BOLT, DISTRIBUTIVE
053
[02]
09642-60130
GASKET, DELIVERY V
054
[01]
09604-90510
O-RING
ID30
055
[01]
09624-70030
SHEET, PLUNGER SPR
056
[02]
09623-70020
GUIDE SUB-ASSY, PL
057
[02]
09623-60110
SPRING, PLUNGER
058
[02]
09624-60030
SHEET, PLUNGER SPR
060
[01]
94914-02980
O-RING
ID60
062
[02]
09627-90010
SPRING, LEVER SUPP
K1.03
063
[01]
09648-00040
SMOKE SET SUB-ASSY
063-001
[01]
09604-90470
O-RING
ID 7.5
064
[01]
94905-61680
NUT
M6,L6.5
067
[04]
09644-90020
BOLT, SOCKET
M6,L35
068
[01]
09628-90380
SPRING, GOVERNOR I
L7.3
069
[01]
09626-70030
SHEET, GOVERNOR SP
070
[01]
09602-00180
SCREW SUB-ASSY, OV
W/FILTER
071
[06]
09024-10010
WASHER, AIR BLEEDE
T1.6ID12
073
[02]
94900-20420
SCREW, COUNTERSUNK
M4,L28
074
[01]
09626-10210
SPRING, SPEED CONT
075
[01]
09604-90300
O-RING
ID 6.5
078
[01]
09642-60060
GASKET, DELIVERY V
FOR HEAD PLUG
079
[01]
09644-40192
SPRING, RETURN
K0.44
080
[1C]
09643-66991
LEVER, ADJUSTING
MARK699
080
[1C]
09643-67001
LEVER, ADJUSTING
MARK700
080
[1C]
09643-67011
LEVER, ADJUSTING
MARK701
081
[01]
09644-50011
GUIDE, RETURN SPRI
MARK 1
082
[01]
09644-60100
GASKET, GOVERNOR C
083
[01]
09616-00270
VALVE SUB-ASSY, RE
083-001
[01]
09604-90180
O-RING
ID10
083-002
[01]
09604-90500
O-RING
ID 7.5
084
[01]
09634-20010
NUT, LOCK
M6,L5
085
[01]
94918-00770
SCREW, HOLLOW
M12,L43.5
086
[02]
09626-90020
BOLT, GOVERNOR LIN
M8,L19
087
[05]
09644-90070
BOLT, SOCKET
M6,L45
088
[01]
94904-50210
BOLT, HEXAGON, W/
M6,L62
089
[01]
09266-40410
SCREW, LEVER STOP
091
[01]
09627-30140
WASHER, GOVERNOR T
T0.5
092
[2C]
09624-80010
SHIM, PLUNGER SPRI
T0.5
092
[2C]
09624-80020
SHIM, PLUNGER SPRI
T0.8
092
[2C]
09624-80030
SHIM, PLUNGER SPRI
T1.0
092
[2C]
09624-80040
SHIM, PLUNGER SPRI
T1.2
092
[2C]
09624-80050
SHIM, PLUNGER SPRI
T1.5
092
[2C]
09624-80060
SHIM, PLUNGER SPRI
T1.8
092
[2C]
09624-80070
SHIM, PLUNGER SPRI
T2.0
092
[2C]
09624-80080
SHIM, PLUNGER SPRI
T0.9
092
[2C]
09624-80090
SHIM, PLUNGER SPRI
T1.1
092
[2C]
09624-80100
SHIM, PLUNGER SPRI
T1.3
092
[2C]
09624-80110
SHIM, PLUNGER SPRI
T1.4
092
[2C]
09624-80130
SHIM, PLUNGER SPRI
T1.7
092
[2C]
09624-80140
SHIM, PLUNGER SPRI
T1.9
092
[2C]
09624-80150
SHIM, PLUNGER SPRI
T2.1
092
[2C]
09624-80170
SHIM, PLUNGER SPRI
T0.85
092
[2C]
09624-80180
SHIM, PLUNGER SPRI
T0.95
092
[2C]
09624-80190
SHIM, PLUNGER SPRI
T1.05
092
[2C]
09624-80200
SHIM, PLUNGER SPRI
T1.15
092
[2C]
09624-80210
SHIM, PLUNGER SPRI
T1.25
092
[2C]
09624-80220
SHIM, PLUNGER SPRI
T1.6
092
[2C]
09624-80230
SHIM, PLUNGER SPRI
T0.2
092
[2C]
09624-80240
SHIM, PLUNGER SPRI
T0.3
092
[2C]
09624-80250
SHIM, PLUNGER SPRI
T0.4
092
[2C]
09624-80260
SHIM, PLUNGER SPRI
T0.6
092
[2C]
09624-80270
SHIM, PLUNGER SPRI
T0.7
093
[1C]
09626-60100
WASHER, GOVERNOR G
T1.05
093
[1C]
09626-60110
WASHER, GOVERNOR G
T1.25
093
[1C]
09626-60120
WASHER, GOVERNOR G
T1.45
093
[1C]
09626-60130
WASHER, GOVERNOR G
T1.65
093
[1C]
09626-60140
WASHER, GOVERNOR G
T1.85
093
[1C]
09626-60150
WASHER, GOVERNOR G
T1.55
093
[1C]
09626-60160
WASHER, GOVERNOR G
T1.75
093
[1C]
09626-60170
WASHER, GOVERNOR G
T2.05
093
[1C]
09626-60270
WASHER, GOVERNOR G
T1.3
093
[1C]
09626-60280
WASHER, GOVERNOR G
T1.4
093
[1C]
09626-60290
WASHER, GOVERNOR G
T1.5
093
[1C]
09626-60300
WASHER, GOVERNOR G
T1.6
093
[1C]
09626-60310
WASHER, GOVERNOR G
T1.15
093
[1C]
09626-60320
WASHER, GOVERNOR G
T1.2
093
[1C]
09626-60330
WASHER, GOVERNOR G
T1.7
093
[1C]
09626-60340
WASHER, GOVERNOR G
T1.8
094
[1C]
09625-60991
PLUG, GOVERNOR SLE
T2.1
094
[1C]
09625-61001
PLUG, GOVERNOR SLE
T2.2
094
[1C]
09625-61011
PLUG, GOVERNOR SLE
T2.3
094
[1C]
09625-61021
PLUG, GOVERNOR SLE
T2.4
094
[1C]
09625-61031
PLUG, GOVERNOR SLE
T2.5
094
[1C]
09625-61041
PLUG, GOVERNOR SLE
T2.6
094
[1C]
09625-61051
PLUG, GOVERNOR SLE
T2.7
094
[1C]
09625-61061
PLUG, GOVERNOR SLE
T2.8
094
[1C]
09625-61071
PLUG, GOVERNOR SLE
T2.9
094
[1C]
09625-61081
PLUG, GOVERNOR SLE
T3.0
094
[1C]
09625-61091
PLUG, GOVERNOR SLE
T3.1
094
[1C]
09625-61101
PLUG, GOVERNOR SLE
T3.2
094
[1C]
09625-61111
PLUG, GOVERNOR SLE
T3.3
094
[1C]
09625-61121
PLUG, GOVERNOR SLE
T3.4
094
[1C]
09625-61131
PLUG, GOVERNOR SLE
T3.5
094
[1C]
09625-61141
PLUG, GOVERNOR SLE
T3.6
094
[1C]
09625-61151
PLUG, GOVERNOR SLE
T3.7
094
[1C]
09625-61161
PLUG, GOVERNOR SLE
T3.8
094
[1C]
09625-61171
PLUG, GOVERNOR SLE
T3.9
094
[1C]
09625-61181
PLUG, GOVERNOR SLE
T4.0
094
[1C]
09625-61191
PLUG, GOVERNOR SLE
T4.1
094
[1C]
09625-61201
PLUG, GOVERNOR SLE
T4.2
094
[1C]
09625-61211
PLUG, GOVERNOR SLE
T4.3
094
[1C]
09625-61221
PLUG, GOVERNOR SLE
T4.5
094
[1C]
09625-61231
PLUG, GOVERNOR SLE
T4.6
094
[1C]
09625-61241
PLUG, GOVERNOR SLE
T4.7
094
[1C]
09625-61251
PLUG, GOVERNOR SLE
T4.8
094
[1C]
09625-61261
PLUG, GOVERNOR SLE
T4.9
094
[1C]
09625-61271
PLUG, GOVERNOR SLE
T5.0
094
[1C]
09625-61281
PLUG, GOVERNOR SLE
T5.1
094
[1C]
09625-61291
PLUG, GOVERNOR SLE
T5.2
094
[1C]
09625-61301
PLUG, GOVERNOR SLE
T5.3
095
[01]
09621-40190
WASHER, TIMER SENS
T1.5
097
[1C]
09640-60020
SHIM, PLUNGER ADJU
T1.9
097
[1C]
09640-60750
SHIM, PLUNGER ADJU
T2.23
097
[1C]
09640-60910
SHIM, PLUNGER ADJU
T2.55
097
[1C]
09640-60510
SHIM, PLUNGER ADJU
T2.88
097
[1C]
09640-60580
SHIM, PLUNGER ADJU
T3.2
098
[01]
94905-50300
NUT, CAP
M12L16.5
104
[01]
09620-81370
SPRING, TIMER, OUT
K1.7
106
[01]
09604-50401
WIRE SUB-ASSY
107
[01]
09602-90930
CLIP, CONNECTOR SU
109
[01]
09616-10160
BODY, REGULATE VAL
110
[01]
09644-80490
COLLAR, SMOKE SET
111
[02]
94914-04060
O-RING
ID10.8
112
[02]
94907-21500
RING, SNAP
113
[01]
09644-80500
COLLAR, SMOKE SET
116
[01]
09653-00071
FILTER, SUB-ASSY
117
[01]
09606-40110
WASHER
T0.2
118
[01]
90166-06051
NUT, HEXAGON
M6,L5
120
[04]
09644-90280
BOLT, SOCKET
M6,L16
121
[01]
09646-80300
CAP RUBBER
122
[01]
09644-90140
BOLT, SOCKET
M8,L16
131
[01]
09604-90460
O-RING
ID 6.5
132
[01]
09653-00111
FILTER, SUB-ASSY
133
[01]
09606-40220
WASHER
T1.8
135
[01]
09221-80460
NIPPLE SUB-ASSY, S
136
[01]
09221-80260
NIPPLE SUB-ASSY, S
140
[01]
09621-01450
COVER SUB-ASSY, TI
141
[02]
09644-90100
BOLT, SOCKET
M6,L10

Cross reference number



Part num
Firm num
Firm
Name
19600-05600

PUMP ASSY, INJECTI




Have questions with 19600-05600?





Group cross 19600-05600

Back to top
