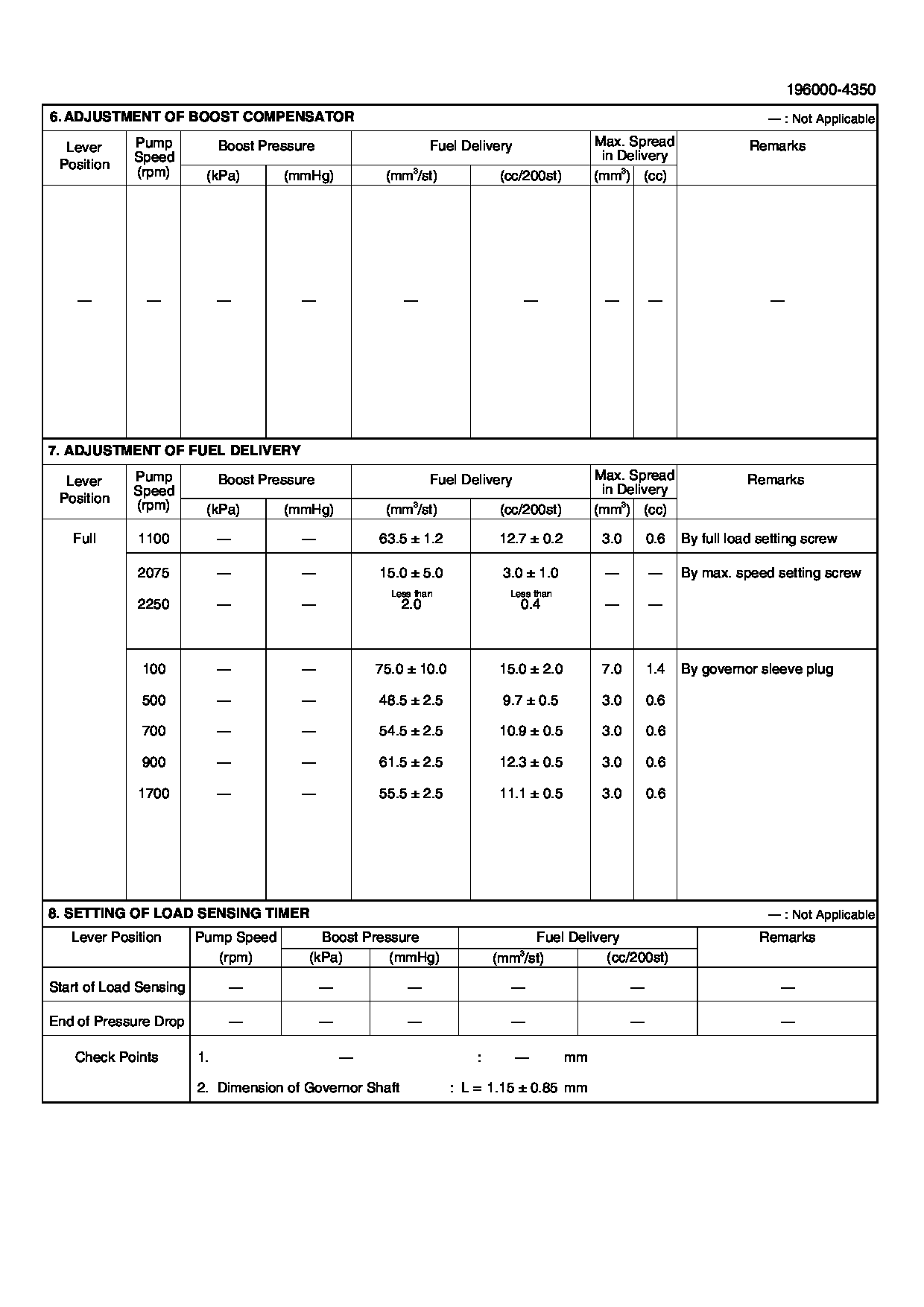

19600-04350 PUMP ASSY, INJECTI Calibration Data


Rating:
33
Buy PUMP ASSY, INJECTI 19600-04350 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
DYNA 14B
Engine
14B
Serial start-end
0010-
Info
Injector Nozzle
093500-4060
Manufacture:
22100-5C641 TOYOTA
Dim 1
3.2-3.4
Dim 2
5.8-6.0
Dim 3
0.2-0.4
Dim 4
Dim 5
Dim 6
Information
Injector nozzle: 0935004060

KIT List:

Part name
Kit1
Kit2
Pump assy, injecti

Components :

00.001
PUMP ASSY, INJECTI
01.002
RING SUB-ASSY, ROL
01.003
COVER SUB-ASSY, TI
ACSD
01.004
SHIM, PLUNGER ADJU
DUMMY
01.004
SHIM, PLUNGER ADJU
T1.9(*1)

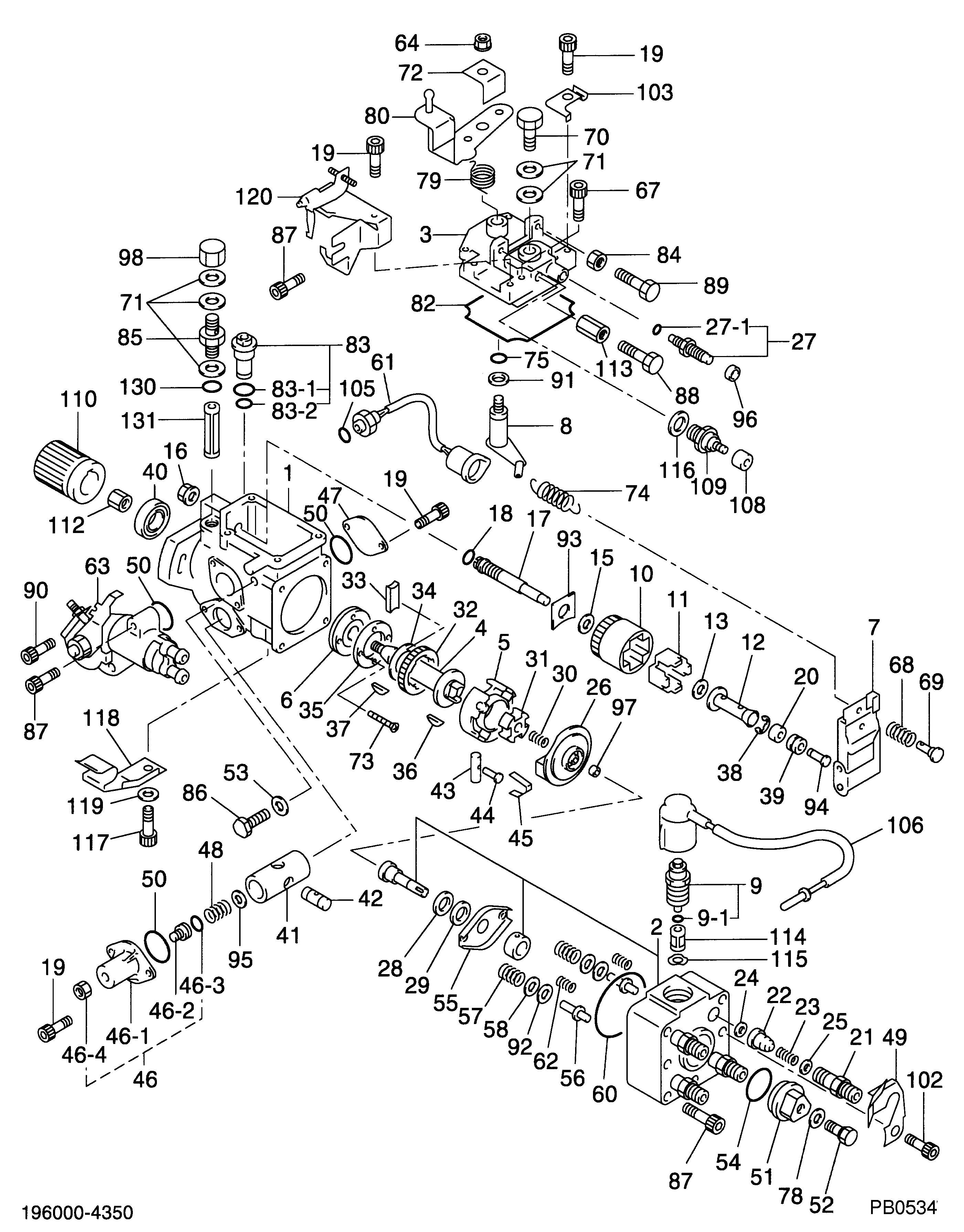

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-04350
PUMP ASSY, INJECTI
22100-5C641 TOYOTA
001
[01]
HOUSING SUB-ASSY,
22101-64260 TOYOTA
002
[01]
HEAD SUB-ASSY, DIS
22140-56350 TOYOTA
003
[01]
COVER SUB-ASSY, GO
22703-6A210 TOYOTA
004
[01]
SHAFT, DRIVE
22170-96300 TOYOTA
005
[01]
RING SUB-ASSY, ROL
SEE COMPONENT
22108-56350 TOYOTA
006
[01]
PUMP SUB-ASSY, FUE
22505-54010 TOYOTA
007
[01]
GOVERNOR ASSY, TOR
REVERSE CONTROL
22350-58541 TOYOTA
008
[1C]
SHAFT SUB-ASSY, GO
MARK 8
22740-21910 TOYOTA
008
[1C]
SHAFT SUB-ASSY, GO
MARK 28
22740-58480 TOYOTA
009
[01]
SOLENOID ASSY, FUE
FCV,12V
22390-6A511 TOYOTA
009-001
[01]
O-RING
ID14.4
010
[01]
HOLDER SUB-ASSY, F
22741-54020 TOYOTA
011
[04]
FLYWEIGHT, DISTRIB
CHROMIUM-PLATED
22745-5C090 TOYOTA
012
[01]
SLEEVE, GOVERNOR
22316-55030 TOYOTA
013
[01]
WASHER, FLYWEIGHT
ROUND TYPE
22753-54020 TOYOTA
015
[01]
WASHER, FLYWEIGHT
T1.30
22753-54010 TOYOTA
016
[01]
NUT, GOVERNOR SHAF
M10,L SCREW
22722-54470 TOYOTA
017
[01]
SHAFT, GOVERNOR MA
22384-54010 TOYOTA
018
[01]
O-RING
ID 8
90099-14049 TOYOTA
019
[07]
BOLT, SOCKET
M6,L16
22395-56351 TOYOTA
020
[01]
RING, GOVERNOR SLE
22147-54290 TOYOTA
021
[04]
HOLDER, DELIVERY V
22131-54010 TOYOTA
022
[04]
VALVE SUB-ASSY, DI
22104-56330 TOYOTA
023
[04]
SPRING, DELIVERY V
22148-56350 TOYOTA
024
[04]
GASKET, DELIVERY V
22149-56351 TOYOTA
025
[04]
SEAT, SNUBBER VALV
22565-56350 TOYOTA
026
[01]
CAMPLATE SUB-ASSY,
22130-56350 TOYOTA
027
[01]
SMOKE SET SUB-ASSY
027-001
[01]
O-RING
ID 7.5
22193-54771 TOYOTA
028
[01]
PLATE, PLUNGER, LW
22163-54010 TOYOTA
029
[01]
PLATE, PLUNGER, UP
22162-54010 TOYOTA
030
[01]
SPRING, COUPLING
22659-58650 TOYOTA
031
[01]
COUPLING
22632-56350 TOYOTA
032
[01]
GEAR, GOVERNOR DRI
22341-54010 TOYOTA
033
[02]
JOINT, RUBBER
22169-54180 TOYOTA
034
[01]
WASHER, DRIVE SHAF
22161-54010 TOYOTA
035
[01]
COVER, FEED PUMP
22511-58650 TOYOTA
036
[01]
KEY, WOODRUFF
T3.980
90099-13017 TOYOTA
037
[01]
KEY, WOODRUFF
T4.023
90099-13018 TOYOTA
038
[01]
E-RING
D2
90096-90024 TOYOTA
039
[01]
BEARING, BALL
OD8
90099-10148 TOYOTA
040
[01]
SEAL, 0IL
22544-64740 TOYOTA
041
[01]
PISTON, TIMER
22654-56340 TOYOTA
042
[01]
SUB-PISTON, TIMER
22657-54010 TOYOTA
043
[01]
PIN, TIMER SLIDE
22655-54010 TOYOTA
044
[01]
STOPPER, TIMER SLI
L16.4
22658-17840 TOYOTA
045
[01]
CLIP, TIMER
L/ DITCH
22656-17840 TOYOTA
046
[01]
COVER SUB-ASSY, TI
TIMER COVER
22790-56351 TOYOTA
046-001
[01]
COVER, TIMER
22612-5C300 TOYOTA
046-002
[01]
STOPPER, TIMER SLI
22658-54450 TOYOTA
046-003
[01]
O-RING
ID14.8
22193-64750 TOYOTA
046-004
[01]
NUT, HEXAGON
M10,L4
90099-05225 TOYOTA
047
[01]
COVER, TIMER
22612-56350 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K2.1
22615-5C301 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K2.3
22615-5C302 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K2.5
22615-58541 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K2.7
22615-58542 TOYOTA
049
[01]
CLIP, CONNECTOR SU
22172-56350 TOYOTA
050
[03]
O-RING
ID27.5
22193-17840 TOYOTA
051
[01]
PLUG, DISTRIBUTIVE
22176-54020 TOYOTA
052
[01]
BOLT, DISTRIBUTIVE
22128-56330 TOYOTA
053
[02]
GASKET, DELIVERY V
22149-54771 TOYOTA
054
[01]
O-RING
ID30
22193-54772 TOYOTA
055
[01]
SHEET, PLUNGER SPR
22145-56350 TOYOTA
056
[02]
GUIDE SUB-ASSY, PL
22192-56350 TOYOTA
057
[02]
SPRING, PLUNGER
22144-56350 TOYOTA
058
[02]
SHEET, PLUNGER SPR
22143-56350 TOYOTA
060
[01]
O-RING
ID60
90099-14053 TOYOTA
061
[01]
PICKUP ASSY, TACHO
83180-37010 TOYOTA
062
[02]
SPRING, LEVER SUPP
K1.03
22314-54010 TOYOTA
063
[01]
COVER SUB-ASSY, TI
22790-5C641 TOYOTA
064
[01]
NUT
M6,L6.5
90179-06009 TOYOTA
067
[04]
BOLT, SOCKET
M6,L35
22395-54010 TOYOTA
068
[01]
SPRING, GOVERNOR I
22317-56350 TOYOTA
069
[01]
SHEET, GOVERNOR SP
22369-54010 TOYOTA
070
[01]
SCREW SUB-ASSY, OV
W/FILTER
22160-56350 TOYOTA
071
[06]
WASHER, AIR BLEEDE
T1.6
22119-77020 TOYOTA
072
[01]
GUIDE, RETURN SPRI
MARK 1
22728-54010 TOYOTA
073
[02]
SCREW, COUNTERSUNK
M4,L28
90099-00723 TOYOTA
074
[01]
SPRING, SPEED CONT
22726-58470 TOYOTA
075
[01]
O-RING
ID 6.5
22193-54770 TOYOTA
078
[01]
GASKET, DELIVERY V
FOR HEAD PLUG
22149-56350 TOYOTA
079
[01]
SPRING, RETURN
22322-54020 TOYOTA
080
[1C]
LEVER SUB-ASSY, AD
MARK 247
22701-56350 TOYOTA
080
[1C]
LEVER SUB-ASSY, AD
MARK 383
22701-17010 TOYOTA
080
[1C]
LEVER SUB-ASSY, AD
MARK 384
22701-17011 TOYOTA
082
[01]
GASKET, GOVERNOR C
22774-54270 TOYOTA
083
[01]
VALVE SUB-ASSY, RE
22180-56351 TOYOTA
083-001
[01]
O-RING
ID10
22193-54561 TOYOTA
083-002
[01]
O-RING
ID 7.5
084
[01]
NUT, LOCK
M6,L5
22775-77121 TOYOTA
085
[01]
SCREW, HOLLOW
M12,L43.5
90099-18022 TOYOTA
086
[02]
BOLT, GOVERNOR LIN
M8,L19
22739-54020 TOYOTA
087
[05]
BOLT, SOCKET
M6,L45
22395-58200 TOYOTA
088
[01]
BOLT, HEXAGON, W/
M6,L32
90099-04576 TOYOTA
089
[01]
BOLT, HEXAGON, W/
M6,L40
90099-04946 TOYOTA
090
[02]
BOLT, SOCKET
M6,L10
22395-56352 TOYOTA
091
[01]
WASHER, GOVERNOR T
T0.5
22378-64010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.5
22182-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.8
22183-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.0
22184-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.2
22185-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.5
22186-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.8
22187-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T2.0
22188-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.9
22182-17010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.1
22182-17011 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.3
22182-17012 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.4
22182-17013 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.2
092
[2C]
SHIM, PLUNGER SPRI
T0.3
092
[2C]
SHIM, PLUNGER SPRI
T0.4
092
[2C]
SHIM, PLUNGER SPRI
T0.6
092
[2C]
SHIM, PLUNGER SPRI
T0.7
093
[1C]
WASHER, GOVERNOR G
T1.05
22713-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.25
22714-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.45
22715-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.65
22716-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.85
22717-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.55
093
[1C]
WASHER, GOVERNOR G
T1.75
093
[1C]
WASHER, GOVERNOR G
T2.05
093
[1C]
WASHER, GOVERNOR G
T1.3
093
[1C]
WASHER, GOVERNOR G
T1.4
093
[1C]
WASHER, GOVERNOR G
T1.5
093
[1C]
WASHER, GOVERNOR G
T1.6
093
[1C]
WASHER, GOVERNOR G
T1.15
093
[1C]
WASHER, GOVERNOR G
T1.2
093
[1C]
WASHER, GOVERNOR G
T1.7
093
[1C]
WASHER, GOVERNOR G
T1.8
094
[1C]
PLUG, GOVERNOR SLE
L3.0
22787-64641 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.1
22787-64642 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.2
22787-64643 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.3
22787-54026 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.4
22787-54027 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.5
22787-54028 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.6
22787-54029 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.7
22787-54030 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.8
22787-54031 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.9
22787-54032 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.0
22787-54033 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.1
22787-64640 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.2
22787-64680 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.3
22787-54034 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.4
22787-17140 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.5
22787-54035 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.6
22787-17141 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.7
22787-54036 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.8
22787-17142 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.9
22787-17143 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.0
22787-17144 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.1
22787-17145 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.2
22787-17146 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.3
22787-17147 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.4
22787-17148 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.5
22787-17149 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.6
22787-17150 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.7
22787-17151 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.8
22787-17152 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L5.9
22787-56350 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L6.0
22787-56351 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L6.1
22787-56352 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L6.2
22787-56353 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L6.3
22787-56354 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L6.4
22787-56355 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L6.5
22787-56356 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L6.6
22787-56357 TOYOTA
095
[01]
WASHER, TIMER SENS
T1.0
22625-54277 TOYOTA
096
[01]
COLLAR, SMOKE SET
097
[1C]
SHIM, PLUNGER ADJU
T1.9
22179-54010 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.2
22179-54013 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.4
22179-54015 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.7
22179-54018 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.9
22179-54020 TOYOTA
098
[01]
NUT, CAP
M12
90099-05161 TOYOTA
102
[01]
BOLT, SOCKET
M8,L16
22395-56350 TOYOTA
103
[01]
CLIP, CONNECTOR SU
22172-54264 TOYOTA
105
[01]
O-RING
ID14.8
22193-64750 TOYOTA
106
[01]
WIRE SUB-ASSY
22751-58880 TOYOTA
108
[01]
COLLAR, SMOKE SET
FOR D/P
22749-55050 TOYOTA
109
[01]
VALVE SUB-ASSY, RE
22180-58650 TOYOTA
110
[01]
SHAFT, SPLINE
22174-58270 TOYOTA
112
[01]
NUT, TIMER ROUND
22611-58200 TOYOTA
113
[01]
NUT, HEXAGON
M6
90099-05240 TOYOTA
114
[01]
FILTER, SUB-ASSY
22602-56350 TOYOTA
115
[01]
WASHER
T0.2
22689-56350 TOYOTA
116
[1C]
WASHER, AIR BLEEDE
T3.1
22119-6A210 TOYOTA
116
[1C]
WASHER, AIR BLEEDE
T3.7
22119-58770 TOYOTA
116
[1C]
WASHER, COPPER PLA
T1.0
90099-01533 TOYOTA
117
[01]
BOLT, SOCKET
M10,L14
22395-56290 TOYOTA
118
[01]
CLIP, CONNECTOR SU
22172-5C090 TOYOTA
119
[01]
WASHER, PLATE
FOR M10
90093-01003 TOYOTA
120
[01]
IDLE UP SUB-ASSY
22305-56350 TOYOTA
130
[01]
O-RING
ID 6.5
22193-5B320 TOYOTA
131
[01]
FILTER, SUB-ASSY
22602-5B320 TOYOTA

Include in ##:

19600-04350 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19600-04350
22100-5C64
PUMP ASSY, INJECTI
1960004350
22100-5C641
TOYOTA
PUMP ASSY, INJECTI

Test Calibration Data:

1960004350 22100-5C641




Have questions with 19600-04350?





Group cross 19600-04350

Back to top
