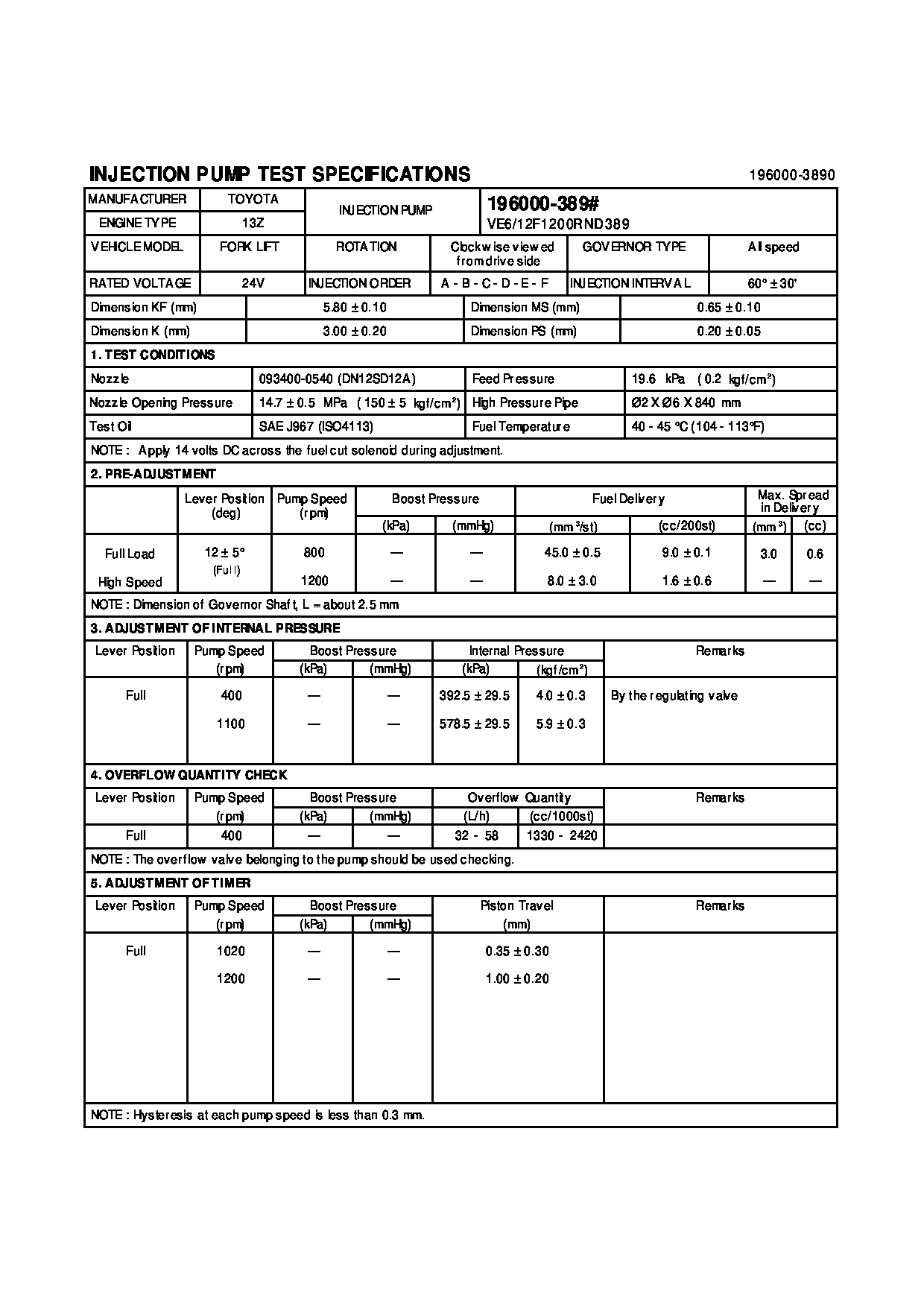

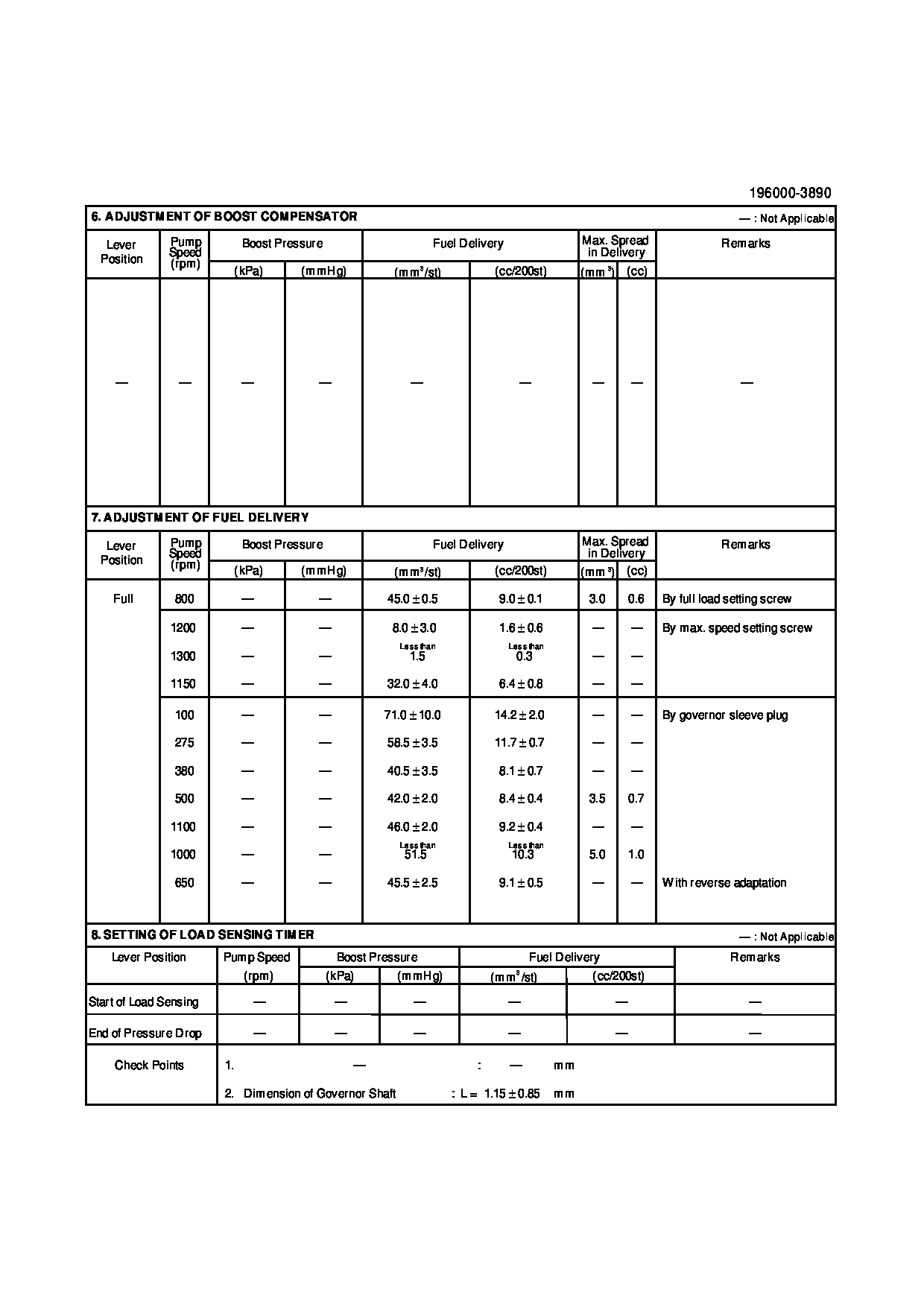

Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 13Z
Engine
13Z
Serial start-end
9909-
Info
Injector Nozzle
093500-6590
Manufacture:
22100-78771-71 TOYOTA
Dim 1
2.8-3.2
Dim 2
5.7-5.9
Dim 3
0.55-0.75
Dim 4
Dim 5
Dim 6
Information
Injector nozzle:
0935006590
KIT List:
Part name
Kit1
Kit2
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-03890
PUMP ASSY, INJECTI
22100-78771-71
TOYOTA
Include in ##:
19600-03890
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
19600-03890
22100-7877
PUMP ASSY, INJECTI
1960003890
22100-78771-71
TOYOTA
PUMP ASSY, INJECTI
