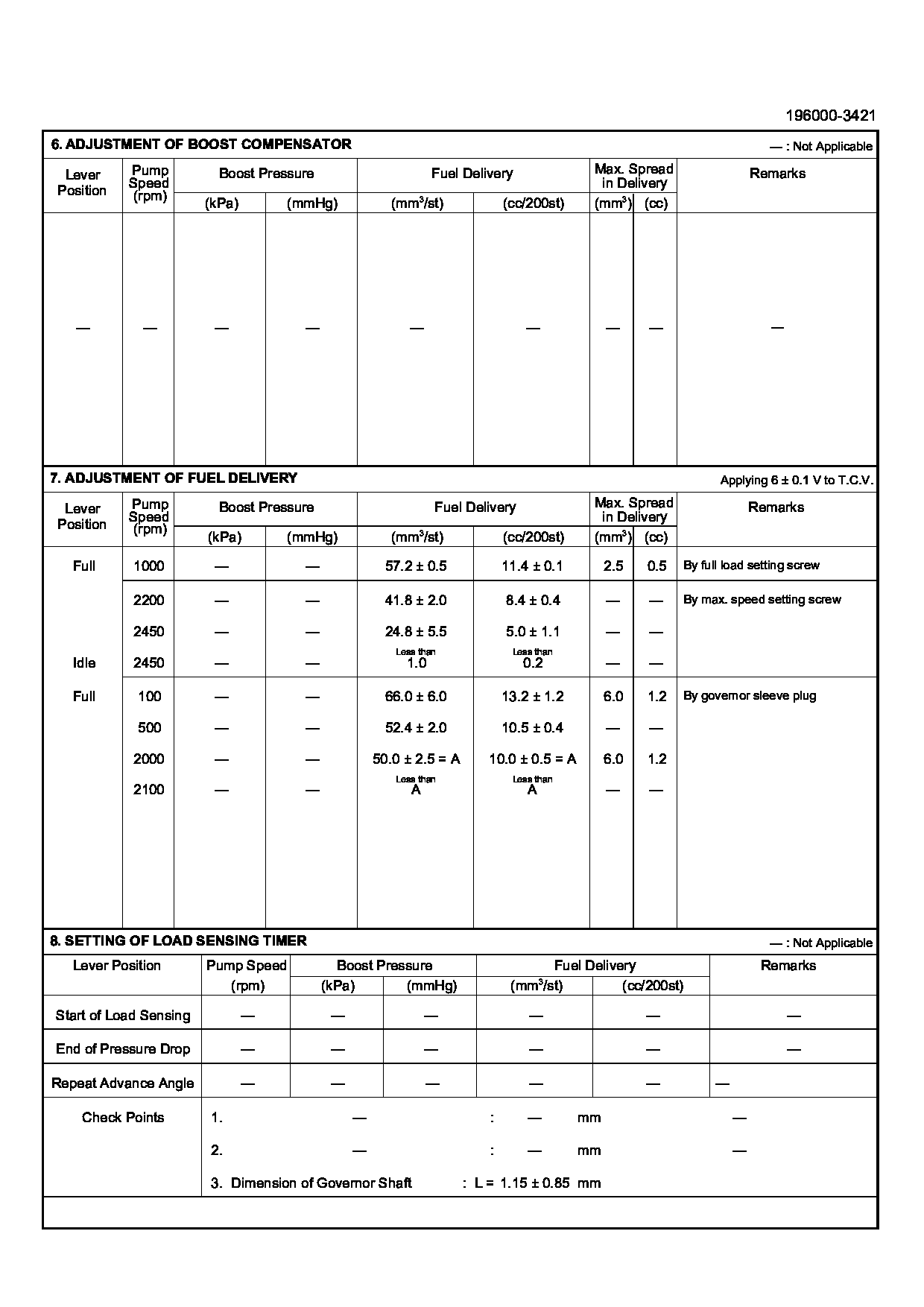

19600-03421 PUMP ASSY, INJECTI Calibration Data


Rating:
63
Buy PUMP ASSY, INJECTI 19600-03421 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
19600-03421 MITSUBISHI
01.002
RING SUB-ASSY, ROL
09618-00050 MITSUBISHI
01.003
COVER SUB-ASSY, TI
09621-01400 MITSUBISHI
ACSD
01.004
GOVERNOR ASSY, TOR
09627-01650 MITSUBISHI
01.005
SHIM, PLUNGER ADJU
09640-60020 MITSUBISHI
DUMMY
01.005
SHIM, PLUNGER ADJU
09640-60020 MITSUBISHI
T1.9(*1)

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-03421
PUMP ASSY, INJECTI
ME203788 MITSUBISHI
001
[01]
09611-01150
HOUSING SUB-ASSY,
002
[01]
09640-01811
HEAD SUB-ASSY, DIS
003
[01]
09644-01590
COVER SUB-ASSY, GO
004
[01]
09612-10150
SHAFT, DRIVE
005
[01]
09618-00050
RING SUB-ASSY, ROL
SEE COMPONENT
ME736310 MITSUBISHI
006
[01]
09614-00030
PUMP SUB-ASSY, FUE
ME736311 MITSUBISHI
007
[01]
09627-01650
GOVERNOR ASSY, TOR
STD-SP
008
[01]
09645-00060
SHAFT SUB-ASSY, GO
MARK 9
009
[01]
09601-00690
OVER-HAUL KIT, DIS
FCV KIT
009-001
[01]
09604-90350
O-RING
ID14.4
ME743582 MITSUBISHI
010
[01]
09626-00050
HOLDER SUB-ASSY, F
ME736316 MITSUBISHI
011
[04]
09626-30030
FLYWEIGHT, DISTRIB
ME736317 MITSUBISHI
012
[01]
09625-20230
SLEEVE, GOVERNOR
ME736318 MITSUBISHI
013
[01]
09626-50030
WASHER, FLYWEIGHT
ROUND TYPE
ME736319 MITSUBISHI
015
[01]
09626-50020
WASHER, FLYWEIGHT
T1.30
ME736320 MITSUBISHI
016
[01]
09625-40050
NUT, GOVERNOR SHAF
M10,L SCREW
ME736321 MITSUBISHI
017
[01]
09625-10020
SHAFT, GOVERNOR MA
ME736322 MITSUBISHI
018
[01]
94914-02930
O-RING
ID 8
ME736323 MITSUBISHI
019
[07]
09644-90110
BOLT, SOCKET
M6,L16
ME736324 MITSUBISHI
020
[01]
09625-50020
RING, GOVERNOR SLE
ME736325 MITSUBISHI
021
[04]
09643-00180
VALVE SUB-ASSY, SN
ME736827 MITSUBISHI
022
[04]
09642-00510
VALVE SUB-ASSY, DI
ME736327 MITSUBISHI
023
[04]
09642-70010
SPRING, DELIVERY V
ME736328 MITSUBISHI
024
[04]
09642-60070
GASKET, DELIVERY V
ME736329 MITSUBISHI
026
[01]
09623-00620
CAMPLATE SUB-ASSY,
028
[01]
09624-50020
PLATE, PLUNGER, LW
ME736331 MITSUBISHI
029
[01]
09624-40040
PLATE, PLUNGER, UP
ME736332 MITSUBISHI
030
[01]
09622-40040
SPRING, COUPLING
ME736333 MITSUBISHI
031
[01]
09622-20020
COUPLING
ME736334 MITSUBISHI
032
[01]
09612-40030
GEAR, GOVERNOR DRI
ME736335 MITSUBISHI
033
[02]
09612-60020
JOINT, RUBBER
ME736336 MITSUBISHI
034
[01]
09612-50010
WASHER, DRIVE SHAF
ME736337 MITSUBISHI
035
[01]
09614-70040
COVER, FEED PUMP
036
[01]
94913-00260
KEY, WOODRUFF
T3.980
ME736339 MITSUBISHI
037
[01]
94913-00300
KEY, WOODRUFF
T4.023
ME736340 MITSUBISHI
040
[01]
09603-90040
SEAL, 0IL
ME736342 MITSUBISHI
041
[01]
09619-01240
PISTON ASSY, TIMER
042
[01]
09621-30020
SUB-PISTON, TIMER
ME736344 MITSUBISHI
043
[01]
09620-50020
PIN, TIMER SLIDE
ME736345 MITSUBISHI
044
[01]
09621-60120
STOPPER, TIMER SLI
L16.4
ME736849 MITSUBISHI
045
[01]
09621-10080
CLIP, TIMER
L/ DITCH
ME736850 MITSUBISHI
046
[01]
09621-01280
COVER SUB-ASSY, TI
046-001
[01]
09619-80010
BODY, 2STAGETIMER
046-002
[01]
09621-80040
COVER, TIMER
046-003
[01]
09621-90050
SEAT, TIMER SPRING
046-004
[C]
09622-70010
WASHER, 2STAGETIME
T0.1
046-004
[C]
09622-70020
WASHER, 2STAGETIME
T0.2
046-004
[C]
09622-70030
WASHER, 2STAGETIME
T0.5
046-004
[C]
09622-70040
WASHER, 2STAGETIME
T1.0
046-005
[01]
09604-90400
O-RING
ID27.5
046-006
[02]
09644-90110
BOLT, SOCKET
ME736324 MITSUBISHI
046-007
[1C]
09622-80061
SPRING, 2STAGETIME
K0.08
046-007
[1C]
09622-80071
SPRING, 2STAGETIME
K0.09
046-007
[1C]
09622-80081
SPRING, 2STAGETIME
K0.10
046-007
[1C]
09622-80091
SPRING, 2STAGETIME
K0.11
046-007
[1C]
09622-80101
SPRING, 2STAGETIME
K0.12
046-008
[1C]
09620-81320
SPRING, TIMER, OUT
K0.16
046-008
[1C]
09620-81330
SPRING, TIMER, OUT
K0.17
ME736829 MITSUBISHI
046-008
[1C]
09620-81340
SPRING, TIMER, OUT
K0.18
046-008
[1C]
09620-81410
SPRING, TIMER, OUT
K0.15
ME736831 MITSUBISHI
046-008
[1C]
09620-81820
SPRING, TIMER, OUT
K0.14YELLOWGREEN
046-009
[C]
94901-35440
WASHER, PLATE, SK
T0.1
046-009
[C]
94901-35450
WASHER, PLATE, SK
T0.2
046-009
[C]
94901-35460
WASHER, PLATE, SK
T0.4
046-009
[C]
94901-35480
WASHER, PLATE, SK
T0.15
046-009
[C]
94901-35490
WASHER, PLATE, SK
T0.3
046-009
[C]
94901-39770
WASHER, PLATE, SK
T0.5
046-009
[C]
94901-39780
WASHER, PLATE, SK
T1.0
046-010
[01]
09606-30150
COLLAR
047
[01]
09621-80270
COVER, TIMER
ME736353 MITSUBISHI
049
[01]
09620-81370
SPRING, TIMER, OUT
K1.7
ME736358 MITSUBISHI
050
[03]
09604-90400
O-RING
ID27.5
051
[01]
09641-70040
PLUG, DISTRIBUTIVE
ME736360 MITSUBISHI
052
[01]
09641-80020
BOLT, DISTRIBUTIVE
M8,L19.7
ME736361 MITSUBISHI
053
[01]
09642-60030
GASKET, DELIVERY V
FOR HEAD PLUG
ME736362 MITSUBISHI
054
[01]
09604-90510
O-RING
ID30
055
[01]
09624-70010
SHEET, PLUNGER SPR
ME736364 MITSUBISHI
056
[02]
09623-70010
GUIDE SUB-ASSY, PL
ME736365 MITSUBISHI
057
[02]
09623-60040
SPRING, PLUNGER
K10
ME736366 MITSUBISHI
058
[02]
09624-60010
SHEET, PLUNGER SPR
ME736367 MITSUBISHI
060
[01]
94914-02980
O-RING
ID60
ME736368 MITSUBISHI
062
[02]
09627-90010
SPRING, LEVER SUPP
K1.03
ME736369 MITSUBISHI
063
[01]
09648-00010
SMOKE SET SUB-ASSY
ME736370 MITSUBISHI
063-001
[01]
09604-90470
O-RING
ID 7.5
064
[01]
90166-06051
NUT, HEXAGON
M6,L5
ME736372 MITSUBISHI
065
[01]
09628-90380
SPRING, GOVERNOR I
L7.3
ME736472 MITSUBISHI
066
[01]
09621-40180
WASHER, TIMER SENS
OUTER T0.5
ME736374 MITSUBISHI
067
[04]
09644-90020
BOLT, SOCKET
M6,L35
ME736373 MITSUBISHI
069
[01]
09626-70030
SHEET, GOVERNOR SP
ME736475 MITSUBISHI
070
[01]
09602-00030
SCREW SUB-ASSY, OV
W/FILTER
ME736376 MITSUBISHI
071
[05]
09024-10010
WASHER, AIR BLEEDE
T1.6
ME702102 MITSUBISHI
073
[02]
94900-20420
SCREW, COUNTERSUNK
M4,L28
ME736377 MITSUBISHI
074
[01]
09626-11420
SPRING, SPEED CONT
075
[01]
09604-90300
O-RING
ID 6.5
ME736378 MITSUBISHI
078
[01]
09644-41310
SPRING, RETURN
079
[01]
09644-41321
SPRING, RETURN
080
[1C]
09643-55581
LEVER SUB-ASSY, AD
MARK 558
080
[1C]
09643-55591
LEVER SUB-ASSY, AD
MARK 559
080
[1C]
09643-55601
LEVER SUB-ASSY, AD
MARK 560
081
[01]
09644-60100
GASKET, GOVERNOR C
ME736386 MITSUBISHI
082
[01]
09616-00030
VALVE SUB-ASSY, RE
ME736387 MITSUBISHI
082-001
[01]
09604-90180
O-RING
ID10
ME736285 MITSUBISHI
082-002
[01]
09604-90500
O-RING
ID 7.5
ME743633 MITSUBISHI
084
[01]
09634-20010
NUT, LOCK
M6,L5
ME702196 MITSUBISHI
085
[01]
94918-00770
SCREW, HOLLOW
M12,L43.5
ME736389 MITSUBISHI
086
[02]
09626-90020
BOLT, GOVERNOR LIN
M8,L19
ME736390 MITSUBISHI
087
[01]
94905-50300
NUT, CAP
M12
ME736391 MITSUBISHI
088
[05]
09644-90070
BOLT, SOCKET
M6,L45
ME736392 MITSUBISHI
091
[01]
09627-30140
WASHER, GOVERNOR T
T0.5
ME736379 MITSUBISHI
092
[2C]
09624-80010
SHIM, PLUNGER SPRI
T0.5
ME736393 MITSUBISHI
092
[2C]
09624-80020
SHIM, PLUNGER SPRI
T0.8
ME736394 MITSUBISHI
092
[2C]
09624-80030
SHIM, PLUNGER SPRI
T1.0
ME736395 MITSUBISHI
092
[2C]
09624-80040
SHIM, PLUNGER SPRI
T1.2
ME736396 MITSUBISHI
092
[2C]
09624-80050
SHIM, PLUNGER SPRI
T1.5
ME736397 MITSUBISHI
092
[2C]
09624-80060
SHIM, PLUNGER SPRI
T1.8
ME736398 MITSUBISHI
092
[2C]
09624-80070
SHIM, PLUNGER SPRI
T2.0
ME736399 MITSUBISHI
092
[2C]
09624-80080
SHIM, PLUNGER SPRI
T0.9
ME736400 MITSUBISHI
092
[2C]
09624-80090
SHIM, PLUNGER SPRI
T1.1
ME736401 MITSUBISHI
092
[2C]
09624-80100
SHIM, PLUNGER SPRI
T1.3
ME736402 MITSUBISHI
092
[2C]
09624-80110
SHIM, PLUNGER SPRI
T1.4
ME736403 MITSUBISHI
092
[2C]
09624-80220
SHIM, PLUNGER SPRI
T1.6
ME736404 MITSUBISHI
093
[1C]
09626-60100
WASHER, GOVERNOR G
T1.05
ME736405 MITSUBISHI
093
[1C]
09626-60110
WASHER, GOVERNOR G
T1.25
ME736406 MITSUBISHI
093
[1C]
09626-60120
WASHER, GOVERNOR G
T1.45
ME736407 MITSUBISHI
093
[1C]
09626-60130
WASHER, GOVERNOR G
T1.65
ME736408 MITSUBISHI
093
[1C]
09626-60140
WASHER, GOVERNOR G
T1.85
ME736409 MITSUBISHI
093
[1C]
09626-60150
WASHER, GOVERNOR G
T1.55
ME736410 MITSUBISHI
093
[1C]
09626-60160
WASHER, GOVERNOR G
T1.75
ME736411 MITSUBISHI
093
[1C]
09626-60170
WASHER, GOVERNOR G
T2.05
ME736412 MITSUBISHI
093
[1C]
09626-60180
WASHER, GOVERNOR G
T1.35
ME736413 MITSUBISHI
093
[1C]
09626-60270
WASHER, GOVERNOR G
T1.3
ME736414 MITSUBISHI
093
[1C]
09626-60280
WASHER, GOVERNOR G
T1.4
ME736415 MITSUBISHI
093
[1C]
09626-60290
WASHER, GOVERNOR G
T1.5
ME736416 MITSUBISHI
093
[1C]
09626-60300
WASHER, GOVERNOR G
T1.6
ME736417 MITSUBISHI
093
[1C]
09626-60310
WASHER, GOVERNOR G
T1.15
093
[1C]
09626-60320
WASHER, GOVERNOR G
T1.2
093
[1C]
09626-60330
WASHER, GOVERNOR G
T1.7
093
[1C]
09626-60340
WASHER, GOVERNOR G
T1.8
094
[1C]
09625-60480
PLUG, GOVERNOR SLE
L3.8
ME736418 MITSUBISHI
094
[1C]
09625-60490
PLUG, GOVERNOR SLE
L3.9
ME736419 MITSUBISHI
094
[1C]
09625-60500
PLUG, GOVERNOR SLE
L4.0
ME736420 MITSUBISHI
094
[1C]
09625-60510
PLUG, GOVERNOR SLE
L4.1
ME736421 MITSUBISHI
094
[1C]
09625-60520
PLUG, GOVERNOR SLE
L4.2
ME736422 MITSUBISHI
094
[1C]
09625-60530
PLUG, GOVERNOR SLE
L4.3
ME736423 MITSUBISHI
094
[1C]
09625-60540
PLUG, GOVERNOR SLE
L4.4
ME736424 MITSUBISHI
094
[1C]
09625-60550
PLUG, GOVERNOR SLE
L2.2
ME736425 MITSUBISHI
094
[1C]
09625-60560
PLUG, GOVERNOR SLE
L2.3
ME736426 MITSUBISHI
094
[1C]
09625-60570
PLUG, GOVERNOR SLE
L2.4
ME736427 MITSUBISHI
094
[1C]
09625-60580
PLUG, GOVERNOR SLE
L2.5
ME736428 MITSUBISHI
094
[1C]
09625-60590
PLUG, GOVERNOR SLE
L2.6
ME736429 MITSUBISHI
094
[1C]
09625-60600
PLUG, GOVERNOR SLE
L2.7
ME736430 MITSUBISHI
096
[01]
09644-80420
COLLAR, SMOKE SET
CAP TYPE
ME743905 MITSUBISHI
097
[1C]
09640-60020
SHIM, PLUNGER ADJU
T1.9
ME736432 MITSUBISHI
097
[1C]
09640-60170
SHIM, PLUNGER ADJU
T2.2
ME736433 MITSUBISHI
097
[1C]
09640-60270
SHIM, PLUNGER ADJU
T2.4
ME736434 MITSUBISHI
097
[1C]
09640-60420
SHIM, PLUNGER ADJU
T2.7
ME736435 MITSUBISHI
097
[1C]
09640-60520
SHIM, PLUNGER ADJU
T2.9
ME736436 MITSUBISHI
105
[01]
94904-50190
BOLT, HEXAGON, W/
M6,L40
ME736840 MITSUBISHI
106
[01]
94904-50180
BOLT, HEXAGON, W/
M6,L32
ME703079 MITSUBISHI
107
[01]
09621-01400
COVER SUB-ASSY, TI
ACSD
108
[01]
09604-50790
WIRE SUB-ASSY
ME736384 MITSUBISHI
109
[01]
09653-00020
FILTER, SUB-ASSY
ME736454 MITSUBISHI
110
[01]
09606-40100
WASHER
ME736453 MITSUBISHI
111
[01]
09644-90130
BOLT, SOCKET
M6,L14 -0006
ME736283 MITSUBISHI
111
[01]
09644-90110
BOLT, SOCKET
M6,L16 0007-
ME736324 MITSUBISHI
112
[01]
09644-90140
BOLT, SOCKET
M8,L16
ME736442 MITSUBISHI
114
[05]
09644-90100
BOLT, SOCKET
M6,L10
ME736443 MITSUBISHI
117
[01]
07630-02040
PICKUP ASSY, TACHO
ME736887 MITSUBISHI
119
[01]
09604-90190
O-RING
ID14.8
ME736444 MITSUBISHI
122
[01]
09603-00410
SOLENOID ASSY, FUE
TCV 12V
122-001
[01]
09604-90210
O-RING
ID23.3
ME736449 MITSUBISHI
122-002
[01]
09604-90100
O-RING
ID 9.5
ME736450 MITSUBISHI
123
[01]
09221-70651
NIPPLE, SWIVEL
ME736844 MITSUBISHI
124
[01]
09221-80260
NIPPLE SUB-ASSY, S
ME736845 MITSUBISHI
133
[01]
09644-50230
GUIDE, RETURN SPRI
MARK 23
ME736440 MITSUBISHI
134
[01]
09644-50320
GUIDE, RETURN SPRI
ME743643 MITSUBISHI
137
[01]
09602-91310
CLIP, CONNECTOR SU
ME736451 MITSUBISHI
138
[01]
09602-91640
CLIP, CONNECTOR SU
144
[02]
91370-04121
SCREW, W/WASHER
M4,L12
MF350745 MITSUBISHI
147
[01]
90577-02000
E-RING
D2
ME736460 MITSUBISHI
148
[01]
94910-02860
BEARING, BALL
OD8
ME736459 MITSUBISHI
151
[01]
09647-10820
BRACKET SUB-ASSY,
152
[01]
19850-05050
SENSOR, ROTARY POS
ME743432 MITSUBISHI
154
[01]
94905-61680
NUT
M6,L6.5
ME736463 MITSUBISHI
155
[01]
09653-00071
FILTER, SUB-ASSY
ME736445 MITSUBISHI
156
[01]
09606-40110
WASHER
T0.2
ME736446 MITSUBISHI
160
[02]
09642-60130
GASKET, DELIVERY V

Include in ##:

19600-03421 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19600-03421
ME203788
PUMP ASSY, INJECTI

Test Calibration Data:

Get Full test data file
1960003420 ME203788
EI3420
EI3420
Get Full test data file
1960003421 ME203788
EI3421
EI3421




Have questions with 19600-03421?





Group cross 19600-03421

Back to top
