Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
Asian car 5L
Engine
5L
Serial start-end
0001-
Info
Injector Nozzle
093500-6710
Manufacture:
22100-5D080 TOYOTA
Dim 1
3.15-3.45
Dim 2
6.4-6.6
Dim 3
0.35-0.55
Dim 4
Dim 5
Dim 6
Information
THE CONNECTING PORTION BETWEEN COUPLING AND DRIVESHAFT END HAS BEEN MODIFIED SINCE JULY, 2000.A COUPLING SPACER IS ADOPTED INSTEAD OF SPRING. KF DIMENSION IS 6.2-6.4MM AFTER THE MODIFICATION.
Injector nozzle:
0935006710
KIT List:
Part name
Kit1
Kit2
Cross reference number
Part num
Firm num
Firm
Name
1960003390
22100-5D080
TOYOTA
PUMP ASSY, INJECTI

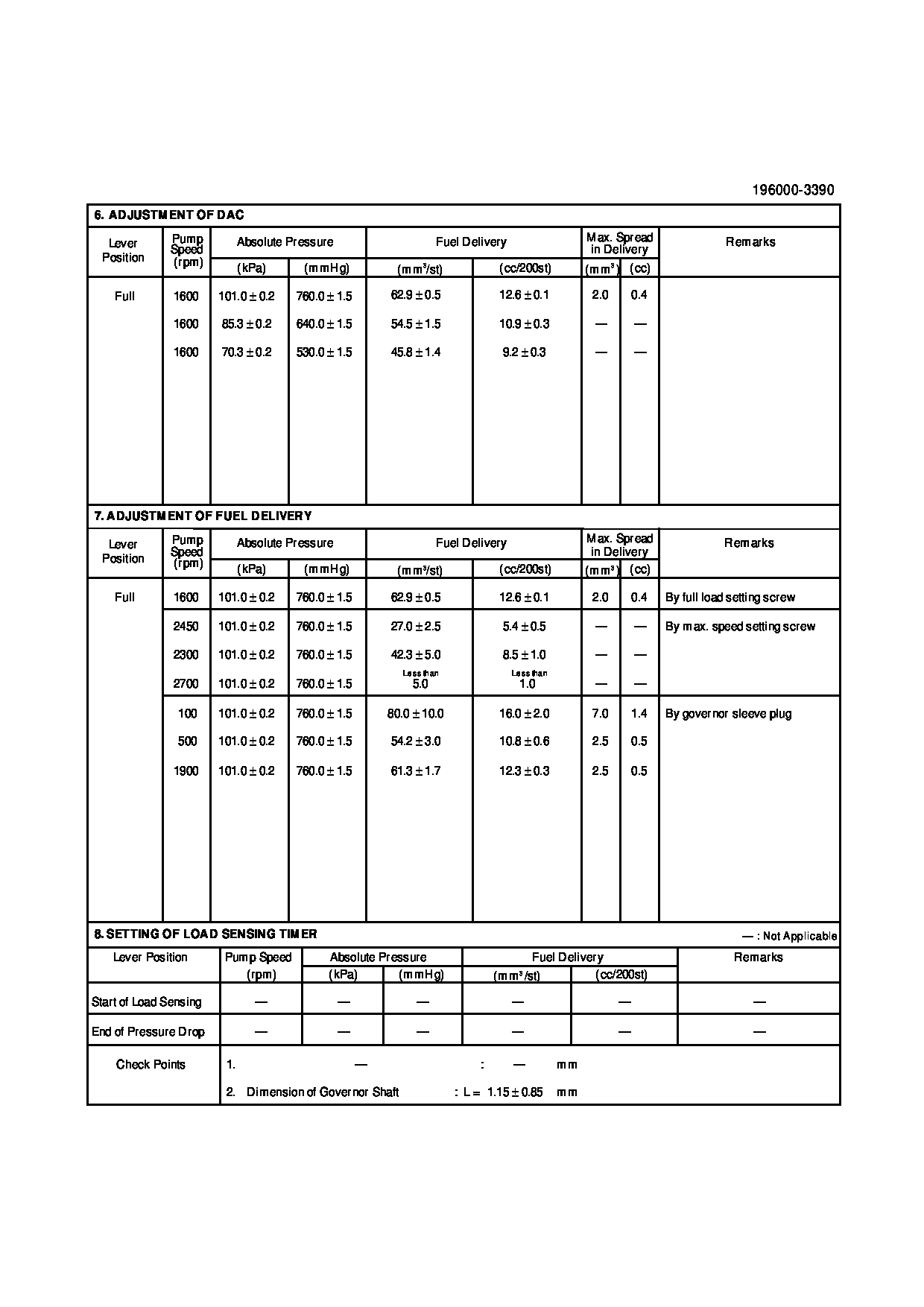

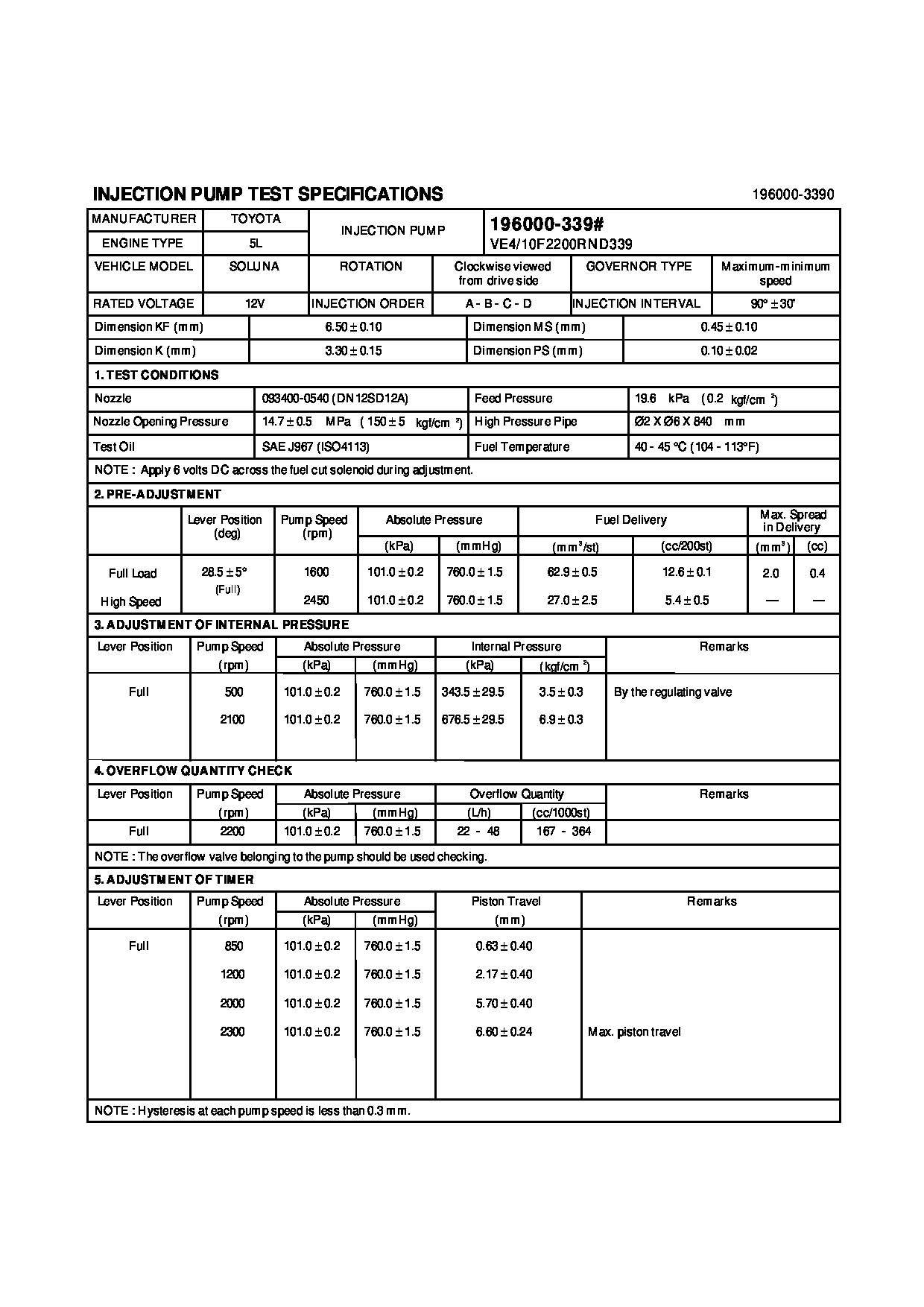

Test Calibration Data:
1960003390
22100-5D080
1960003391
22100-5D080
Information:
(8) Piston cooling orifice.
There are holes in the bores for the main bearings, between the cylinders for piston cooling orifices. These holes must have orifices (8) installed.
