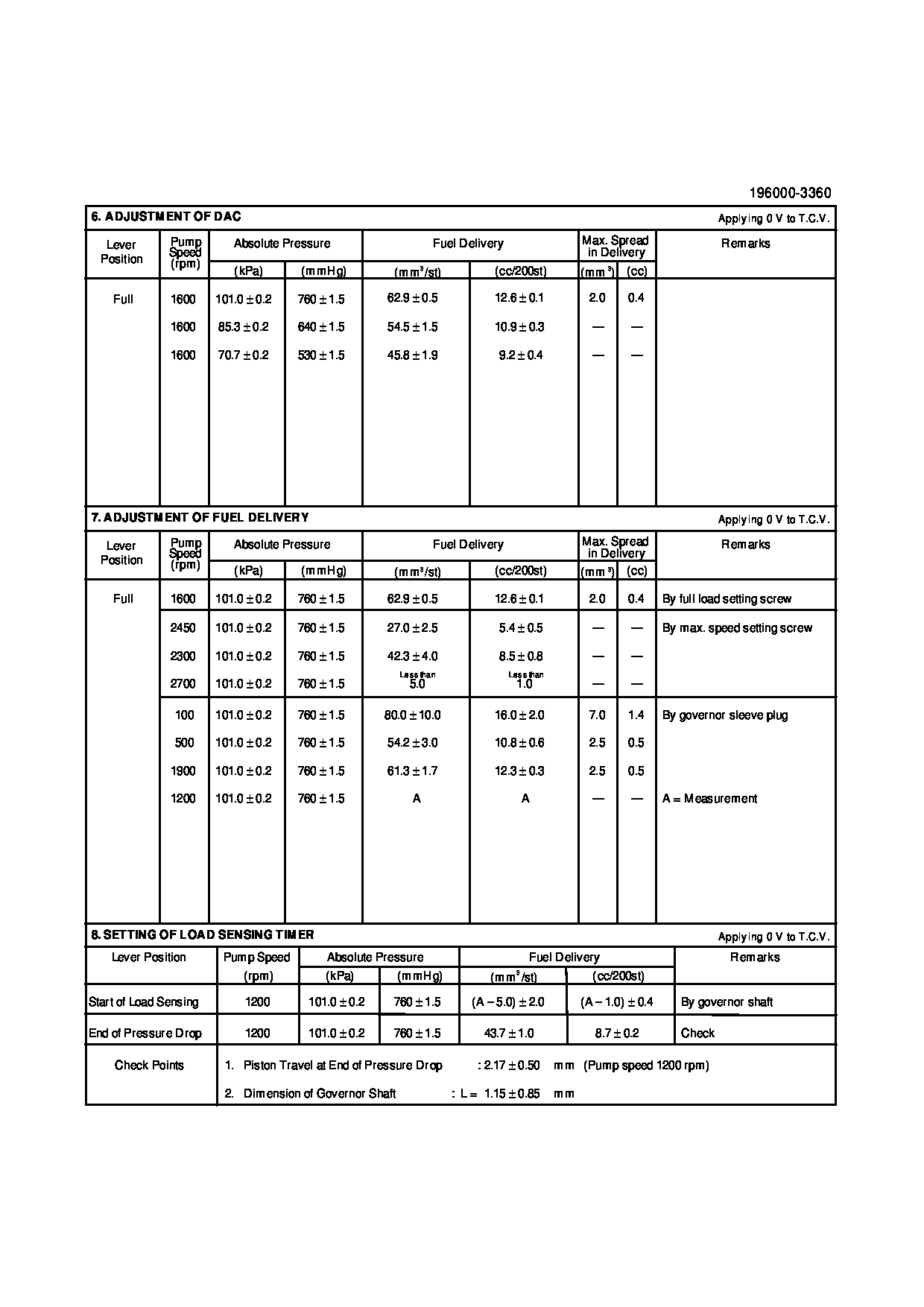

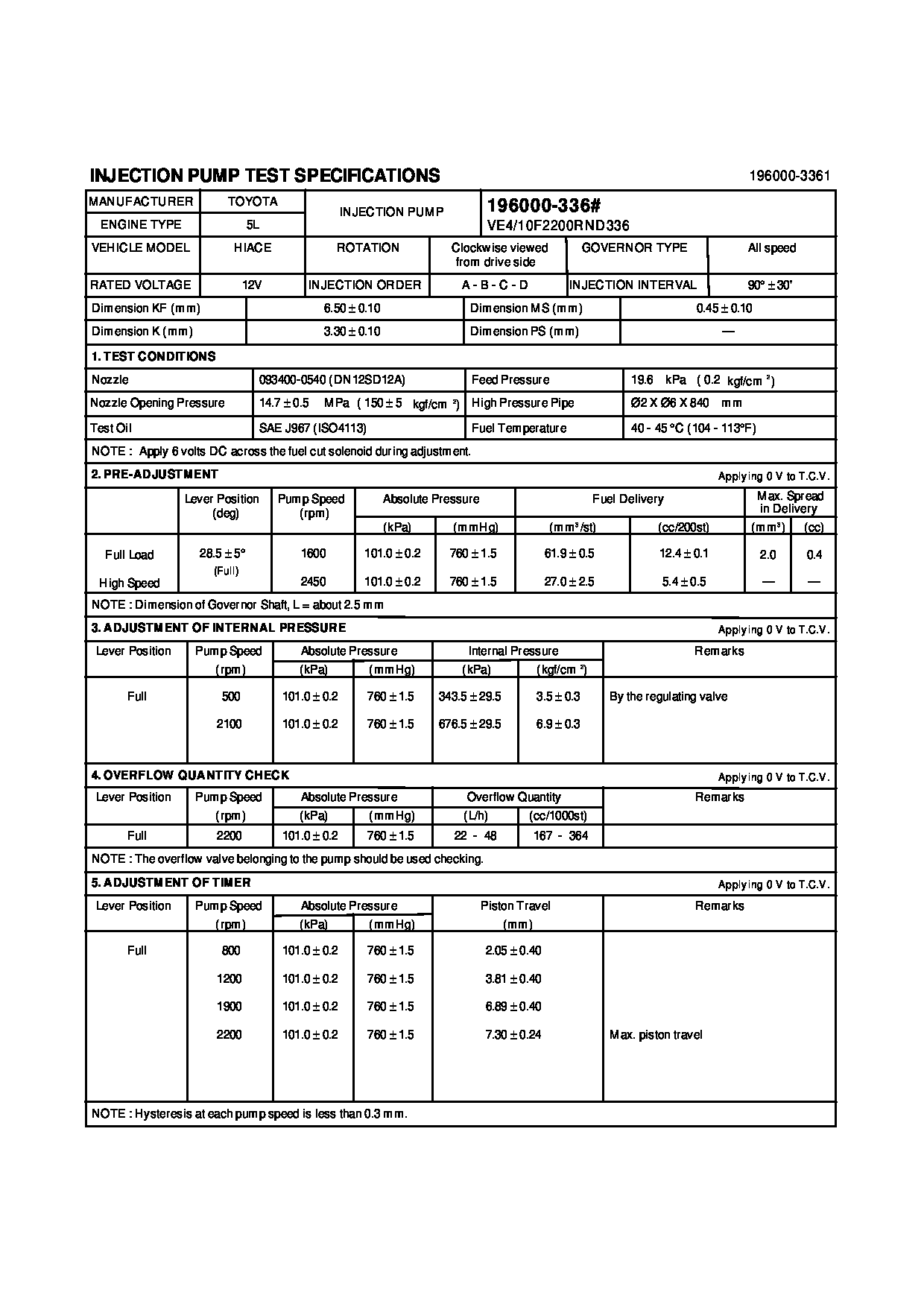

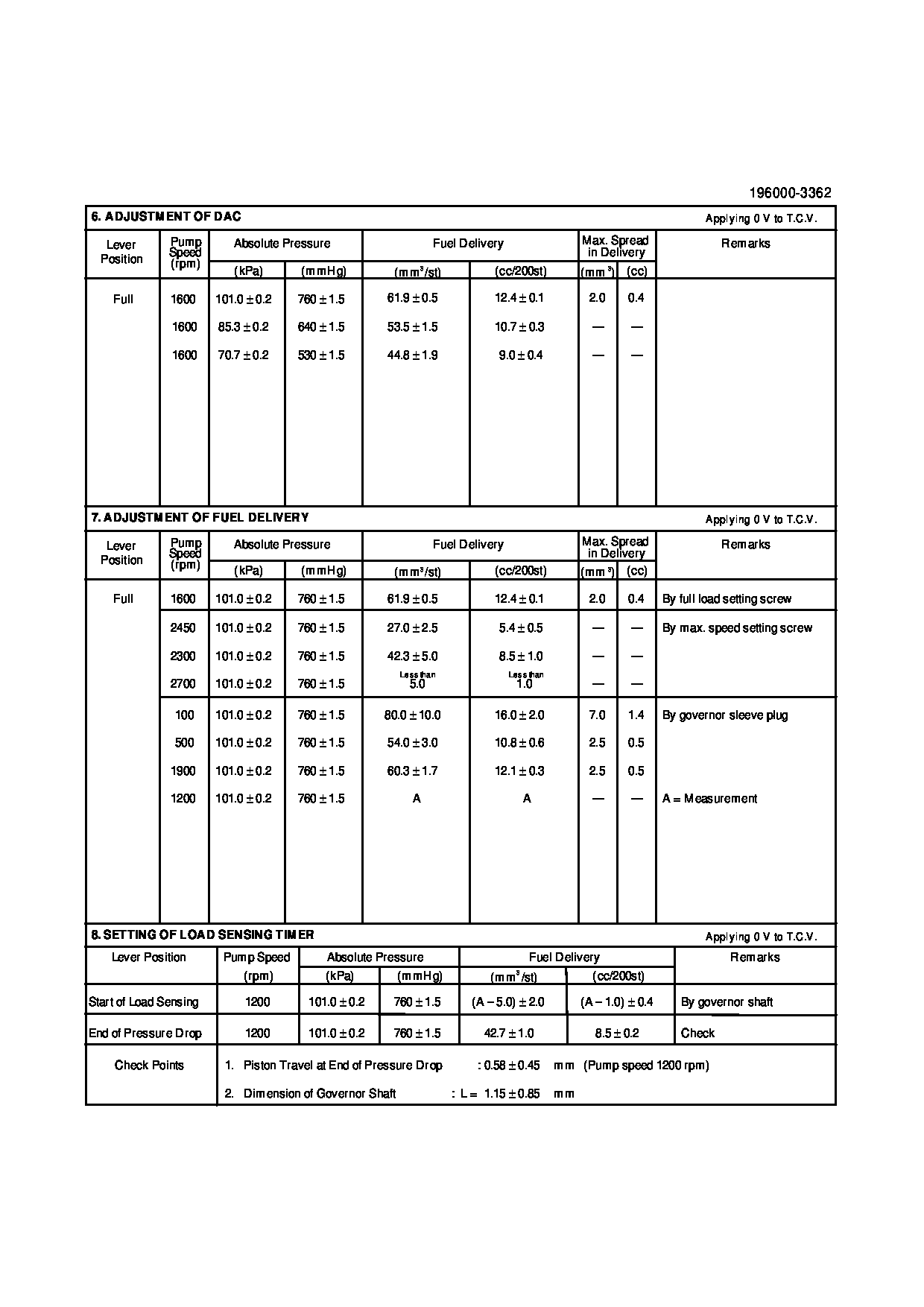

1960003360 TOYOTA PUMP ASSY, INJECTI Calibration Data

Product

Fuel Injection Pump

Vehicle engine

HIACE 5L

Engine

5L

Serial start-end

9906-

Info

Injector Nozzle

093500-6710

Manufacture:

22100-5D121 TOYOTA

Dim 1

3.2-3.4

Dim 2

6.4-6.6

Dim 3

0.35-0.55

Dim 4

Dim 5

Dim 6

Information

THE CONNECTING PORTION BETWEEN COUPLING AND DRIVESHAFT END HAS BEEN MODIFIED SINCE JULY, 2000.A COUPLING SPACER IS ADOPTED INSTEAD OF SPRING. KF DIMENSION IS 6.2-6.4MM AFTER THE MODIFICATION.
