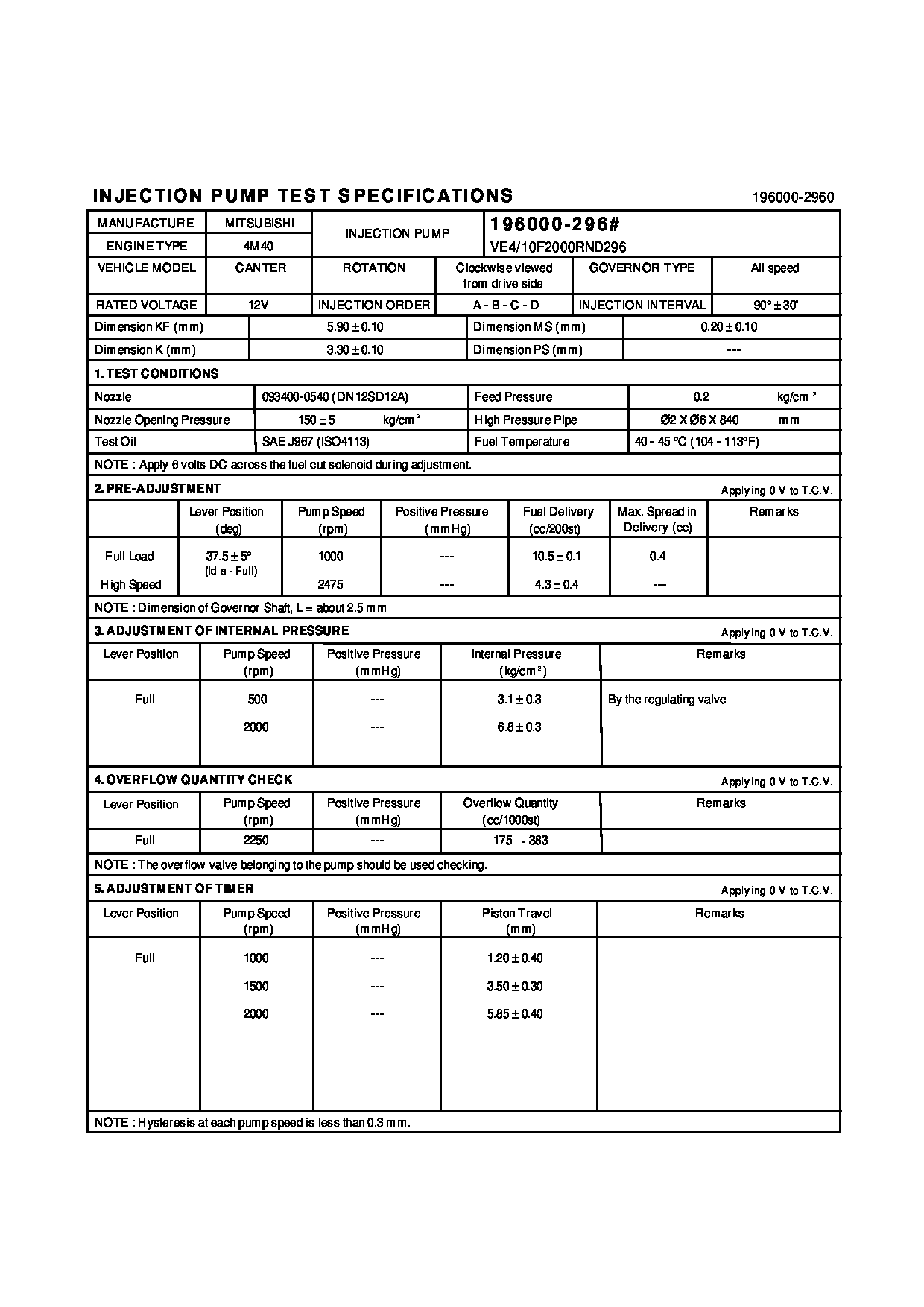

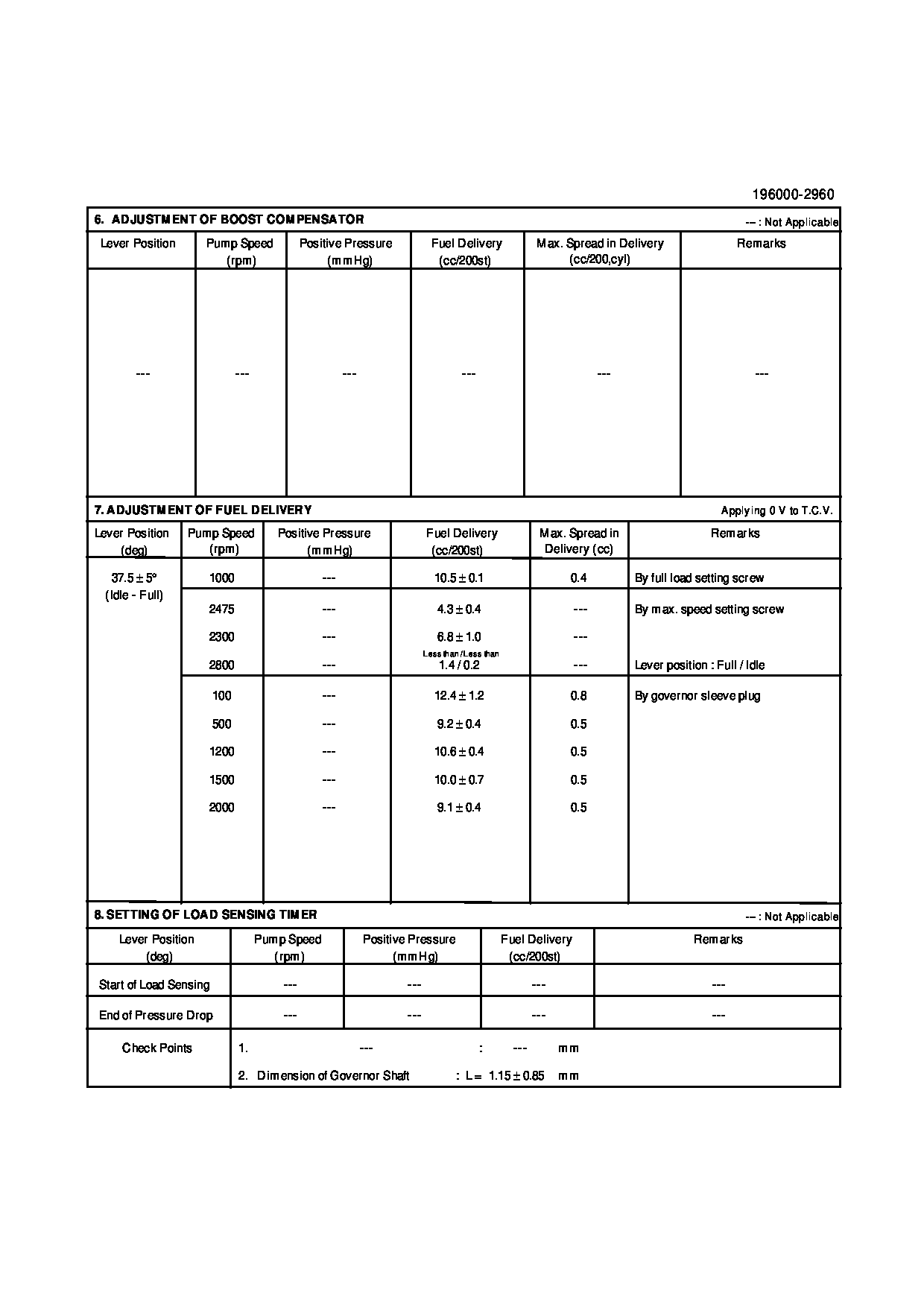

Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
CANTER 4M40
Engine
4M40
Serial start-end
9810-
Info
Injector Nozzle
093500-5710
Manufacture:
ME202954 MITSUBISHI
Dim 1
3.2-3.4
Dim 2
5.8-6.0
Dim 3
0.1-0.3
Dim 4
Dim 5
Dim 6
Information
Injector nozzle:
0935005710
KIT List:
Part name
Kit1
Kit2
Components :

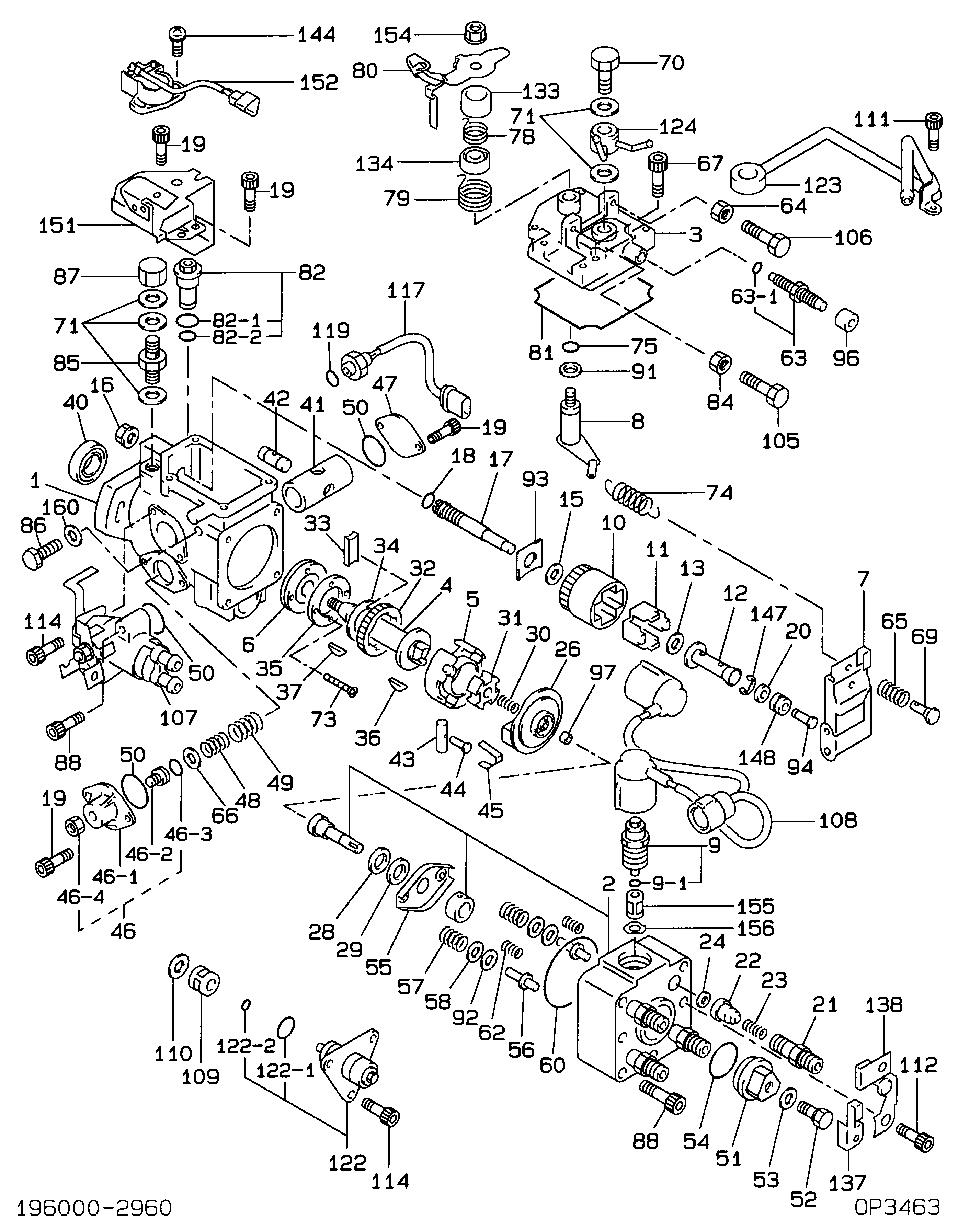

Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-02960
PUMP ASSY, INJECTI
ME202954
MITSUBISHI
Include in ##:
19600-02960
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
19600-02960
ME202954
PUMP ASSY, INJECTI
1960002960
ME202954
MITSUBISHI
PUMP ASSY, INJECTI
Information:
1. Remove oil supply tube (1) and suction bell and tube (2). 2. Remove bolts (3) that hold the oil pump to the cylinder block and remove oil pump (4).3. To install, put oil pump (4) in position on the cylinder block. Install the bolts that hold the oil pump to the cylinder block.4. Put clean engine oil on the O-ring seals of the tubes.5. Install oil supply tube (1), suction bell and tube (2).End By:a. install oil panDisassemble Oil Pump
Start By:a. remove oil pump 1. Remove the bolt and washer that hold the gear on the shaft.2. Use Tool (A) and remove drive gear (1) from the shaft. Remove the key from the shaft. 3. Remove retainer (3) for the bypass valve. Remove the spring and the bypass valve.4. Remove cover (2) from the pump body. 5. Use Tool (B) and remove the bearings from the cover. 6. Remove gears (5) from pump body (4).7. Use Tool (B) and remove the bearings from pump body (4).Assemble Oil Pump
1. Use Tool (B) to install the bearings in the pump body. Install the bearings so the joint in the bearings is 30 15 degrees from the center line of the oil pump outlet passage (2). 2. Install idler gear and drive gear (5) in the oil pump body (4). Put clean engine oil on the bearings and the gears. 3. Use Tool (A) and install the bearings in cover (2). Install the bearings so the joint of the bearing bores toward oil pump outlet passage (6).4. Install bypass valve (7), spring (8) and the retainer.5. Install the key on the shaft. 6. Install gear (1) on the shaft. Install the washer and bolt that hold the gear on the shaft. Be sure the pump turns freely after assembly.End By:a. install oil pump
