Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
BUS A/C 2DZ
Engine
2DZ
Serial start-end
9806-
Info
Injector Nozzle
093500-2240
Manufacture:
22100-78251-71 TOYOTA
Dim 1
3.2-3.4
Dim 2
5.9-6.1
Dim 3
0.8-1.0
Dim 4
Dim 5
Dim 6

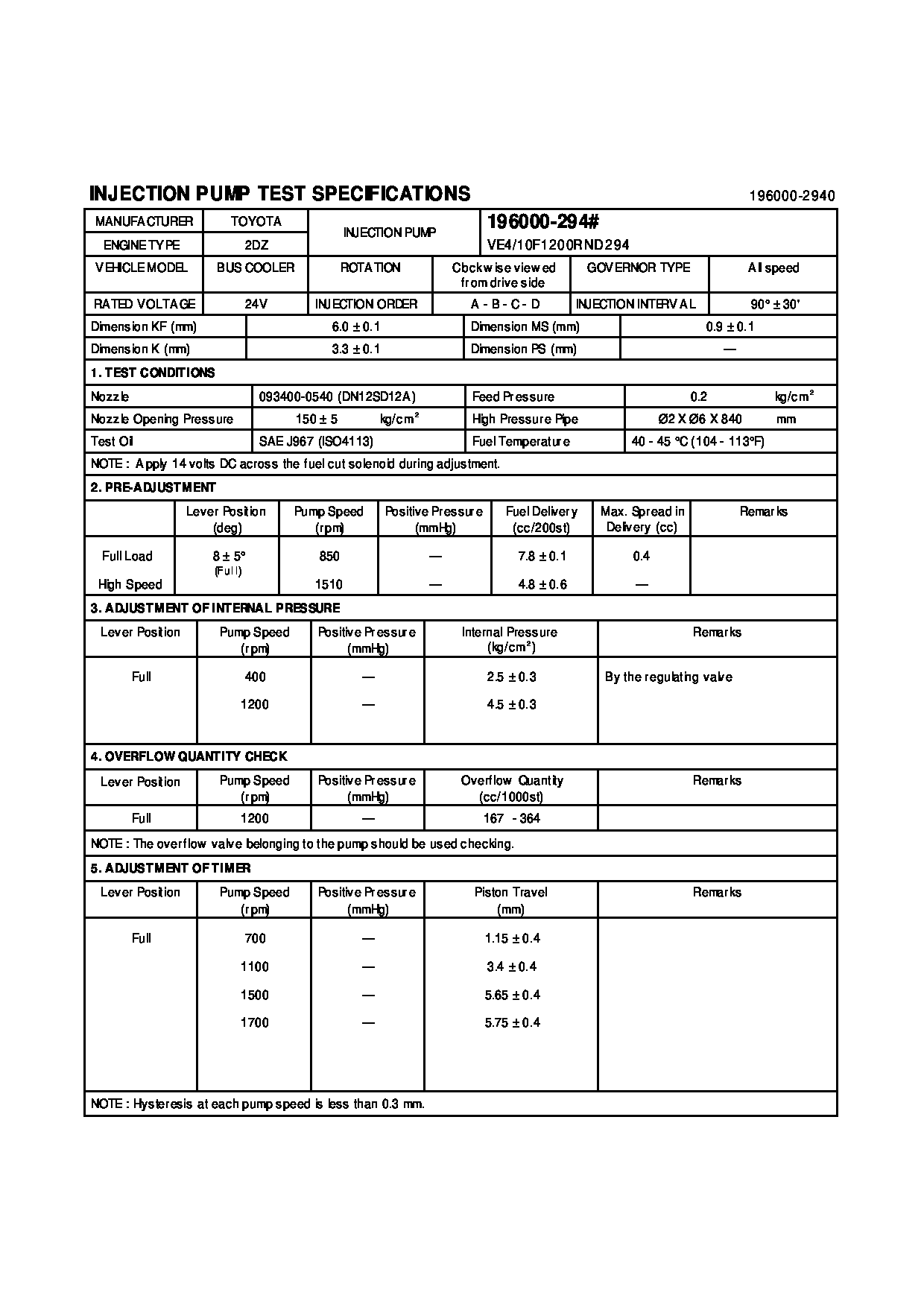

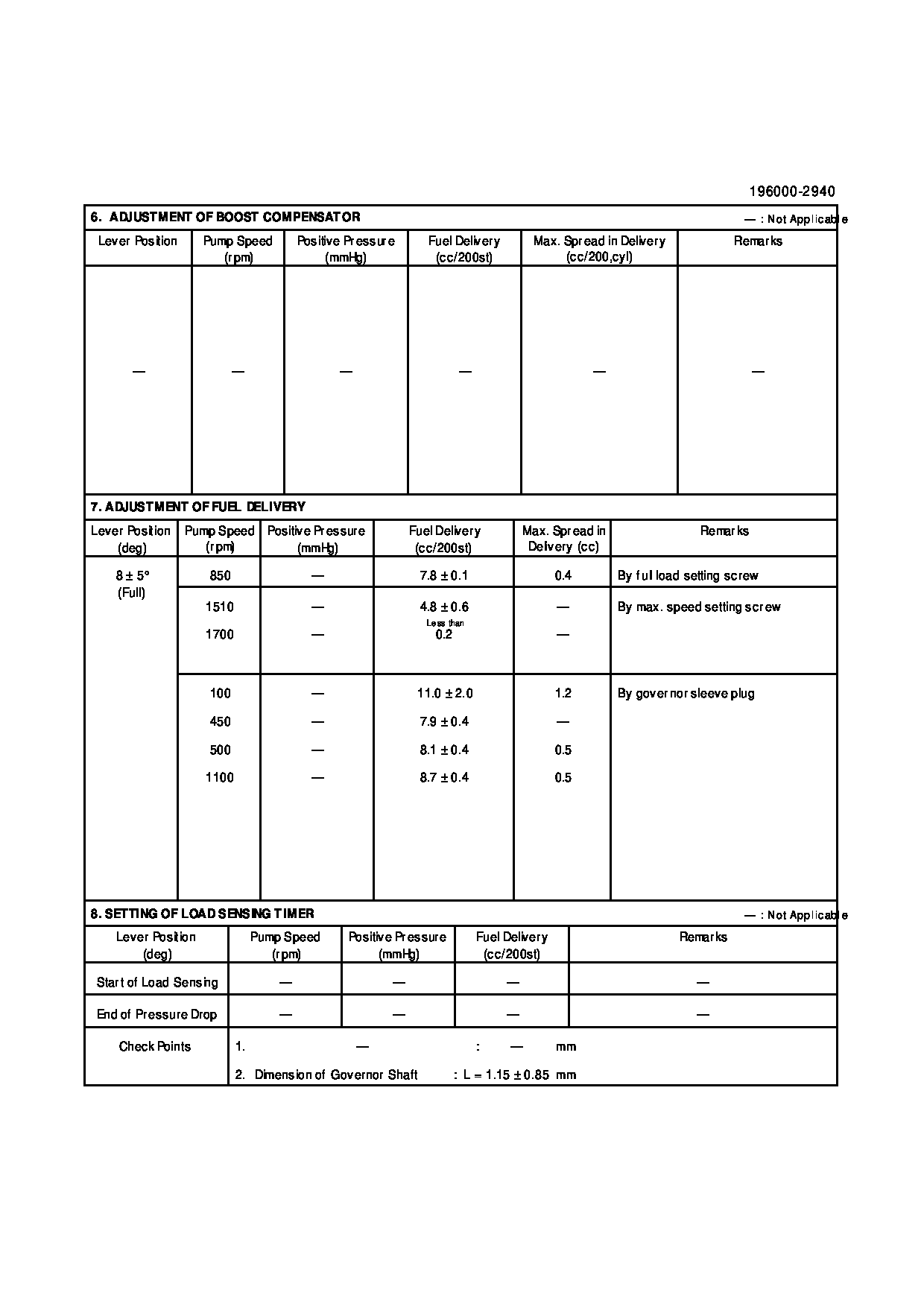

Information
Injector nozzle:
0935002240
KIT List:
Part name
Kit1
Kit2

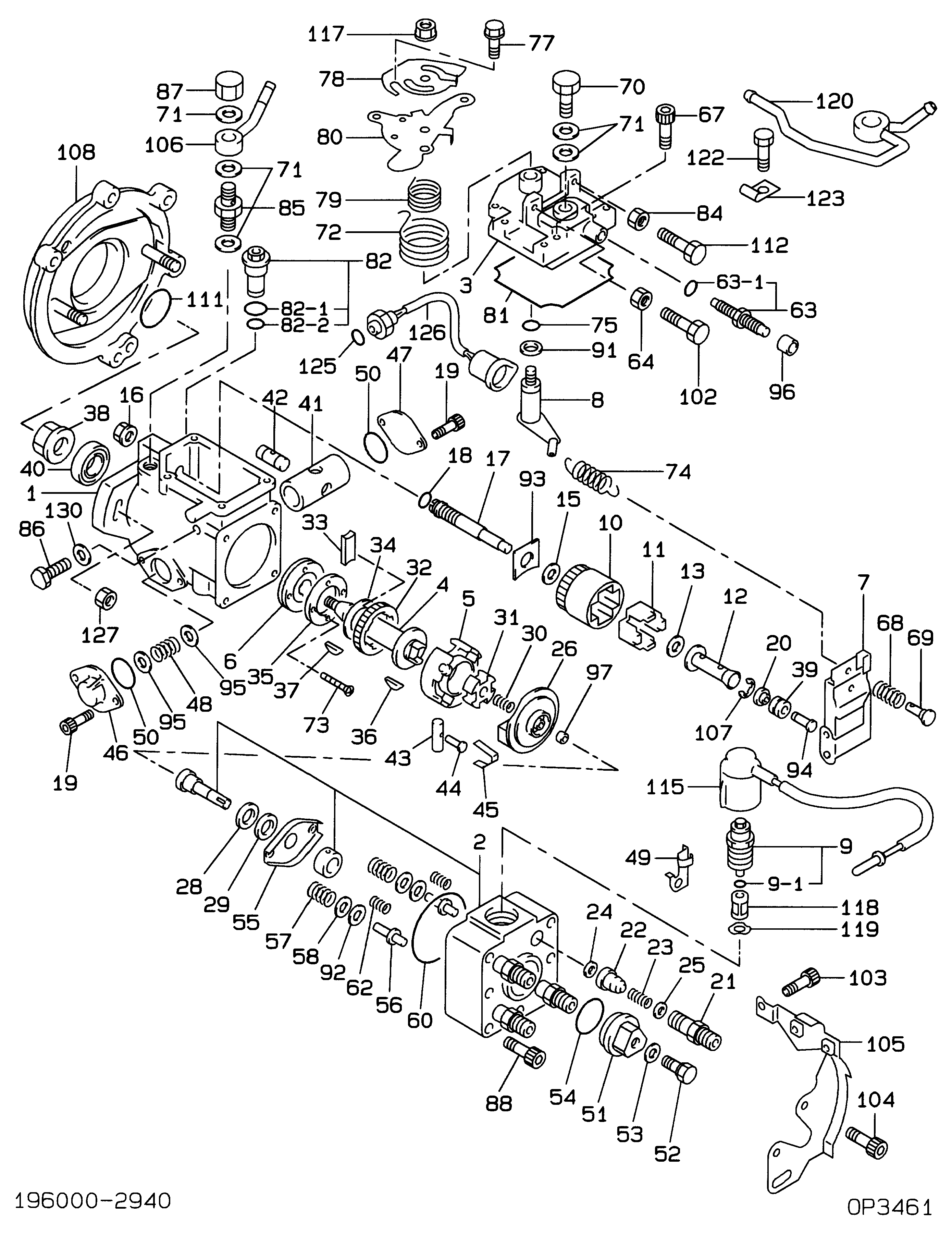

Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-02940
PUMP ASSY, INJECTI
22100-78251-71
TOYOTA
Include in ##:
19600-02940
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
19600-02940
22100-7825
PUMP ASSY, INJECTI
1960002940
22100-78251-71
TOYOTA
PUMP ASSY, INJECTI
Information:
1. Put compression on valve spring (2) with Tool (A). Remove locks (1).2. Remove Tool (A), rotocoil, spring, valve stem oil shield and valve. Put identification marks on valves with respect to their location in the cylinder head. 3. Check the spring force with Tool (B). The spring force is 257 25 N (57.8 5.6 lb). The length of spring under test force is 44.86 mm (1.766 in). The free length after test is 52.07 mm (2.050 in).4. Do Steps 1 through 3 again for the remainder of the valves.Install Valves
1. Put clean engine oil on the valve stems. Install valve (3), oil shield (4), spring (2) and rotocoil (1) in the cylinder head. 2. Put Tool (A) in position on the valve spring. Install the locks with Tool (B).
Locks can be thrown from valve when the compressor is released if they are not in their correct position on valve stem. Personal injury can be the result if not carefully removed.
3. Remove Tool (A), and hit the top of valve with a plastic hammer to be sure the locks are in their correct position on valve.4. Do Steps 1 through 3 again for the remainder of the valves.End By:a. install cylinder head assembly and spacer plateb. install fuel injection nozzles
1. Put clean engine oil on the valve stems. Install valve (3), oil shield (4), spring (2) and rotocoil (1) in the cylinder head. 2. Put Tool (A) in position on the valve spring. Install the locks with Tool (B).
Locks can be thrown from valve when the compressor is released if they are not in their correct position on valve stem. Personal injury can be the result if not carefully removed.
3. Remove Tool (A), and hit the top of valve with a plastic hammer to be sure the locks are in their correct position on valve.4. Do Steps 1 through 3 again for the remainder of the valves.End By:a. install cylinder head assembly and spacer plateb. install fuel injection nozzles
