Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
CANTER 4M40
Engine
4M40
Serial start-end
9803-
Info
Injector Nozzle
093500-5710
Manufacture:
ME202910 MITSUBISHI
Dim 1
3.2-3.4
Dim 2
5.8-6.0
Dim 3
0.1-0.3
Dim 4
Dim 5
Dim 6
Information
Injector nozzle:
0935005710
KIT List:
Part name
Kit1
Kit2
Components :

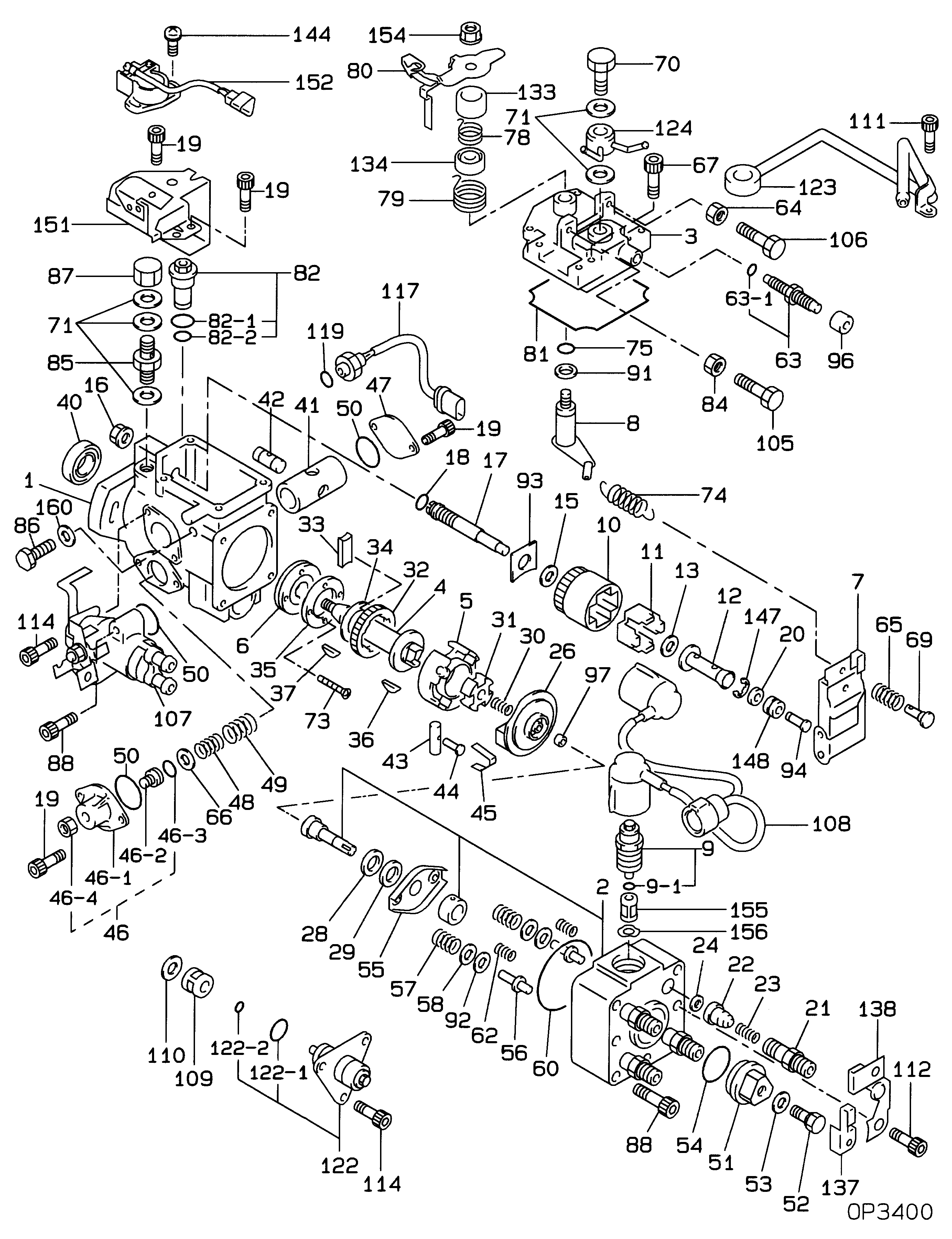

Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-02870
PUMP ASSY, INJECTI
ME202910
MITSUBISHI
Include in ##:
19600-02870
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
19600-02870
ME202910
PUMP ASSY, INJECTI
1960002870
ME202910
MITSUBISHI
PUMP ASSY, INJECTI
Information:
If fuel line clamps are not installed in their exact location, vibration can cause the fuel lines to break and cause possible personal injury, or damage to the machine.
1. Disconnect front fuel injection lines (1), disconnect middle fuel injection lines (2) and rear fuel injection lines (3) from the fuel injection pump and the cylinder head assembly.2. Remove fuel injection lines (1), (2) and (3). Put caps or plugs on all fuel line connections to keep foreign material out of the fuel system.3. If a separation of the fuel lines has to be made, make sure the exact location of the clamps are marked for assembly purposes. Remove the clamps and make a separation of the fuel lines. The following steps are for the installation of the fuel injection lines.4. Remove the caps or plugs for the fuel injection line connections.5. If removed, connect the fuel lines with the clamps. Make sure the clamps are installed back in their correct location. Use Tool (A) to tighten the clamp bolts to a torque of 2.3 N m (20 lb in). For more information, see Specifications Manual SENR6470, of Testing & Adjusting Manual SENR6471.6. Install front fuel injection lines (1) on the fuel injection pump and cylinder head assembly.7 Install middle fuel injection lines (2) on the fuel injection pump and the cylinder head assembly.8. Install rear fuel injection lines (3) on the fuel injection pump and the cylinder head assembly.9. Tighten the fuel injection line nuts to a torque of 40 7 N m (30 5 lb ft).
