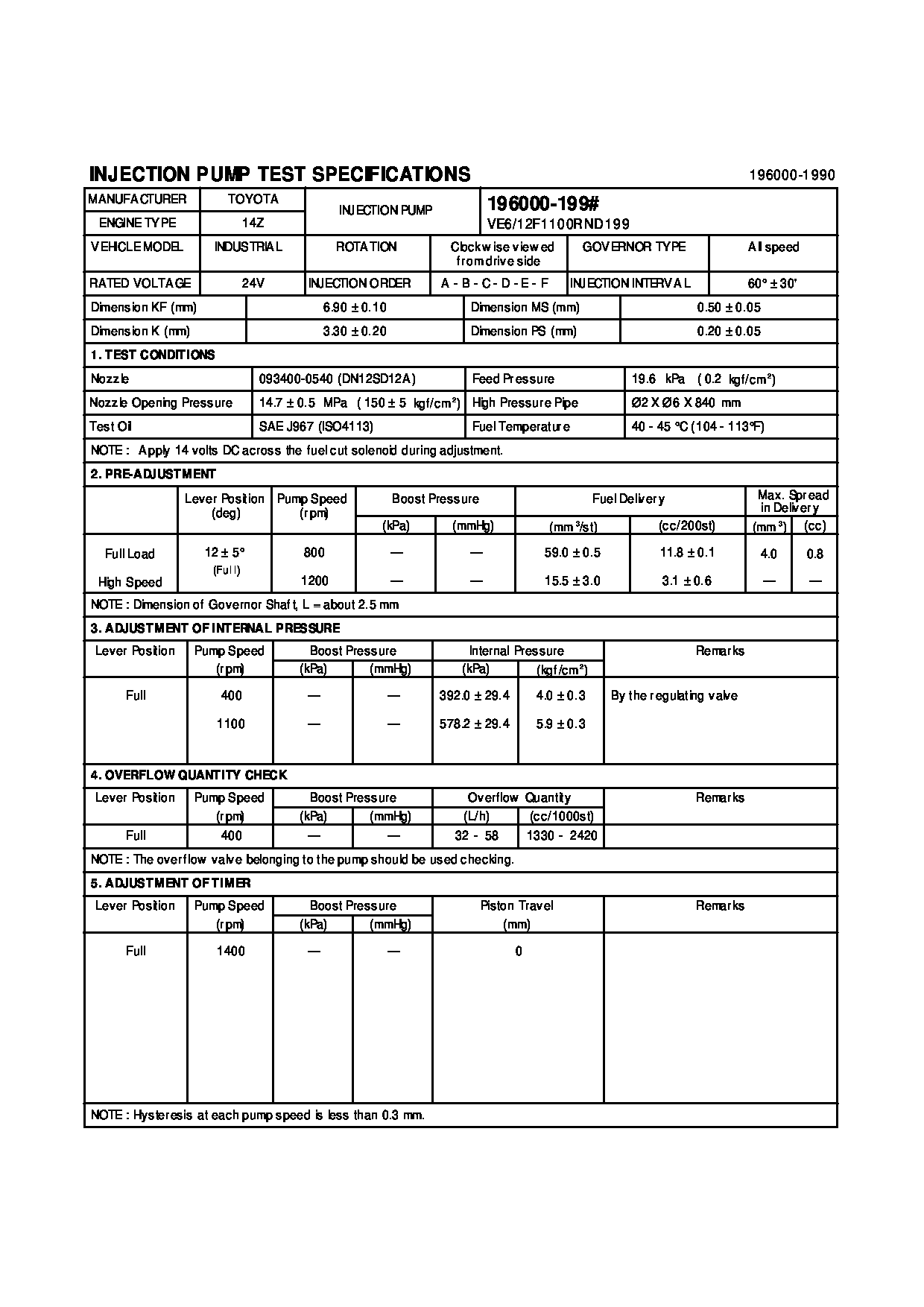

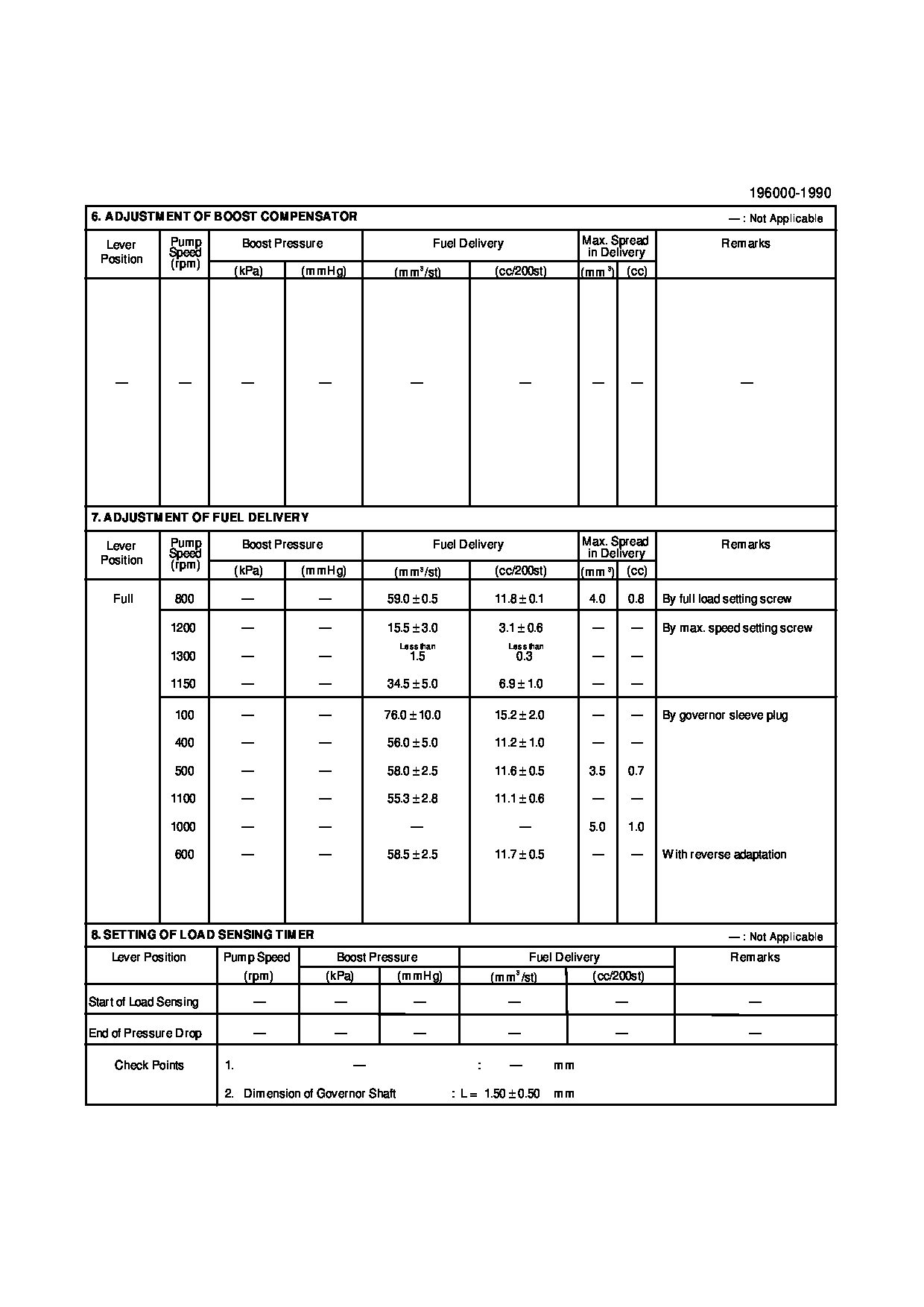

Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 14Z
Engine
14Z
Serial start-end
9705-
Info
Injector Nozzle
093500-6470
Manufacture:
22100-78782-71 TOYOTA
Dim 1
3.1-3.5
Dim 2
6.8-7.0
Dim 3
0.4-0.6
Dim 4
Dim 5
Dim 6
Information
Injector nozzle:
0935006470
KIT List:
Part name
Kit1
Kit2
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num

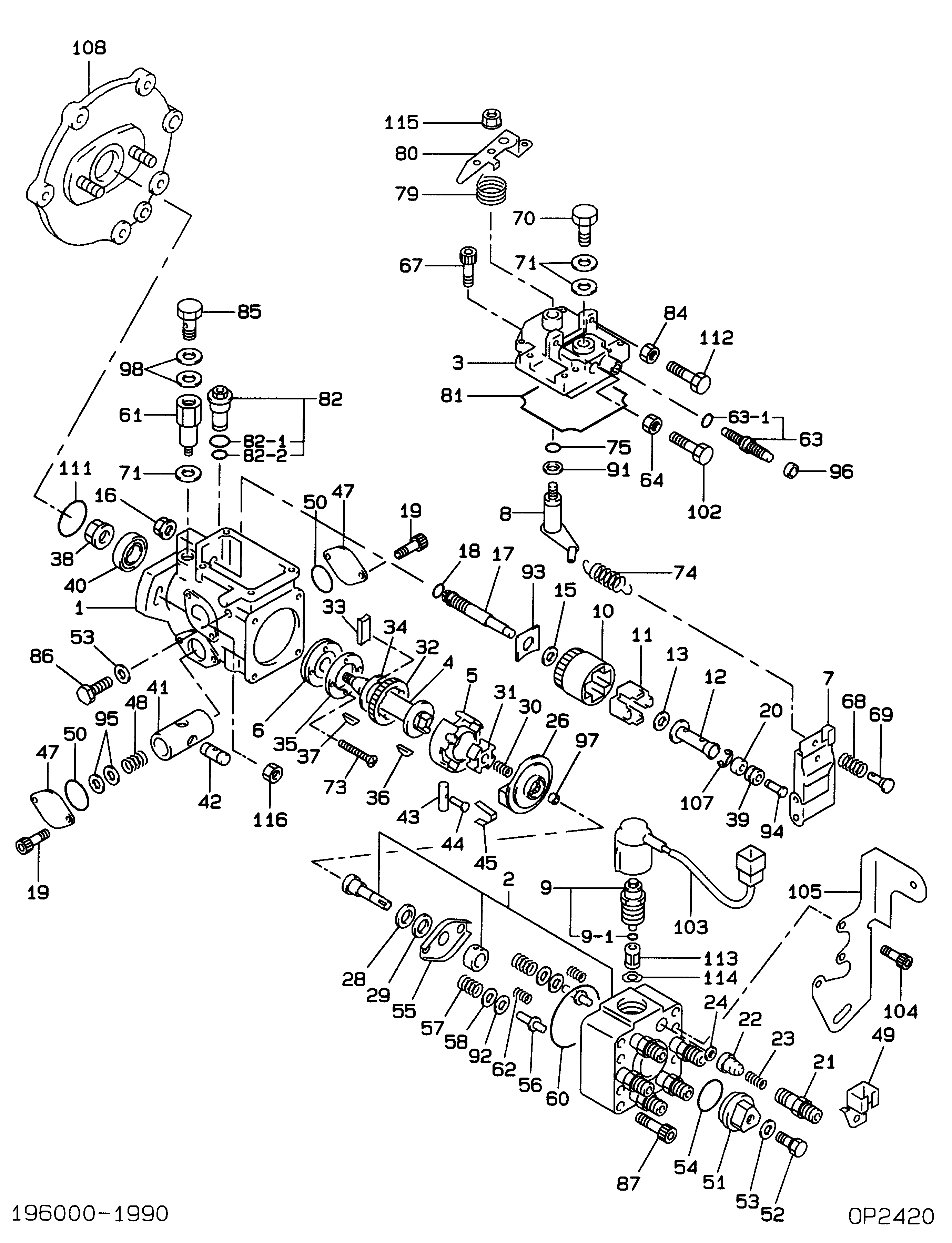

000
[01]
19600-01990
PUMP ASSY, INJECTI
22100-78782-71
TOYOTA
Include in ##:
19600-01990
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
19600-01990
22100-7878
PUMP ASSY, INJECTI
1960001990
22100-78782-71
TOYOTA
PUMP ASSY, INJECTI
Information:
