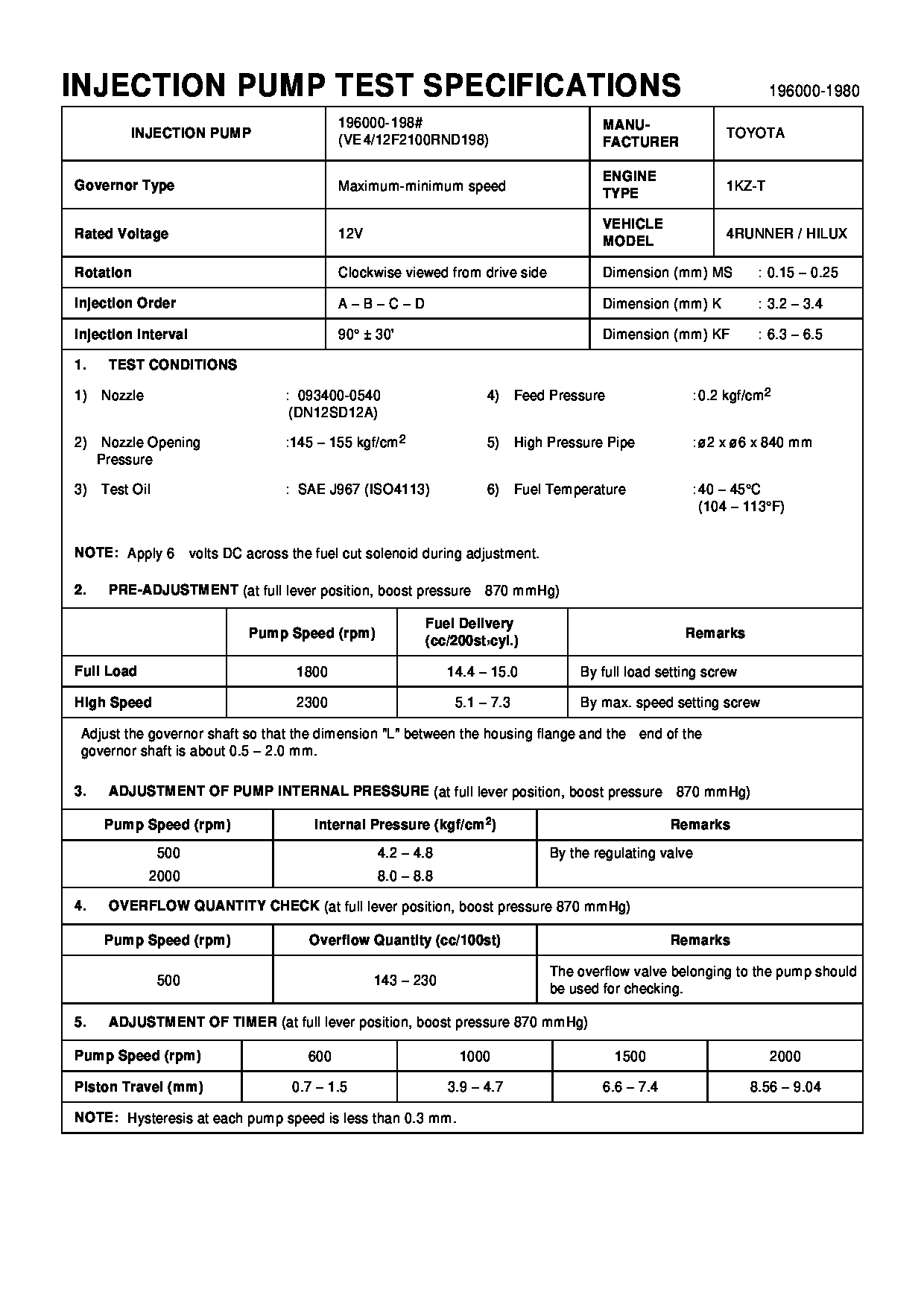

Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
HILUX 1KZ-T
Engine
1KZ-T
Serial start-end
9612-
Info
Injector Nozzle
093500-5630
Manufacture:
22100-67090 TOYOTA
Dim 1
3.2-3.4
Dim 2
6.3-6.5
Dim 3
0.15-0.25
Dim 4
Dim 5
Dim 6
Information
Injector nozzle:
0935005630
KIT List:
Part name
Kit1
Kit2
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-01980
PUMP ASSY, INJECTI
22100-67090
TOYOTA
Include in ##:
19600-01980
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
19600-01980
22100-6709
PUMP ASSY, INJECTI
1960001980
22100-67090
TOYOTA
PUMP ASSY, INJECTI
