Rating:
Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 14Z
Engine
14Z
Serial start-end
9607--9909
Info
Injector Nozzle
093500-6470
Manufacture:
22100-78781-71 TOYOTA
Dim 1
3.1-3.5
Dim 2
6.8-7.0
Dim 3
-
Dim 4
Dim 5
Dim 6
Information
Injector nozzle:
0935006470
KIT List:
Part name
Kit1
Kit2
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]

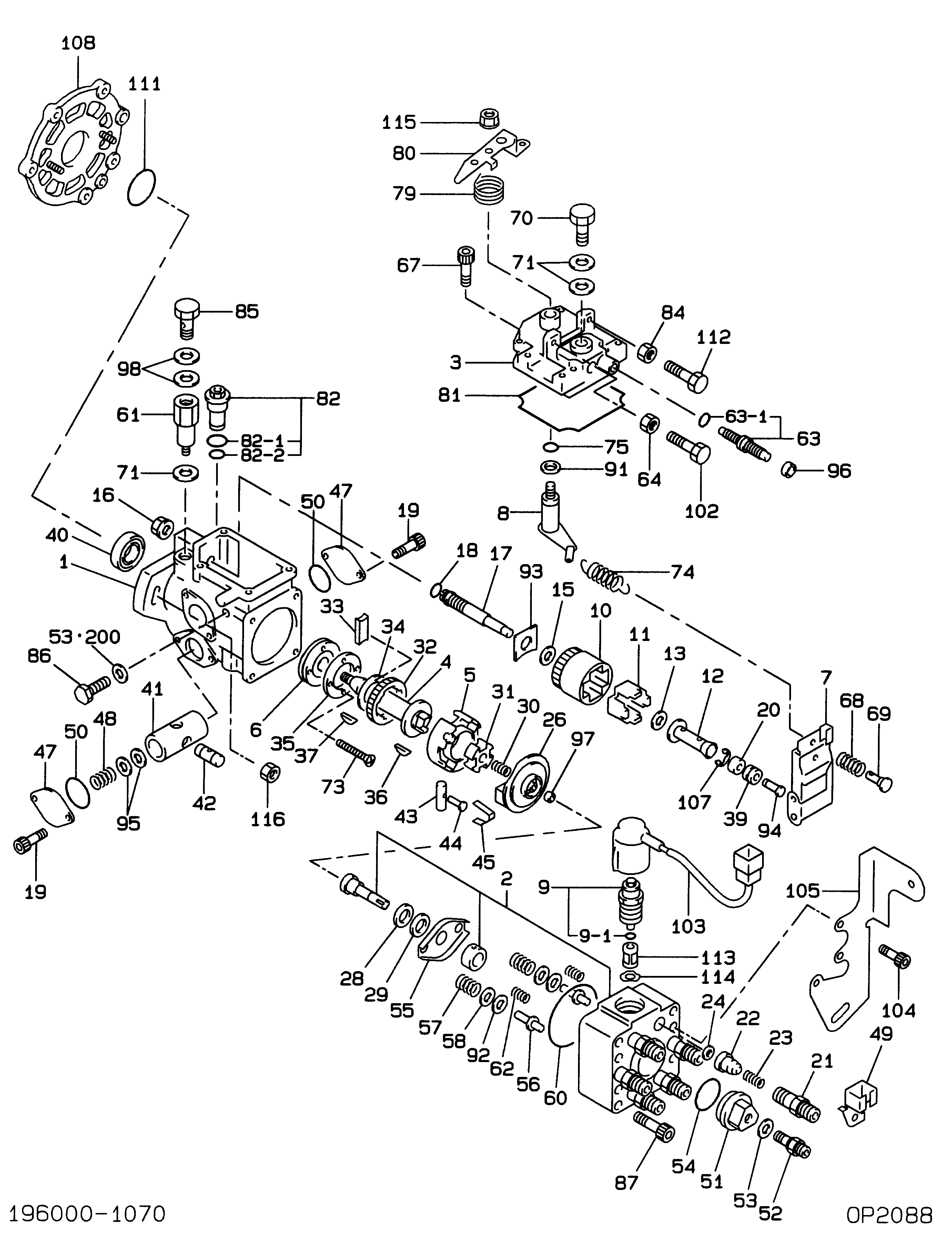

19600-01070
PUMP ASSY, INJECTI
22100-78781-71
TOYOTA
Include in ##:
19600-01070
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
19600-01070
22100-7878
PUMP ASSY, INJECTI
1960001070
22100-78781-71
TOYOTA
PUMP ASSY, INJECTI
Information:
11Feb2016
U-73
A-56
D-64
O-60
Before/After
PRODUCT SUPPORT PROGRAM FOR REPLACING THE SOFTWARE AND POSSIBLY REPLACING THE ELECTRONIC UNIT FUEL INJECTORS ON CERTAIN 326/329D2 EXCAVATORS
1290 1254 1920 PS44984
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program must be administered either before or after failure.In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS44984" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
28Feb2018
PROBLEM
Damage to the electronic unit fuel injectors can occur if water is allowed to bypass the fuel/water separator and enter the fuel system on certain 326/329D2 Excavators.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
326D 2 KGY00161-00323
REC00141-00197, 199, 202-203, 205-206, 208-212
326D 2L MGW00241-00313
329D 2 SHJ00184-00190
TMJ00231-00376
329D 2L RGA00191-00309
THW00231-00506, 509-554
*******Group 2*******
326D 2L JFL00124-00146
NBX00123-00137
XAM00261-00265
329D 2L KJB00176-00180
ZBF00201-00216, 218-221
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
6 2775067 SLEEVE (After Failure Only)
6 2785170 BOLT (After Failure Only)
2 3608960 ELEMENT-FUEL (After Failure Only)
1 3705513
