19600-00440 PUMP ASSY, INJECTI Calibration Data


Rating:
9
Buy PUMP ASSY, INJECTI 19600-00440 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
HIACE/HIACE S.B.V 2L-T
Engine
2L-T
Serial start-end
9508--9607
Info
Injector Nozzle
093500-6200
Manufacture:
22100-5B470 TOYOTA
Dim 1
3.2-3.4
Dim 2
5.8-6.0
Dim 3
0.2-0.4
Dim 4
Dim 5
Dim 6
Information
Injector nozzle: 0935006200

KIT List:

Part name
Kit1
Kit2
Pump assy, injecti

Components :

00.001
PUMP ASSY, INJECTI
01.002
RING SUB-ASSY, ROL
01.003
COVER SUB-ASSY, TI
01.004
GOVERNOR ASSY, TOR
01.005
SHIM, PLUNGER ADJU
DUMMY
01.005
SHIM, PLUNGER ADJU
T1.9(*1)
01.006
COMPENSATOR SUB-AS
02.007
COVER SUB-ASSY, GO

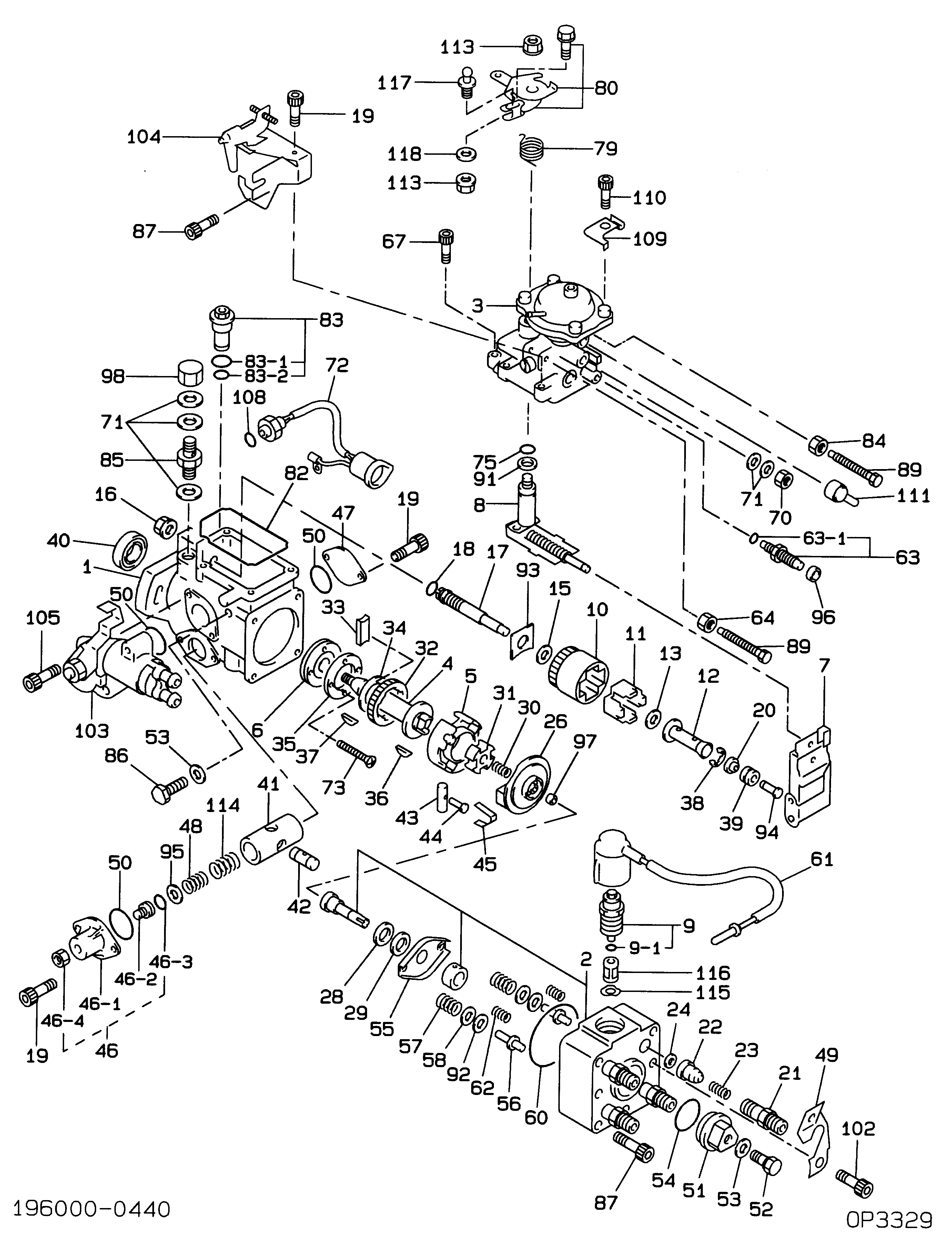

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-00440
PUMP ASSY, INJECTI
22100-5B470 TOYOTA
001
[01]
HOUSING SUB-ASSY,
22101-54260 TOYOTA
002
[01]
HEAD SUB-ASSY, DIS
22140-6D480 TOYOTA
003
[01]
COMPENSATOR SUB-AS
004
[01]
SHAFT, DRIVE
22170-55130 TOYOTA
005
[01]
RING SUB-ASSY, ROL
SEE COMPONENT
22108-54180 TOYOTA
006
[01]
PUMP SUB-ASSY, FUE
22505-54010 TOYOTA
007
[01]
GOVERNOR ASSY, TOR
STD-SP
22350-54620 TOYOTA
008
[01]
SHAFT SUB-ASSY, SP
22302-5B470 TOYOTA
009
[01]
SOLENOID ASSY, FUE
FCV,12V
22390-6A511 TOYOTA
009-001
[01]
O-RING
ID14.4
010
[01]
HOLDER SUB-ASSY, F
22741-54020 TOYOTA
011
[04]
FLYWEIGHT, DISTRIB
22745-54010 TOYOTA
012
[1C]
SLEEVE, GOVERNOR
D0.95
22316-58202 TOYOTA
012
[1C]
SLEEVE, GOVERNOR
D0.75
22316-54360 TOYOTA
012
[1C]
SLEEVE, GOVERNOR
D0.80
22316-6A041 TOYOTA
012
[1C]
SLEEVE, GOVERNOR
D0.85
22316-17440 TOYOTA
013
[01]
WASHER, FLYWEIGHT
ROUND TYPE
22753-54020 TOYOTA
015
[01]
WASHER, FLYWEIGHT
T1.30
22753-54010 TOYOTA
016
[01]
NUT, GOVERNOR SHAF
M10,L SCREW
22722-54470 TOYOTA
017
[01]
SHAFT SUB-ASSY, GO
22380-54020 TOYOTA
018
[01]
O-RING
ID 8
90099-14049 TOYOTA
019
[06]
BOLT, SOCKET
M6,L16
22395-56351 TOYOTA
020
[01]
RING, GOVERNOR SLE
22147-54290 TOYOTA
021
[04]
VALVE SUB-ASSY, SN
22190-6A680 TOYOTA
022
[04]
VALVE SUB-ASSY, DI
22104-5B460 TOYOTA
023
[04]
SPRING, DELIVERY V
22148-54010 TOYOTA
024
[04]
GASKET, DELIVERY V
22149-56351 TOYOTA
026
[01]
CAMPLATE SUB-ASSY,
22130-54010 TOYOTA
028
[01]
PLATE, PLUNGER, LW
22163-54010 TOYOTA
029
[01]
PLATE, PLUNGER, UP
22162-54010 TOYOTA
030
[01]
SPRING, COUPLING
22659-64150 TOYOTA
031
[01]
COUPLING
22632-54010 TOYOTA
032
[01]
GEAR, GOVERNOR DRI
22341-54010 TOYOTA
033
[02]
JOINT, RUBBER
22169-54180 TOYOTA
034
[01]
WASHER, DRIVE SHAF
22161-54010 TOYOTA
035
[01]
COVER, FEED PUMP
22511-54020 TOYOTA
036
[01]
KEY, WOODRUFF
90099-13017 TOYOTA
037
[01]
KEY, WOODRUFF
T4.023
90099-13018 TOYOTA
038
[01]
E-RING
D2
90096-90024 TOYOTA
039
[01]
BEARING, BALL
OD8
90099-10148 TOYOTA
040
[01]
SEAL, 0IL
22544-64740 TOYOTA
041
[01]
PISTON ASSY, TIMER
22550-5B460 TOYOTA
042
[01]
SUB-PISTON, TIMER
22657-54010 TOYOTA
043
[01]
PIN, TIMER SLIDE
22655-54010 TOYOTA
044
[01]
STOPPER, TIMER SLI
L16.4
22658-17840 TOYOTA
045
[01]
CLIP, TIMER
L/ DITCH
22656-17840 TOYOTA
046
[01]
COVER SUB-ASSY, TI
TIMER COVER
22790-17020 TOYOTA
046-001
[01]
COVER, TIMER
22612-17020 TOYOTA
046-002
[01]
STOPPER, TIMER SLI
22658-17020 TOYOTA
046-003
[01]
O-RING
ID 8.8
22193-17020 TOYOTA
046-004
[01]
NUT, HEXAGON
M10,L4
90099-05225 TOYOTA
047
[01]
COVER, TIMER
22612-56350 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K0.16
22615-17020 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K0.17
22615-18021 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K0.15
22615-18020 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K0.13,RED
22615-5B373 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K0.14,VIOLET
22615-5B374 TOYOTA
049
[01]
CLIP, CONNECTOR SU
22172-54263 TOYOTA
050
[03]
O-RING
ID27.5
22193-17840 TOYOTA
051
[01]
PLUG, DISTRIBUTIVE
22176-54020 TOYOTA
052
[01]
BOLT, DISTRIBUTIVE
M8,L19.7
22128-54010 TOYOTA
053
[03]
GASKET, DELIVERY V
ID8.2,T1
22149-56200 TOYOTA
054
[01]
O-RING
ID30
22193-54772 TOYOTA
055
[01]
SHEET, PLUNGER SPR
22145-54010 TOYOTA
056
[02]
GUIDE SUB-ASSY, PL
22192-54010 TOYOTA
057
[02]
SPRING, PLUNGER
22144-54180 TOYOTA
058
[02]
SHEET, PLUNGER SPR
22143-54010 TOYOTA
060
[01]
O-RING
ID60
90099-14053 TOYOTA
061
[01]
WIRE SUB-ASSY
22751-6A220 TOYOTA
062
[02]
SPRING, LEVER SUPP
K1.03
22314-54010 TOYOTA
063
[01]
SMOKE SET SUB-ASSY
063-001
[01]
O-RING
ID 5
22193-54771 TOYOTA
064
[01]
NUT, HEXAGON
M6,L5
90092-10608 TOYOTA
067
[04]
BOLT, SOCKET
M6,L35
22395-54010 TOYOTA
070
[01]
SCREW SUB-ASSY, OV
W/FILTER
22160-64010 TOYOTA
071
[05]
WASHER, AIR BLEEDE
T1.6
22119-77020 TOYOTA
072
[01]
PICKUP ASSY, TACHO
83180-30011 TOYOTA
073
[02]
SCREW, COUNTERSUNK
M4,L28
90099-00723 TOYOTA
075
[01]
O-RING
ID 6.5
22193-54770 TOYOTA
079
[01]
SPRING, RETURN
22322-54730 TOYOTA
080
[1C]
LEVER SUB-ASSY, AD
ANGLE 24.5
22701-54740 TOYOTA
080
[1C]
LEVER SUB-ASSY, AD
ANGLE 32
22701-54741 TOYOTA
082
[01]
GASKET, GOVERNOR C
22774-54270 TOYOTA
083
[01]
VALVE SUB-ASSY, RE
22180-55050 TOYOTA
083-001
[01]
O-RING
ID10
22193-54561 TOYOTA
083-002
[01]
O-RING
ID 7.5
084
[01]
NUT, LOCK
M6,L5
22775-77121 TOYOTA
085
[01]
SCREW, HOLLOW
M12,L43.5
90099-18022 TOYOTA
086
[02]
BOLT, GOVERNOR LIN
M8,L19
22739-54020 TOYOTA
087
[05]
BOLT, SOCKET
M6,L45
22395-58200 TOYOTA
089
[02]
BOLT, HEXAGON, W/
M6,L62
90099-04954 TOYOTA
091
[01]
WASHER, GOVERNOR T
T0.5
22378-64010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.5
22182-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.8
22183-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.0
22184-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.2
22185-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.5
22186-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.8
22187-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T2.0
22188-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.9
22182-17010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.1
22182-17011 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.3
22182-17012 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.4
22182-17013 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.05
22713-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.25
22714-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.45
22715-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.65
22716-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.85
22717-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.55
093
[1C]
WASHER, GOVERNOR G
T1.75
093
[1C]
WASHER, GOVERNOR G
T2.05
093
[1C]
WASHER, GOVERNOR G
T1.3
093
[1C]
WASHER, GOVERNOR G
T1.4
093
[1C]
WASHER, GOVERNOR G
T1.5
093
[1C]
WASHER, GOVERNOR G
T1.6
093
[1C]
WASHER, GOVERNOR G
T1.15 9807-
093
[1C]
WASHER, GOVERNOR G
T1.2 9807-
093
[1C]
WASHER, GOVERNOR G
T1.7 9807-
093
[1C]
WASHER, GOVERNOR G
T1.8 9807-
094
[1C]
PLUG, GOVERNOR SLE
L3.0
22787-64641 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.1
22787-64642 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.2
22787-64643 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.3
22787-54026 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.4
22787-54027 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.5
22787-54028 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.6
22787-54029 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.7
22787-54030 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.8
22787-54031 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.9
22787-54032 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.0
22787-54033 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.1
22787-64640 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L4.2
22787-64680 TOYOTA
095
[01]
WASHER, TIMER SENS
OUTER T0.5
22625-17020 TOYOTA
096
[01]
COLLAR, SMOKE SET
097
[1C]
SHIM, PLUNGER ADJU
T1.9
22179-54010 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.2
22179-54013 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.4
22179-54015 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.7
22179-54018 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.9
22179-54020 TOYOTA
098
[01]
NUT, CAP
M12
90099-05161 TOYOTA
102
[01]
BOLT, SOCKET
M8,L16
22395-56350 TOYOTA
103
[01]
COVER SUB-ASSY, TI
ACSD
22790-5B460 TOYOTA
104
[01]
IDLE UP SUB-ASSY
22305-54730 TOYOTA
105
[02]
BOLT, SOCKET
M6,L10
22395-56352 TOYOTA
108
[01]
O-RING
ID14.8
22193-64750 TOYOTA
109
[01]
CLIP, CONNECTOR SU
22172-54264 TOYOTA
110
[01]
BOLT, SOCKET
M6,L14 -0006
22395-54263 TOYOTA
110
[01]
BOLT, SOCKET
M6,L16 0007-
22395-56351 TOYOTA
111
[01]
CAP RUBBER
22777-54261 TOYOTA
113
[02]
NUT
M6,L6.5
90179-06009 TOYOTA
114
[01]
SPRING, TIMER, OUT
K1.7
22615-17030 TOYOTA
115
[01]
WASHER
T0.2
22689-56350 TOYOTA
116
[01]
FILTER, SUB-ASSY
22602-56350 TOYOTA
117
[01]
JOINT
26126-54390 TOYOTA
118
[01]
WASHER, STEEL PLAT
T2
90099-02211 TOYOTA

Include in ##:

19600-00440 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19600-00440
22100-5B47
PUMP ASSY, INJECTI
1960000440
22100-5B470
TOYOTA
PUMP ASSY, INJECTI

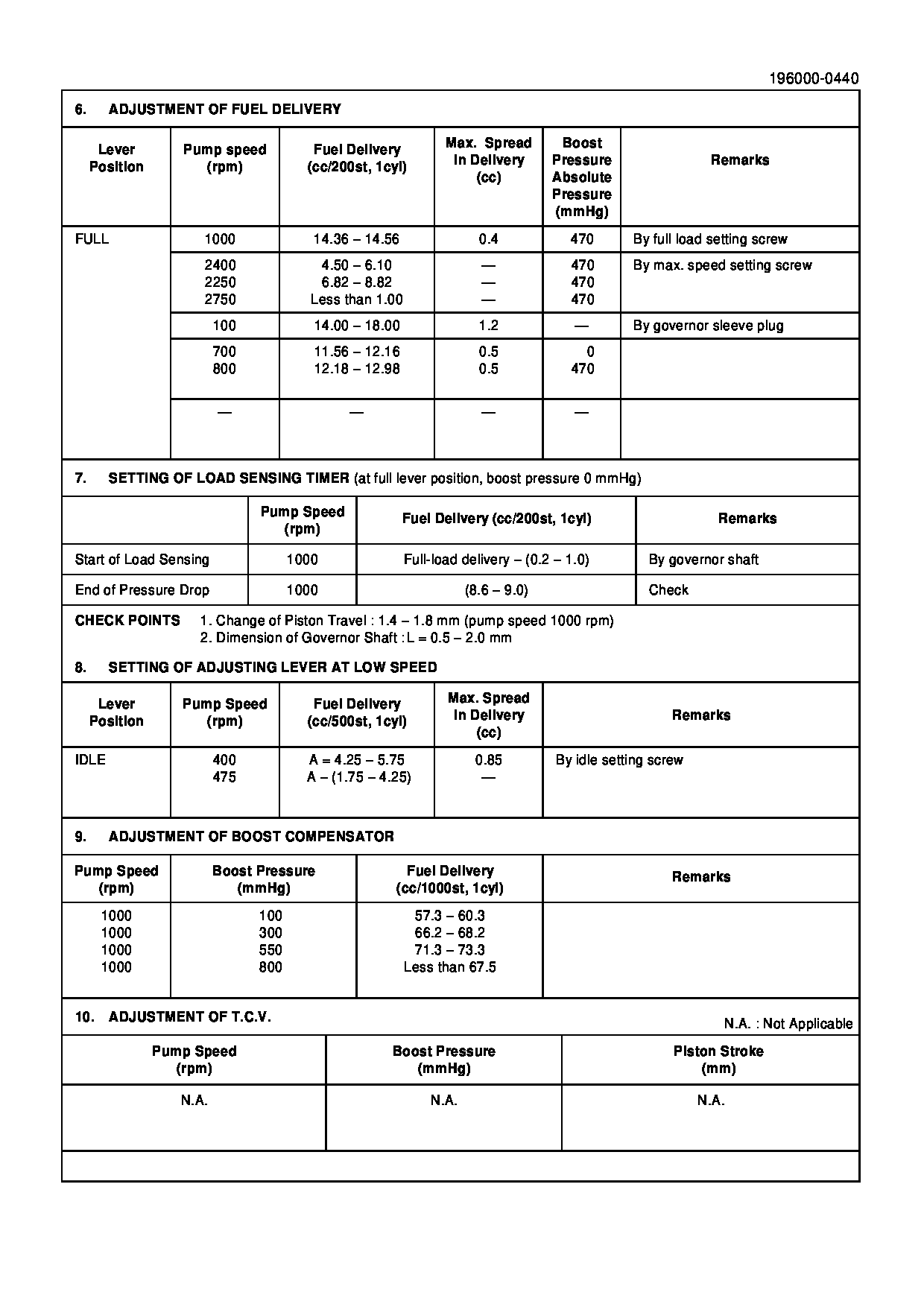

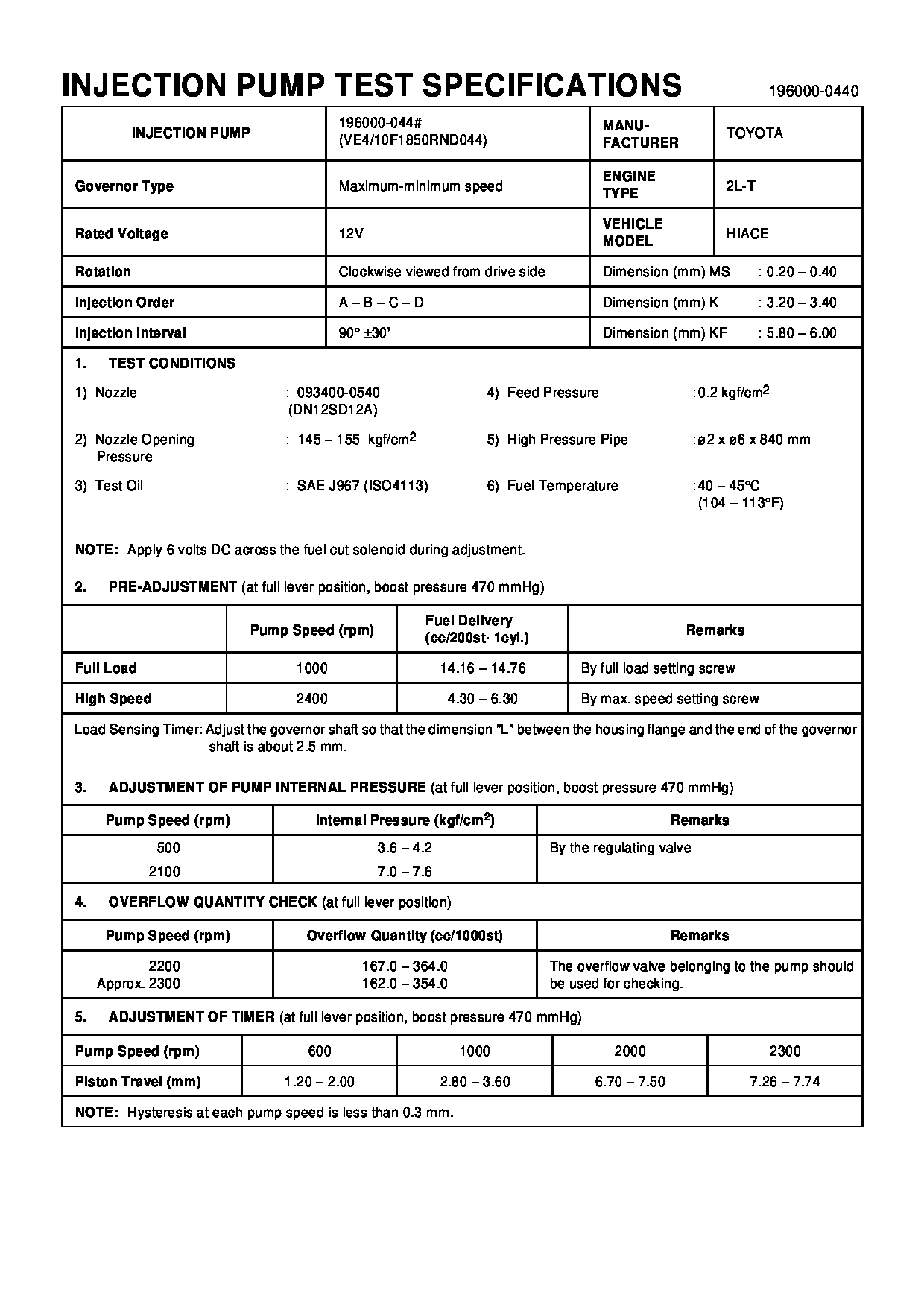

Test Calibration Data:

1960000440 22100-5B470




Information:

1. Install the fuel injection pump housing on tool (A). 2. Remove the bolt (1) from the cover. Turn the injection pump camshaft until the timing pin (B) can be installed in the camshaft.3. Install tool (C) in the threads of the sleeve (3). Tighten the bolt until the sleeve can be removed.4. Remove the four bolts (4) that hold the body to the housing.5. Remove the body (2) from the housing. 6. Remove the idler gear (5) from the body.7. Remove the O-ring seal (6) from the body. Remove the two lip type seals (7) from the body. 8. Remove the drive gear (9) from the shaft.9. Remove the key (8) from the shaft.Install Fuel Transfer Pump
1. Install the key (1) and the drive gear (2) on the shaft.2. Put 5S1454 Sealing Compound on the outside diameter of the seals. 3. Install the inner seal in the body with the lip of the seal toward the inside with tooling (A).4. Install the outer seal in the body with the lip of the seal toward the outside with tooling (B).5. Remove the extra sealing compound from the body and the seals after installation. 6. Install the O-ring seal (4) and the idler gear (3) in the body. 7. Install the body (5) on the housing. 8. Install the four bolts (7) that hold the body to the housing.9. Put the timing pin (D) in position to keep the camshaft from turning.10. Put the sleeve (6) on the camshaft. 11. Tighten the sleeve into position on the shaft with 4B4280 Washer of tooling (C) approximately .25 in. (6.4 mm). Tighten the sleeve the remainder of the way with the 4N3371 Washer. The 4N3371 Washer is the washer which is on the tachometer drive bolt.
Do not hit the sleeve to install. Damage to governor will result.
12. The end play of the camshaft must be .023 .018 in. (0.58 0.46 mm) after sleeve (6) is installed.end by: a) install fuel injection pump housing and governor
