19600-00391 PUMP ASSY, INJECTI Denso Cross


Rating:
16
Buy PUMP ASSY, INJECTI 19600-00391 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
19600-00391 TOYOTA
01.002
RING SUB-ASSY, ROL
09618-00050 TOYOTA
01.003
COVER SUB-ASSY, TI
09621-00800 TOYOTA
ACSD
01.004
GOVERNOR ASSY, TOR
09627-01190 TOYOTA
STD
01.005
SHIM, PLUNGER ADJU
09640-60020 TOYOTA
DUMMY
01.005
SHIM, PLUNGER ADJU
09640-60020 TOYOTA
T1.9(*1)
01.006
COVER SUB-ASSY, GO
09644-01350 TOYOTA

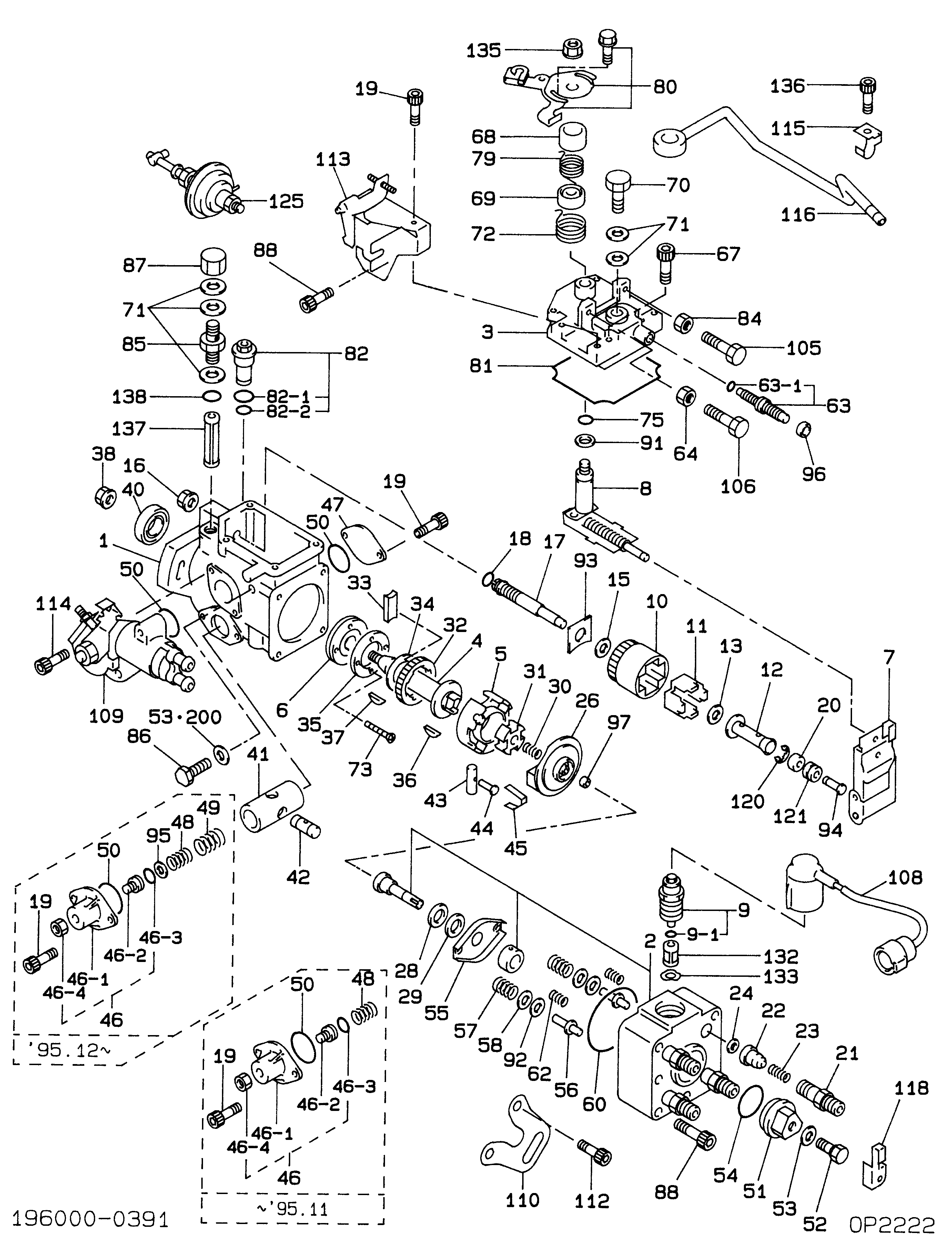

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19600-00391
PUMP ASSY, INJECTI
22100-6D800 TOYOTA
001
[01]
09611-00252
HOUSING SUB-ASSY,
22101-64010 TOYOTA
002
[01]
09640-01490
HEAD SUB-ASSY, DIS
22140-6D500 TOYOTA
003
[01]
09644-01350
COVER SUB-ASSY, GO
22703-6D090 TOYOTA
004
[01]
09612-10100
SHAFT, DRIVE
22170-6A510 TOYOTA
005
[01]
09618-00050
RING SUB-ASSY, ROL
22108-54180 TOYOTA
006
[01]
09614-00030
PUMP SUB-ASSY, FUE
22505-54010 TOYOTA
007
[01]
09627-01190
GOVERNOR ASSY, TOR
22350-6D560 TOYOTA
008
[01]
09646-01631
SHAFT SUB-ASSY, SP
22302-6D561 TOYOTA
009
[01]
09603-00160
SOLENOID ASSY, FUE
FCV,12V -9702
22390-6A510 TOYOTA
009
[01]
09603-00520
SOLENOID ASSY, FUE
FCV,12V 9702-
22390-6A511 TOYOTA
009-001
[01]
09604-90350
O-RING
ID15.3
010
[01]
09626-00050
HOLDER SUB-ASSY, F
22741-54020 TOYOTA
011
[04]
09626-30030
FLYWEIGHT, DISTRIB
22745-54010 TOYOTA
012
[1C]
09625-20521
SLEEVE, GOVERNOR
D1.20
012
[1C]
09625-20980
SLEEVE, GOVERNOR
D1.30
012
[1C]
09625-21091
SLEEVE, GOVERNOR
D1.05
22316-6D190 TOYOTA
012
[1C]
09625-21380
SLEEVE, GOVERNOR
D1.00
22316-5C081 TOYOTA
012
[1C]
09625-21471
SLEEVE, GOVERNOR
D0.60
22316-17542 TOYOTA
012
[1C]
09625-21510
SLEEVE, GOVERNOR
D1.10
22316-6D200 TOYOTA
012
[1C]
09625-21520
SLEEVE, GOVERNOR
D1.15
22316-6D840 TOYOTA
013
[01]
09626-50030
WASHER, FLYWEIGHT
ROUND TYPE
22753-54020 TOYOTA
015
[01]
09626-50020
WASHER, FLYWEIGHT
T1.30
22753-54010 TOYOTA
016
[01]
09625-40050
NUT, GOVERNOR SHAF
M10,L SCREW
22722-54470 TOYOTA
017
[01]
09625-00030
SHAFT SUB-ASSY, GO
22380-54020 TOYOTA
018
[01]
94914-02930
O-RING
ID 8
90099-14049 TOYOTA
019
[06]
09644-90110
BOLT, SOCKET
M6,L16
22395-56351 TOYOTA
020
[01]
09625-50020
RING, GOVERNOR SLE
22147-54290 TOYOTA
021
[04]
09643-00180
VALVE SUB-ASSY, SN
22190-6A680 TOYOTA
022
[04]
09642-00510
VALVE SUB-ASSY, DI
22104-6A290 TOYOTA
023
[04]
09642-70010
SPRING, DELIVERY V
22148-54010 TOYOTA
024
[04]
09642-60070
GASKET, DELIVERY V
22149-56351 TOYOTA
026
[01]
09623-00250
CAMPLATE SUB-ASSY,
22130-6A770 TOYOTA
028
[01]
09624-50020
PLATE, PLUNGER, LW
22163-54010 TOYOTA
029
[01]
09624-40040
PLATE, PLUNGER, UP
22162-54010 TOYOTA
030
[01]
09622-40040
SPRING, COUPLING
22659-64150 TOYOTA
031
[01]
09622-20020
COUPLING
22632-54010 TOYOTA
032
[01]
09612-40030
GEAR, GOVERNOR DRI
22341-54010 TOYOTA
033
[02]
09612-60020
JOINT, RUBBER
22169-54180 TOYOTA
034
[01]
09612-50010
WASHER, DRIVE SHAF
22161-54010 TOYOTA
035
[01]
09614-70040
COVER, FEED PUMP
22511-54020 TOYOTA
036
[01]
94913-00260
KEY, WOODRUFF
90099-13017 TOYOTA
037
[01]
94913-00300
KEY, WOODRUFF
T4.023
90099-13018 TOYOTA
038
[01]
94905-62390
NUT
M14
90099-05166 TOYOTA
040
[01]
09603-90040
SEAL, 0IL
22544-64740 TOYOTA
041
[01]
09619-00830
PISTON ASSY, TIMER
-9511
22582-5B320 TOYOTA
041
[01]
09619-01280
PISTON ASSY, TIMER
9512-
22582-5B321 TOYOTA
042
[01]
09621-30020
SUB-PISTON, TIMER
22657-54010 TOYOTA
043
[01]
09620-50020
PIN, TIMER SLIDE
22655-54010 TOYOTA
044
[01]
09621-60020
STOPPER, TIMER SLI
-9510
22658-54010 TOYOTA
044
[01]
09621-60120
STOPPER, TIMER SLI
9510-
22658-17840 TOYOTA
045
[01]
09621-10050
CLIP, TIMER
-9510
22656-54010 TOYOTA
045
[01]
09621-10080
CLIP, TIMER
9510-
22656-17840 TOYOTA
046
[01]
09621-00700
COVER SUB-ASSY, TI
TIMER COVER -9511
22790-17010 TOYOTA
046
[01]
09621-00870
COVER SUB-ASSY, TI
TIMER COVER 9512-
22790-17020 TOYOTA
046-001
[01]
09621-80290
COVER, TIMER
-9511
22612-17010 TOYOTA
046-001
[01]
09621-80870
COVER, TIMER
9512-
22612-17020 TOYOTA
046-002
[01]
09621-60090
STOPPER, TIMER SLI
-9511
22658-17010 TOYOTA
046-002
[01]
09621-60110
STOPPER, TIMER SLI
9512-
22658-17020 TOYOTA
046-003
[01]
09604-90190
O-RING
ID14.8 -9511
22193-64750 TOYOTA
046-003
[01]
09604-90290
O-RING
ID 8.8 9512-
22193-17020 TOYOTA
046-004
[01]
94905-05010
NUT, HEXAGON
90099-05225 TOYOTA
047
[01]
09621-80270
COVER, TIMER
22612-56350 TOYOTA
048
[1C]
09620-80900
SPRING, TIMER, OUT
K0.17 -9511
22615-18011 TOYOTA
048
[1C]
09620-80950
SPRING, TIMER, OUT
K0.16 -9511
22615-55200 TOYOTA
048
[1C]
09620-81180
SPRING, TIMER, OUT
K0.13 -9511
048
[1C]
09620-81200
SPRING, TIMER, OUT
K0.14 -9511
22615-6D310 TOYOTA
048
[1C]
09620-81300
SPRING, TIMER, OUT
K0.15 -9511
22615-6D380 TOYOTA
048
[1C]
09620-81320
SPRING, TIMER, OUT
K0.16 9512-
22615-17020 TOYOTA
048
[1C]
09620-81410
SPRING, TIMER, OUT
K0.15 9512-
22615-18020 TOYOTA
048
[1C]
09620-81820
SPRING, TIMER, OUT
K0.14YELLOWGREEN 9512-
048
[1C]
09620-82070
SPRING, TIMER, OUT
K0.12,PINK 9512-
048
[1C]
09620-82080
SPRING, TIMER, OUT
K0.13,BLUE 9512-
049
[01]
09620-81370
SPRING, TIMER, OUT
K1.7 9512-
22615-17030 TOYOTA
050
[03]
94914-05820
O-RING
ID26.3 -9508
90099-14105 TOYOTA
050
[03]
09604-90400
O-RING
ID27.5 9509-
22193-17840 TOYOTA
051
[01]
09641-70040
PLUG, DISTRIBUTIVE
22176-54020 TOYOTA
052
[01]
09641-80020
BOLT, DISTRIBUTIVE
22128-54010 TOYOTA
053
[03]
09642-60030
GASKET, DELIVERY V
ID8.2,T1 -9703
22149-56200 TOYOTA
053
[01]
09642-60030
GASKET, DELIVERY V
ID8.2,T1 9704-
22149-56200 TOYOTA
054
[01]
94914-02970
O-RING
ID30 -9607
90099-14052 TOYOTA
054
[01]
09604-90510
O-RING
ID30 9607-
22193-54772 TOYOTA
055
[01]
09624-70010
SHEET, PLUNGER SPR
22145-54010 TOYOTA
056
[02]
09623-70010
GUIDE SUB-ASSY, PL
22192-54010 TOYOTA
057
[02]
09623-60040
SPRING, PLUNGER
K10
22144-54190 TOYOTA
058
[02]
09624-60010
SHEET, PLUNGER SPR
22143-54010 TOYOTA
060
[01]
94914-02980
O-RING
ID60
90099-14053 TOYOTA
062
[02]
09627-90010
SPRING, LEVER SUPP
K1.03
22314-54010 TOYOTA
063
[01]
09648-00010
SMOKE SET SUB-ASSY
063-001
[01]
94914-02900
O-RING
ID 5 -9607
90099-14047 TOYOTA
063-001
[01]
09604-90470
O-RING
ID 5 9607-
22193-54771 TOYOTA
064
[01]
90166-06051
NUT, HEXAGON
M6,L5
90092-10608 TOYOTA
067
[04]
09644-90020
BOLT, SOCKET
M6,L35
22395-54010 TOYOTA
068
[01]
09644-50230
GUIDE, RETURN SPRI
MARK 23
22728-6D090 TOYOTA
069
[01]
09644-50240
GUIDE, RETURN SPRI
MARK 24
22728-6D091 TOYOTA
070
[01]
09602-00030
SCREW SUB-ASSY, OV
W/FILTER
22160-64010 TOYOTA
071
[05]
09024-10010
WASHER, AIR BLEEDE
T1.6
22119-77020 TOYOTA
072
[01]
09644-40960
SPRING, RETURN
22322-6D110 TOYOTA
073
[02]
94900-20420
SCREW, COUNTERSUNK
M4,L28
90099-00723 TOYOTA
075
[01]
09604-90300
O-RING
ID 6.5
22193-54770 TOYOTA
079
[01]
09644-40950
SPRING, RETURN
22322-6D090 TOYOTA
080
[1C]
09643-54210
LEVER SUB-ASSY, AD
ANGLE 56.0
22701-6D150 TOYOTA
080
[1C]
09643-54220
LEVER SUB-ASSY, AD
ANGLE 63.5
22701-6D151 TOYOTA
081
[01]
09644-60100
GASKET, GOVERNOR C
22774-54270 TOYOTA
082
[01]
09616-00030
VALVE SUB-ASSY, RE
K1.53
22180-54010 TOYOTA
082-001
[01]
09604-90180
O-RING
ID10
22193-54561 TOYOTA
082-002
[01]
94914-02920
O-RING
ID 7.5 -9607
90099-14080 TOYOTA
082-002
[01]
09604-90500
O-RING
9607-
084
[01]
09634-20010
NUT, LOCK
22775-77121 TOYOTA
085
[01]
94918-00770
SCREW, HOLLOW
M12,L43.5
90099-18022 TOYOTA
086
[02]
09626-90020
BOLT, GOVERNOR LIN
22739-54020 TOYOTA
087
[01]
94905-50300
NUT, CAP
M12
90099-05161 TOYOTA
088
[05]
09644-90070
BOLT, SOCKET
M6,L45
22395-58200 TOYOTA
091
[01]
09627-30140
WASHER, GOVERNOR T
T0.5
22378-64010 TOYOTA
092
[2C]
09624-80010
SHIM, PLUNGER SPRI
T0.5
22182-54010 TOYOTA
092
[2C]
09624-80020
SHIM, PLUNGER SPRI
T0.8
22183-54010 TOYOTA
092
[2C]
09624-80030
SHIM, PLUNGER SPRI
T1.0
22184-54010 TOYOTA
092
[2C]
09624-80040
SHIM, PLUNGER SPRI
T1.2
22185-54010 TOYOTA
092
[2C]
09624-80050
SHIM, PLUNGER SPRI
T1.5
22186-54010 TOYOTA
092
[2C]
09624-80060
SHIM, PLUNGER SPRI
T1.8
22187-54010 TOYOTA
092
[2C]
09624-80070
SHIM, PLUNGER SPRI
T2.0
22188-54010 TOYOTA
092
[2C]
09624-80080
SHIM, PLUNGER SPRI
T0.9
22182-17010 TOYOTA
092
[2C]
09624-80090
SHIM, PLUNGER SPRI
T1.1
22182-17011 TOYOTA
092
[2C]
09624-80100
SHIM, PLUNGER SPRI
T1.3
22182-17012 TOYOTA
092
[2C]
09624-80110
SHIM, PLUNGER SPRI
T1.4
22182-17013 TOYOTA
092
[2C]
09624-80220
SHIM, PLUNGER SPRI
T1.6
093
[1C]
09626-60100
WASHER, GOVERNOR G
T1.05
22713-54010 TOYOTA
093
[1C]
09626-60110
WASHER, GOVERNOR G
T1.25
22714-54010 TOYOTA
093
[1C]
09626-60120
WASHER, GOVERNOR G
T1.45
22715-54010 TOYOTA
093
[1C]
09626-60130
WASHER, GOVERNOR G
T1.65
22716-54010 TOYOTA
093
[1C]
09626-60140
WASHER, GOVERNOR G
T1.85
22717-54010 TOYOTA
093
[1C]
09626-60150
WASHER, GOVERNOR G
T1.55
093
[1C]
09626-60160
WASHER, GOVERNOR G
T1.75
093
[1C]
09626-60170
WASHER, GOVERNOR G
T2.05
093
[1C]
09626-60270
WASHER, GOVERNOR G
T1.3
093
[1C]
09626-60280
WASHER, GOVERNOR G
T1.4
093
[1C]
09626-60290
WASHER, GOVERNOR G
T1.5
093
[1C]
09626-60300
WASHER, GOVERNOR G
T1.6
093
[1C]
09626-60310
WASHER, GOVERNOR G
T1.15 9807-
093
[1C]
09626-60320
WASHER, GOVERNOR G
T1.2 9807-
093
[1C]
09626-60330
WASHER, GOVERNOR G
T1.7 9807-
093
[1C]
09626-60340
WASHER, GOVERNOR G
T1.8 9807-
094
[1C]
09625-60400
PLUG, GOVERNOR SLE
L3.0
22787-64641 TOYOTA
094
[1C]
09625-60410
PLUG, GOVERNOR SLE
L3.1
22787-64642 TOYOTA
094
[1C]
09625-60420
PLUG, GOVERNOR SLE
L3.2
22787-64643 TOYOTA
094
[1C]
09625-60430
PLUG, GOVERNOR SLE
L3.3
22787-54026 TOYOTA
094
[1C]
09625-60440
PLUG, GOVERNOR SLE
L3.4
22787-54027 TOYOTA
094
[1C]
09625-60550
PLUG, GOVERNOR SLE
L2.2
22787-64660 TOYOTA
094
[1C]
09625-60560
PLUG, GOVERNOR SLE
L2.3
22787-64661 TOYOTA
094
[1C]
09625-60570
PLUG, GOVERNOR SLE
L2.4
22787-64662 TOYOTA
094
[1C]
09625-60580
PLUG, GOVERNOR SLE
L2.5
22787-64663 TOYOTA
094
[1C]
09625-60590
PLUG, GOVERNOR SLE
L2.6
22787-64664 TOYOTA
094
[1C]
09625-60600
PLUG, GOVERNOR SLE
L2.7
22787-64665 TOYOTA
094
[1C]
09625-60610
PLUG, GOVERNOR SLE
L2.8
22787-64666 TOYOTA
094
[1C]
09625-60620
PLUG, GOVERNOR SLE
L2.9
22787-64667 TOYOTA
095
[01]
09621-40180
WASHER, TIMER SENS
T0.5 OUTER 9512-
22625-17020 TOYOTA
096
[01]
09644-80111
COLLAR, SMOKE SET
ID7.9,L8
097
[1C]
09640-60020
SHIM, PLUNGER ADJU
T1.9
22179-54010 TOYOTA
097
[1C]
09640-60170
SHIM, PLUNGER ADJU
T2.2
22179-54013 TOYOTA
097
[1C]
09640-60270
SHIM, PLUNGER ADJU
T2.4
22179-54015 TOYOTA
097
[1C]
09640-60420
SHIM, PLUNGER ADJU
T2.7
22179-54018 TOYOTA
097
[1C]
09640-60520
SHIM, PLUNGER ADJU
T2.9
22179-54020 TOYOTA
105
[01]
94904-50190
BOLT, HEXAGON, W/
M6,L40
90099-04946 TOYOTA
106
[01]
94904-50180
BOLT, HEXAGON, W/
M6,L32
90099-04576 TOYOTA
108
[01]
09604-50371
WIRE SUB-ASSY
22751-6A061 TOYOTA
109
[01]
09621-00800
COVER SUB-ASSY, TI
ACSD
22790-6D090 TOYOTA
110
[01]
09643-80110
BRACKET, IDLE UP
22178-64010 TOYOTA
112
[02]
09644-90140
BOLT, SOCKET
M8,L16
22395-56350 TOYOTA
113
[01]
09647-00380
IDLE UP SUB-ASSY
22305-6A770 TOYOTA
114
[02]
09644-90100
BOLT, SOCKET
M6,L10
22395-56352 TOYOTA
115
[01]
09602-90251
CLIP, CONNECTOR SU
22172-64150 TOYOTA
116
[01]
09221-80010
NIPPLE SUB-ASSY, S
22548-64150 TOYOTA
118
[01]
09602-90950
CLIP, CONNECTOR SU
22172-6A330 TOYOTA
120
[01]
90577-02000
E-RING
D2
90096-90024 TOYOTA
121
[01]
94910-02860
BEARING, BALL
OD8
90099-10148 TOYOTA
125
[01]
09647-20590
ACTUATOR SET, IDLE
88031-20080 TOYOTA
132
[01]
09653-00071
FILTER, SUB-ASSY
22602-56350 TOYOTA
133
[01]
09606-40110
WASHER
T0.2
22689-56350 TOYOTA
135
[01]
94905-61680
NUT
M6,L6.5
90179-06009 TOYOTA
136
[01]
09644-90130
BOLT, SOCKET
M6,L14 -0006
22395-54263 TOYOTA
136
[01]
09644-90110
BOLT, SOCKET
M6,L16 0007-
22395-56351 TOYOTA
137
[01]
09653-00111
FILTER, SUB-ASSY
9609-
22602-5B320 TOYOTA
138
[01]
09604-90460
O-RING
ID 6.5 9609-
22193-5B320 TOYOTA
200
[02]
09642-60130
GASKET, DELIVERY V
9704-
22149-54771 TOYOTA

Include in ##:

19600-00391 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19600-00391
22100-6D80
PUMP ASSY, INJECTI




Have questions with 19600-00391?





Group cross 19600-00391

Back to top
