19600-00040 TOYOTA PUMP ASSY, INJECTI Calibration Data


Rating:
6
Buy PUMP ASSY, INJECTI 19600-00040 TOYOTA genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
DYNA 15B-F
Engine
15B-F
Serial start-end
9505--9906
Info
Injector Nozzle
093500-6230
Manufacture:
22100-5C100 TOYOTA
Dim 1
3.4-3.6
Dim 2
7.0-7.2
Dim 3
0.35-0.45
Dim 4
Dim 5
Dim 6
Information
TOYOTA PUMP ASSY, INJECTI AA
  • *1: THE ORIFICE DIAMETER:096360-0260:1.37,-0270:1.57,
  • -280:1.77,-0290:1.97. CHOOSE NO.132 DEPENDING ON THE
  • TIMER STROKE VALUE. IF LESS THAN THE STANDARD :USE THE
  • SMALLER ORIFICE DIAMETER.IF LARGER:USE THE LARGER ONE.
Injector nozzle: 0935006230

KIT List:

Part name
Kit1
Kit2
Pump assy, injecti

Cross reference number



Part num
Firm num
Firm
Name
19600-00040

TOYOTA
PUMP ASSY, INJECTI
1960000040
22100-5C100
TOYOTA
PUMP ASSY, INJECTI

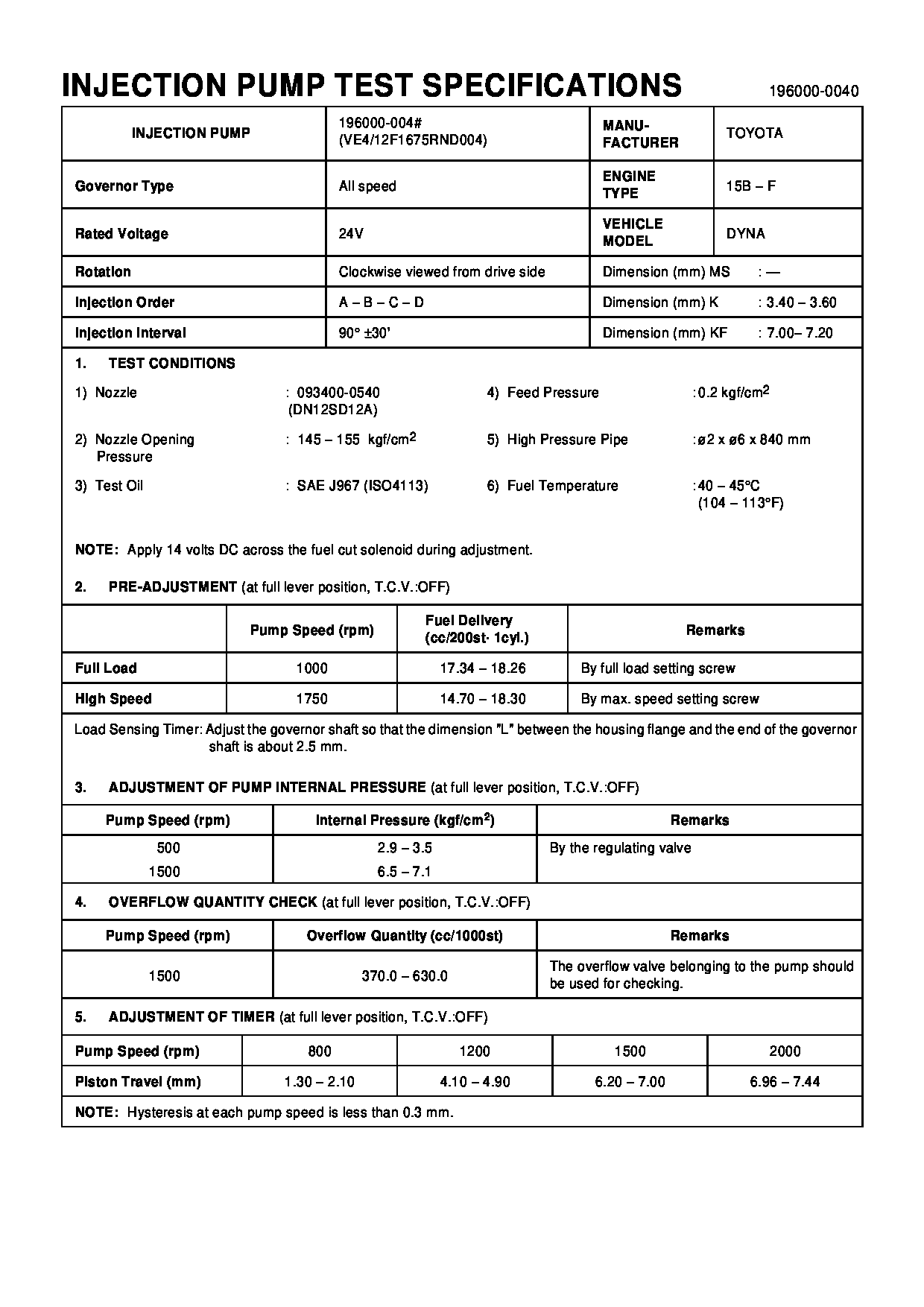

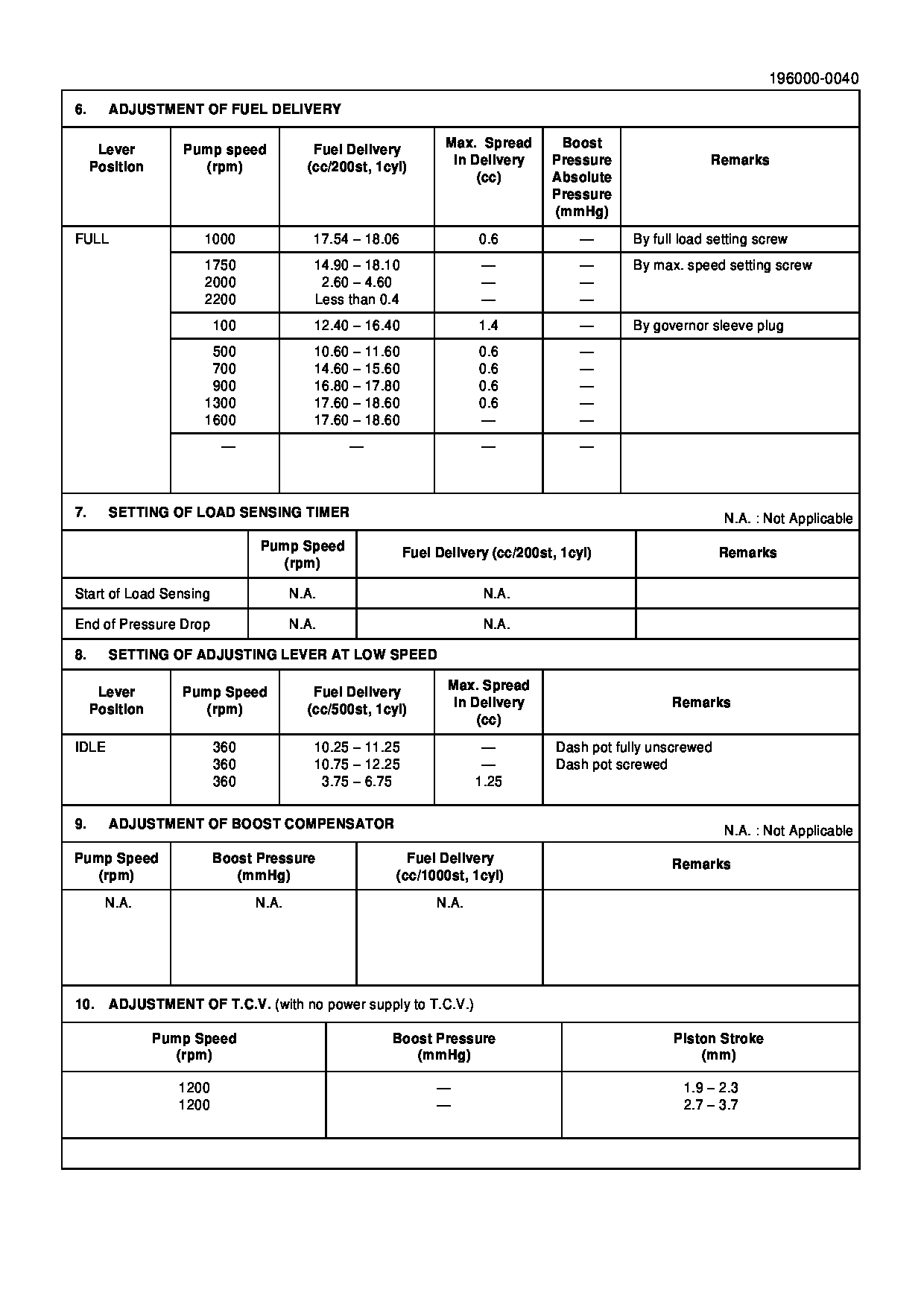

Test Calibration Data:

1960000040 22100-5C100
