19100-09940 PUMP ASSY, INJECTI Calibration Data


Rating:
9
Buy PUMP ASSY, INJECTI 19100-09940 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 1Z
Engine
1Z
Serial start-end
9203-
Info
Injector Nozzle
093500-3430
Injector nozzle: 0935003430

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400320
Pump assy, fuel fe
1922900060
Governor assy, mec
1908900170

Components :

00.001
PUMP ASSY, INJECTI
19100-09940 TOYOTA
A4,RSV
01.002
BODY ASSY, INJECTI
09010-08390 TOYOTA
A4
01.003
PUMP ASSY, FUEL FE
09210-02090 TOYOTA
KS
01.004
GOVERNOR ASSY, MEC
19080-04060 TOYOTA
RSV

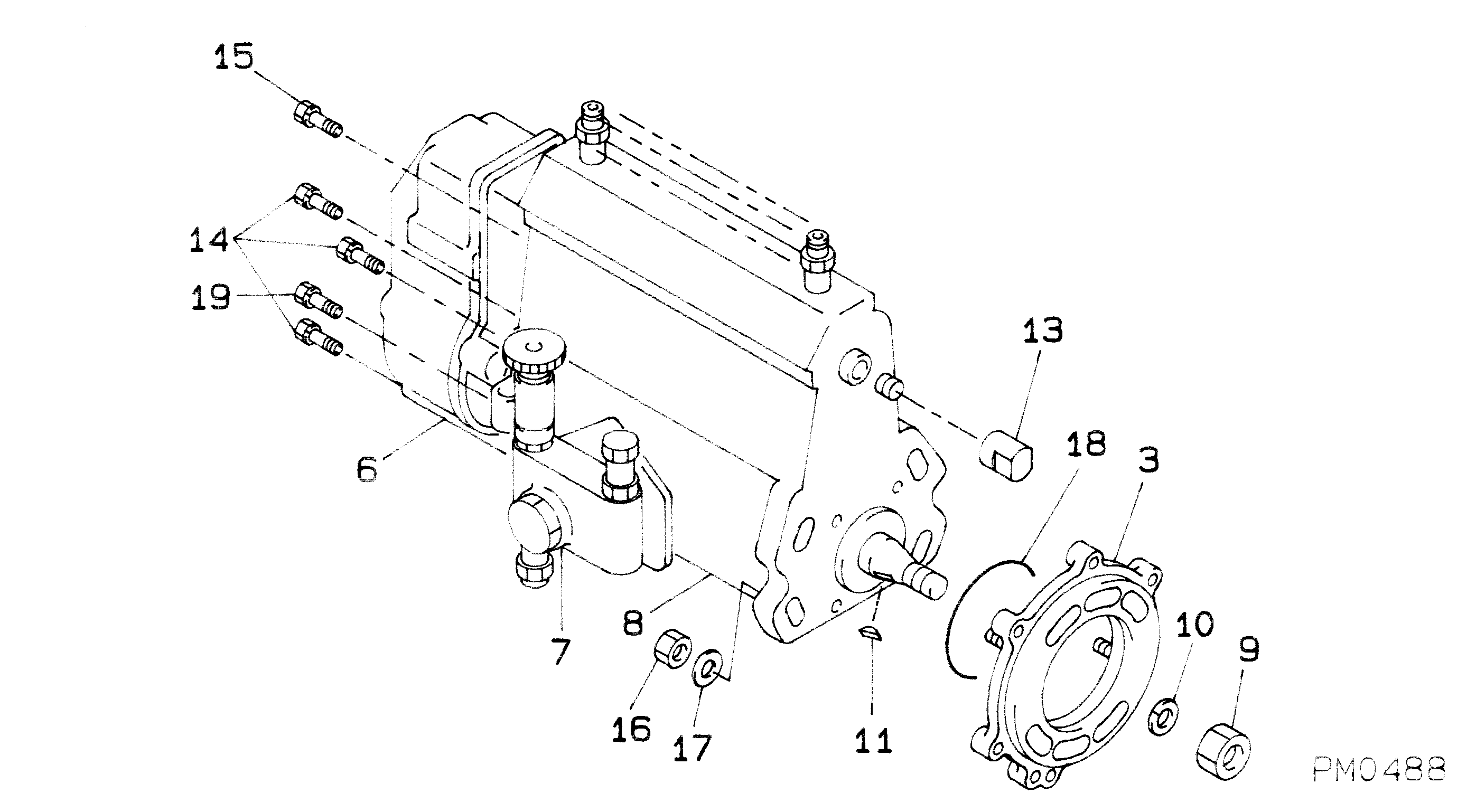

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-09940
PUMP ASSY, INJECTI
A4,RSV
22100-78307-71 TOYOTA
003
[01]
09006-00330
COVER SUB-ASSY, TI
006
[01]
19080-04060
GOVERNOR ASSY, MEC
RSV
007
[01]
09210-02090
PUMP ASSY, FUEL FE
KS
22510-78300-71 TOYOTA
008
[01]
09010-08390
BODY ASSY, INJECTI
A4
009
[01]
94905-03570
NUT, HEXAGON
M14
010
[01]
94901-50590
WASHER, SPRING
T3.5
011
[01]
94913-00300
KEY, WOODRUFF
T4.023
90099-13018 TOYOTA
013
[01]
09001-80090
COVER, CONTROL RAC
014
[05]
91418-06161
BOLT, W/WASHER
M6,L16
015
[01]
91518-08221
BOLT, W/WASHER
M8,L22
016
[04]
91266-10081
NUT, HEXAGON
M10
017
[04]
94901-15020
WASHER, STEEL PLAT
FOR M10
018
[01]
94914-02840
O-RING
ID74.1
019
[01]
91418-06141
BOLT, W/WASHER
M6,L14

Include in ##:

19100-09940 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-09940
22100-7830
PUMP ASSY, INJECTI
1910009940
22100-78307-71
TOYOTA
PUMP ASSY, INJECTI

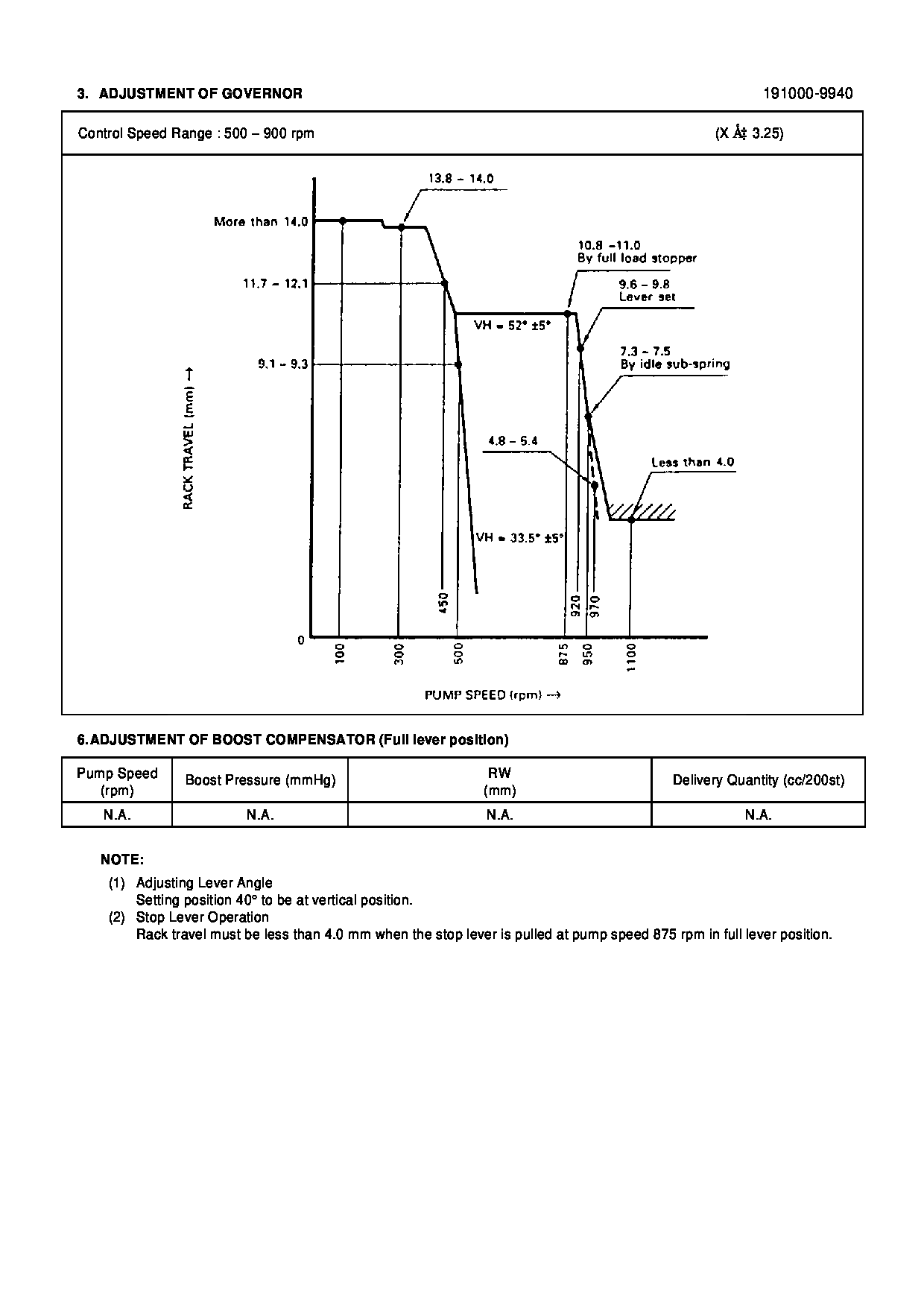

Test Calibration Data:

Get Full test data file
1910009940 22100-78307-71
EC9940
EC9940
