19100-09630 PUMP ASSY, INJECTI Calibration Data


Rating:
32
Buy PUMP ASSY, INJECTI 19100-09630 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 1DZ
Engine
1DZ
Serial start-end
9111-
Info
Injector Nozzle
093500-2240
Injector nozzle: 0935002240

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Pump assy, fuel fe
Body assy, injecti
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
A4,RSV
01.002
BODY ASSY, INJECTI
A4:COLD SPEC
01.003
PUMP ASSY, FUEL FE
KE
01.004
BODY ASSY, INJECTI
A4:COLD SPEC
01.005
GOVERNOR ASSY, MEC
RSV COLD SPEC.

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
A4,RSV
22100-78206-71 TOYOTA
003
[01]
COVER SUB-ASSY, TI
006
[01]
GOVERNOR ASSY, MEC
RSV
007
[01]
PUMP ASSY, FUEL FE
KE
008
[01]
BODY ASSY, INJECTI
A4 -9204
008
[01]
BODY ASSY, INJECTI
A4 9204-
009
[01]
NUT, HEXAGON
M14
010
[01]
KEY, WOODRUFF
T4.023
90099-13018 TOYOTA
012
[01]
COVER, CONTROL RAC
013
[05]
BOLT, W/WASHER
M6,L16
014
[01]
BOLT, W/WASHER
M8,L22
015
[04]
NUT, HEXAGON
M10,L8
016
[04]
WASHER, STEEL PLAT
FOR M10
017
[01]
O-RING
018
[01]
BOLT, W/WASHER
M6,L14
019
[01]
WASHER, SPRING
T3.5

Cross reference number



Part num
Firm num
Firm
Name
19100-09630

PUMP ASSY, INJECTI
1910009630
22100-78206-71
TOYOTA
PUMP ASSY, INJECTI

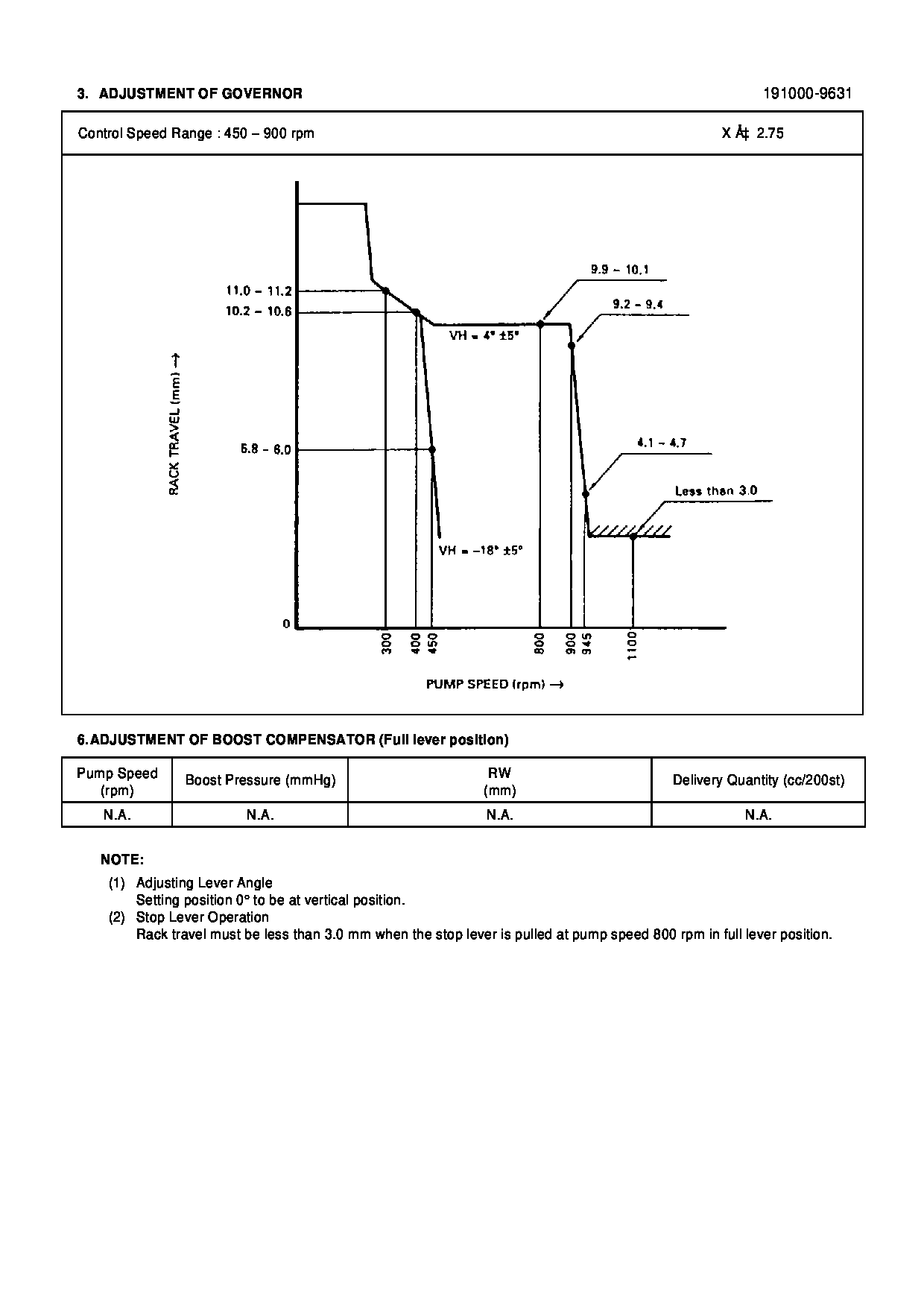

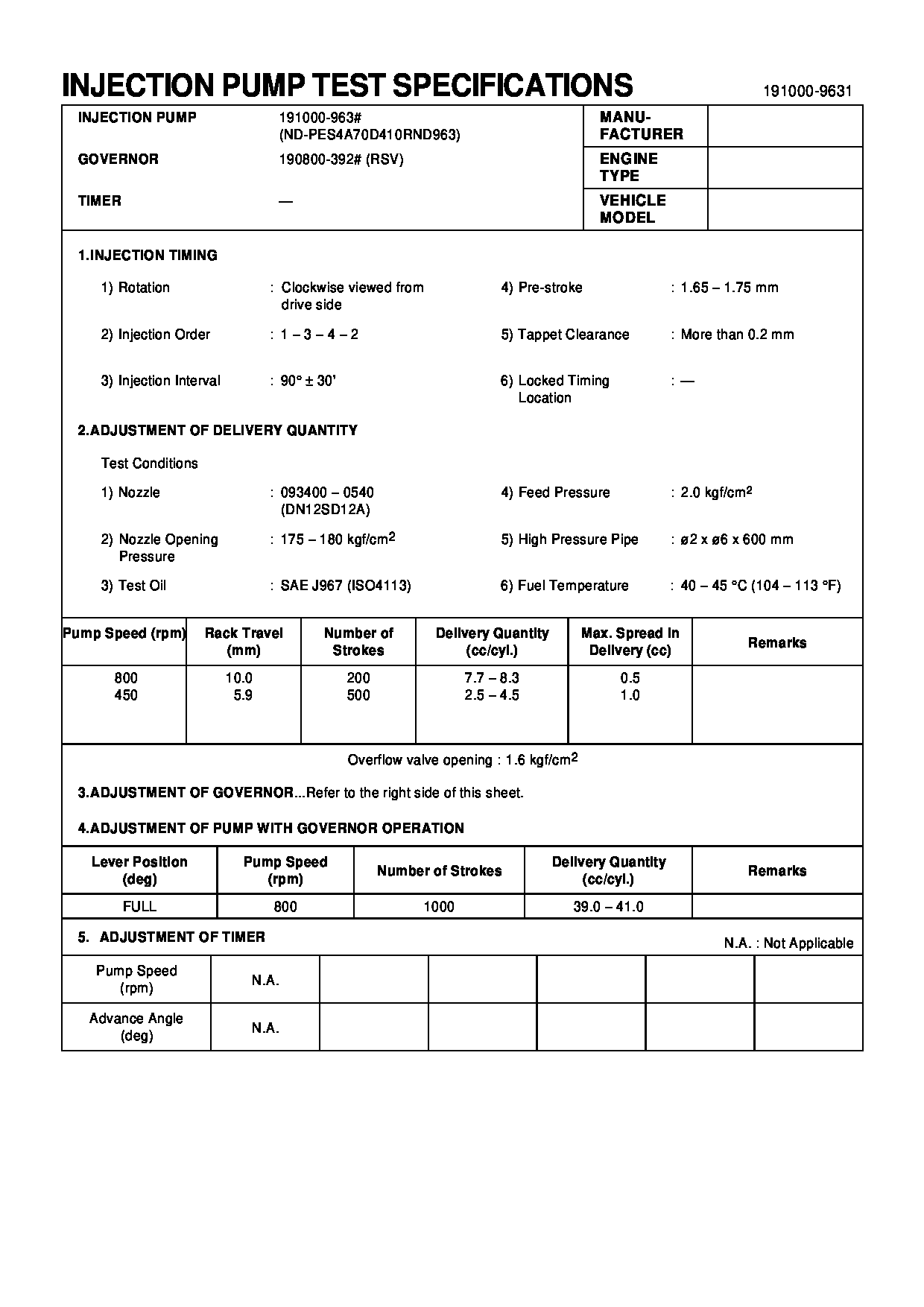

Test Calibration Data:

1910009630 22100-78206-71C
