19100-09290 PUMP ASSY, INJECTI Calibration Data


Rating:
16
Buy PUMP ASSY, INJECTI 19100-09290 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
agricultural machine 6076A
Engine
6076A
Serial start-end
9106--9301
Info
Injector Nozzle
093500-3720
Injector nozzle: 0935003720

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400360
Pump assy, fuel fe
1922900060
Governor assy, mec
No Application

Components :

00.001
PUMP ASSY, INJECTI
19100-09290 JOHN DEERE
A6,RSV -9302
00.001
PUMP ASSY, INJECTI
19100-09290 JOHN DEERE
A6,RSV 9303-
01.002
BODY ASSY, INJECTI
09010-08250 JOHN DEERE
A6
01.003
PUMP ASSY, FUEL FE
09210-02390 JOHN DEERE
KE
01.004
GOVERNOR ASSY, MEC
19080-03691 JOHN DEERE
RSV
02.005
COMPENSATOR SUB-AS
19260-00060 JOHN DEERE

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-09290
PUMP ASSY, INJECTI
A6,RSV -9302
000
[01]
19100-09291
PUMP ASSY, INJECTI
A6,RSV 9303-
001
[01]
09010-08250
BODY ASSY, INJECTI
A6
002
[01]
19080-03690
GOVERNOR ASSY, MEC
RSV -9302
002
[01]
19080-03691
GOVERNOR ASSY, MEC
RSV 9303-
003
[01]
09210-02390
PUMP ASSY, FUEL FE
KE
004
[01]
09255-10550
BLOCK, COUPLING
005
[01]
94901-50900
WASHER, SPRING
T2.4
006
[01]
94905-03570
NUT, HEXAGON
M14
011
[01]
09001-80140
COVER, CONTROL RAC
012
[06]
91518-06161
BOLT, W/WASHER
M6,L16
013
[01]
90060-08161
SCREW, CROSSRECESS
M8,L16
014
[01]
09092-10020
WASHER
T3.2
015
[01]
90458-04051
KEY, WOODRUFF
W4,H5
018
[01]
94904-06950
BOLT, HEXAGON
M8,L25
019
[01]
94914-03430
O-RING
ID75

Include in ##:

19100-09290 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-09290

PUMP ASSY, INJECTI

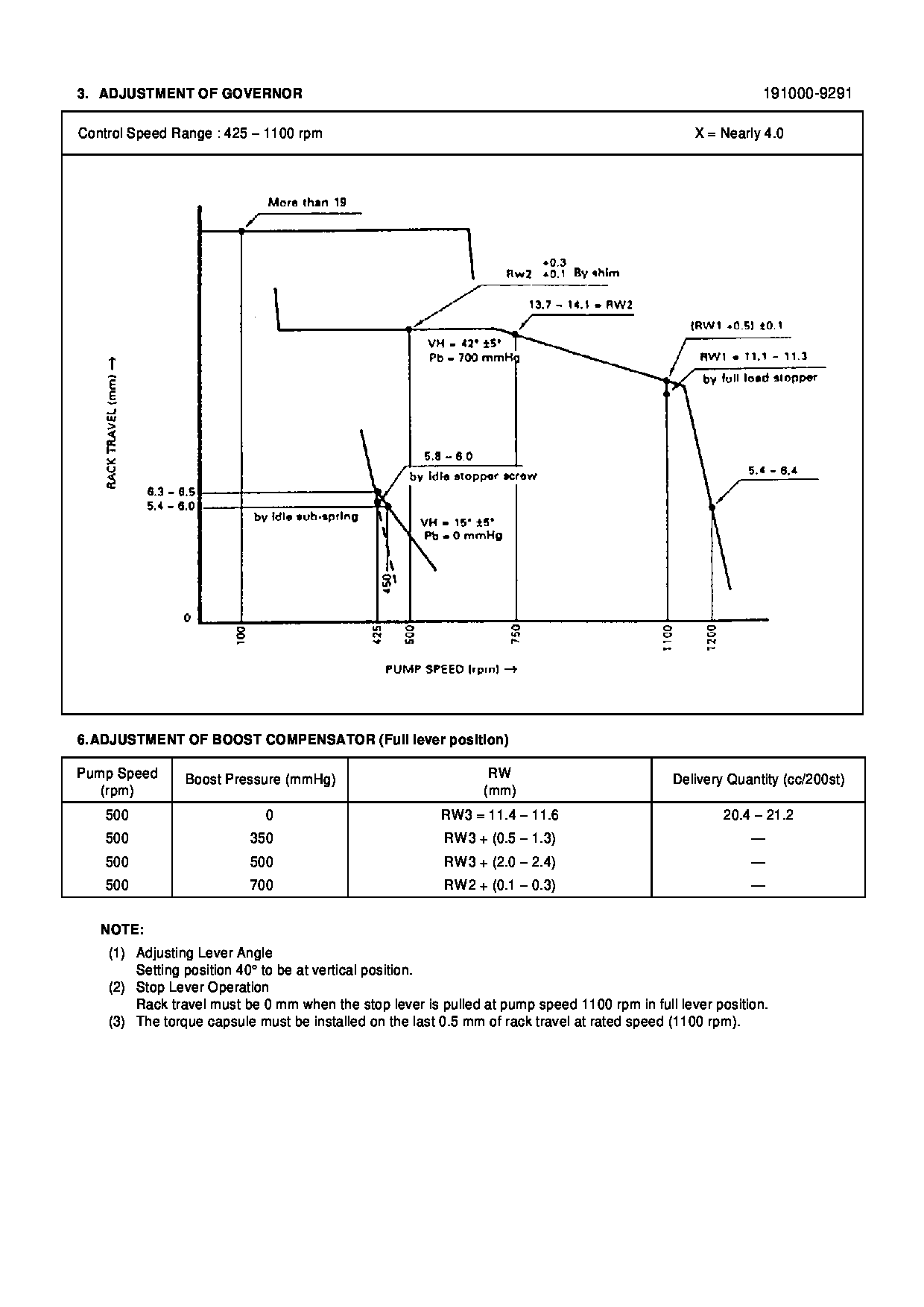

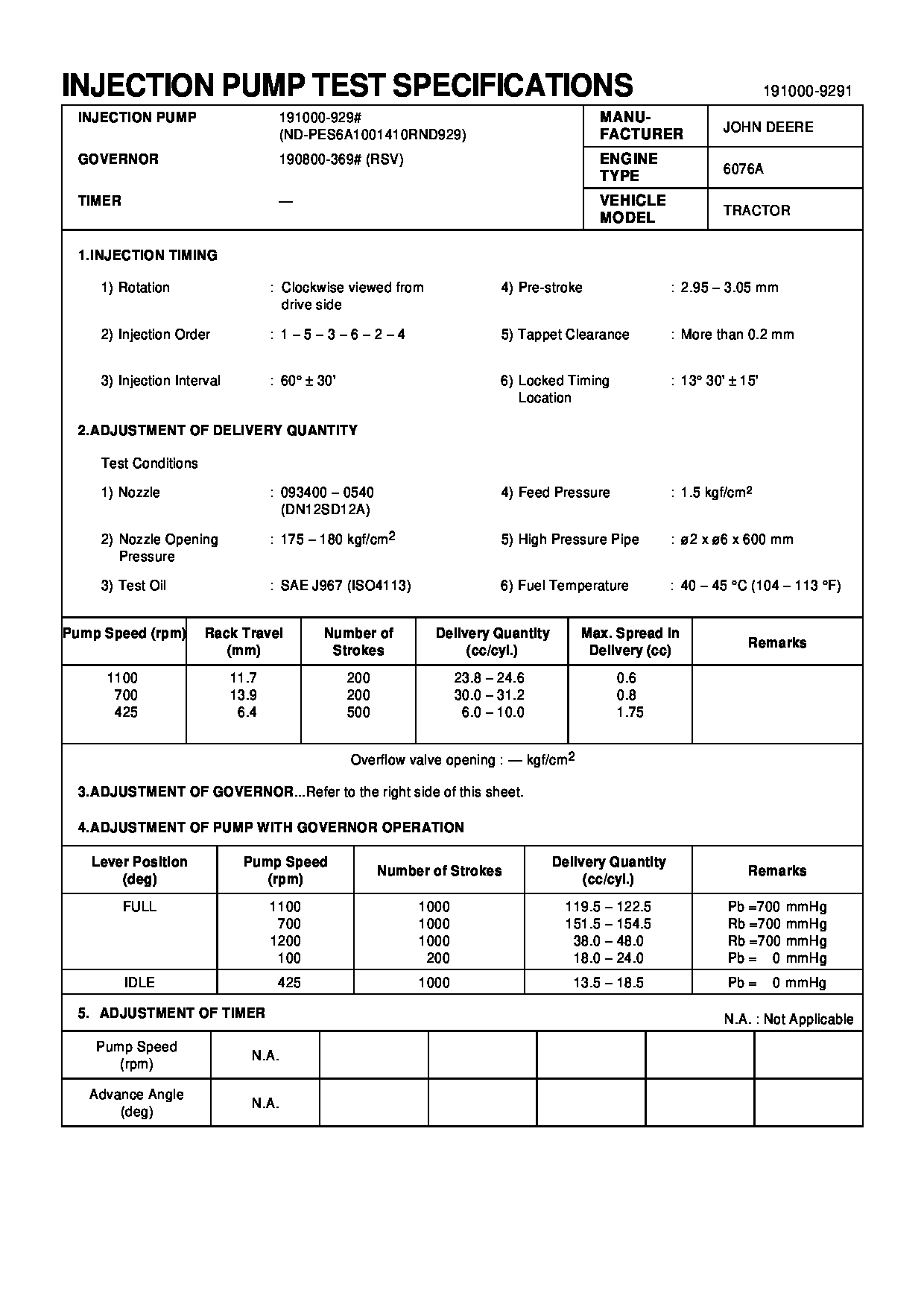

Test Calibration Data:

Get Full test data file
1910009290 RE47042
EC9291
EC9291
