19100-09250 PUMP ASSY, INJECTI Calibration Data


Rating:
55
Buy PUMP ASSY, INJECTI 19100-09250 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 1DZ
Engine
1DZ
Serial start-end
9212-
Info
Injector Nozzle
093500-2240
Injector nozzle: 0935002240

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400330
Pump assy, fuel fe
1922900060
Governor assy, mec
1908900180

Components :

00.001
PUMP ASSY, INJECTI
19100-09250 TOYOTA
A4,RSV
01.002
BODY ASSY, INJECTI
09010-09750 TOYOTA
A4:COLD SPEC
01.003
PUMP ASSY, FUEL FE
09210-02670 TOYOTA
KE
01.004
GOVERNOR ASSY, MEC
19080-03670 TOYOTA
RSV COLD SPEC.

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-09250
PUMP ASSY, INJECTI
A4,RSV
22100-78204-71 TOYOTA
003
[01]
09006-00420
COVER SUB-ASSY, TI
006
[01]
19080-03670
GOVERNOR ASSY, MEC
RSV
007
[01]
09210-02670
PUMP ASSY, FUEL FE
KE
008
[01]
09010-09750
BODY ASSY, INJECTI
A4
009
[01]
94905-03570
NUT, HEXAGON
M14
010
[01]
94913-00300
KEY, WOODRUFF
T4.023
90099-13018 TOYOTA
012
[01]
09001-80061
COVER, CONTROL RAC
013
[05]
91418-06161
BOLT, W/WASHER
L16
014
[01]
91518-08221
BOLT, W/WASHER
M8,L22
015
[04]
91266-10081
NUT, HEXAGON
M10,L8
016
[04]
94901-15020
WASHER, STEEL PLAT
FOR M10
017
[01]
94914-05680
O-RING
ID74.1
018
[01]
91418-06141
BOLT, W/WASHER
L14
019
[01]
94901-50590
WASHER, SPRING
T3.5

Include in ##:

19100-09250 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-09250
22100-7820
PUMP ASSY, INJECTI
1910009250
22100-78204-71
TOYOTA
PUMP ASSY, INJECTI

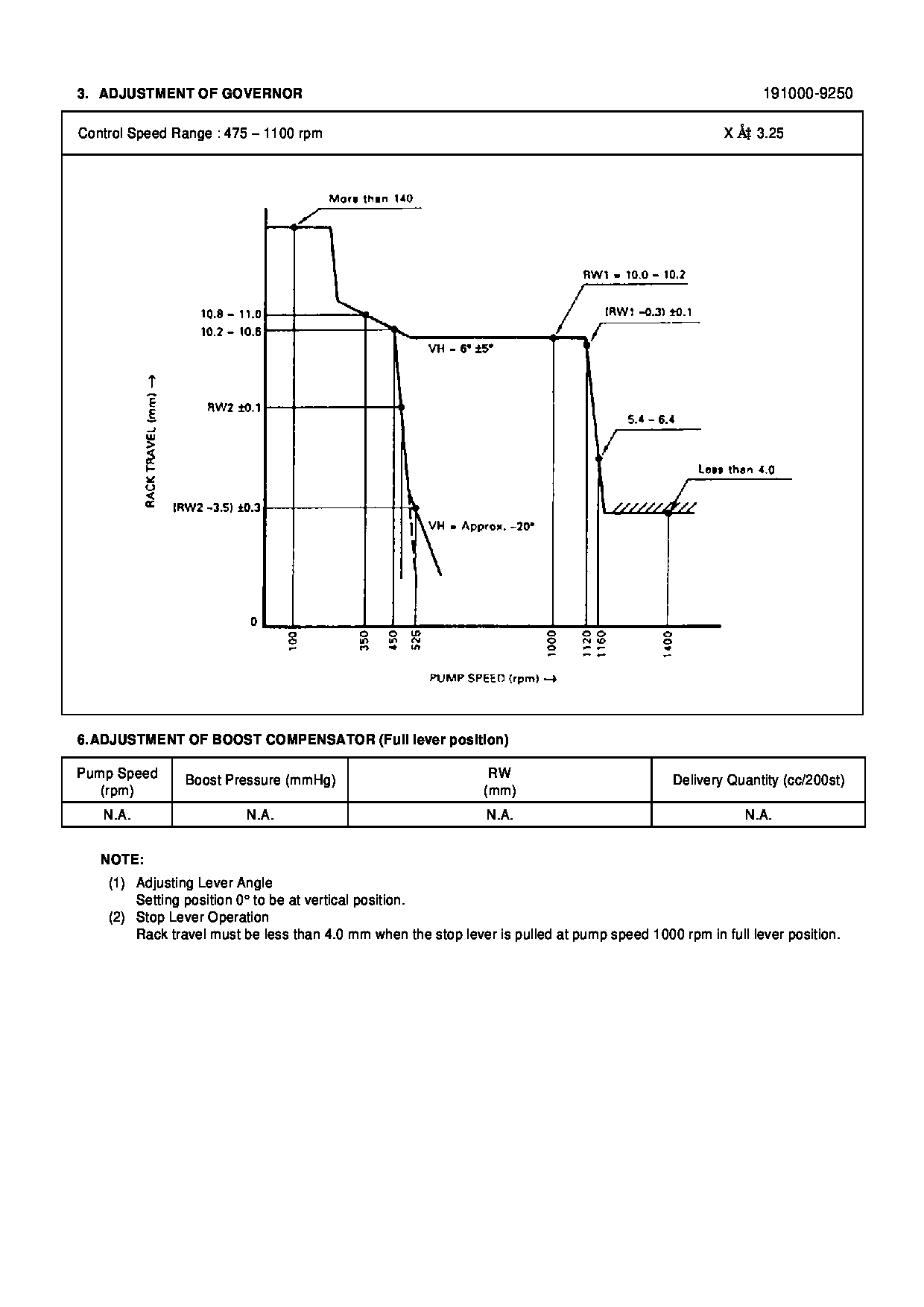

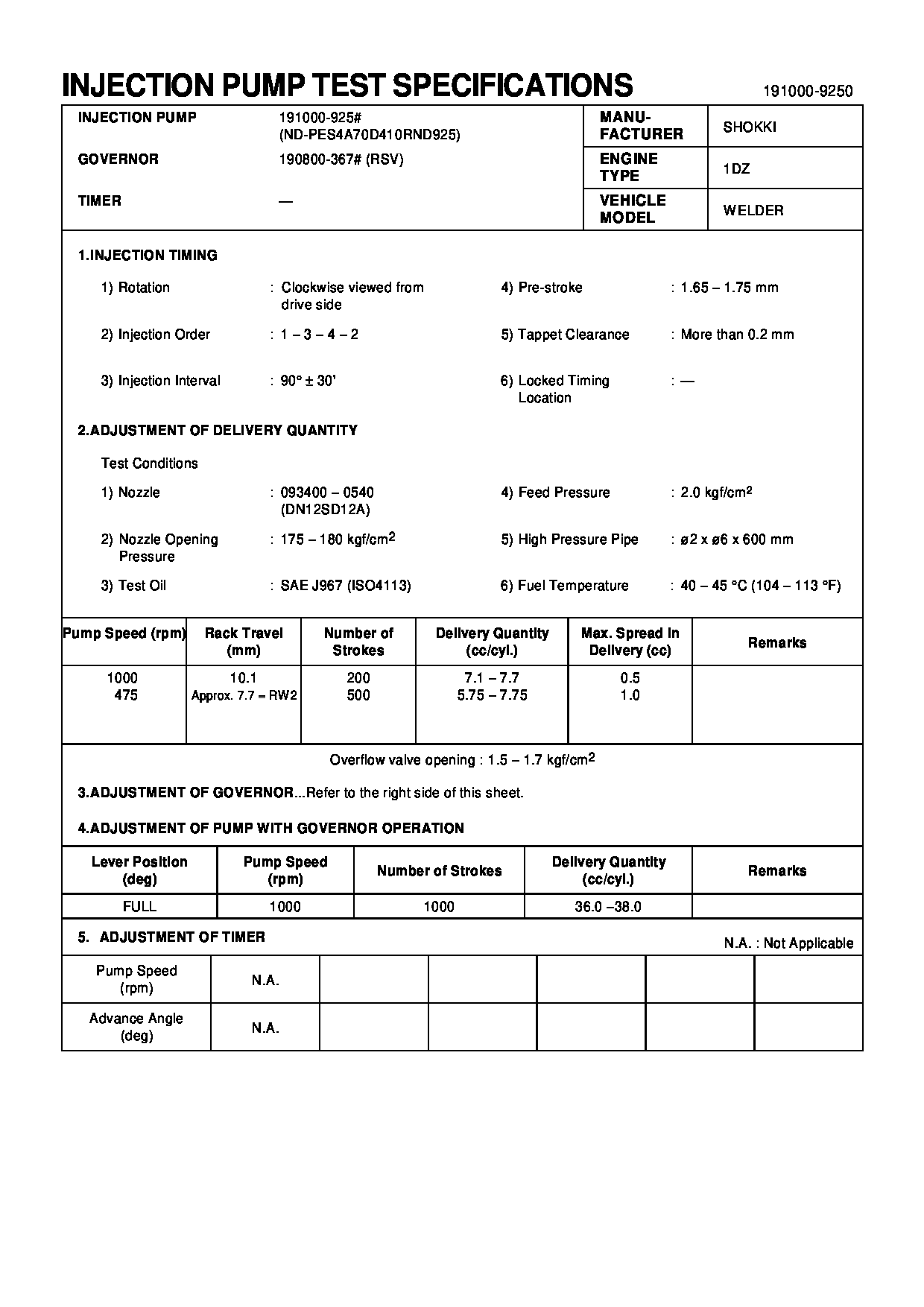

Test Calibration Data:

Get Full test data file
1910009250 22100-78204-71
EC9250
EC9250
