Rating:
Information pump assy, injecti Denso
Product
Fuel Injection Pump
Vehicle engine
TRUCK 6D14A
Engine
6D14A
Serial start-end
9102-
Info
Injector Nozzle
093500-2820
Injector nozzle:
0935002820
KIT List:
Part name
Kit1
Kit2
Include in ##:
Cross reference number
Part num
Firm num
Firm
Name
19100-09010
ME076776
PUMP ASSY, INJECTI
1910009010
ME076776
MITSUBISHI
PUMP ASSY, INJECTI

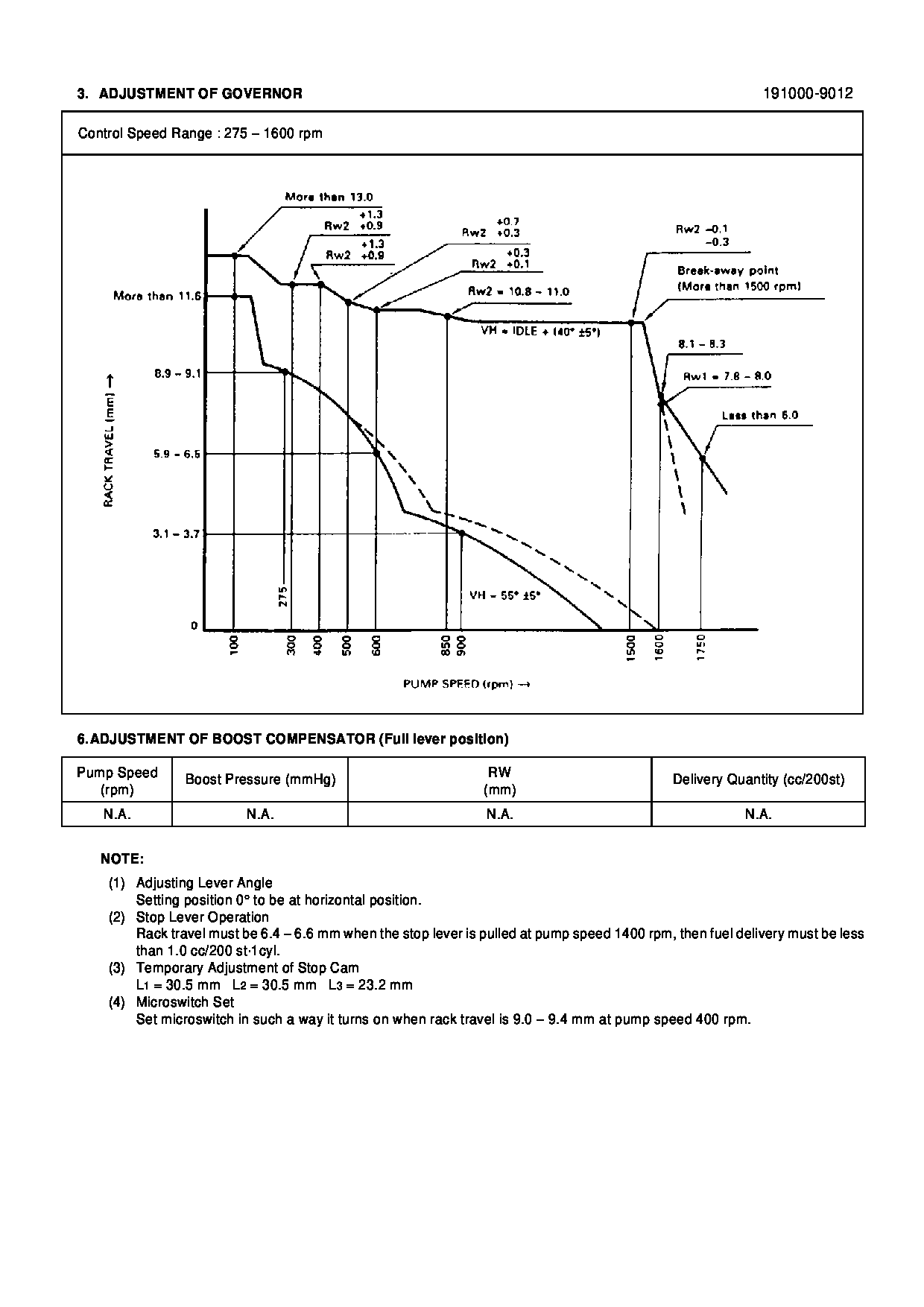

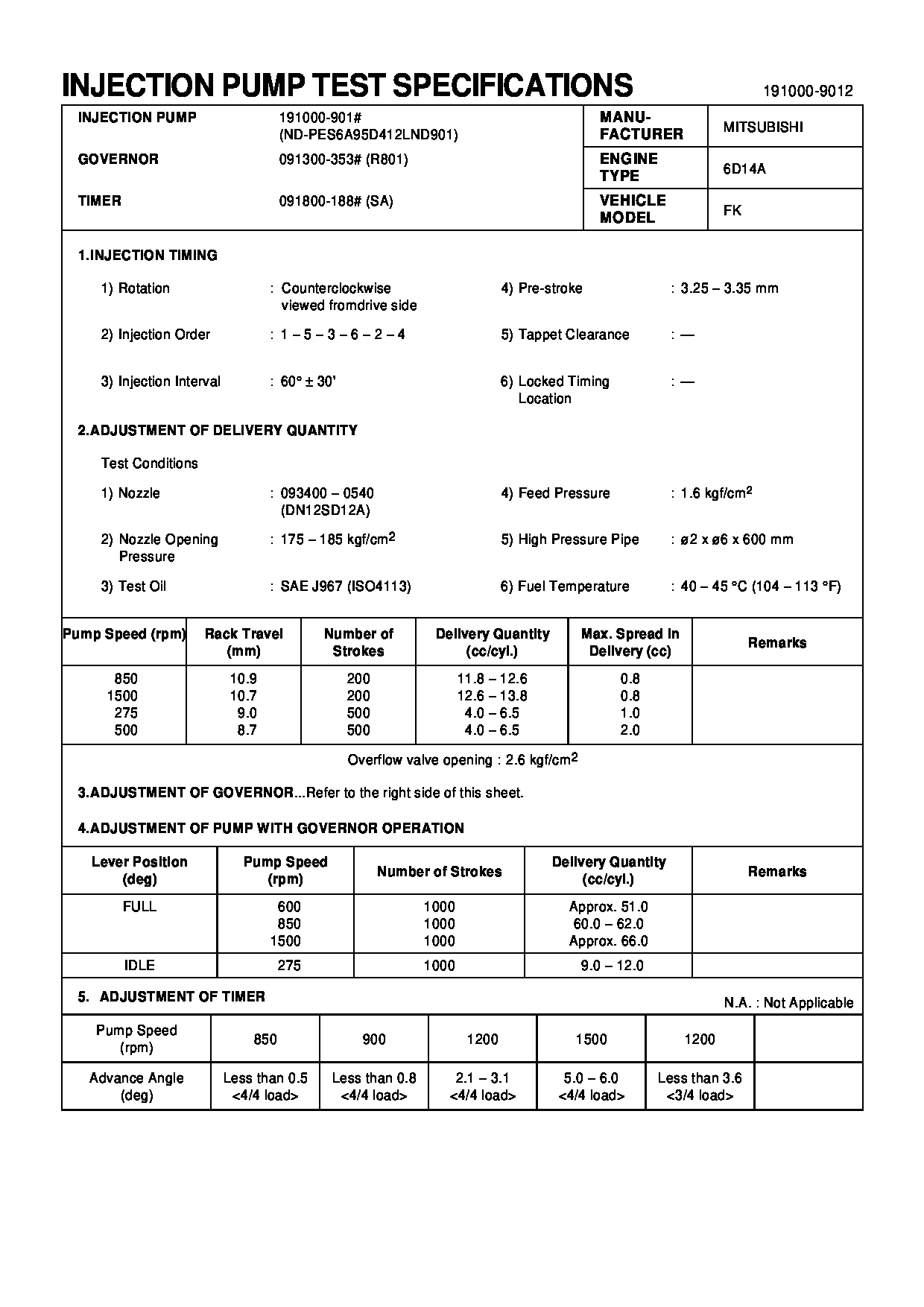

Test Calibration Data:
1910009010
ME076776
1910009011
ME076776
1910009012
ME076776
Information:
December 9, 2005
U-389
A-289
D-306
O-325
Partsstock action only PRODUCT IMPROVEMENT PROGRAM FOR REMOVINGCERTAIN FUEL INJECTORS FROM DEALERS PARTS STOCK
7750 PI70111
The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.TERMINATION DATE
March 31, 2006PROBLEM
A machining error can cause the valve body tocrack through the high-pressure line. This crack can result in fuel inthe engine oil.ACTION REQUIRED
All 10R-0957 unit injectors within serial numberrange 848368-850132 should be removed from parts stock. All 10R-0960, 10R-0961,and 10R-0963 within serial number range 188029-188914 should be removedfrom parts stock.SERVICE CLAIM ALLOWANCES
Submit one claim for all 10R0957, 10R0960, 10R0961,and 10R0963 Injectors removed from parts stock.PARTS DISPOSITION
All dealers are to make sure the outsideof the shipping container is marked PI70111.***** U.S. and Canadian Dealers *****Return all 10R0957, 10R0960, 10R0961, and 10R0963Injectors that are removed from parts stock and a copy of the claim to:Caterpillar Inc.
Attn: Supplier Recovery PI70111
Service Claims Room
8201 N. University
Peoria, IL 61615***** All Other Dealers *****Handle the parts in accordance with your WarrantyBulletin on warranty parts handling.
U-389
A-289
D-306
O-325
Partsstock action only PRODUCT IMPROVEMENT PROGRAM FOR REMOVINGCERTAIN FUEL INJECTORS FROM DEALERS PARTS STOCK
7750 PI70111
The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.TERMINATION DATE
March 31, 2006PROBLEM
A machining error can cause the valve body tocrack through the high-pressure line. This crack can result in fuel inthe engine oil.ACTION REQUIRED
All 10R-0957 unit injectors within serial numberrange 848368-850132 should be removed from parts stock. All 10R-0960, 10R-0961,and 10R-0963 within serial number range 188029-188914 should be removedfrom parts stock.SERVICE CLAIM ALLOWANCES
Submit one claim for all 10R0957, 10R0960, 10R0961,and 10R0963 Injectors removed from parts stock.PARTS DISPOSITION
All dealers are to make sure the outsideof the shipping container is marked PI70111.***** U.S. and Canadian Dealers *****Return all 10R0957, 10R0960, 10R0961, and 10R0963Injectors that are removed from parts stock and a copy of the claim to:Caterpillar Inc.
Attn: Supplier Recovery PI70111
Service Claims Room
8201 N. University
Peoria, IL 61615***** All Other Dealers *****Handle the parts in accordance with your WarrantyBulletin on warranty parts handling.
