19100-09003 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 19100-09003 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001

PUMP ASSY, INJECTI

19100-09003 MITSUBISHI

A6,R801

01.002

BODY ASSY, INJECTI

09010-05701 MITSUBISHI

01.003

BODY ASSY, INJECTI

09010-09960 MITSUBISHI

01.004

GOVERNOR ASSY, MEC

09130-03543 MITSUBISHI

R801

02.005

SWITCH KIT, CONTRO

09009-90551 MITSUBISHI

02.006

COVER ASSY, GOVERN

09145-00150 MITSUBISHI

01.007

TIMER ASSY, AUTOMA

09180-01881 MITSUBISHI

SA/4SP

01.008

PUMP ASSY, FUEL FE

09210-01440 MITSUBISHI

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

19100-09003

PUMP ASSY, INJECTI

A6,R801

ME076775 MITSUBISHI

005

[01]

09010-05701

BODY ASSY, INJECTI

A6 -9207

ME702012 MITSUBISHI

005

[01]

09010-09960

BODY ASSY, INJECTI

A6 9207-

ME736047 MITSUBISHI

006

[01]

09130-03543

GOVERNOR ASSY, MEC

R801

007

[01]

09001-80090

COVER, CONTROL RAC

ME702251 MITSUBISHI

008

[01]

94914-02840

O-RING

ID74.1

MH035502 MITSUBISHI

009

[01]

09006-00371

COVER SUB-ASSY, TI

ALUMINUM

ME728195 MITSUBISHI

010

[01]

09180-01881

TIMER ASSY, AUTOMA

SA/4SP

ME702010 MITSUBISHI

011

[04]

94905-02680

NUT, HEXAGON

M10

ME702046 MITSUBISHI

012

[04]

90258-10001

WASHER, SPRING

M10

MC327716 MITSUBISHI

013

[02]

94901-15020

WASHER, STEEL PLAT

FOR M10

MH005068 MITSUBISHI

014

[01]

09069-11320

BRACKET, STOP WIRE

ME703775 MITSUBISHI

015

[01]

94913-00210

KEY, WOODRUFF

T3.985

ME702047 MITSUBISHI

016

[01]

94901-40210

WASHER, COUNTERSUN

T1.5ID14

ME702043 MITSUBISHI

017

[01]

09001-20290

NUT, TIMER ROUND

ME702547 MITSUBISHI

018

[01]

90801-40280

O-RING

ID27.7

ME702918 MITSUBISHI

019

[01]

09210-01440

PUMP ASSY, FUEL FE

ME035928 MITSUBISHI

020

[01]

09009-20100

BRACKET

ME702036 MITSUBISHI

021

[01]

94904-73910

BOLT, W/WASHER

M8,L18

ME703449 MITSUBISHI

022

[05]

94904-72690

BOLT, W/WASHER

M6,L16

ME702045 MITSUBISHI

023

[01]

91418-06201

BOLT, W/WASHER

M6,L20

ME702041 MITSUBISHI

024

[01]

09028-50021

CAP

FOR MAX.SPEED

ME035845 MITSUBISHI

025

[01]

09028-50050

CAP

FOR FULL-LOAD

ME076458 MITSUBISHI

Include in ##:

19100-09003 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

19100-09003

ME076775

PUMP ASSY, INJECTI

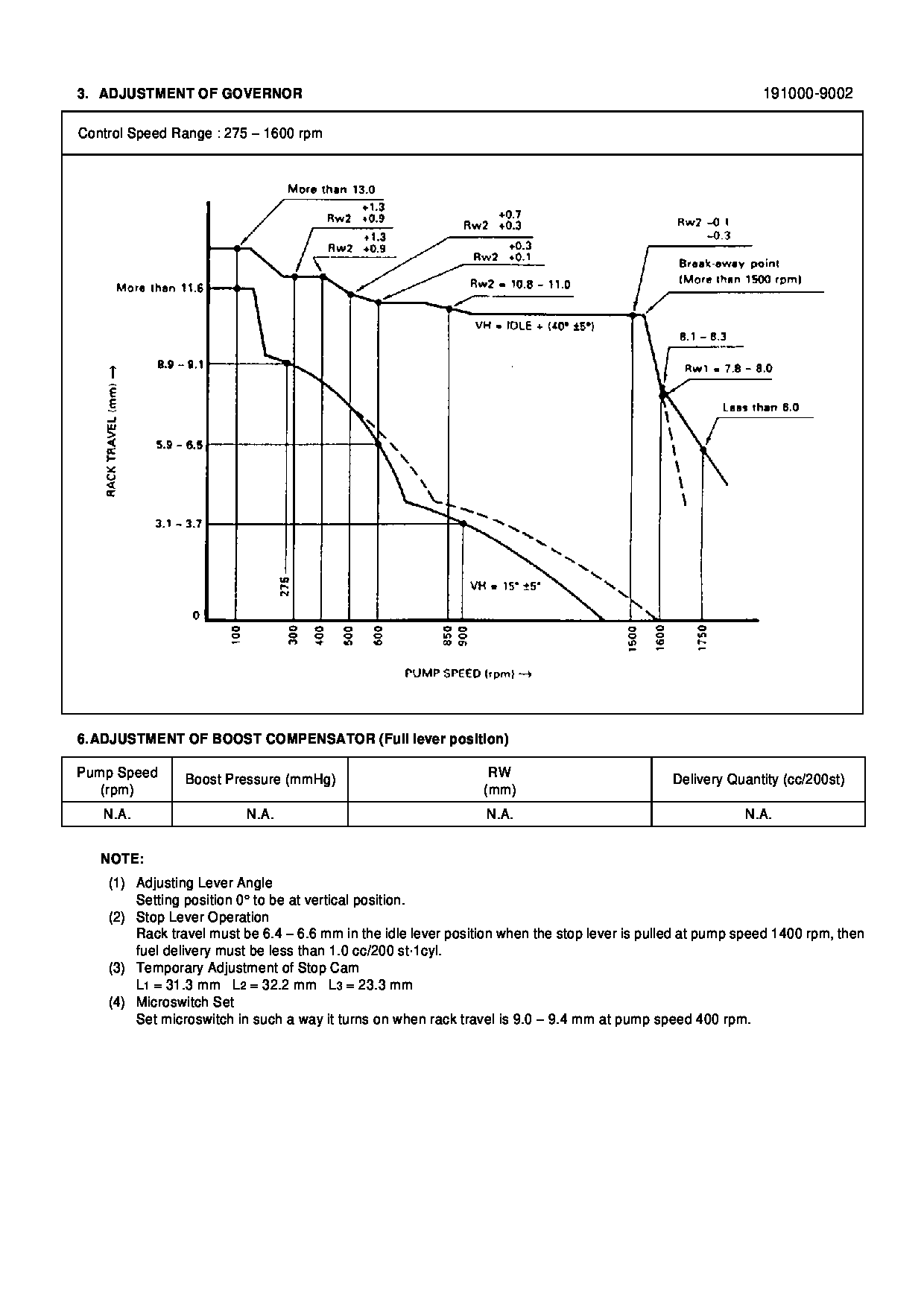

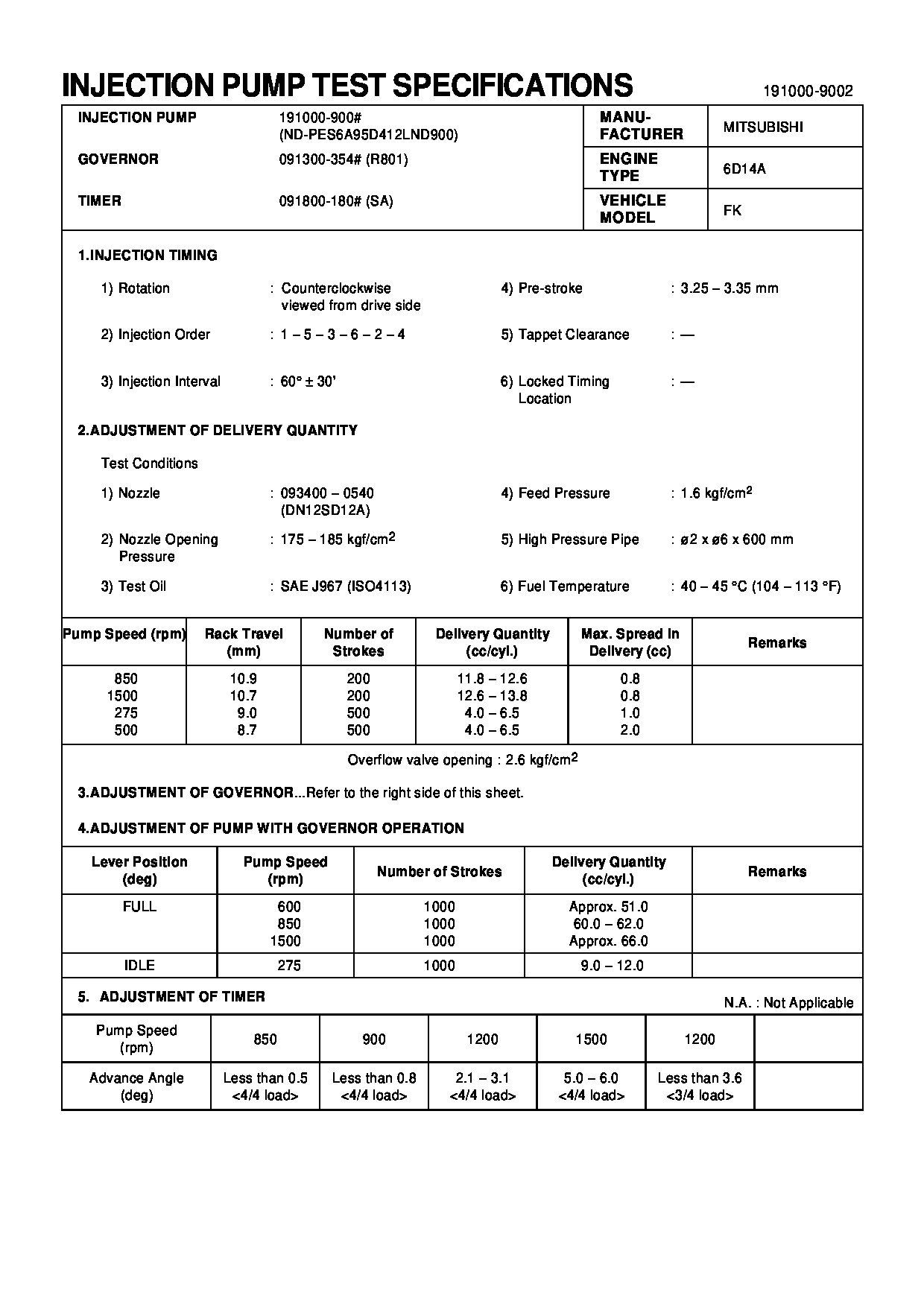

Test Calibration Data:

Get Full test data file

1910009000 ME076775

Get Full test data file

1910009001 ME076775

Get Full test data file

1910009002 ME076775
