19100-07431 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 19100-07431 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001

PUMP ASSY, INJECTI

19100-07431 HINO

A6,R801

01.002

BODY ASSY, INJECTI

09010-07441 HINO

02.003

COVER, BEARING

09020-10410 HINO

DUMMY

01.004

GOVERNOR ASSY, MEC

09130-02891 HINO

R801

02.005

COVER ASSY, GOVERN

09145-00133 HINO

01.006

TIMER ASSY, AUTOMA

09180-03190 HINO

SA/2SP

01.007

PUMP ASSY, FUEL FE

09210-00920 HINO

01.008

COUPLING ASSY

09250-00720 HINO

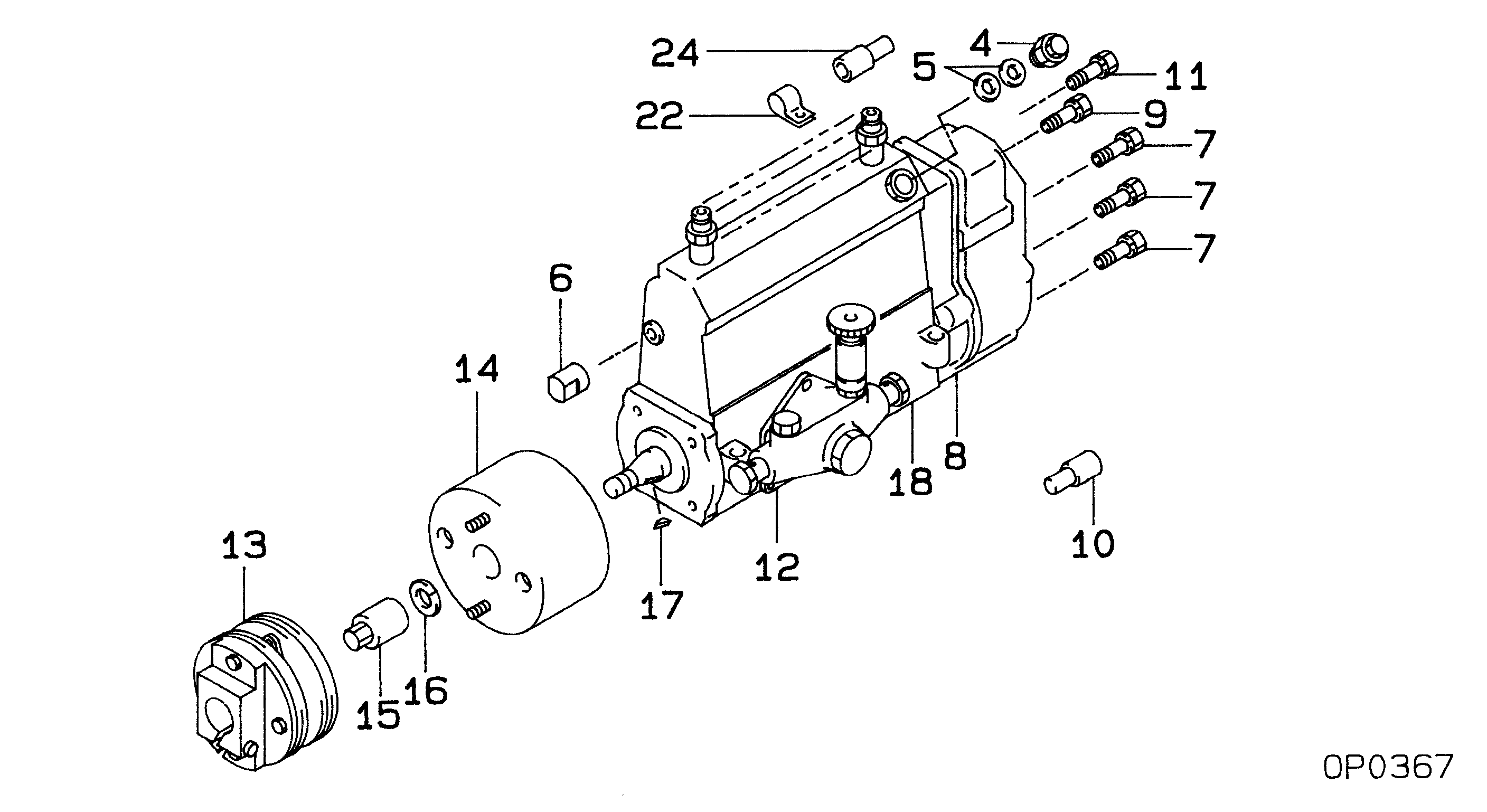

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

19100-07431

PUMP ASSY, INJECTI

A6,R801

22010-5841 HINO

004

[01]

09031-00240

VALVE ASSY, OVERFL

1.5-1.8K

22107-1290A HINO

005

[02]

94901-02480

WASHER

22847-1940A HINO

006

[01]

09001-80090

COVER, CONTROL RAC

22114-1250A HINO

007

[05]

94904-72690

BOLT, W/WASHER

M6,L16

22815-2410A HINO

008

[01]

09130-02890

GOVERNOR ASSY, MEC

R801

22310-4050 HINO

009

[01]

91418-06201

BOLT, W/WASHER

M6,L20

22815-1290A HINO

010

[01]

09028-50030

CAP

FOR MAX.SPEED

22323-1210A HINO

011

[01]

94904-73910

BOLT, W/WASHER

M8,L18

22815-2820A HINO

012

[01]

09210-00920

PUMP ASSY, FUEL FE

KE22

22570-1250A HINO

013

[01]

09250-00720

COUPLING ASSY

22610-1502A HINO

014

[01]

09180-03190

TIMER ASSY, AUTOMA

22510-2420A HINO

015

[01]

09001-20180

NUT, TIMER ROUND

22511-1070A HINO

016

[01]

94901-50590

WASHER, SPRING

T3.5

22877-1620A HINO

017

[01]

94913-00210

KEY, WOODRUFF

T3.985

22895-1010A HINO

018

[01]

09010-07441

BODY ASSY, INJECTI

22110-2290A HINO

022

[01]

09039-10040

CLIP, CORD

FOR FULL-LOAD -9405

22323-1190A HINO

024

[01]

09028-50050

CAP

FOR FULL-LOAD 9406-

22323-1320A HINO

Include in ##:

19100-07431 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

19100-07431

22010-5841

PUMP ASSY, INJECTI

Test Calibration Data:

Get Full test data file

1910007431 22010-5840A
