19100-07100 PUMP ASSY, INJECTI Calibration Data


Rating:
55
Buy PUMP ASSY, INJECTI 19100-07100 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 6D15
Engine
6D15
Serial start-end
8901--9704
Info
Injector Nozzle
093500-2070
Injector nozzle: 0935002070

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400360
Timer assy, automa
0918030030
Pump assy, fuel fe
1922900060
Governor assy, mec
1908900170

Components :

00.001
PUMP ASSY, INJECTI
19100-07100 MITSUBISHI
A6,RSV
01.002
BODY ASSY, INJECTI
09010-04742 MITSUBISHI
01.003
TIMER ASSY, AUTOMA
09180-02600 MITSUBISHI
SA/4SP
01.004
PUMP ASSY, FUEL FE
09210-01440 MITSUBISHI
KE
01.005
GOVERNOR ASSY, MEC
19080-02340 MITSUBISHI
RSV

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-07100
PUMP ASSY, INJECTI
A6,RSV
005
[01]
09010-04742
BODY ASSY, INJECTI
A6
006
[01]
19080-02340
GOVERNOR ASSY, MEC
RSV
007
[01]
09001-80081
COVER, CONTROL RAC
008
[01]
94914-02840
O-RING
ID74.1
009
[01]
09006-00230
COVER SUB-ASSY, TI
010
[01]
09180-02600
TIMER ASSY, AUTOMA
SA/4SP
011
[04]
91266-10081
NUT, HEXAGON
M10
012
[04]
90258-10001
WASHER, SPRING
M10
013
[04]
94901-15020
WASHER, STEEL PLAT
FOR M10
014
[01]
09009-20100
BRACKET
015
[01]
94913-00210
KEY, WOODRUFF
T3.985
016
[01]
94901-40210
WASHER, COUNTERSUN
T1.5ID14
017
[01]
09001-20290
NUT, TIMER ROUND
018
[01]
09210-01440
PUMP ASSY, FUEL FE
KE
019
[01]
91518-08221
BOLT, W/WASHER
M8,L22
020
[06]
91418-06161
BOLT, W/WASHER
M6,L16
022
[01]
90801-40280
O-RING
ID27.7

Include in ##:

19100-07100 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-07100

PUMP ASSY, INJECTI

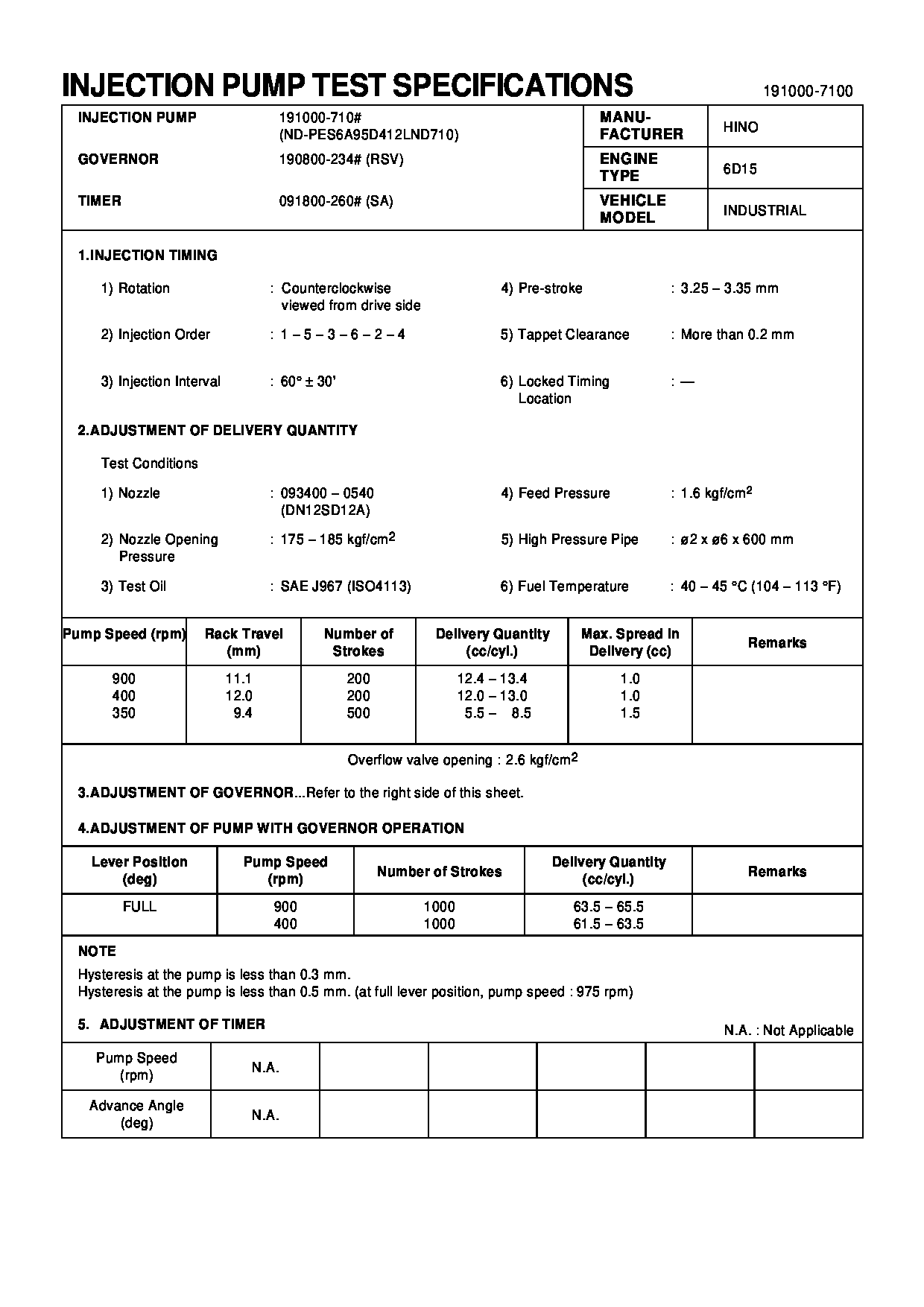

Test Calibration Data:

Get Full test data file
1910007100 ME070810
EC7100
EC7100
