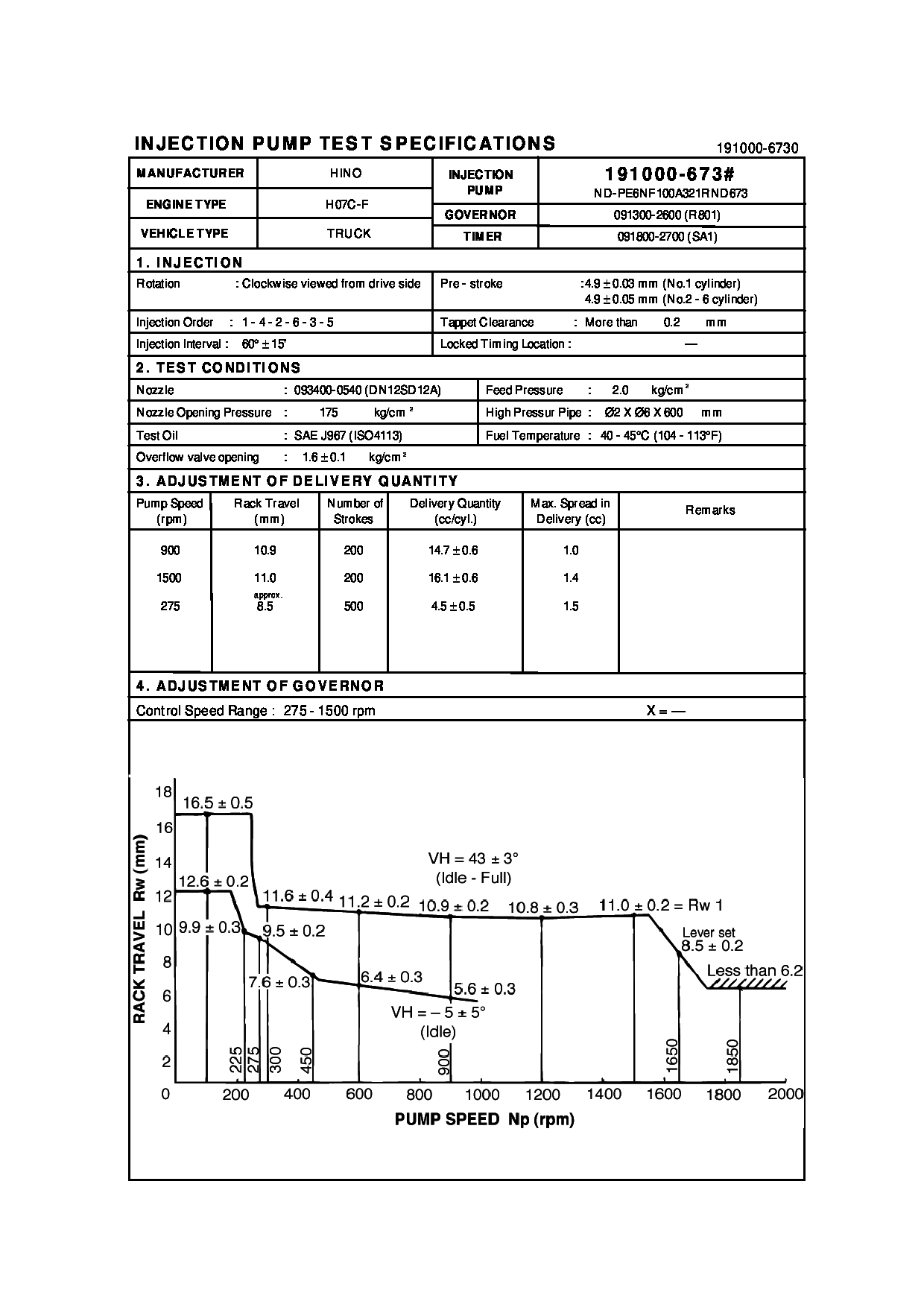

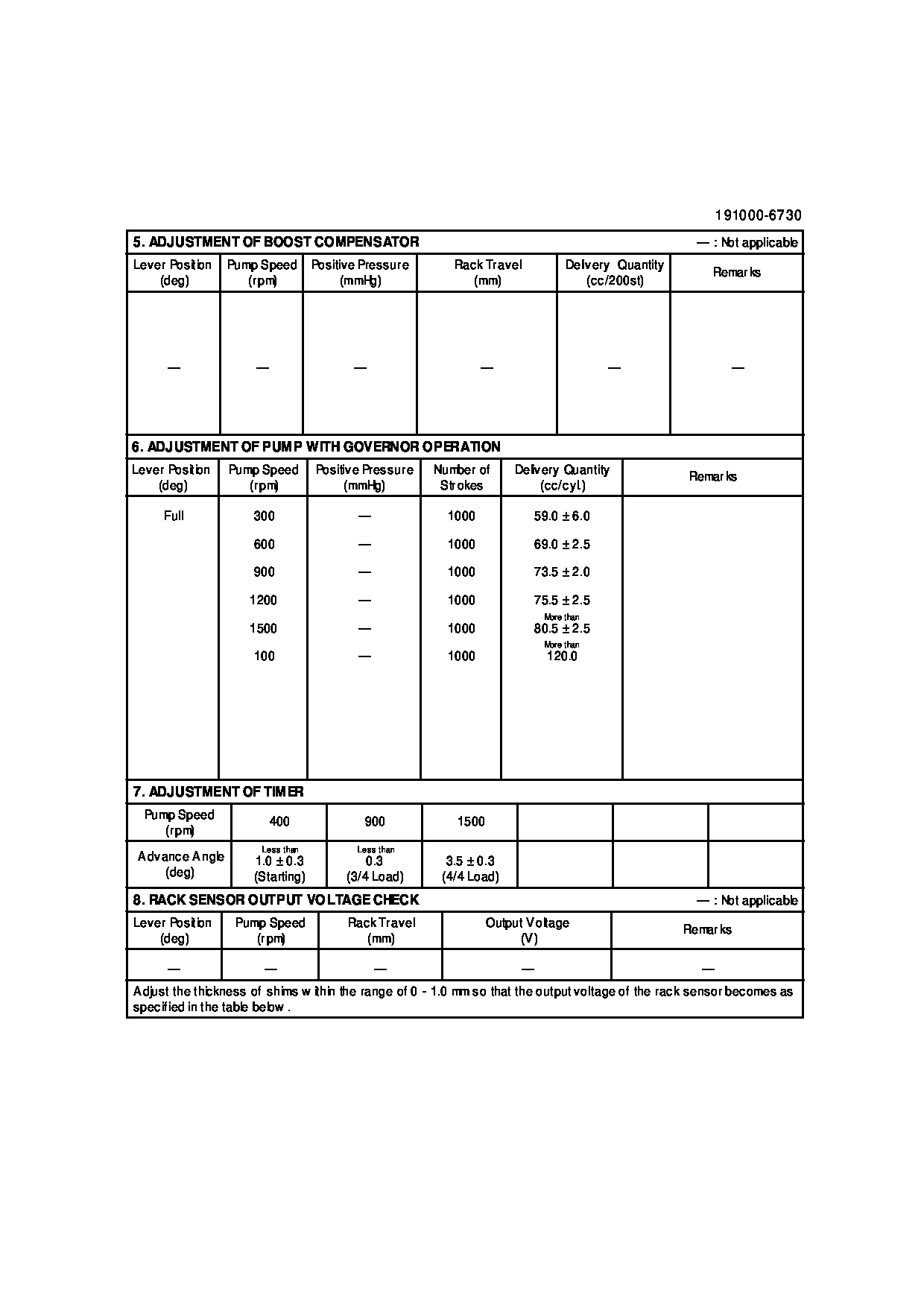

19100-06730 PUMP ASSY, INJECTI Calibration Data

23Jun2009
(Revised 02Nov2010)
U-230
A-197
D-197
O-203
After Failure Only
PRODUCT SUPPORT PROGRAM FOR REPLACING THE FUEL INJECTION PUMP ON CERTAIN 414E IL, 416E, AND 420E BACKHOE LOADERS
1290 1251 PS51685
This Program can only be administered after a failure occurs.The decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS51685" as the Part Numberand "7755" as the Group Number. Use "96" as the Warranty Claim Description Code and use "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 23Jun2009 (Revised 30Jul2009) Service Letter. Changes have been made to the Affected Product.
TERMINATION DATE
30Jun2011
PROBLEM
The existing fuel injection pump can leak fuel or fail to respond immediately to the fuel shut off command on certain 414E IL, 416E, and 420E Backhoe Loaders.
AFFECTED PRODUCT
Model Identification Number
414E IL ELB00152-00634, 637-693, 695-761, 763-815, 817-862
416E CBD00948-00950, 958-960, 962, 964, 969-970, 975, 982, 988-990, 992-1000, 1003-1004, 1006-1008, 1010-1012, 1014-1016, 1019-1022, 1024, 1027, 1033, 1037-1038, 1040-1041, 1043, 1049, 1052, 1054, 1064, 1067-1068, 1070-1071, 1073-1074, 1076, 1078-1081, 1089-1091, 1095, 1099, 1102-1103, 1105, 1117-1118, 1120, 1122, 1126, 1128-1129, 1131-1132, 1139, 1144, 1149-1150, 1154, 1156, 1160, 1163, 1166-1167, 1173-1174, 1177, 1182-1183, 1186, 1189-1190, 1192-1195, 1200, 1206, 1209, 1215, 1221, 1223, 1225-1226, 1231-1232, 1235-1236, 1240, 1256, 1261, 1310-1313, 1315-1319, 1321-1338, 1340, 1342-1343, 1347-1349, 1353-1354, 1356-1363, 1374-1375, 1379-1383, 1386-1401, 1403-1408, 1410, 1412, 1414-1418, 1420, 1426-1438, 1441, 1443, 1445-1454, 1458-1465, 1469-1470, 1473, 1475, 1479, 1481, 1484, 1486-1487, 1490-1495, 1497-1498, 1503-1512, 1527, 1531-1532, 1542, 1544-1546, 1558, 1562, 1571-1572, 1595-1596, 1602-1603, 1606-1608, 1610-1611, 1625, 1628, 1630-1633, 1635-1638, 1640-1644, 1655-1658, 1660-1661, 1668, 1672-1680, 1686-1687, 1691-1698, 1700-1702, 1712-1714, 1716-1717, 1728, 1730-1731, 1733-1737, 1739, 1748-1753, 1756, 1758-1760, 1763-1764, 1768, 1775, 1777-1778, 1789-1792, 1796, 1800, 1811-1814, 1816-1819, 1822-1823, 1825, 1827-1828, 1831, 1834-1835, 1838-1839, 1842-1843, 1847, 1850-1854, 1858, 1860, 1870, 1873-1874, 1876-1877, 1879-1882, 1885, 1889-1891, 1895-1896, 1898-1900, 1903, 1905, 1910, 1920, 1937-1940, 1943-1945, 1947-1949, 1951-1952, 1955, 1959-1960, 1963-1965, 1971-1973, 1977, 1981, 1998, 2000-2004, 2006-2007, 2009-2016, 2020-2024, 2026-2027, 2030-2032, 2034-2035, 2040-2041, 2044-2045, 2047-2048, 2051, 2053, 2061-2062, 2067, 2073-2074, 2080-2081, 2083, 2092-2093, 2095-2096, 2099-2100, 2105-2106, 2108-2109, 2111-2117, 2122-2125, 2127-2128, 2130-2131, 2133-2134, 2136-2137, 2141-2142, 2144, 2162-2164, 2168-2169, 2174-2175, 2179-2180, 2184-2185, 2190-2191, 2195, 2202, 2204, 2206-2212, 2214-2218, 2221, 2223-2226, 2236, 2239-2241, 2246-2247, 2249, 2252, 2261-2263, 2268-2269, 2275, 2279, 2284, 2288, 2295-2296, 2300, 2318-2319, 2321, 2323, 2328-2330, 2332-2334, 2336-2338, 2341-2343, 2345-2347, 2359-2364, 2370, 2373-2374, 2377-2379, 2385, 2388-2390, 2403-2405, 2407, 2409-2410, 2414, 2418, 2456, 2470, 2472, 2474-2476, 2478-2479, 2481-2482, 2484-2486, 2489, 2498-2499, 2504, 2507, 2522, 2533-2540, 2542-2544, 2550, 2552-2554, 2557-2558, 2562-2564, 2567-2576, 2578, 2582, 2589, 2594-2596, 2599, 2615-2617, 2620, 2626-2631, 2635-2636, 2643, 2646-2650, 2654, 2663, 2689, 2692, 2698, 2700-2701, 2704-2706, 2710, 2712, 2714, 2717, 2719, 2724, 2735-2736, 2747, 2753-2756, 2759, 2764-2765, 2771-2772, 2775, 2817, 2838, 2843-2844, 2847-2848, 2904-2907, 2910-2923, 2926-2927, 2932, 2946-2948, 2956-2958, 2962-2964, 2981, 2998-3000, 3005-3006, 3008, 3012-3014, 3017-3018, 3020, 3024-3026, 3029-3030, 3032-3033, 3035-3040, 3042-3051, 3054-3058, 3061-3066, 3068, 3073-3077, 3081-3083, 3087-3090, 3097-3099,
