19100-05731 PUMP ASSY, INJECTI Calibration Data


Rating:
18
Buy PUMP ASSY, INJECTI 19100-05731 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
19100-05731 HINO
A6,R812
01.002
BODY ASSY, INJECTI
09010-04232 HINO
A6
02.003
COVER, BEARING
09020-10410 HINO
DUMMY
01.004
TIMER ASSY, AUTOMA
09180-01210 HINO
SA/2SP
01.005
PUMP ASSY, FUEL FE
09210-00920 HINO
KE
01.006
COUPLING ASSY
09250-00270 HINO
SP
01.007
GOVERNOR ASSY, MEC
19080-01530 HINO
R812
02.008
SWITCH KIT, CONTRO
09009-90390 HINO

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-05731
PUMP ASSY, INJECTI
A6,R812
22010-5391 HINO
004
[01]
09031-00130
VALVE ASSY, OVERFL
1.5-1.8K
22107-1090A HINO
005
[02]
94901-02480
WASHER
T1
22847-1940A HINO
006
[01]
09001-80290
COVER, CONTROL RAC
22114-1020A HINO
007
[06]
94904-70620
BOLT, W/WASHER
M6,L14
22815-1620A HINO
008
[01]
09010-04232
BODY ASSY, INJECTI
A6
22110-1590C HINO
009
[01]
09210-00920
PUMP ASSY, FUEL FE
KE22
22570-1250A HINO
010
[01]
19080-01530
GOVERNOR ASSY, MEC
R812
22310-3740A HINO
011
[01]
94904-73910
BOLT, W/WASHER
M8,L18
22815-2820A HINO
012
[01]
94913-00210
KEY, WOODRUFF
T3.985
22895-1010A HINO
013
[01]
09250-00270
COUPLING ASSY
SP
22610-1080A HINO
014
[01]
09001-20180
NUT, TIMER ROUND
22511-1070A HINO
015
[01]
09180-01210
TIMER ASSY, AUTOMA
SA
22510-1190A HINO
016
[01]
94901-50590
WASHER, SPRING
T3.5
22877-1620A HINO
017
[02]
09028-50030
CAP
FOR MAX.SPEED
22323-1210A HINO

Include in ##:

19100-05731 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-05731
22010-5391
PUMP ASSY, INJECTI

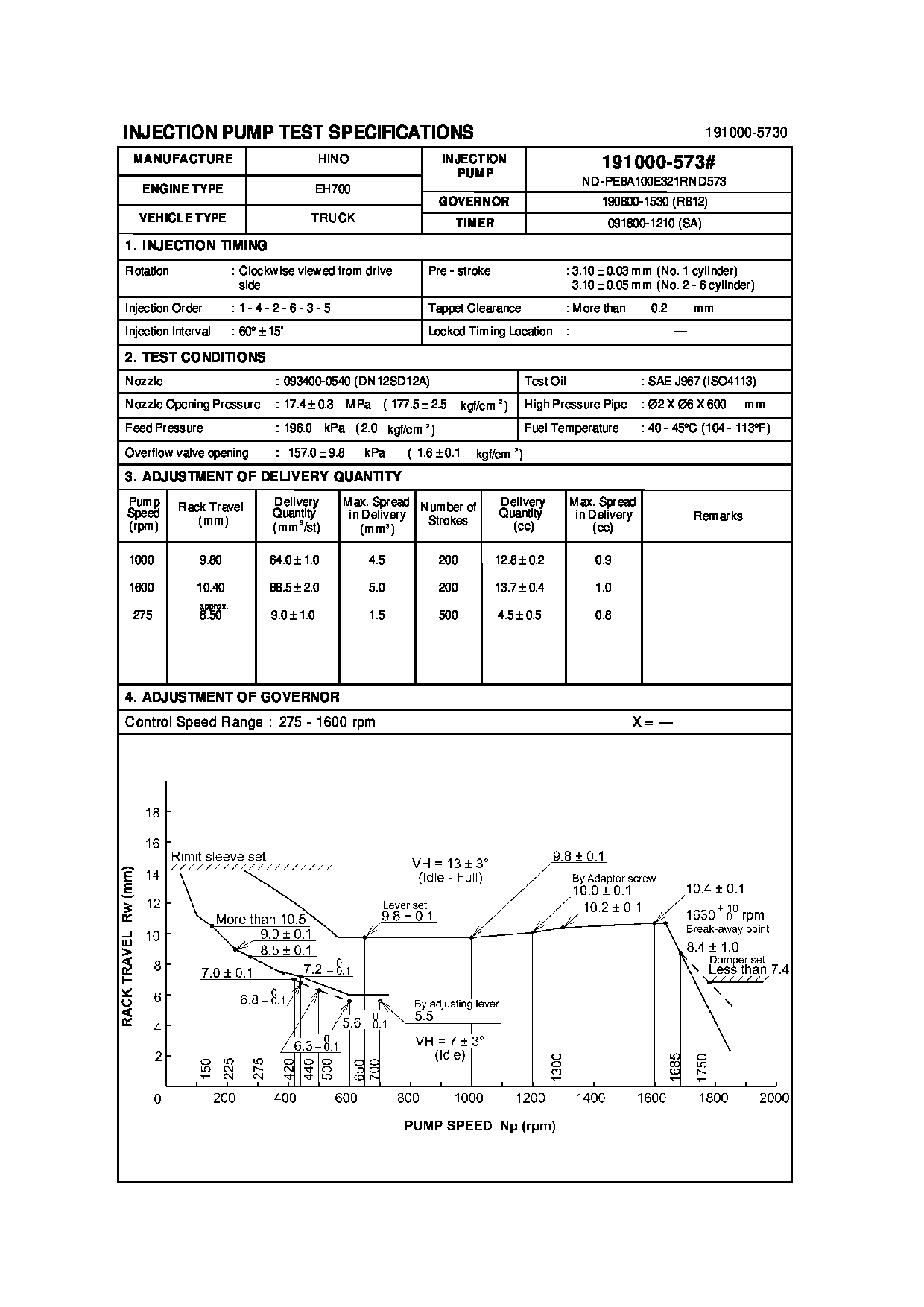

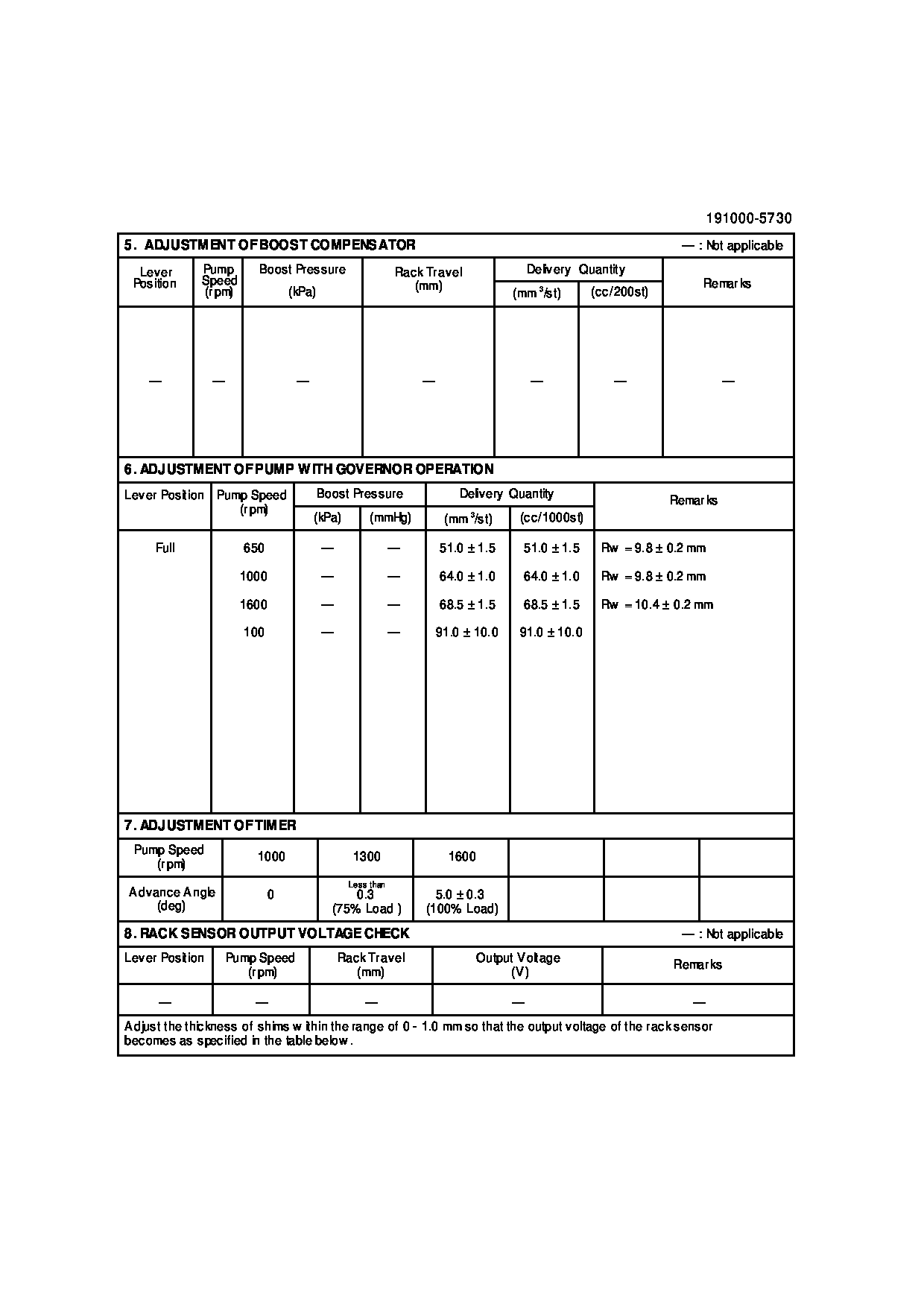

Test Calibration Data:

Get Full test data file
1910005731 22010-5390
EC5730
EC5730
