19100-05450 PUMP ASSY, INJECTI Calibration Data


Rating:
62
Buy PUMP ASSY, INJECTI 19100-05450 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 13B
Engine
13B
Serial start-end
8708--8807
Info
Injector Nozzle
093500-2890
Injector nozzle: 0935002890

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400320
Governor assy, mec
1908900271
Pump assy, fuel fe
1922900060

Components :

00.001
PUMP ASSY, INJECTI
19100-05450 TOYOTA
A4,R801
01.002
BODY ASSY, INJECTI
09010-07920 TOYOTA
A4
01.003
GOVERNOR ASSY, MEC
09130-01170 TOYOTA
R801
02.004
COVER ASSY, GOVERN
09145-00232 TOYOTA
01.005
PUMP ASSY, FUEL FE
09210-01700 TOYOTA
KE

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-05450
PUMP ASSY, INJECTI
A4,R801
22100-58322 TOYOTA
001
[01]
09010-07920
BODY ASSY, INJECTI
A4
22120-58292 TOYOTA
002
[01]
09130-01171
GOVERNOR ASSY, MEC
R801
22410-58321 TOYOTA
003
[01]
09210-01700
PUMP ASSY, FUEL FE
KE
22510-873 TOYOTA
008
[01]
09001-80090
COVER, CONTROL RAC
22116-56230 TOYOTA
009
[01]
09257-50170
SHAFT, SPLINE
22174-58201 TOYOTA
010
[01]
09001-20190
NUT, TIMER ROUND
22611-58200 TOYOTA
011
[01]
94901-50590
WASHER, SPRING
T3.5
90099-01449 TOYOTA
012
[01]
94913-00210
KEY, WOODRUFF
T3.985
90099-13023 TOYOTA
016
[01]
91418-06201
BOLT, W/WASHER
M6,L20
90091-20608 TOYOTA
017
[04]
94904-72690
BOLT, W/WASHER
M6,L16
90099-04319 TOYOTA
018
[01]
94904-72990
BOLT, W/WASHER
M6,L11.5
90099-04320 TOYOTA
019
[01]
94904-73910
BOLT, W/WASHER
M8,L18
90099-04346 TOYOTA

Include in ##:

19100-05450 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-05450
22100-5832
PUMP ASSY, INJECTI
1910005450
22100-58322
TOYOTA
PUMP ASSY, INJECTI

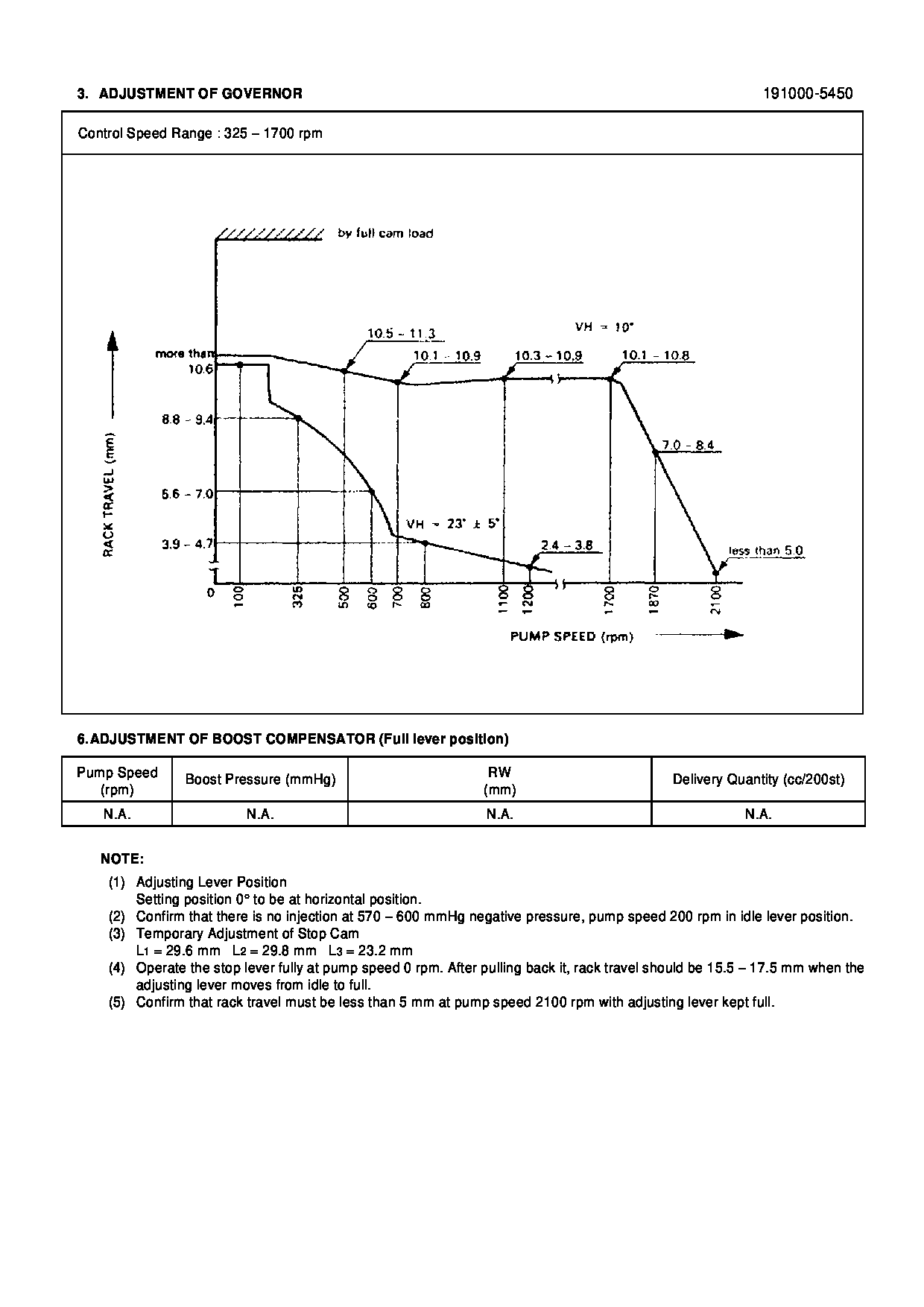

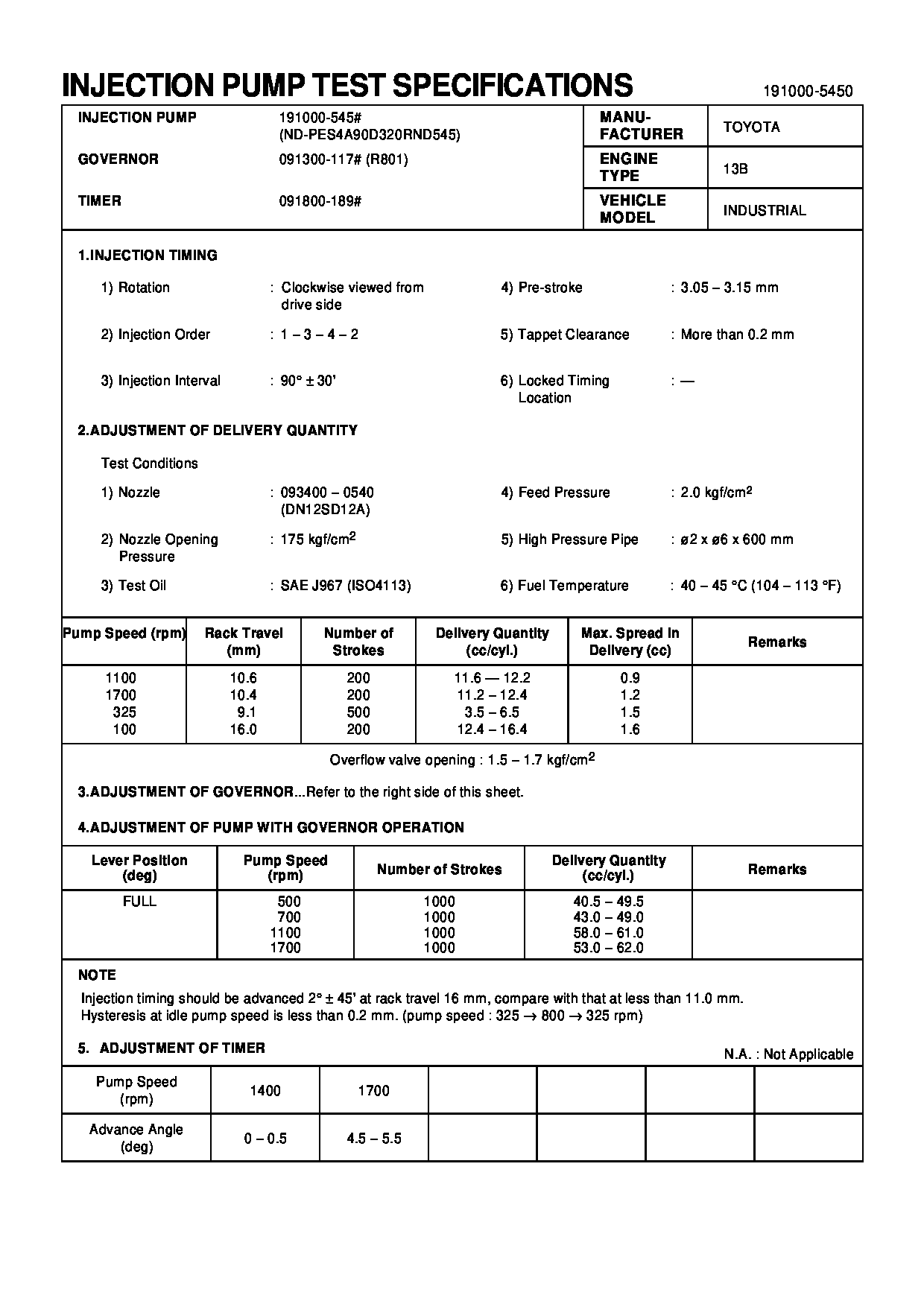

Test Calibration Data:

Get Full test data file
1910005450 22100-58322
EC5450
EC5450
