19100-05360 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 19100-05360 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

DYNA B

Engine

Serial start-end

8710--8807

Info

Injector Nozzle

093500-1250

Injector nozzle: 0935001250

KIT List:

Part name

Kit1

Kit2

Governor assy, com

1908900230

Pump assy, fuel fe

1922900060

Components :

00.001

PUMP ASSY, INJECTI

19100-05360 TOYOTA

A4,COMBI

01.002

BODY ASSY, INJECTI

09010-07940 TOYOTA

A4:DRIV.16.8

01.003

GOVERNOR ASSY, COM

09070-00175 TOYOTA

COMBINED

01.004

PUMP ASSY, FUEL FE

09210-01101 TOYOTA

01.004

PUMP ASSY, FUEL FE

09210-01101 TOYOTA

KE22

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

19100-05360

PUMP ASSY, INJECTI

A4,COMBI

22100-56221 TOYOTA

001

[01]

09010-07940

BODY ASSY, INJECTI

22120-56211 TOYOTA

002

[01]

09070-00175

GOVERNOR ASSY, COM

COMBINED

22320-57020 TOYOTA

003

[01]

09210-01101

PUMP ASSY, FUEL FE

22510-56040 TOYOTA

008

[01]

09001-80061

COVER, CONTROL RAC

22116-46010 TOYOTA

009

[01]

09257-50020

SHAFT, SPLINE

22174-47010 TOYOTA

010

[01]

09001-20020

NUT, TIMER ROUND

D16,L15

22611-46010 TOYOTA

011

[01]

94901-50490

WASHER, SPRING

22173-46010 TOYOTA

012

[01]

94913-00050

KEY, WOODRUFF

90099-13002 TOYOTA

013

[01]

09048-10030

CLAMP, HOSE

90929-01132 TOYOTA

016

[01]

91418-06121

BOLT, W/WASHER

M6,L12

90091-20607 TOYOTA

017

[03]

94904-70620

BOLT, W/WASHER

M6,L14

90099-04526 TOYOTA

018

[01]

91518-08221

BOLT, W/WASHER

M8,L22

90091-20804 TOYOTA

019

[01]

94904-70620

BOLT, W/WASHER

M6,L14

90099-04526 TOYOTA

Include in ##:

19100-05360 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

19100-05360

22100-5622

PUMP ASSY, INJECTI

1910005360

22100-56221

TOYOTA

PUMP ASSY, INJECTI

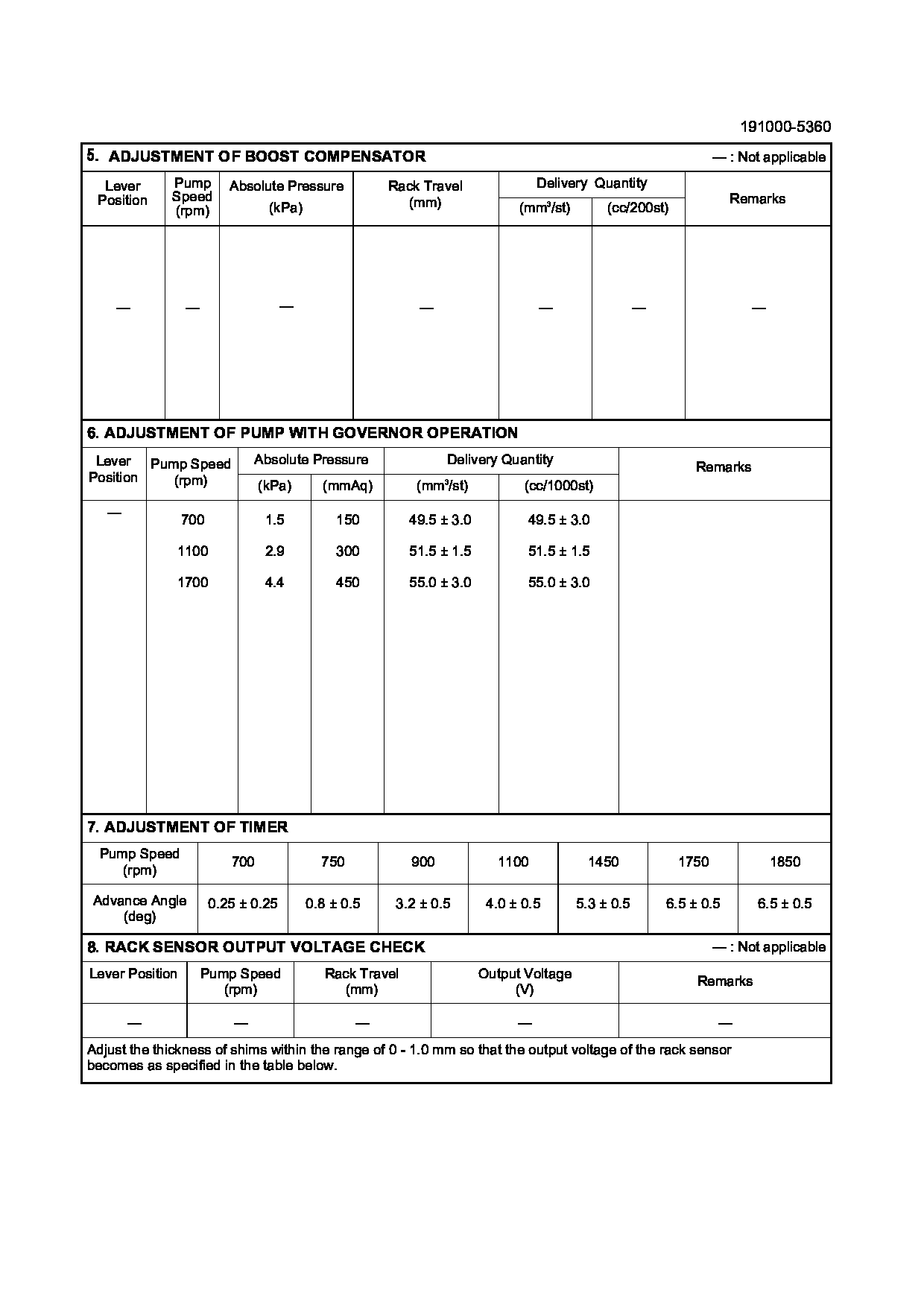

Test Calibration Data:

Get Full test data file

1910005360 22100-56221

19100-05360 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

KIT List:

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:

Have questions with 19100-05360?

Group cross 19100-05360
