19100-05340 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 19100-05340 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

DYNA 11B

Engine

11B

Serial start-end

8710-

Info

Injector Nozzle

093500-3010

Injector nozzle: 0935003010

KIT List:

Part name

Kit1

Kit2

Body assy, injecti

1904400320

Governor assy, mec

1908900271

Pump assy, fuel fe

1922900060

Components :

00.001

PUMP ASSY, INJECTI

19100-05340 TOYOTA

A4,R801

01.002

BODY ASSY, INJECTI

09010-07950 TOYOTA

01.003

GOVERNOR ASSY, MEC

09130-01290 TOYOTA

R801

02.004

COVER ASSY, GOVERN

09145-00313 TOYOTA

01.005

PUMP ASSY, FUEL FE

09210-01700 TOYOTA

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

19100-05340

PUMP ASSY, INJECTI

A4,R801

22100-56271 TOYOTA

001

[01]

09010-07950

BODY ASSY, INJECTI

22120-56252 TOYOTA

002

[01]

09130-01290

GOVERNOR ASSY, MEC

R801

22410-56260 TOYOTA

003

[01]

09210-01700

PUMP ASSY, FUEL FE

22510-873 TOYOTA

008

[01]

09001-80090

COVER, CONTROL RAC

22116-56230 TOYOTA

009

[01]

09257-50170

SHAFT, SPLINE

22174-58201 TOYOTA

010

[01]

09001-20190

NUT, TIMER ROUND

22611-58200 TOYOTA

011

[01]

94901-50590

WASHER, SPRING

T3.5

90099-01449 TOYOTA

012

[01]

94913-00210

KEY, WOODRUFF

T3.985

90099-13023 TOYOTA

013

[01]

09048-10030

CLAMP, HOSE

90929-01132 TOYOTA

014

[01]

91418-06201

BOLT, W/WASHER

M6,L20

90091-20608 TOYOTA

015

[04]

94904-72690

BOLT, W/WASHER

M6,L16

90099-04319 TOYOTA

016

[01]

94904-74850

BOLT, W/WASHER

M6,L12.5

90099-04415 TOYOTA

017

[01]

94904-73910

BOLT, W/WASHER

M8,L18

90099-04346 TOYOTA

Include in ##:

19100-05340 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

19100-05340

22100-5627

PUMP ASSY, INJECTI

1910005340

22100-56271

TOYOTA

PUMP ASSY, INJECTI

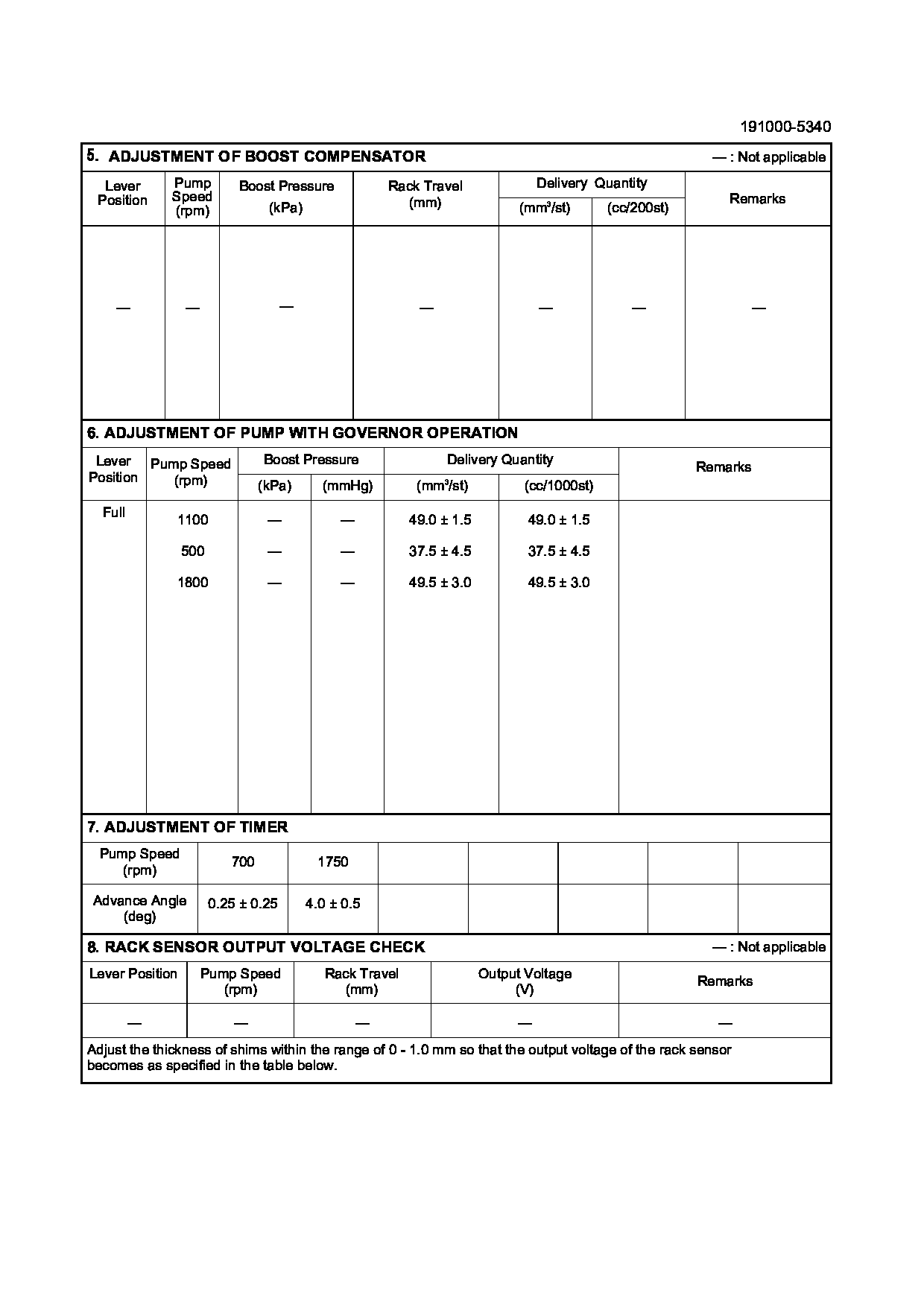

Test Calibration Data:

Get Full test data file

1910005340 22100-56271
