19100-04850 PUMP ASSY, INJECTI Calibration Data


Rating:
66
Buy PUMP ASSY, INJECTI 19100-04850 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 4DQ11P
Engine
4DQ11P
Serial start-end
8809--9004
Info
Injector Nozzle
093500-3190
Injector nozzle: 0935003190

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A4,RUV
01.002
BODY ASSY, INJECTI
A4:DRIV.16.8
01.003
GOVERNOR ASSY, MEC
-9011
01.003
GOVERNOR ASSY, MEC
9011-
01.004
PUMP ASSY, FUEL FE
KS

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-04850
PUMP ASSY, INJECTI
A4,RUV
005
[01]
BODY ASSY, INJECTI
A4:DRIV.16.8
006
[01]
GOVERNOR ASSY, MEC
RUV
007
[01]
PUMP ASSY, FUEL FE
KS
008
[01]
COVER, CONTROL RAC
009
[01]
NUT, HEXAGON
M12
010
[01]
KEY, WOODRUFF
011
[06]
BOLT, W/WASHER
M6,L14
012
[01]
WASHER, SPRING
T2.5
014
[01]
WASHER, PLATE
M6,T1.5

Include in ##:

19100-04850 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-04850

PUMP ASSY, INJECTI

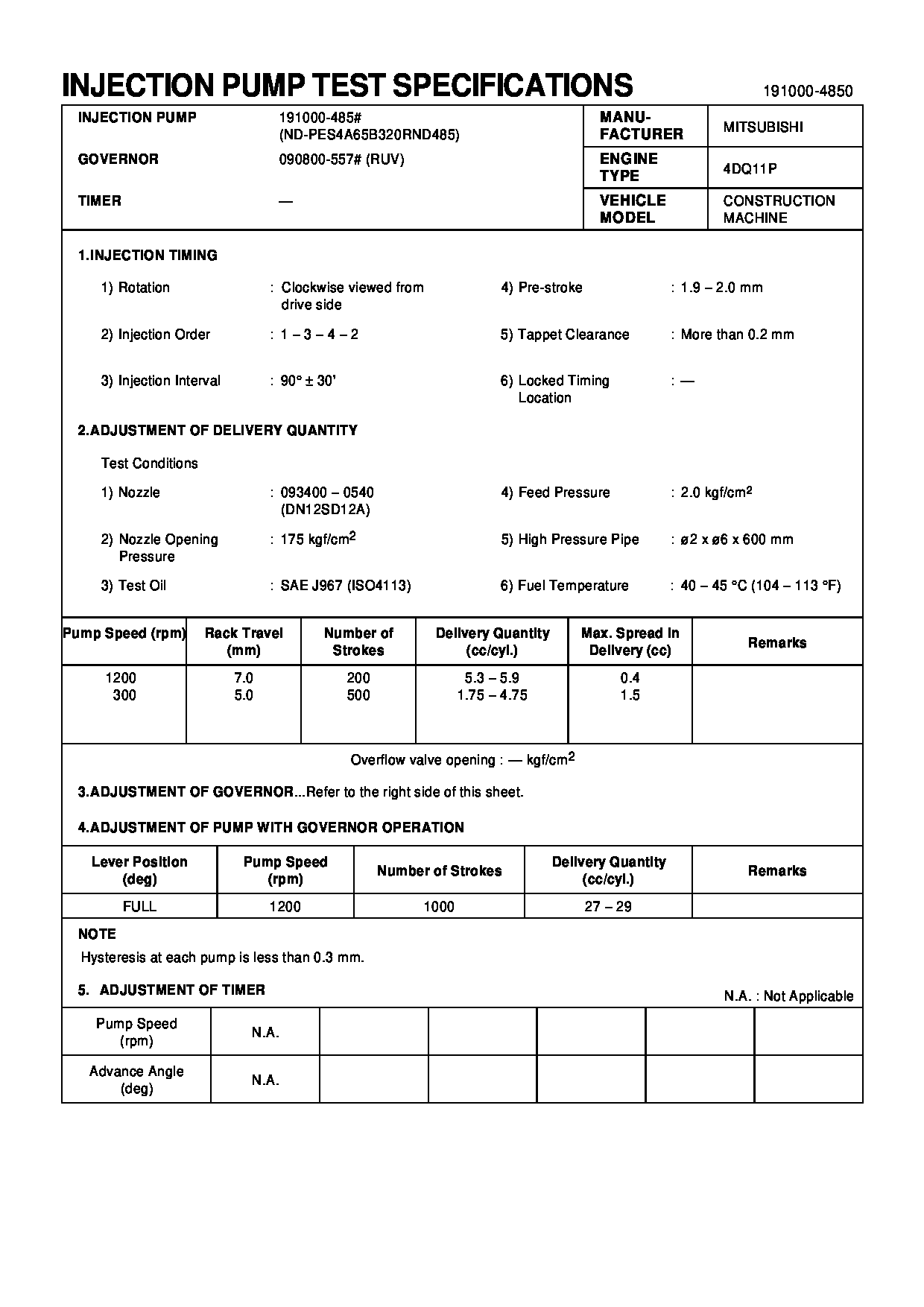

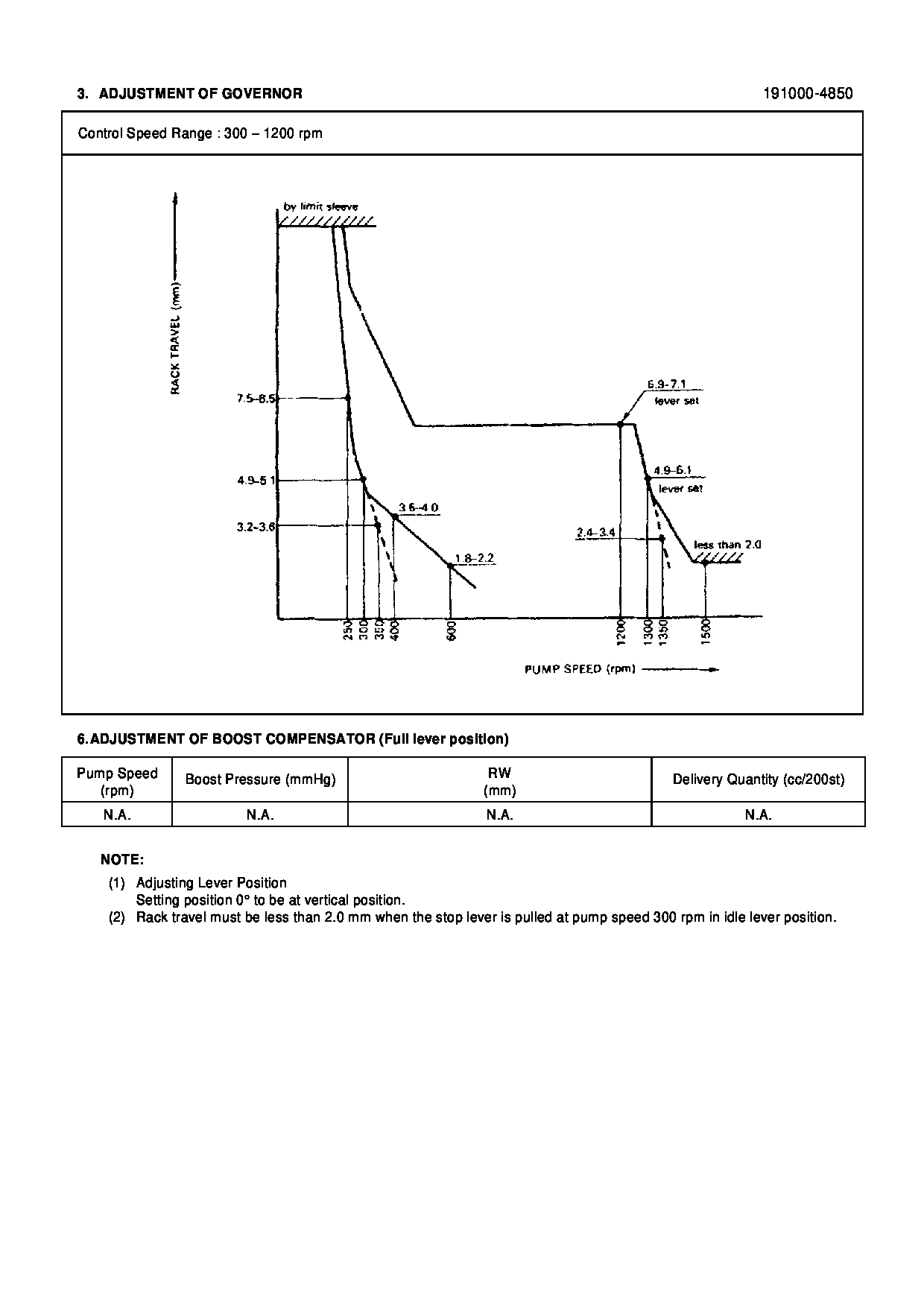

Test Calibration Data:

1910004850 30661-71010




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Table 1
Required Parts
Item Qty Part Number Part Name Former Part Number(1)
1 1 307-3245 Injector As 5T-5045
(1) The former part number listed is for reference only and may differ.
Illustration 1 g06487273
(1) 307-3245 Injector As
Illustration 2 g06487280
(1) 307-3245 Injector AsNew injector assembly (1) is adaptable to the products within the listed serial numbers and is effective with all products after the listed serial numbers.
New injector assembly (1) replaces the former 5T-5045 Lubrication Injector Gp in the 5T-5009 Lubrication Distribution Valve Gp and 8W-2597 Lubrication Distribution Valve Gp.
The former 5T-5009 Lubrication Distribution Valve Gp was replaced by 269-5348 Lubrication Distribution Valve Gp in the 542-2534 Automatic Lubrication Gp, 480-9286 Lubrication Lines Gp, and 461-6749 Automatic Lubrication Gp.
The former 8W-2597 Lubrication Distribution Valve Gp was replaced by 269-5352 Lubrication Distribution Valve Gp in the 480-9286 Lubrication Lines Gp.Note: The 442-3289 Lubrication Valve and Lines Gp is equipped with the 8W-2597 Lubrication Distribution Valve Gp.Note: The 442-3289 Lubrication Valve and Lines Gp was superseded by 449-2424 Fuel Filter.Note: The 499-2424 Lubrication Valve and Lines Gp is equipped with the 5T-5009 Lubrication Distribution Valve Gp.Note: The 499-2424 Lubrication Valve and Lines Gp was superseded by the 542-2354 Lubrication Valve and Lines Gp.
