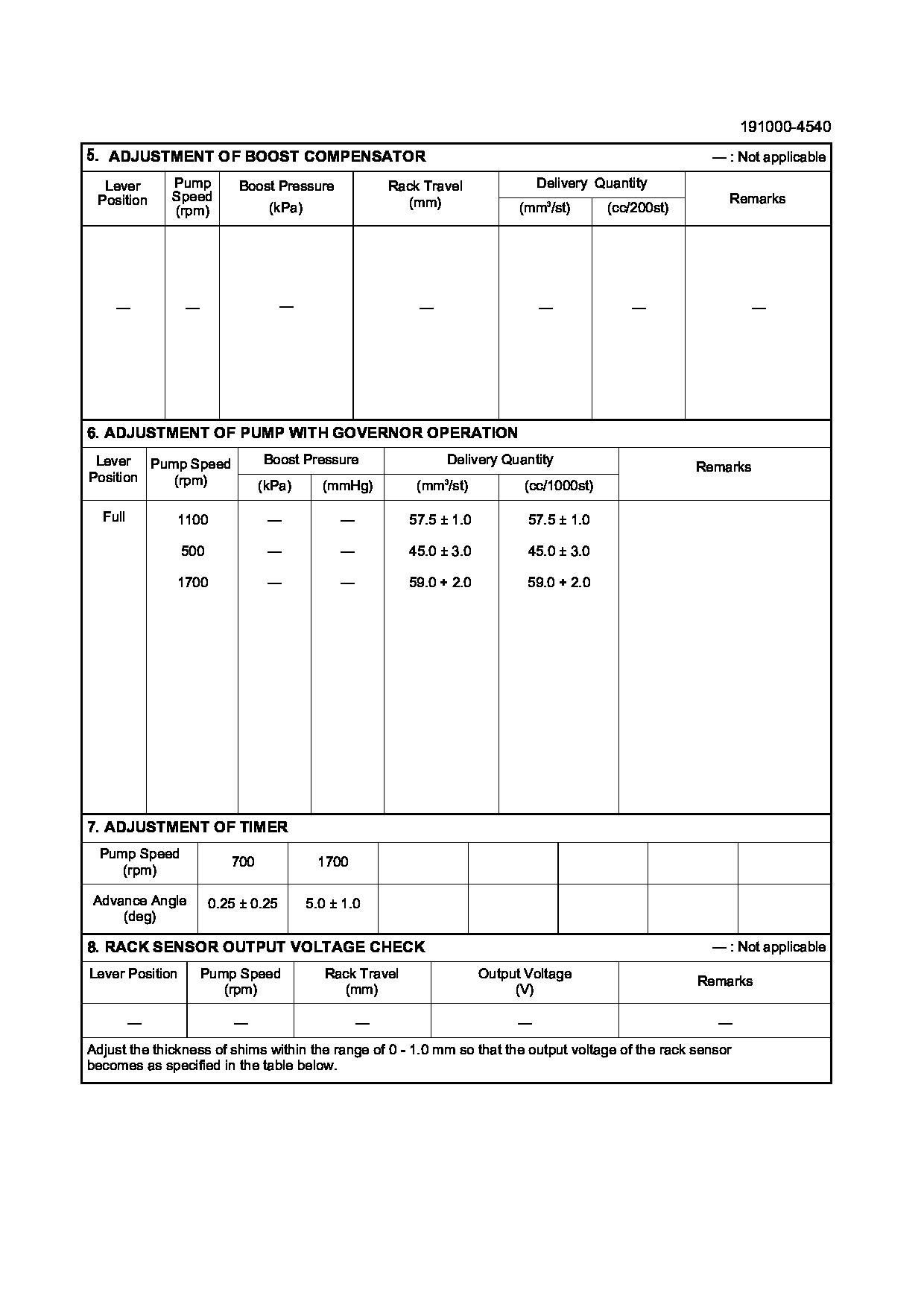

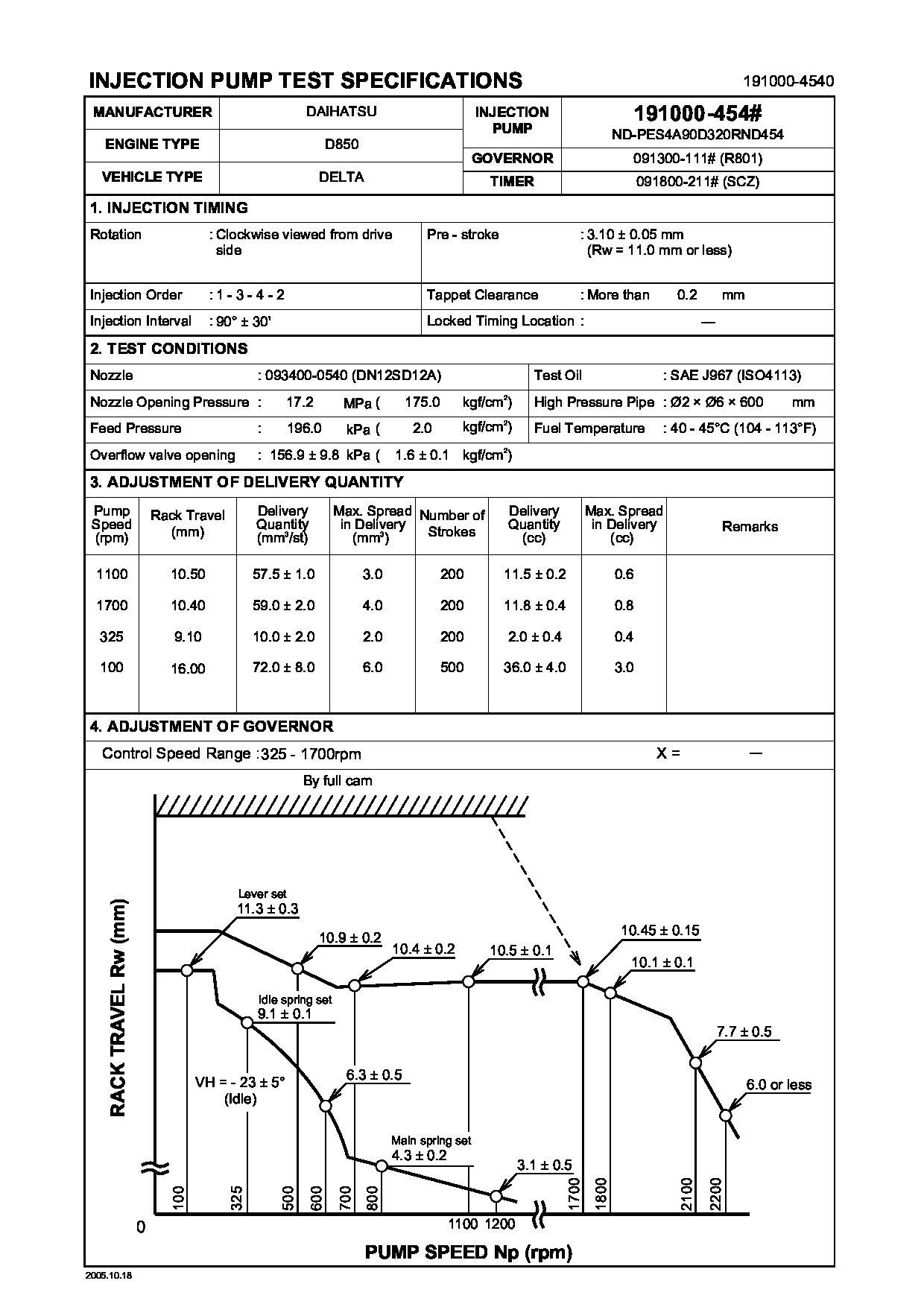

19100-04540 PUMP ASSY, INJECTI Calibration Data

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Table 1
Required Parts
Item Qty Part Number Part Name Former Part Number(1)
1 1 307-3245 Injector As 5T-5045
(1) The former part number listed is for reference only and may differ.
Illustration 1 g06487273
(1) 307-3245 Injector As
Illustration 2 g06487280
(1) 307-3245 Injector AsNew injector assembly (1) is adaptable to the products within the listed serial numbers and is effective with all products after the listed serial numbers.
New injector assembly (1) replaces the former 5T-5045 Lubrication Injector Gp in the 5T-5009 Lubrication Distribution Valve Gp and 8W-2597 Lubrication Distribution Valve Gp.
The former 5T-5009 Lubrication Distribution Valve Gp was replaced by 269-5348 Lubrication Distribution Valve Gp in the 542-2534 Automatic Lubrication Gp, 480-9286 Lubrication Lines Gp, and 461-6749 Automatic Lubrication Gp.
The former 8W-2597 Lubrication Distribution Valve Gp was replaced by 269-5352 Lubrication Distribution Valve Gp in the 480-9286 Lubrication Lines Gp.Note: The 442-3289 Lubrication Valve and Lines Gp is equipped with the 8W-2597 Lubrication Distribution Valve Gp.Note: The 442-3289 Lubrication Valve and Lines Gp was superseded by 449-2424 Fuel Filter.Note: The 499-2424 Lubrication Valve and Lines Gp is equipped with the 5T-5009 Lubrication Distribution Valve Gp.Note: The 499-2424 Lubrication Valve and Lines Gp was superseded by the 542-2354 Lubrication Valve and Lines Gp.
