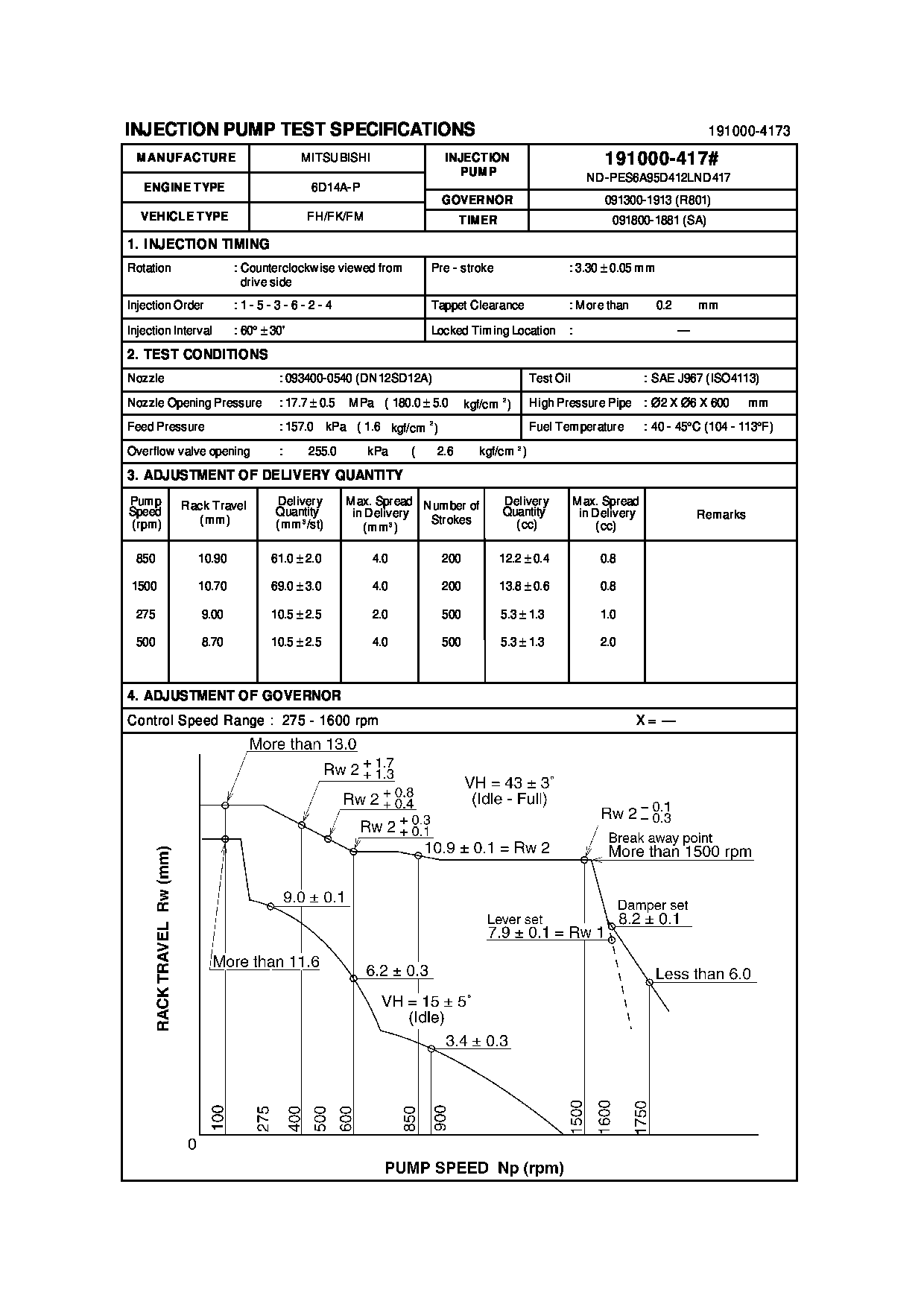

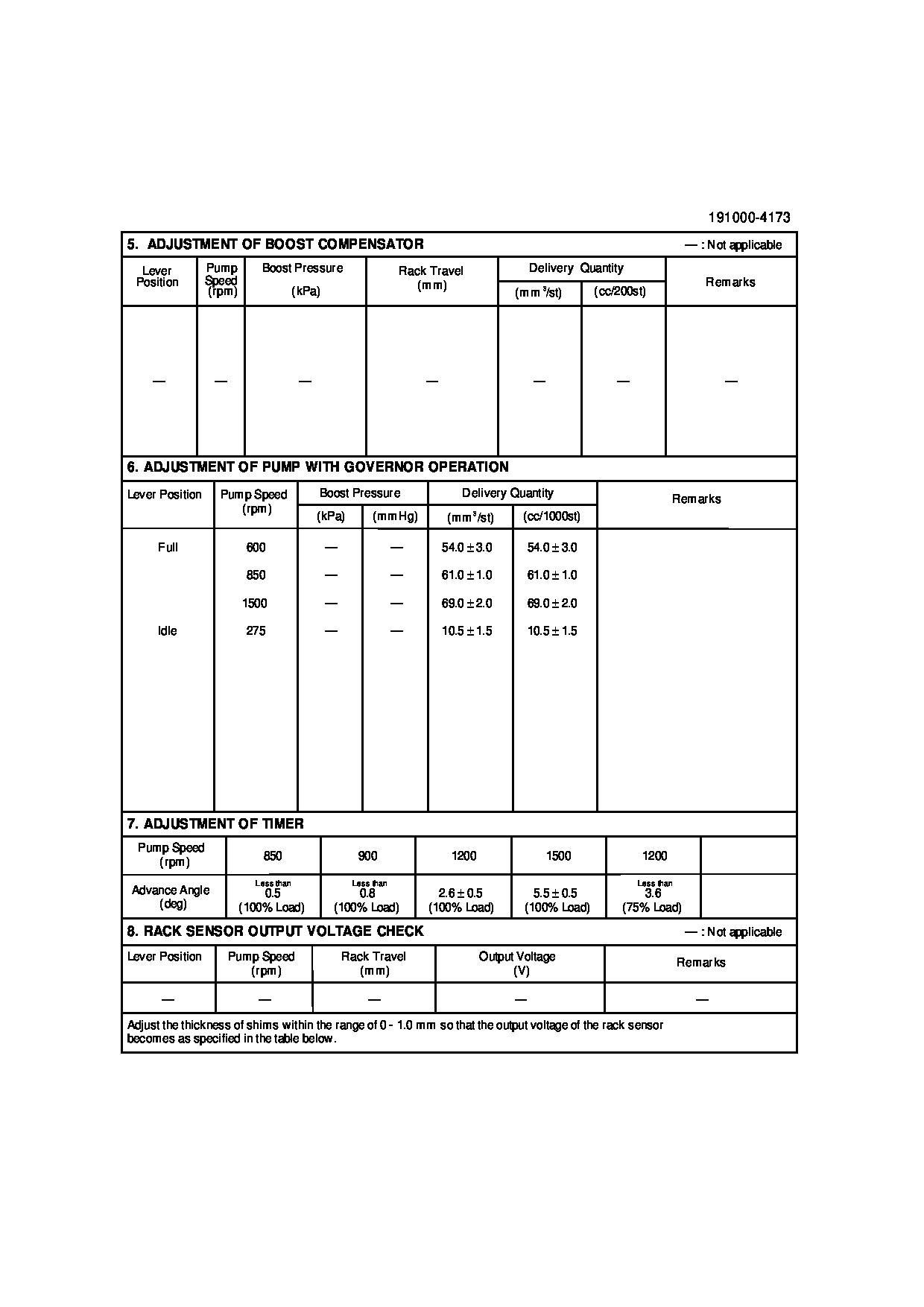

19100-04173 PUMP ASSY, INJECTI Calibration Data

Introduction
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.MEUI-C fuel injectors installed in certain C13 and C15 truck engines have failed due to issues not related to materials or workmanship of the injector. Injector solenoid failures have occurred due to fuel system restrictions and connector pin arcing. Other injector failures have been related to incorrect injector rocker preload. To prevent more failures, further troubleshooting and inspection of the fuel system and electrical connectors is necessary to determine the root cause of the solenoid failure. Likewise, if injector tappet or injector rocker failures are observed, investigations should review that correct injector preload procedures were followed.Note: Failures of injectors that are not due to defects in manufacturing or materials may not be warrantable failures.
Illustration 1 g06304350Important Safety Information
Work safely. Most accidents that involve product operation, maintenance, and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs.A person must be alert to potential hazards. This person must also have the necessary training, skills, and tools to perform these functions properly.Safety precautions and warnings are provided in this instruction and on the product. If these hazard warnings are not heeded, bodily injury or death could occur to you or to other persons.Caterpillar cannot anticipate every possible circumstance that might involve a potential hazard. The warnings in this publication and on the product are, therefore, not all inclusive. Do not use this product in any manner different from what is considered by this manual without first satisfying that you have considered all safety rules and precautions applicable to the operation of the product in the location of use, including site-specific rules and precautions applicable to the worksite. If a tool, procedure, work method, or operating technique that is not recommended by Caterpillar is used, you must satisfy that it is safe for you and for others. Ensure that you are authorized to perform this work, and that the product will not be damaged or become unsafe by the operation, lubrication, maintenance, or repair procedures that you intend to use. The information, specifications, and illustrations in this publication are based on information that was available at the time that the publication was written. The specifications, torques, pressures, measurements, adjustments, illustrations, and other items can change at any time. These changes can affect the service that is given to the product. Obtain the complete and most current information before you start any job. Cat dealers have the most current information available.Safety Section
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Personal injury can result from improper handling of chemicals.Make sure you use all the necessary protective equipment required
