19100-03120 PUMP ASSY, INJECTI Calibration Data


Rating:
27
Buy PUMP ASSY, INJECTI 19100-03120 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL EH700
Engine
EH700
Serial start-end
8603-
Info
Injector Nozzle
093500-2080
Injector nozzle: 0935002080

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400360
Pump assy, fuel fe
1922900060
Governor assy, mec
1908900170

Components :

00.001
PUMP ASSY, INJECTI
19100-03120 HINO
A6,RSV
01.002
BODY ASSY, INJECTI
09010-05820 HINO
A6
02.003
COVER, BEARING
09020-10250 HINO
DUMMY
01.004
PUMP ASSY, FUEL FE
09210-00920 HINO
KE
01.005
COUPLING ASSY
09250-00361 HINO
SP
01.006
GOVERNOR ASSY, MEC
19080-00550 HINO
RSV

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-03120
PUMP ASSY, INJECTI
A6,RSV
22030-2190 HINO
006
[01]
09010-05820
BODY ASSY, INJECTI
A6
22130-1270A HINO
007
[01]
19080-00550
GOVERNOR ASSY, MEC
RSV
22330-1840A HINO
008
[06]
91418-06161
BOLT, W/WASHER
M6,L16
22815-1380A HINO
009
[01]
91518-08221
BOLT, W/WASHER
M8,L22
22815-1190A HINO
011
[01]
09210-00920
PUMP ASSY, FUEL FE
22570-1250A HINO
012
[01]
09250-00360
COUPLING ASSY
22630-1020A HINO
013
[01]
09001-80290
COVER, CONTROL RAC
22114-1020A HINO
014
[01]
09001-20180
NUT, TIMER ROUND
22511-1070A HINO
015
[01]
94901-50590
WASHER, SPRING
T3.5
22877-1620A HINO
016
[01]
94913-00210
KEY, WOODRUFF
22895-1010A HINO
020
[01]
09031-00130
VALVE ASSY, OVERFL
1.5-1.8K
22107-1090A HINO
022
[02]
94901-02480
WASHER
T1
22847-1940A HINO

Include in ##:

19100-03120 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-03120
22030-2190
PUMP ASSY, INJECTI
1910003120
22030-2190
HINO
PUMP ASSY, INJECTI

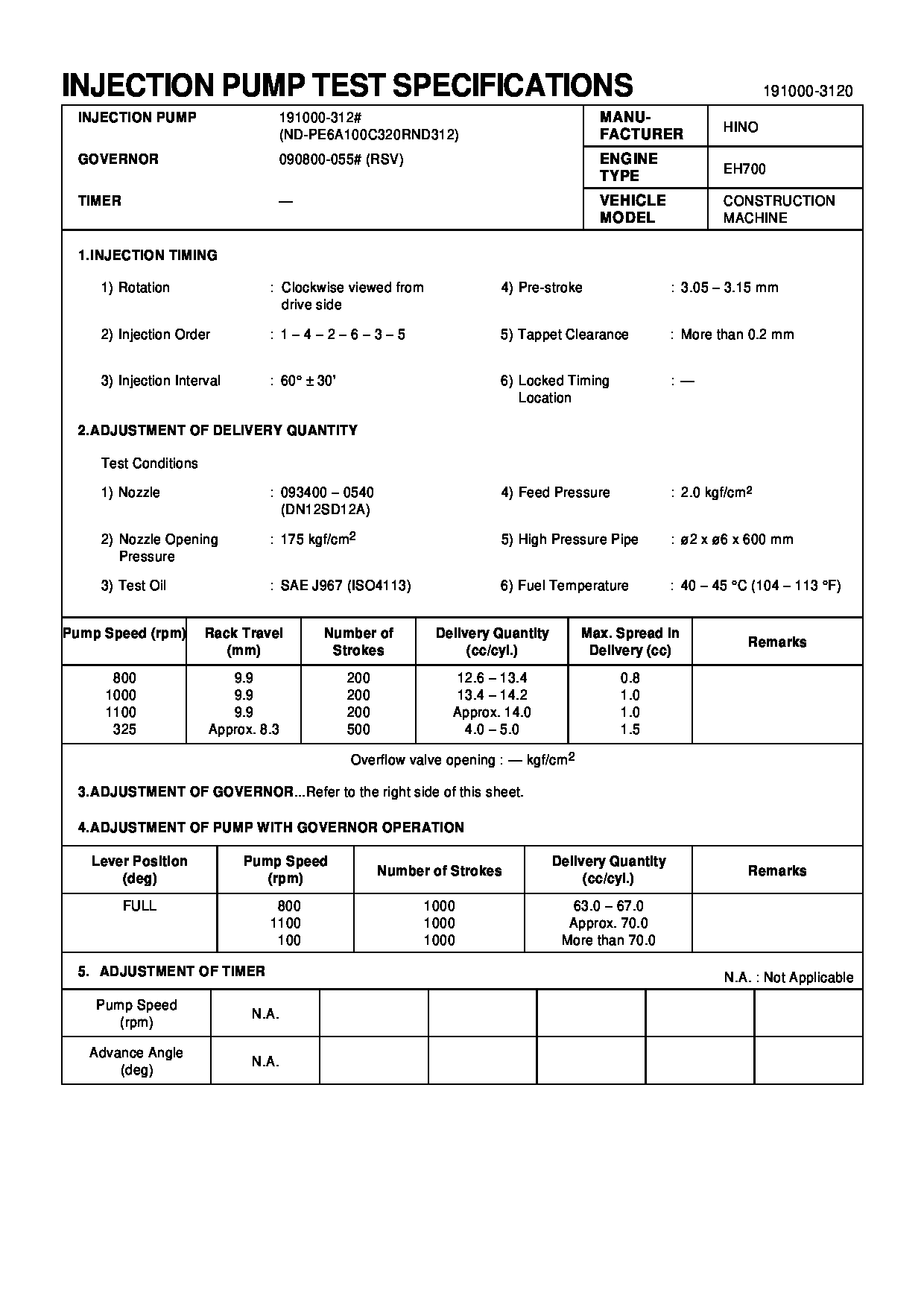

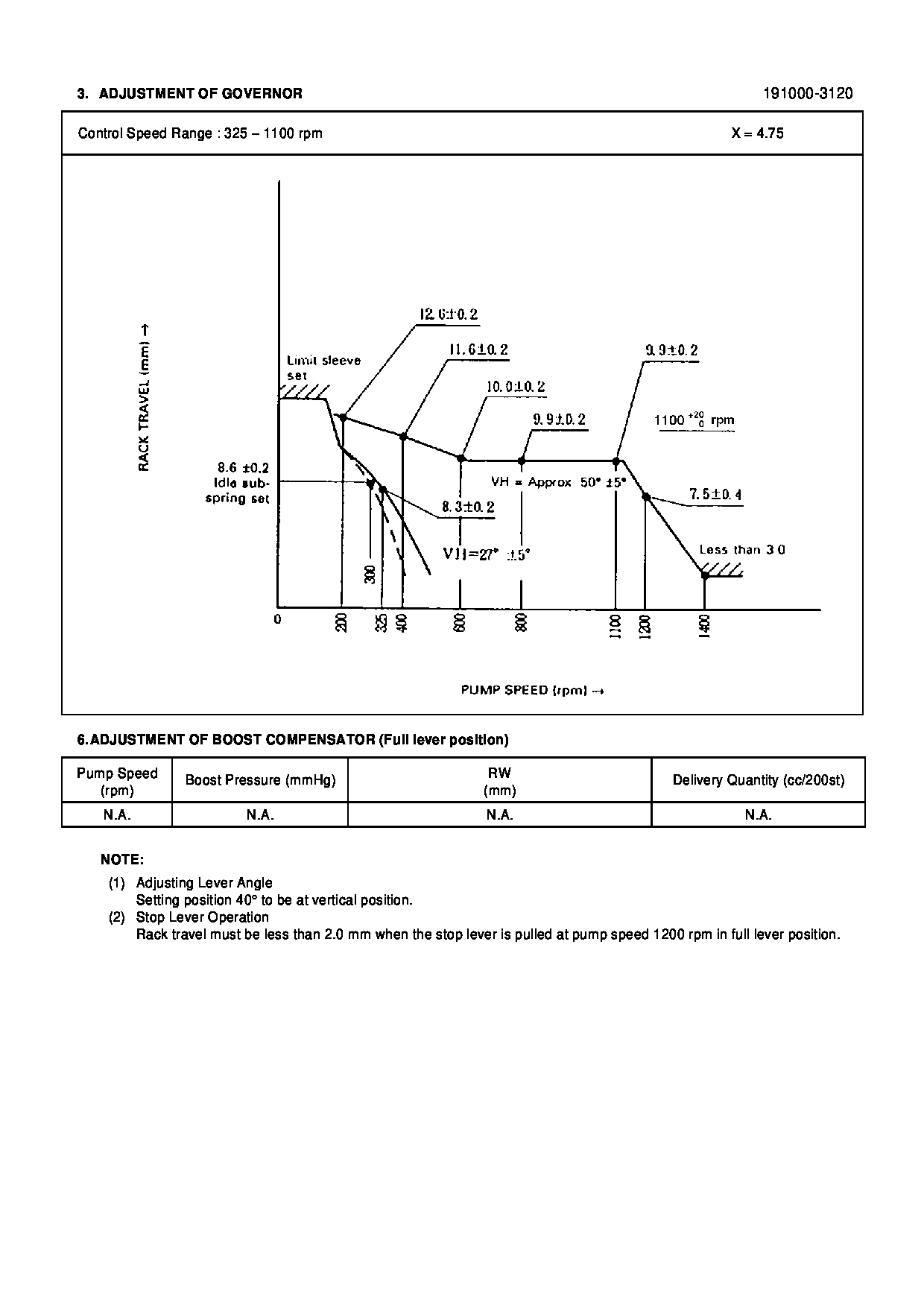

Test Calibration Data:

Get Full test data file
1910003120 22030-2190A
EC3120
EC3120
