19100-02700 PUMP ASSY, INJECTI Calibration Data


Rating:
65
Buy PUMP ASSY, INJECTI 19100-02700 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 6D125
Engine
6D125
Serial start-end
8606--8804
Info
Injector Nozzle
093500-2710
Injector nozzle: 0935002710

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Pump assy, fuel fe
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
NB6,RSV
01.002
BODY ASSY, INJECTI
NB6
02.003
COVER, BEARING
DUMMY
01.004
PUMP ASSY, FUEL FE
KE
01.005
COUPLING ASSY
SD
01.006
GOVERNOR ASSY, MEC
RSV -8810
01.006
GOVERNOR ASSY, MEC
8811-

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
NB6,RSV
003
[01]
BODY ASSY, INJECTI
NB6
004
[01]
GOVERNOR ASSY, MEC
RSV
005
[02]
BOLT, W/WASHER
M6,L14
006
[01]
COVER, CONTROL RAC
007
[01]
NUT, TIMER ROUND
008
[01]
WASHER, COUNTERSUN
T1.5ID18
009
[01]
KEY, WOODRUFF
W5,H7.5
010
[01]
PUMP ASSY, FUEL FE
KE22
011
[01]
COVER, PRIMING PUM
012
[01]
WASHER, COPPER PLA
T1.5
014
[01]
COUPLING ASSY
SD
015
[02]
WASHER, FUEL PIPE
T1.2
016
[01]
VALVE ASSY, OVERFL
1.5-1.7K
017
[02]
BOLT, W/WASHER
M6,L20
018
[04]
BOLT, W/WASHER
M6,L16

Cross reference number



Part num
Firm num
Firm
Name
19100-02700

PUMP ASSY, INJECTI

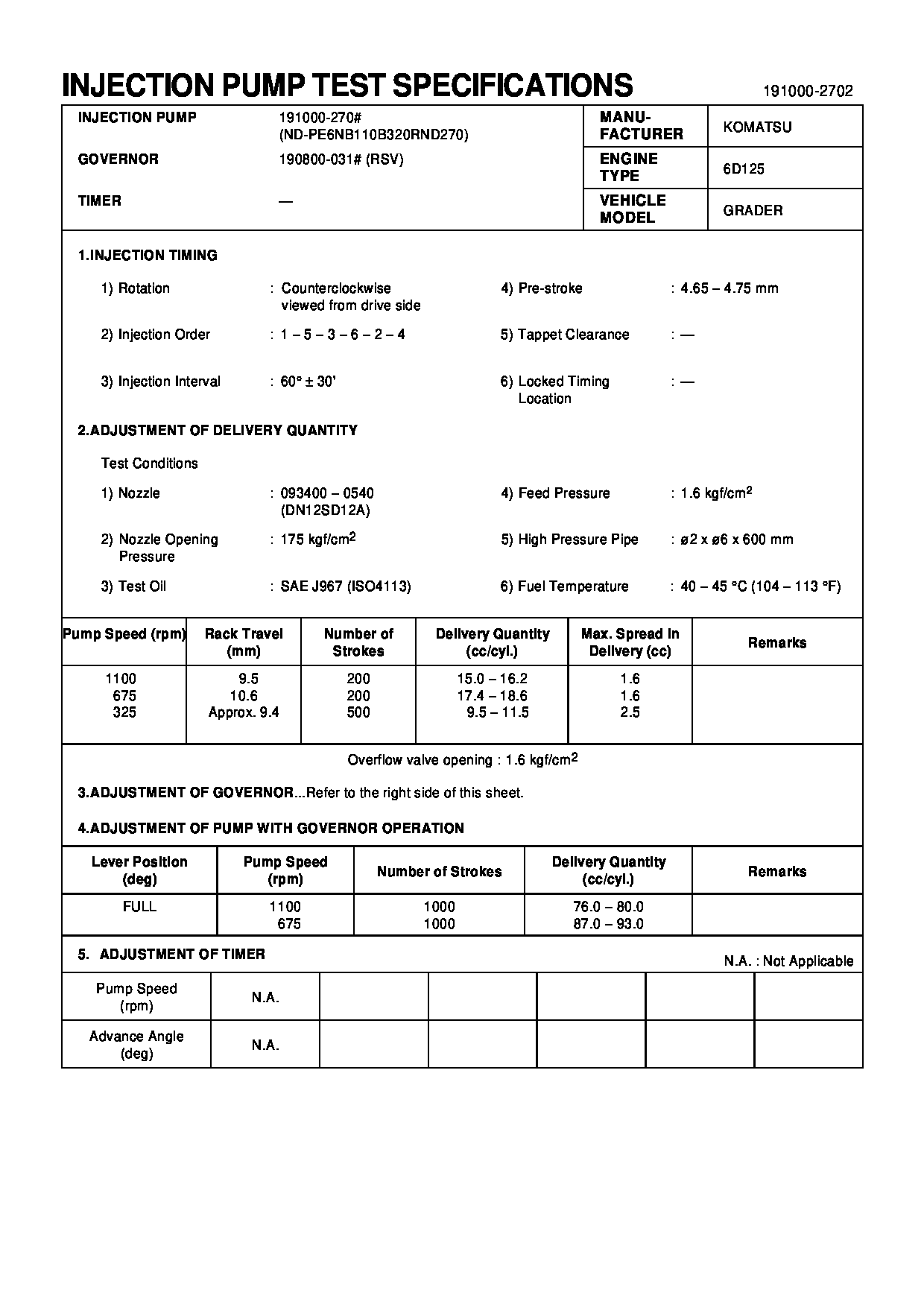

Test Calibration Data:

1910002700 6150-71-1551




Information:

Start By:a. remove cylinder headb. remove front and rear housingsc. remove rear seal and carrierd. remove pistons and connecting rods 1. Remove bolts (1), remove main bearing caps (2) and remove thrust bearings (3) from the center main. 2. Install two bolts and nylon strap (4) then carefully, remove the crankshaft. The approximate weight of the crankshaft is 129 Kg (284 lbs.).3. Remove the upper portions of the main bearings. The following steps are for the installation of the crankshaft. Be sure main bearing tabs engage the grooves in the block and cap.4. Position the upper portion of the main bearings in the block and the lower main bearing portion in caps (2). Make sure everything is clean and only the bearing face is lubricated with engine oil.5. Position the crankshaft. 6. Install thrust bearings (3).7. Install main bearing caps (2). Put engine oil or molylube on the bolt threads and the washer face, then install bolts (1). Tighten the bolts on the side where the main bearing tabs are located to a torque of 95 5 N m (70 4 lb.ft.). Tighten the bolts on the opposite side to a torque of 95 5 N m (70 4 lb.ft.).8. Put mark on each bolt head and the bearing caps. Turn the bolts that are opposite the main bearing tabs an additional 90° 5° turn. Then turn the bolts on the side where the main bearing tabs are located an additional 90° 5° turn.
Typical Example9. Use tooling (A) to measure crankshaft end play. The crankshaft end play must be 0.1 to 0.5 mm (.004 to .020 in.).End By:a. install pistons and connecting rodsb. install rear seal and carrierc. install front and rear housingsd. install cylinder head
