19100-02250 PUMP ASSY, INJECTI Calibration Data


Rating:
63
Buy PUMP ASSY, INJECTI 19100-02250 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL S6E
Engine
S6E
Serial start-end
8702--0007
Info
Injector Nozzle
093500-3190
Injector nozzle: 0935003190

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A6,RSV
01.002
BODY ASSY, INJECTI
A6
01.003
GOVERNOR ASSY, MEC
RSV
01.004
PUMP ASSY, FUEL FE
KS

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-02250
PUMP ASSY, INJECTI
A6,RSV
005
[01]
BODY ASSY, INJECTI
A6
006
[01]
GOVERNOR ASSY, MEC
RSV
007
[01]
COVER, CONTROL RAC
008
[01]
NUT, HEXAGON
M12
009
[01]
KEY, WOODRUFF
010
[01]
WASHER, SPRING
T2.5
012
[01]
PUMP ASSY, FUEL FE
KS22
013
[01]
BOLT, W/WASHER
M8,L22
014
[05]
BOLT, W/WASHER
M6,L16
015
[01]
BOLT, W/WASHER
M6,L12

Include in ##:

19100-02250 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-02250

PUMP ASSY, INJECTI

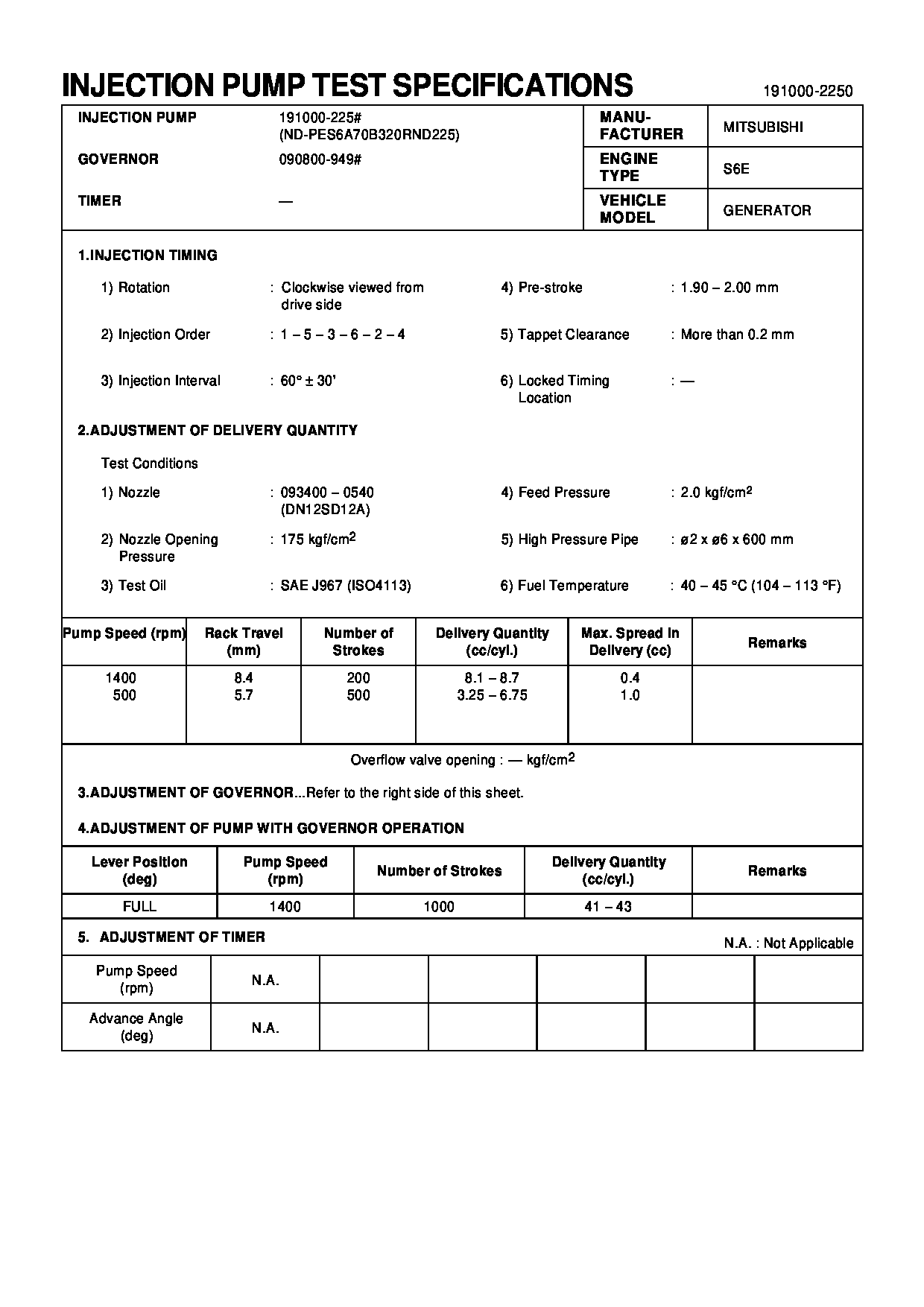

Test Calibration Data:

1910002250 34761-40030
