19100-01570 PUMP ASSY, INJECTI Calibration Data


Rating:
18
Buy PUMP ASSY, INJECTI 19100-01570 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
TRUCK EF550
Engine
EF550
Serial start-end
8510--9002
Info
Injector Nozzle
093500-2680
Injector nozzle: 0935002680

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Timer assy, automa
Pump assy, fuel fe
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
R8,R722
01.002
BODY ASSY, INJECTI
P8
02.003
COVER, BEARING
DUMMY
01.004
TIMER ASSY, AUTOMA
SP -9305
01.004
TIMER ASSY, AUTOMA
SP 9305-
01.005
PUMP ASSY, FUEL FE
KD22
01.006
COUPLING ASSY
01.007
GOVERNOR ASSY, MEC

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-01570
PUMP ASSY, INJECTI
R8,R722
22010-4460 HINO
001
[01]
BODY ASSY, INJECTI
P8
22110-2140A HINO
002
[01]
GOVERNOR ASSY, MEC
R722
22310-3090A HINO
003
[01]
TIMER ASSY, AUTOMA
SP
22510-1610A HINO
004
[01]
PUMP ASSY, FUEL FE
KD
22570-1330A HINO
005
[01]
COUPLING ASSY
SD
22610-1470A HINO
011
[01]
WASHER, COPPER PLA
T2
22863-1300A HINO
012
[01]
COVER, CONTROL RAC
22372-1140A HINO
013
[01]
NUT, TIMER ROUND
22825-1110A HINO
014
[01]
WASHER, COUNTERSUN
T1.5ID18
22877-1580A HINO
015
[01]
KEY, WOODRUFF
W5,H7.5
22891-1070A HINO
016
[01]
O-RING
ID27.7
22817-1050A HINO
020
[02]
CAP
FOR MAX.SPEED
22323-1210A HINO

Include in ##:

19100-01570 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-01570
22010-4460
PUMP ASSY, INJECTI
1910001570
22010-4460
HINO
PUMP ASSY, INJECTI

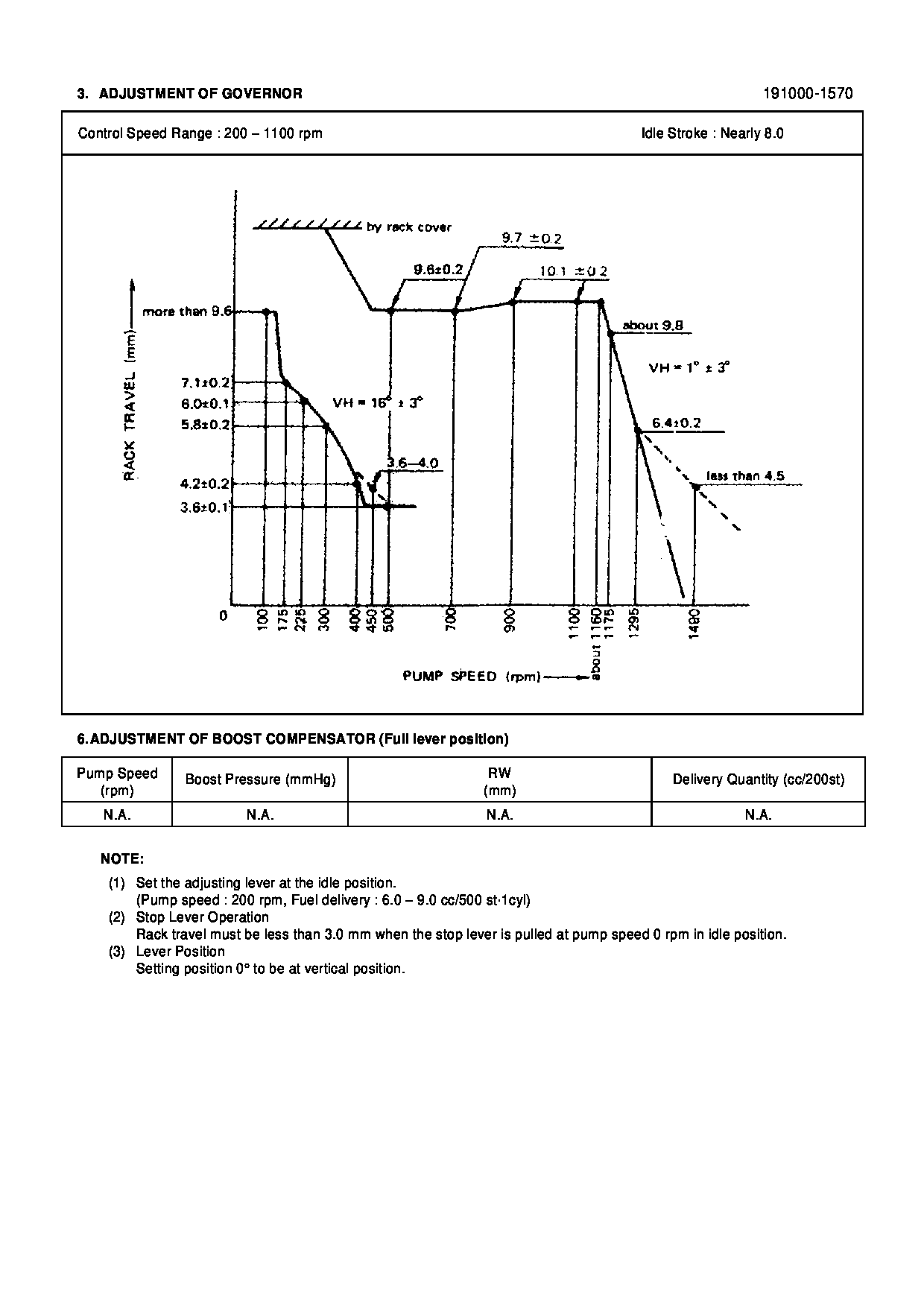

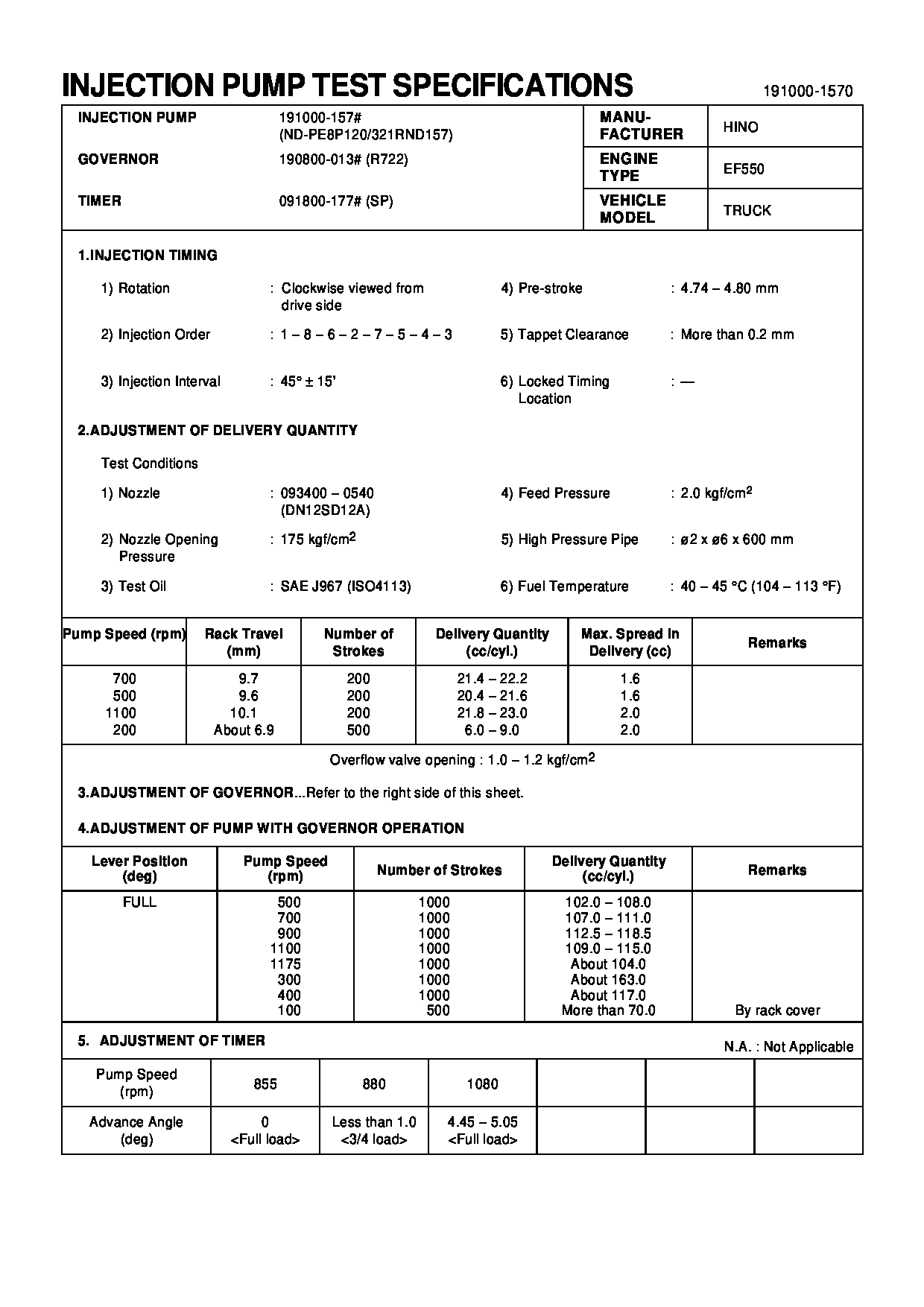

Test Calibration Data:

1910001570 22010-4460




Information:

Introduction
This Special Instruction contains information for installing the Marine Fuel Flow Enclosure System on all Caterpillar and non-Caterpillar diesel engines. The Marine Fuel Flow Enclosure System will measure the amount of diesel fuel used by an engine. The system consists of two Fuel Flow Transducers and an Electronic Control Module (ECM) The ECM will measure/calculate the amount of fuel that is used, and will transmit this data, along with diagnostic information, on the main J1939 data link, Ethernet or Cat Data Link to be received by a recording ECM such as Product LinkSafety Section
Do not perform any procedure in this Special Instruction until you have read Special Instruction and you understand this information. Use only proper tools and observe all precautions that pertain to the use of those tools. Failure to follow these procedures can result in personal injury. The following procedures should also be observed.Work safely. Most accidents that involve product operation, maintenance, and repair are caused by failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing potentially hazardous situations before an accident occurs. The installer must be alert to potential hazards and have the necessary training, skills, and tools needed to perform these functions properly. Wear safety equipment, such as eye protection, foot protection, and other protection as is appropriate to the work site.Safety precautions and warnings are provided in this instruction and on the product. If these hazard warnings are not heeded, bodily injury or death could occur to you or to other persons. Caterpillar cannot anticipate every possible circumstance that might involve a potential hazard. Therefore, the warnings in this publication and the warnings that are on the product are not all inclusive. Ensure that any tool, procedure, work method, or operating technique you use that is not recommended by Caterpillar is safe. Ensure that the product will not be damaged or the product will be made unsafe by the operation, lubrication, maintenance, or the repair procedures that are used.
Personal injury or death can result from improper assembly procedures.Do not attempt any assembly until you have read and understand the assembly instructions.
Accidental engine starting can cause injury or death to personnel working on the equipment.To avoid accidental engine starting, disconnect the battery cable from the negative (−) battery terminal. Completely tape all metal surfaces of the disconnected battery cable end in order to prevent contact with other metal surfaces which could activate the engine electrical system.Place a Do Not Operate tag at the Start/Stop switch location to inform personnel that the equipment is being worked on.
Prepare the Machine
If the machine is portable, then move the machine to a smooth, level surface that will support the weight of the machine.
Turn off the machine with the engine switch to the OFF position.
Use proper Lock out and Tag out procedures. Attach a "Do Not Operate" warning tag to the machine start switch or the controls before you perform any service to the machine. These warning tags Special Instruction, SEHS7332 are
