19100-01320 PUMP ASSY, INJECTI Calibration Data


Rating:
33
Buy PUMP ASSY, INJECTI 19100-01320 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
DELTA 11B
Engine
11B
Serial start-end
8501--8510
Info
Injector Nozzle
093500-3010
Injector nozzle: 0935003010

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A4,R801
01.002
BODY ASSY, INJECTI
A4
01.003
GOVERNOR ASSY, MEC
R801
02.004
COVER ASSY, GOVERN
01.005
PUMP ASSY, FUEL FE
KE

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-01320
PUMP ASSY, INJECTI
A4,R801
001
[01]
BODY ASSY, INJECTI
A4
002
[01]
GOVERNOR ASSY, MEC
R801
003
[01]
PUMP ASSY, FUEL FE
KE
008
[01]
COVER, CONTROL RAC
009
[01]
SHAFT, SPLINE
010
[01]
NUT, TIMER ROUND
011
[01]
WASHER, SPRING
T3.5
012
[01]
KEY, WOODRUFF
T3.985
016
[01]
BOLT, W/WASHER
M6,L20
017
[04]
BOLT, W/WASHER
M6,L16
018
[01]
BOLT, W/WASHER
M6,L12.5
019
[01]
BOLT, W/WASHER
M8,L18

Include in ##:

19100-01320 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-01320

PUMP ASSY, INJECTI

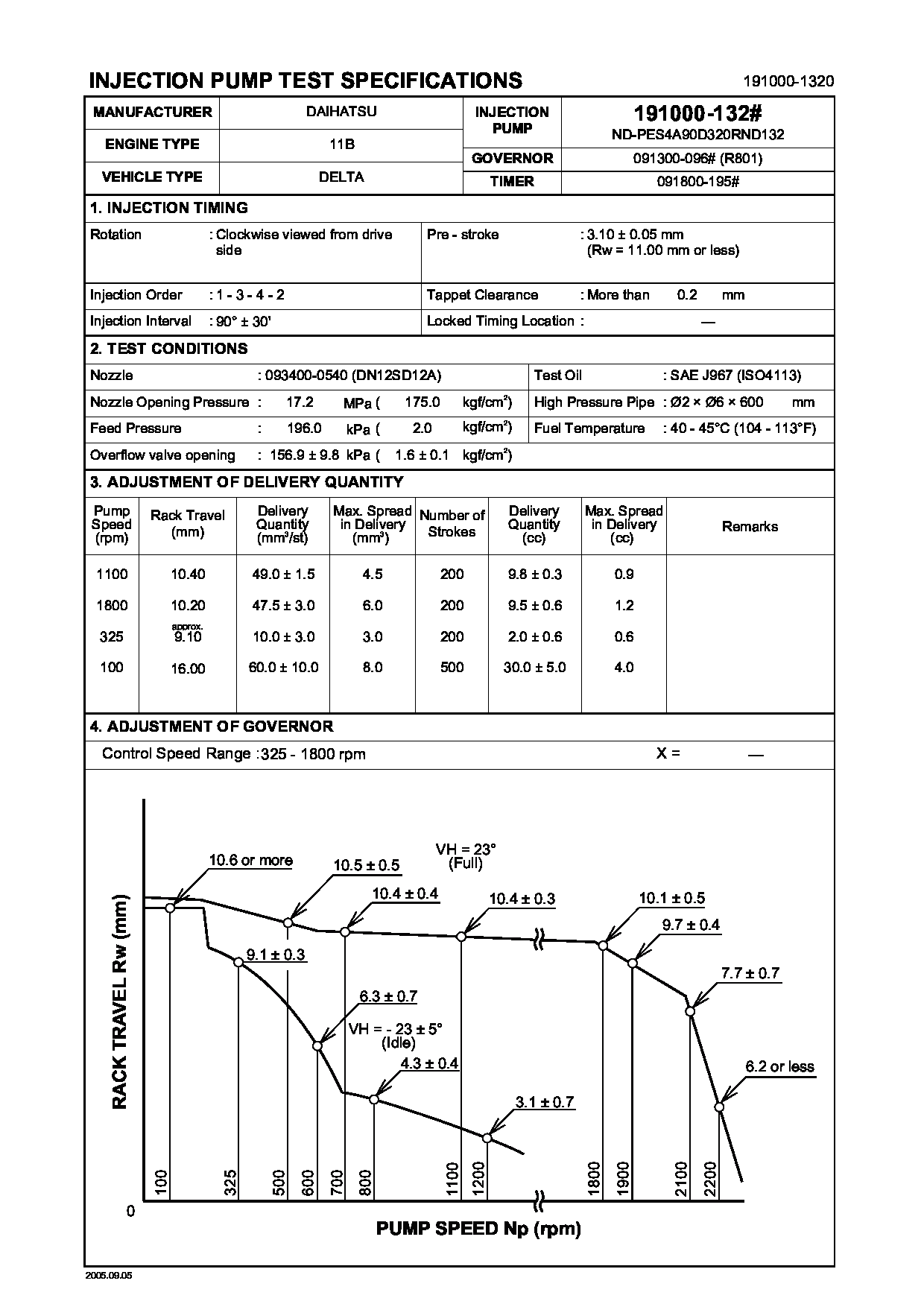

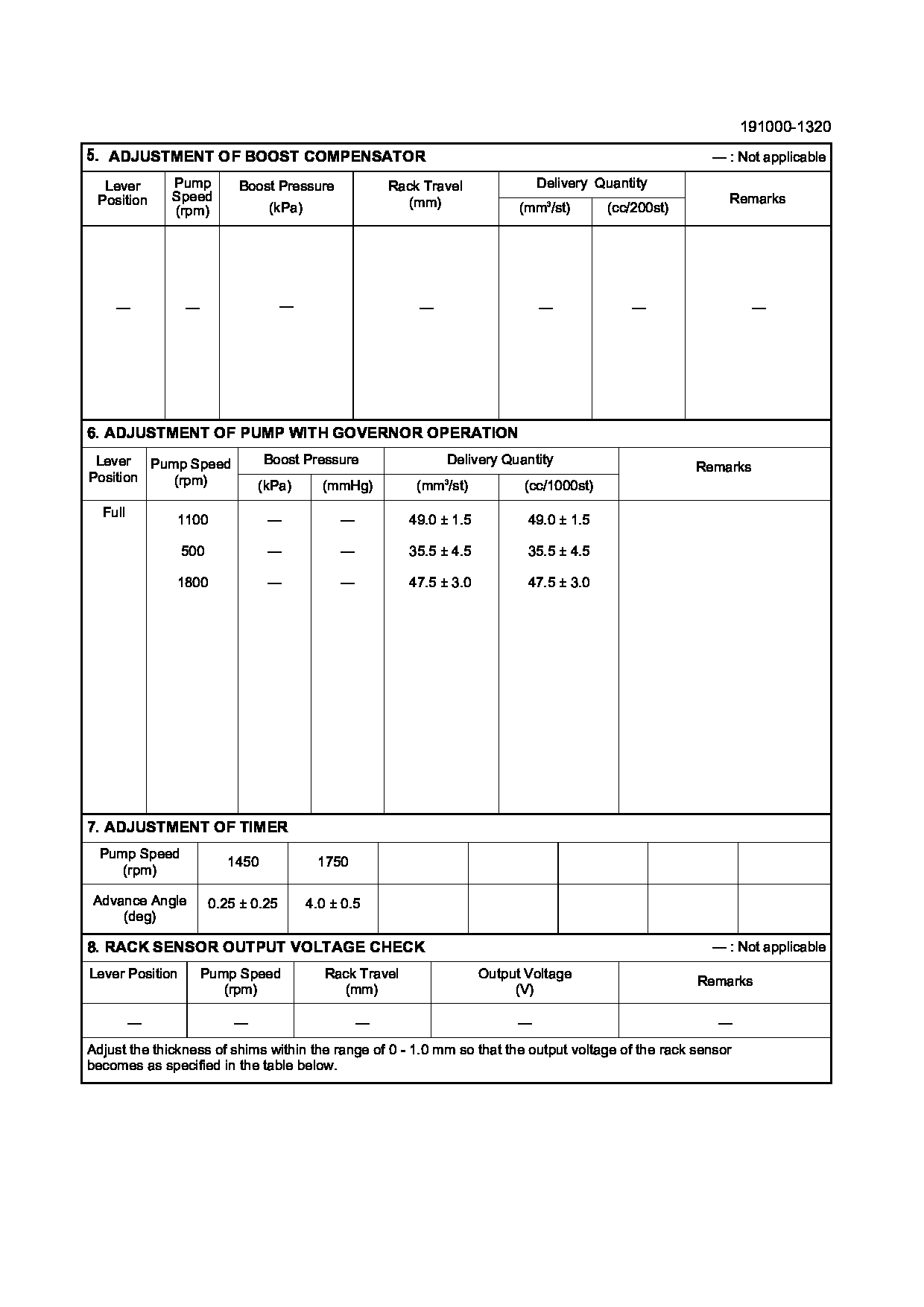

Test Calibration Data:

1910001320 22100-87C40
