19100-00930 PUMP ASSY, INJECTI Calibration Data


Rating:
16
Buy PUMP ASSY, INJECTI 19100-00930 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
BUS EH700
Engine
EH700
Serial start-end
8508--9305
Info
Injector Nozzle
093500-2080
Injector nozzle: 0935002080

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400360
Timer assy, automa
0918030060
Pump assy, fuel fe
1922900060

Components :

00.001
PUMP ASSY, INJECTI
19100-00930 HINO
A6,R722
01.002
SWITCH KIT, CONTRO
09009-90300 HINO
01.003
BODY ASSY, INJECTI
09010-03922 HINO
A6
02.004
COVER, BEARING
09020-10410 HINO
DUMMY
01.005
GOVERNOR ASSY, MEC
09080-09860 HINO
R722
01.006
TIMER ASSY, AUTOMA
09180-01210 HINO
SA/2SP
01.007
PUMP ASSY, FUEL FE
09210-00920 HINO
KE
01.008
COUPLING ASSY
09250-00270 HINO
SP

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-00930
PUMP ASSY, INJECTI
A6,R722
22010-4280 HINO
006
[01]
09010-03922
BODY ASSY, INJECTI
A6
22110-1590A HINO
007
[01]
09080-09860
GOVERNOR ASSY, MEC
R722
008
[06]
94904-71150
BOLT, W/WASHER
M6,L14
6 306 1001 00 HINO
009
[01]
94904-73910
BOLT, W/WASHER
M8,L18
22815-2820A HINO
011
[01]
09001-80290
COVER, CONTROL RAC
22114-1020A HINO
012
[01]
09180-01210
TIMER ASSY, AUTOMA
SA/2SP
22510-1190A HINO
013
[01]
09001-20180
NUT, TIMER ROUND
22511-1070A HINO
014
[01]
94913-00210
KEY, WOODRUFF
T3.985
22895-1010A HINO
015
[01]
94901-50590
WASHER, SPRING
T3.5
22877-1620A HINO
016
[01]
09210-00920
PUMP ASSY, FUEL FE
KE
22570-1250A HINO
017
[01]
09006-10011
COVER, PRIMING PUM
6 053 1552 60 HINO
018
[01]
09250-00270
COUPLING ASSY
SP
22610-1080A HINO
020
[01]
09031-00130
VALVE ASSY, OVERFL
1.5-1.7K
22107-1090A HINO
022
[02]
94901-02480
WASHER
T1,D15.9
22847-1940A HINO
023
[03]
90160-06051
NUT, HEXAGON
M6,L5
22825-1480A HINO
024
[03]
90258-06001
WASHER, SPRING
T1.5
28219-1110A HINO
025
[01]
09009-90300
SWITCH KIT, CONTRO
22690-1200A HINO

Include in ##:

19100-00930 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-00930
22010-4280
PUMP ASSY, INJECTI
1910000930
22010-4280
HINO
PUMP ASSY, INJECTI

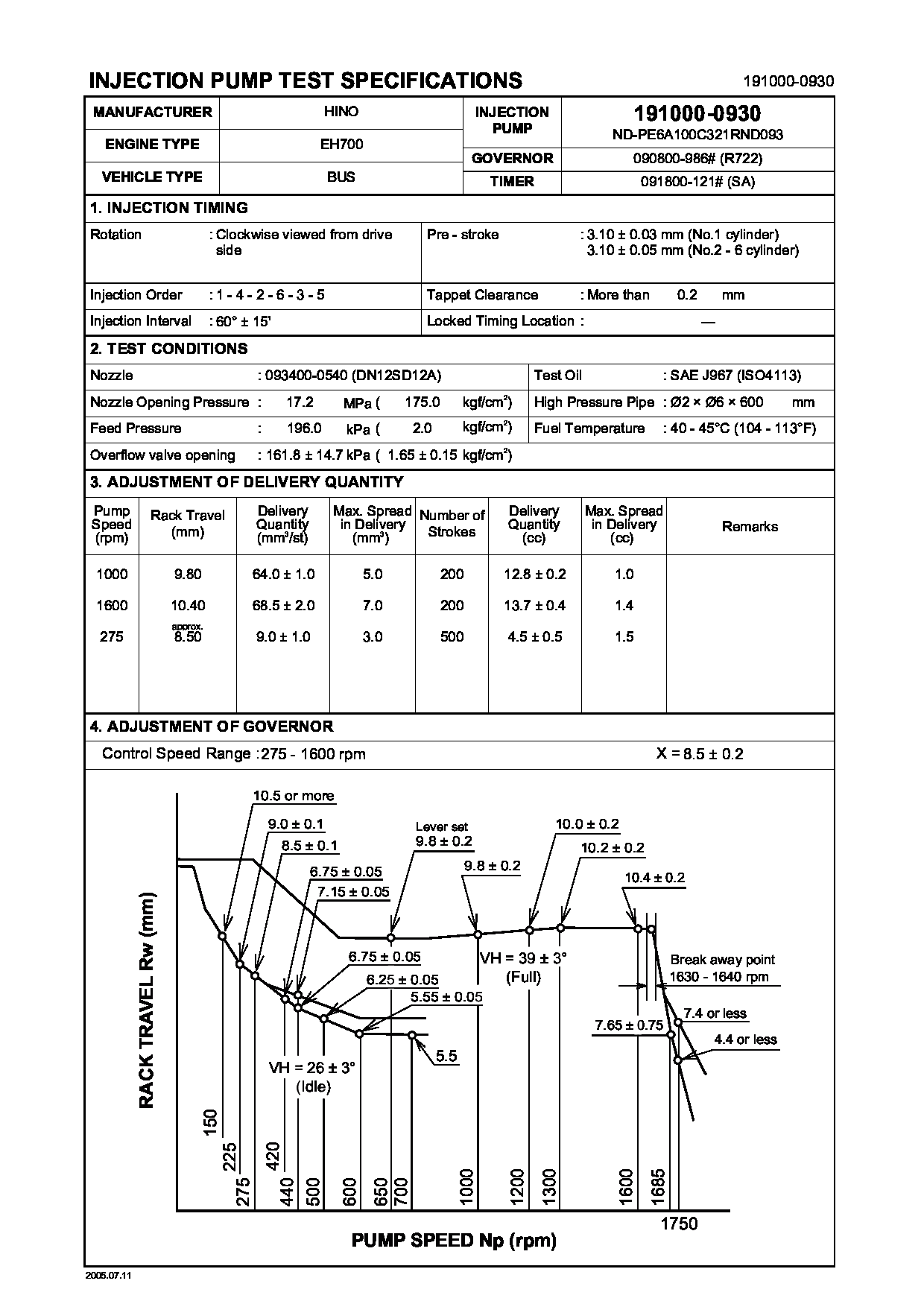

Test Calibration Data:

Get Full test data file
1910000930 22010-4280A
EC0930
EC0930
