19100-00803 PUMP ASSY, INJECTI Calibration Data


Rating:
33
Buy PUMP ASSY, INJECTI 19100-00803 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
A6,R801 -8506
00.001
PUMP ASSY, INJECTI
A6,R801 8506--9308
00.001
PUMP ASSY, INJECTI
A6,R801 9309-
01.002
SWITCH KIT, CONTRO
01.003
BODY ASSY, INJECTI
A6
01.004
GOVERNOR ASSY, MEC
R801 -8403
01.004
GOVERNOR ASSY, MEC
R801 8506--8506
01.004
GOVERNOR ASSY, MEC
R801 8403--8506
01.004
GOVERNOR ASSY, MEC
R801 8506-
02.005
COVER ASSY, GOVERN
02.006
COMPENSATOR SUB-AS
01.007
TIMER ASSY, AUTOMA
SA/4SP
01.008
PUMP ASSY, FUEL FE
KE

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
A6,R801 -8506
ME035689 MITSUBISHI
000
[01]
PUMP ASSY, INJECTI
A6,R801 8506--9308
ME035689 MITSUBISHI
000
[01]
19100-00803
PUMP ASSY, INJECTI
A6,R801 9309-
ME035689 MITSUBISHI
005
[01]
BODY ASSY, INJECTI
A6
ME702006 MITSUBISHI
006
[01]
GOVERNOR ASSY, MEC
R801
ME702021 MITSUBISHI
007
[01]
COVER, CONTROL RAC
ME702251 MITSUBISHI
008
[01]
O-RING
ID74.1
MH035502 MITSUBISHI
009
[01]
COVER SUB-ASSY, TI
ME702008 MITSUBISHI
010
[01]
TIMER ASSY, AUTOMA
SA/4SP
ME702009 MITSUBISHI
011
[04]
NUT, HEXAGON
M10
ME702046 MITSUBISHI
012
[04]
WASHER, SPRING
M10
MC327716 MITSUBISHI
013
[02]
WASHER, STEEL PLAT
FOR M10
MH005068 MITSUBISHI
014
[01]
BRACKET, STOP WIRE
-8802
ME702548 MITSUBISHI
014
[01]
BRACKET, STOP WIRE
8803-
ME703775 MITSUBISHI
015
[01]
KEY, WOODRUFF
T3.985
ME702047 MITSUBISHI
016
[01]
WASHER, COUNTERSUN
T1.5ID14
ME702043 MITSUBISHI
017
[01]
NUT, TIMER ROUND
ME702547 MITSUBISHI
018
[01]
O-RING
ID27.7
ME702918 MITSUBISHI
019
[01]
PUMP ASSY, FUEL FE
KE
ME702019 MITSUBISHI
020
[01]
BRACKET
ME702036 MITSUBISHI
021
[01]
BOLT, W/WASHER
M8,L18
ME703449 MITSUBISHI
023
[05]
BOLT, W/WASHER
M6,L16
ME702045 MITSUBISHI
024
[02]
BOLT, W/WASHER
M6,L20
ME702041 MITSUBISHI
025
[01]
SWITCH KIT, CONTRO
ME702011 MITSUBISHI
026
[01]
CAP
FOR MAX.SPEED
ME035845 MITSUBISHI
027
[01]
CAP
FOR FULL-LOAD
ME076458 MITSUBISHI

Include in ##:

19100-00803 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-00803
ME035689
PUMP ASSY, INJECTI

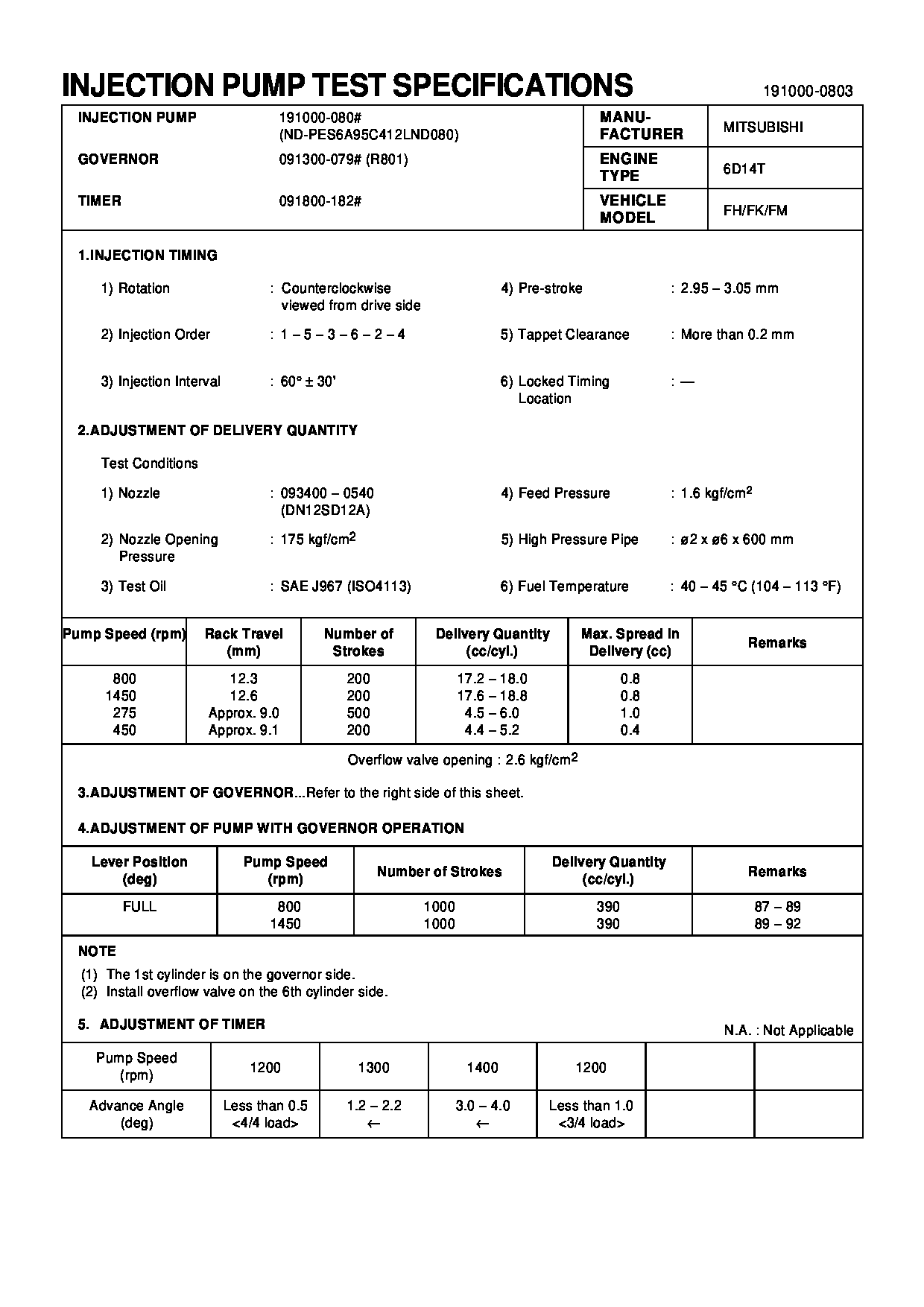

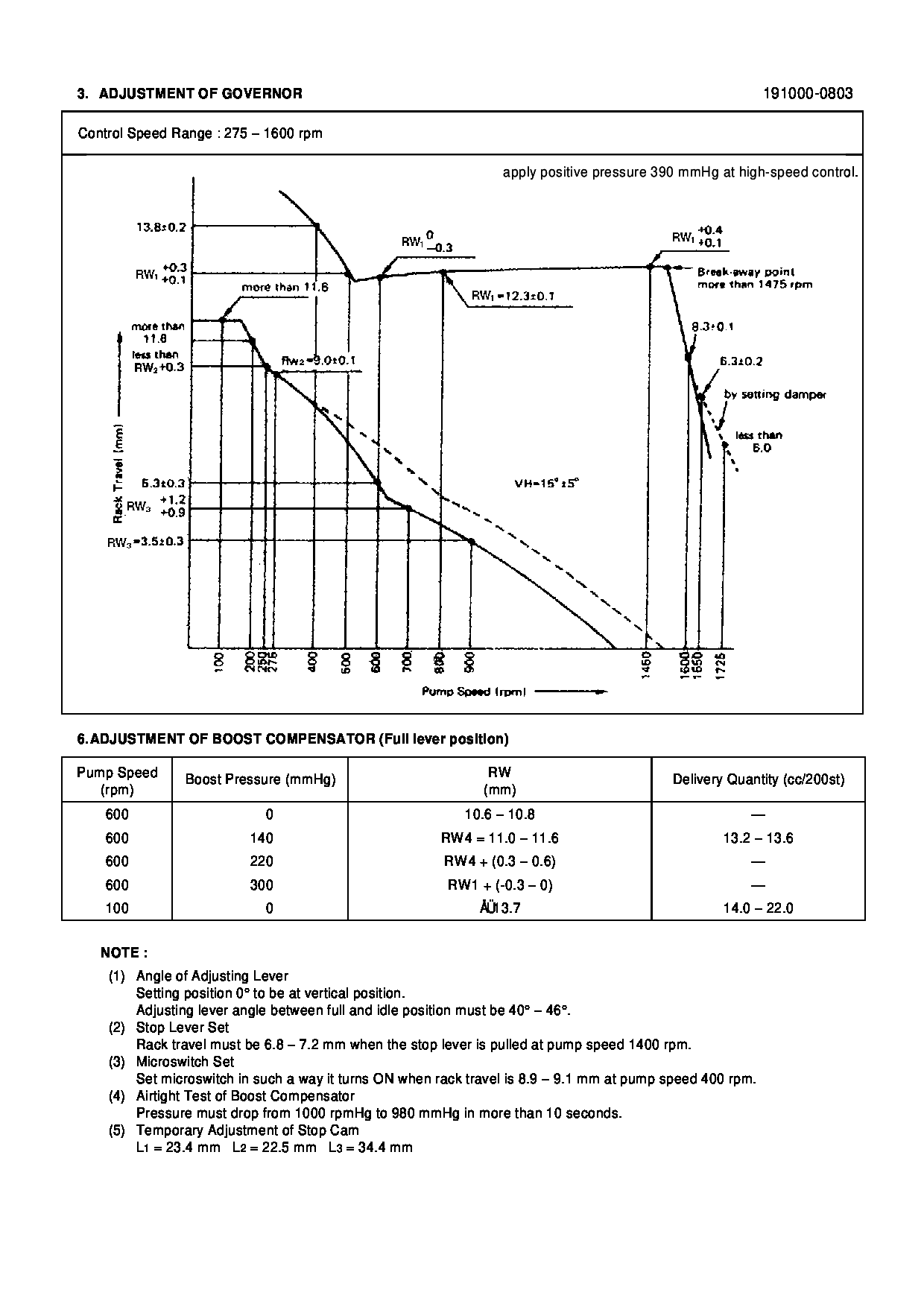

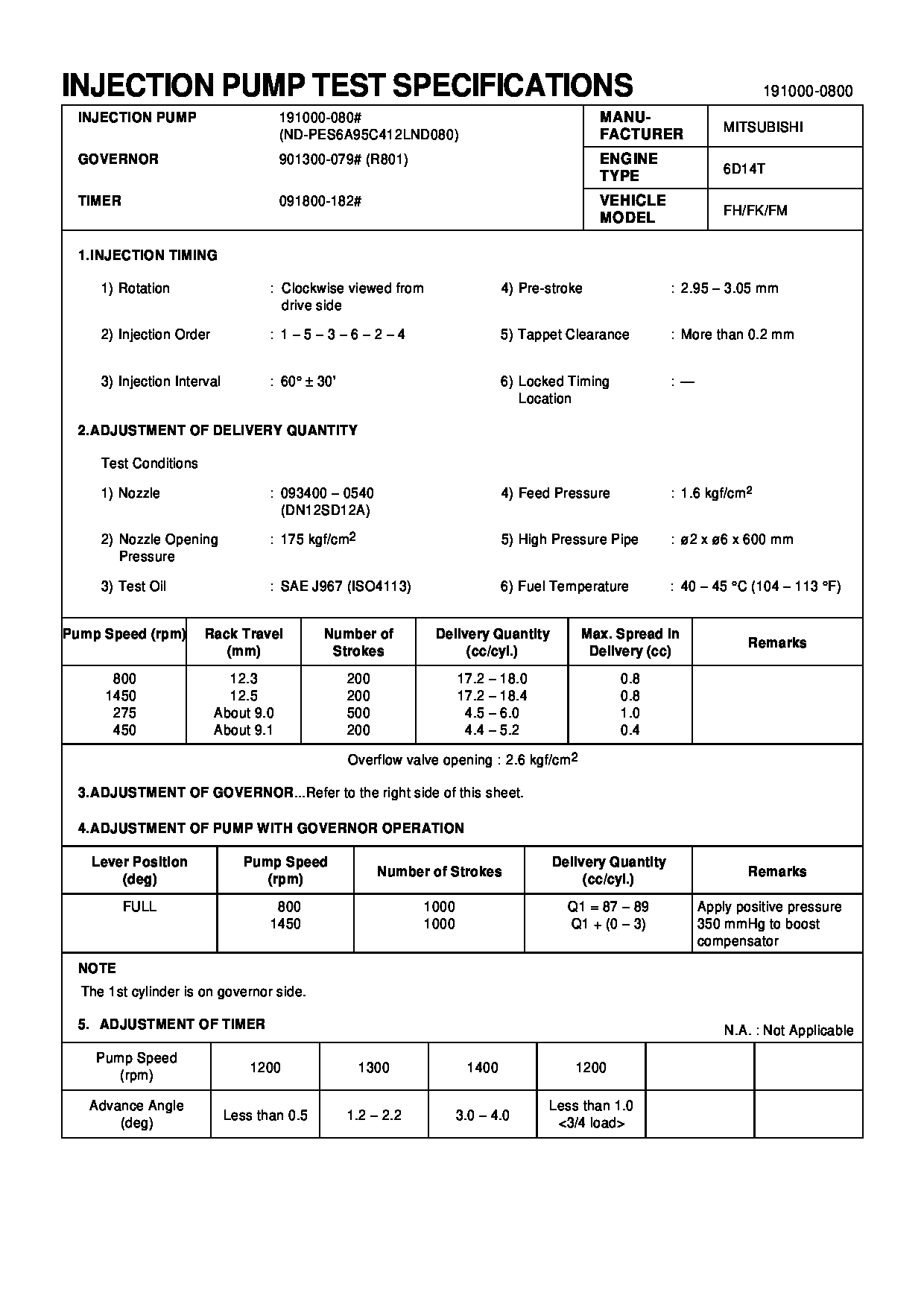

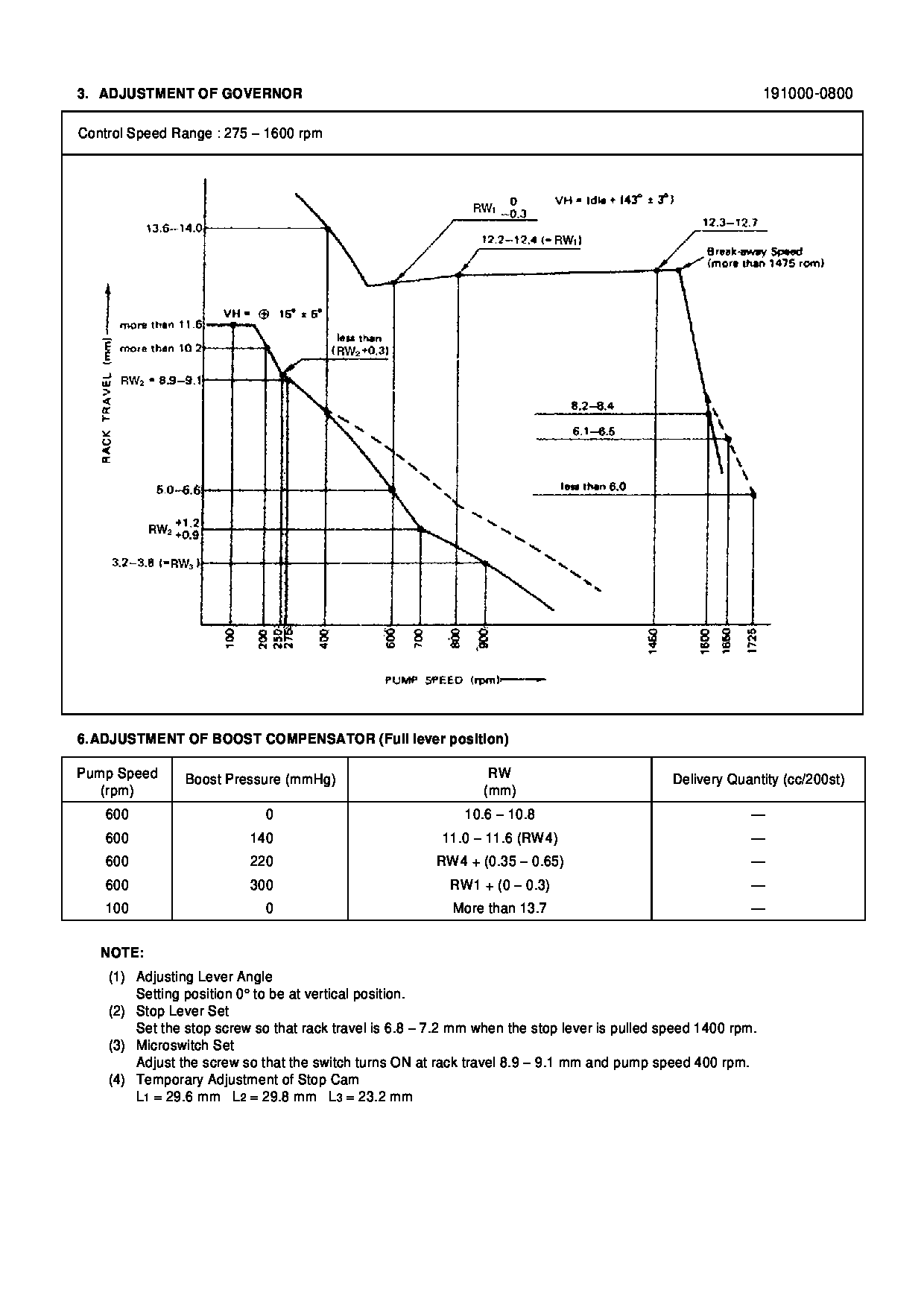

Test Calibration Data:

1910000800 ME035689
1910000801 ME035689
1910000802 ME035689
1910000803 ME035689




Information:


Illustration 1 g06545921
Typical view inside the DEF pump
(1) Internal heater blanket
Illustration 2 g06545997
Typical view of the DEF pump heater blanket
(2) Pump head heater (top)
(3) Positioning blocksAdaptable To:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Illustration 3 g06546003
Typical view of the DEF pump identification label
(4) Part number
(5) Serial number
(6) Date code
Table 1
Part Number Description Serial Number Date Code
466-8285 Diesel Exhaust Fluid Pump Gp (12 V) 19357001 19D357
533-2738 Diesel Exhaust Fluid Pump Gp (24 V) 20058030 20D058 Refer to Table 1 for the effective serial number and date code of the improved heater blanket. Refer to Illustration 3 for the location of the DEF pump identification label.
