Rating:
Information pump assy, injecti Denso
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-00313
PUMP ASSY, INJECTI
A6,R801
ME035591
MITSUBISHI
Include in ##:
19100-00313
as PUMP ASSY, INJECTI
Cross reference number
Part num
Firm num
Firm
Name
19100-00313
ME035591
PUMP ASSY, INJECTI

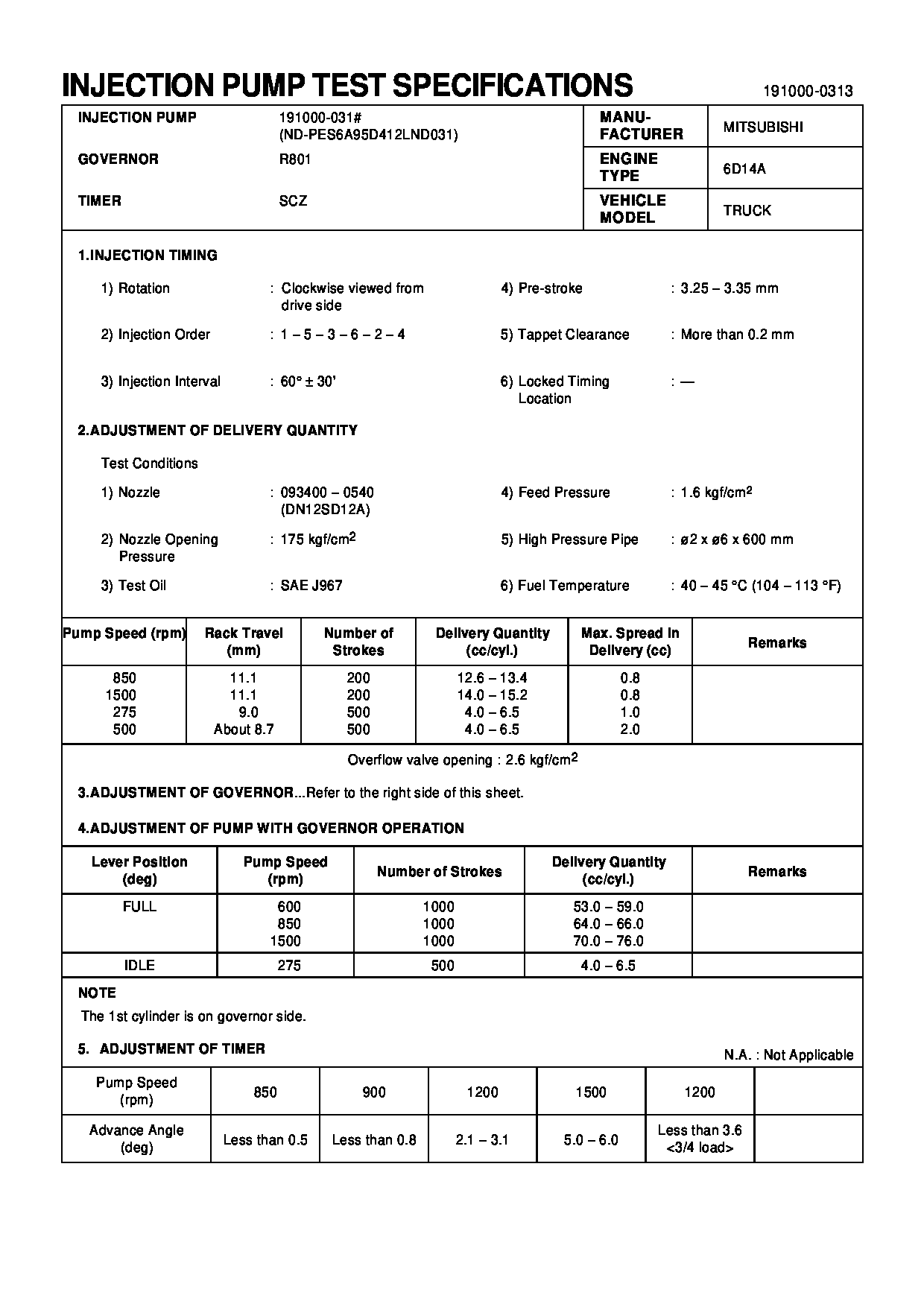

Test Calibration Data:
1910000310
ME035591
1910000311
ME035591
1910000312
ME035591
1910000313
ME035591
Information:
Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
If the 312-0092 Nozzle Heater As does not seat properly, follow the procedure that is listed below in order to resolve the problem.Solution
Material will need to be removed from the hex if the 312-0092 Nozzle Heater As is not properly seated. Refer to Illustration 1.
Illustration 1 g01768245
Use a file to remove material on the hex. Refer to Illustration 2. Use clean shop air in order to remove the debris that is generated during the procedure.Note: Do not use any type of chemical cleaner. The chemical cleaner can cause failure of the 312-0092 Nozzle Heater As .
Illustration 2 g01768573
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
If the 312-0092 Nozzle Heater As does not seat properly, follow the procedure that is listed below in order to resolve the problem.Solution
Material will need to be removed from the hex if the 312-0092 Nozzle Heater As is not properly seated. Refer to Illustration 1.
Illustration 1 g01768245
Use a file to remove material on the hex. Refer to Illustration 2. Use clean shop air in order to remove the debris that is generated during the procedure.Note: Do not use any type of chemical cleaner. The chemical cleaner can cause failure of the 312-0092 Nozzle Heater As .
Illustration 2 g01768573
