19000-09560 PUMP ASSY, INJECTI Calibration Data


Rating:
18
Buy PUMP ASSY, INJECTI 19000-09560 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
DYNA 11B
Engine
11B
Serial start-end
8501--8605
Info
Injector Nozzle
093500-3010
Injector nozzle: 0935003010

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Timer assy, automa
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A4,R801
01.002
BODY ASSY, INJECTI
A4
01.003
GOVERNOR ASSY, MEC
R801
02.004
COVER ASSY, GOVERN
01.005
TIMER ASSY, AUTOMA
SCZ
01.006
PUMP ASSY, FUEL FE
KE

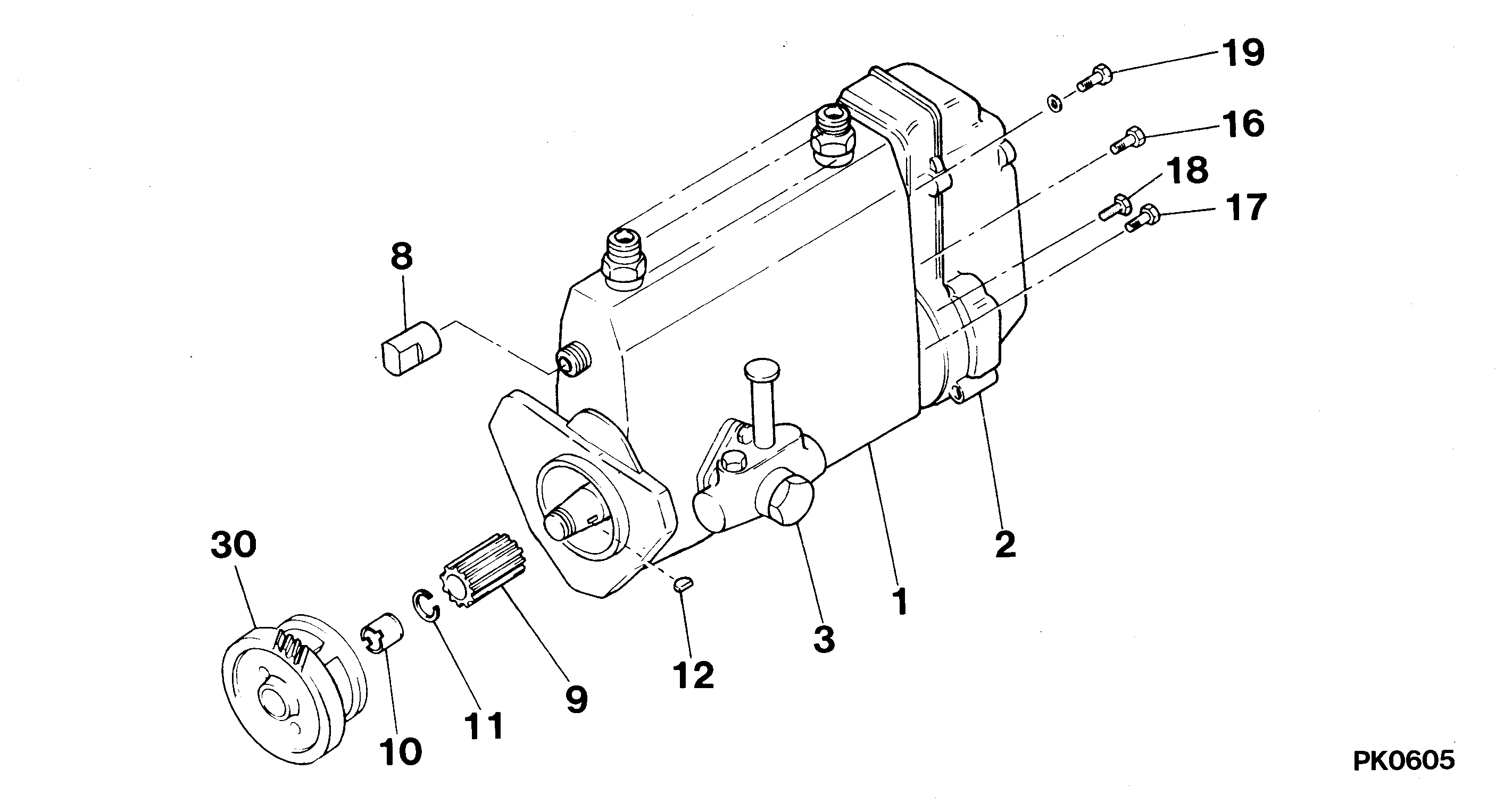

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19000-09560
PUMP ASSY, INJECTI
A4,R801
22100-56230 TOYOTA
001
[01]
BODY ASSY, INJECTI
A4
22120-56230 TOYOTA
002
[01]
GOVERNOR ASSY, MEC
R801
22410-56230 TOYOTA
003
[01]
PUMP ASSY, FUEL FE
KE
22510-873 TOYOTA
008
[01]
COVER, CONTROL RAC
22116-56230 TOYOTA
009
[01]
SHAFT, SPLINE
-8507
22174-58200 TOYOTA
009
[01]
SHAFT, SPLINE
8507-
22174-58201 TOYOTA
010
[01]
NUT, TIMER ROUND
22611-58200 TOYOTA
011
[01]
WASHER, SPRING
T3.5
90099-01449 TOYOTA
012
[01]
KEY, WOODRUFF
T3.985
90099-13023 TOYOTA
013
[01]
BOLT, W/WASHER
M6,L20
90091-20608 TOYOTA
014
[04]
BOLT, W/WASHER
M6,L16
90099-04319 TOYOTA
015
[01]
BOLT, W/WASHER
M6,L11.5
90099-04320 TOYOTA
016
[01]
BOLT, HEXAGON
M8,L18 -8507
90031-01132 TOYOTA
016
[01]
BOLT, W/WASHER
M8,L18 8507-
90099-04346 TOYOTA
030
[01]
TIMER ASSY, AUTOMA
EXCLUDE
22610-56060 TOYOTA

Include in ##:

19000-09560 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19000-09560
22100-5623
PUMP ASSY, INJECTI
1900009560
22100-56230
TOYOTA
PUMP ASSY, INJECTI

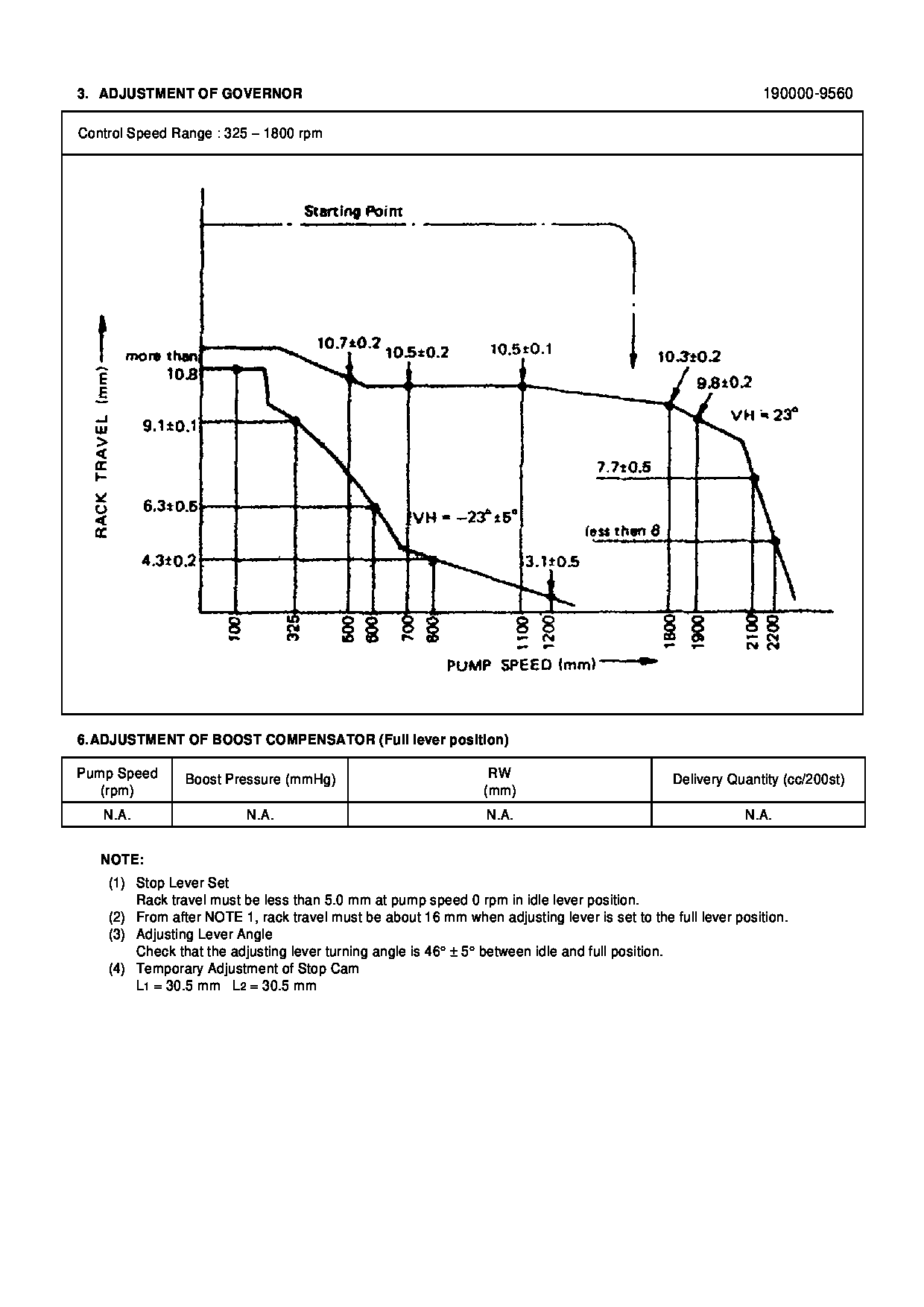

Test Calibration Data:

1900009560 22100-56230
