19000-08700 PUMP ASSY, INJECTI Calibration Data


Rating:
55
Buy PUMP ASSY, INJECTI 19000-08700 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL EH700
Engine
EH700
Serial start-end
8401--9603
Info
Injector Nozzle
093500-2080
Injector nozzle: 0935002080

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A6,R721
01.002
SWITCH KIT, CONTRO
01.003
BODY ASSY, INJECTI
A6
02.004
COVER, BEARING
DUMMY
01.005
GOVERNOR ASSY, MEC
R721
01.006
PUMP ASSY, FUEL FE
KE
01.007
COUPLING ASSY
SP

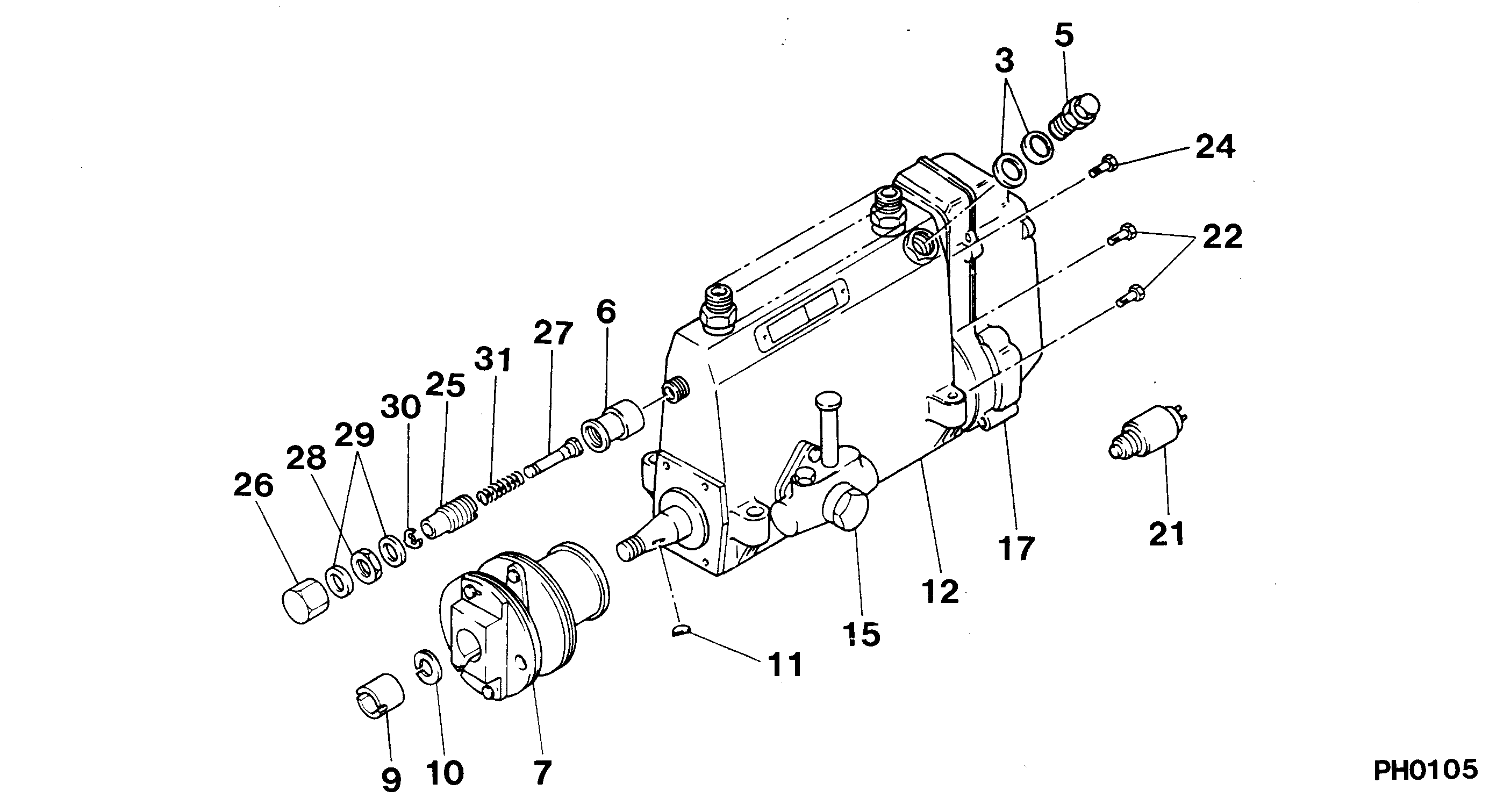

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19000-08700
PUMP ASSY, INJECTI
A6,R721
22030-1790 HINO
003
[02]
WASHER
T1
22847-1940A HINO
005
[01]
VALVE ASSY, OVERFL
1.5-1.8K
22107-1090A HINO
006
[01]
COVER, CONTROL RAC
007
[01]
COUPLING ASSY
SP
22630-1020A HINO
009
[01]
NUT, TIMER ROUND
22511-1070A HINO
010
[01]
WASHER, SPRING
T3.5
22877-1620A HINO
011
[01]
KEY, WOODRUFF
T3.985
22895-1010A HINO
012
[01]
BODY ASSY, INJECTI
A6
22130-1270A HINO
015
[01]
PUMP ASSY, FUEL FE
KE22
22570-1250A HINO
017
[01]
GOVERNOR ASSY, MEC
R721
021
[01]
SWITCH KIT, CONTRO
22690-1200A HINO
022
[06]
BOLT, W/WASHER
M6,L14
22815-1620A HINO
024
[01]
BOLT, HEXAGON
M8,L18 -8604
22815-1630A HINO
024
[01]
BOLT, W/WASHER
M8,L18 8604-
22815-2820A HINO
025
[01]
SCREW, ADJUSTING
026
[01]
CAP
22342-1110A HINO
027
[01]
ADAPTER
028
[01]
NUT, HEXAGON, W/HO
22825-1270A HINO
029
[02]
WASHER, COPPER PLA
T1,FOR M16
22847-1950A HINO
030
[01]
E-RING
22863-1810A HINO
031
[01]
SPRING

Include in ##:

19000-08700 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19000-08700
22030-1790
PUMP ASSY, INJECTI
1900008700
22030-1790
HINO
PUMP ASSY, INJECTI

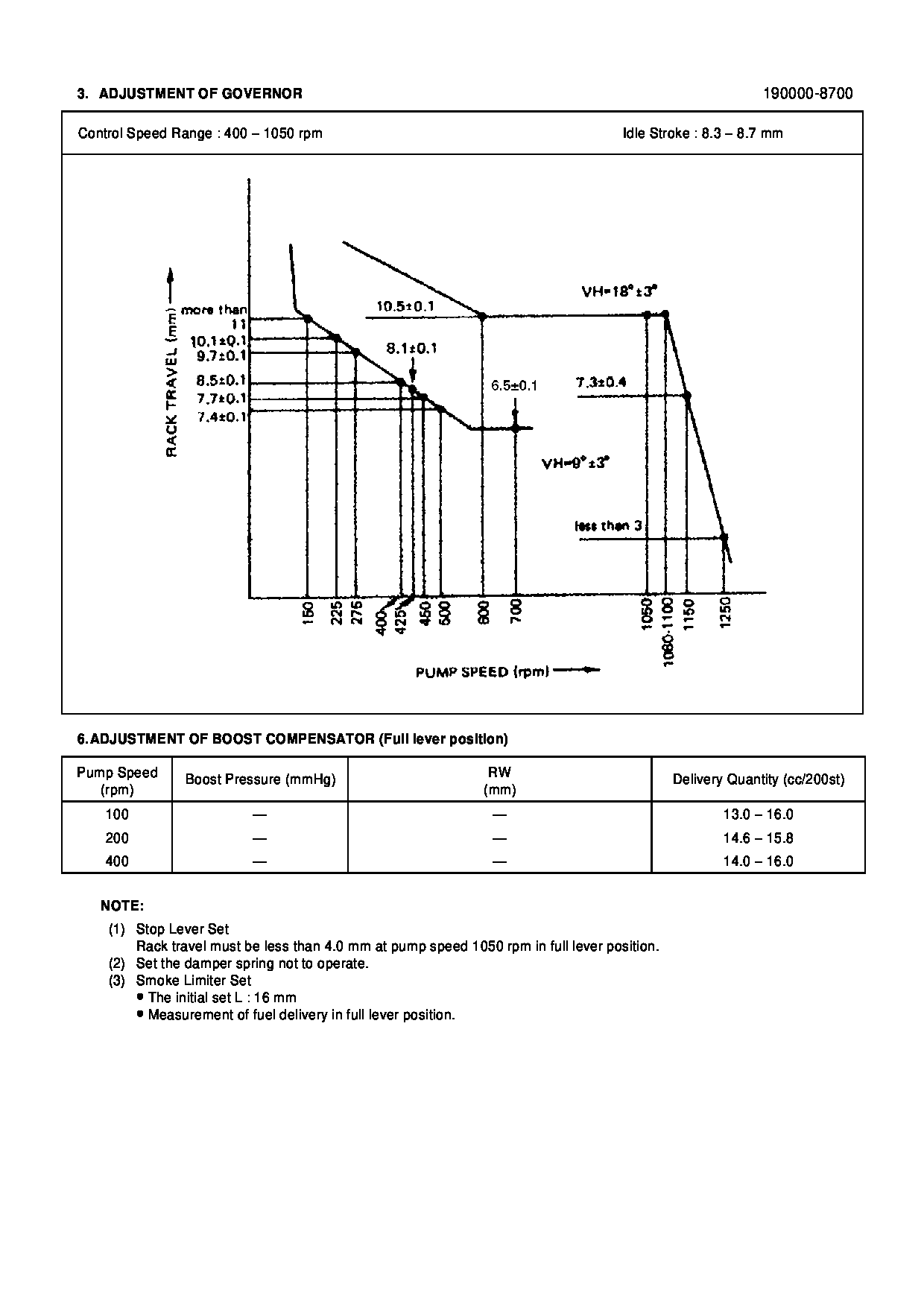

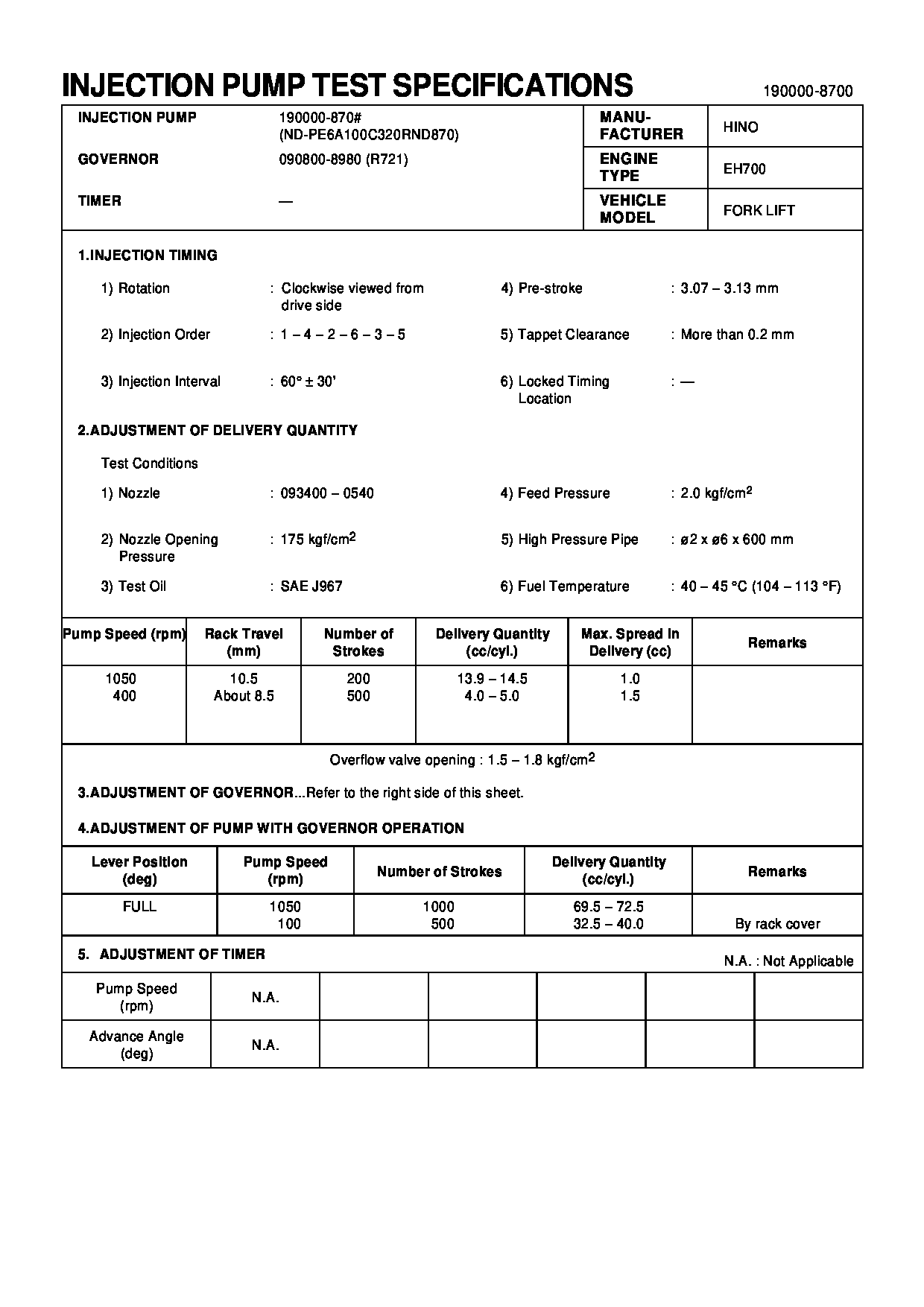

Test Calibration Data:

1900008700 22030-1790A




Information:

Torque for Standard Fasteners
The following charts give general torques for bolts, nuts and taperlock studs of SAE Grade 5 or better quality.
Torque for Bolts, Nuts and Taperlock Studs
Use these standard torque values for all fasteners unless otherwise specified in this publication or in the Service Manual.Torque for Metric Fasteners
Be very careful never to mix metric with U.S. customary (standard) fasteners. Mismatched or incorrect fasteners will cause engine damage or malfunction and may even result in personal injury.Original fasteners removed from the engine should be saved for reassembly whenever possible. If new fasteners are needed, they must be of the same size and grade as the ones that are being replaced.The material strength identification is usually shown on the bolt head by numbers (8.8, 10.9, etc.). The following chart gives general torques for bolts and nuts with Metric Threads of SAE Grade 8.8 or better quality.
Metric hardware must be replaced with metric hardware. Check parts manual for proper replacement.Torques for Bolts, Nuts and Taperlock Studs with Metric Threads
Torque for Standard Hose Clamps-Worm Drive Band Type
The following chart gives the torques for initial installation of hose clamps on new hose and for reassembly or tightening of hose clamps on existing hose.
Torque for Constant Torque Hose Clamps
A constant torque hose clamp can be used in place of any standard hose clamp. make sure the constant torque hose clamp is the same size as the standard clamp. Due to extreme temperature changes, hose will heat set. Heat setting causes hose clamps to loosen. Loose hose clamps can result in leaks. There have been reports of component failures caused by hose clamps loosening. The new, constant torque hose clamp will help prevent these failures.Each installation application can be different depending on the type of hose, fitting material and anticipated expansion or contraction of the hose and fittings. A torque wrench should be used for proper installation of the new, constant torque hose clamps. Constant torque hose clamps should be installed as follows:* To allow for maximum expansion, install clamps at 5.7 N m (50 lb in).* To allow for equal expansion and contraction, install clamps at 10.2 N m (90 lb in).* To allow for maximum contraction, install clamps at 14.1 N m (125 lb in).
