19000-07401 PUMP ASSY, INJECTI Calibration Data


Rating:
14
Buy PUMP ASSY, INJECTI 19000-07401 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
NB6,R721
01.002
BODY ASSY, INJECTI
NB6
02.003
COVER, BEARING
DUMMY
01.004
GOVERNOR ASSY, MEC
01.005
TIMER ASSY, AUTOMA
SP -9309
01.005
TIMER ASSY, AUTOMA
*1 9310-
01.006
PUMP ASSY, FUEL FE
KE
01.007
COUPLING ASSY
SD,*1 -8804
01.007
COUPLING ASSY
SD,*1 8805-
01.008
COUPLING ASSY
SD,*1

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19000-07401
PUMP ASSY, INJECTI
NB6,R721
22090-1120 HINO
000
[01]
19000-07401
PUMP ASSY, INJECTI
NB6,R721
22090-1190 HINO
003
[01]
BODY ASSY, INJECTI
NB6
22110-1700A HINO
004
[01]
GOVERNOR ASSY, MEC
R722 -8312
004
[01]
GOVERNOR ASSY, MEC
R722 8312-
005
[08]
BOLT, W/WASHER
M6,L14
22815-1620A HINO
006
[01]
COVER, CONTROL RAC
-8609
22114-1140A HINO
006
[01]
COVER, CONTROL RAC
8609-
22114-1240A HINO
007
[01]
TIMER ASSY, AUTOMA
SP
22510-1460A HINO
008
[01]
NUT, TIMER ROUND
22825-1110A HINO
009
[01]
O-RING
ID27.7
22817-1050A HINO
010
[01]
WASHER, COUNTERSUN
T1.5ID18
22877-1190A HINO
011
[01]
KEY, WOODRUFF
W5,H7.5
22891-1070A HINO
012
[01]
PUMP ASSY, FUEL FE
KE
22570-1400A HINO
013
[01]
COVER, PRIMING PUM
-8312
22561-1040 HINO
014
[01]
WASHER, COPPER PLA
T1.5
96542-2150A HINO
016
[01]
COUPLING ASSY
SD -9312
22610-1280B HINO
016
[01]
COUPLING ASSY
SD 9401-
22610-1480A HINO
017
[02]
WASHER
T1,D15.9
22847-1940A HINO
018
[01]
VALVE ASSY, OVERFL
1.5-1.7K
22107-1090A HINO
019
[01]
BRACKET, STOP WIRE
22343-1900A HINO
021
[02]
BOLT, W/WASHER
M6,L12 9212-
22815-1500A HINO

Include in ##:

19000-07401 as PUMP ASSY, INJECTI
19000-07401 PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19000-07401
22090-1120
PUMP ASSY, INJECTI

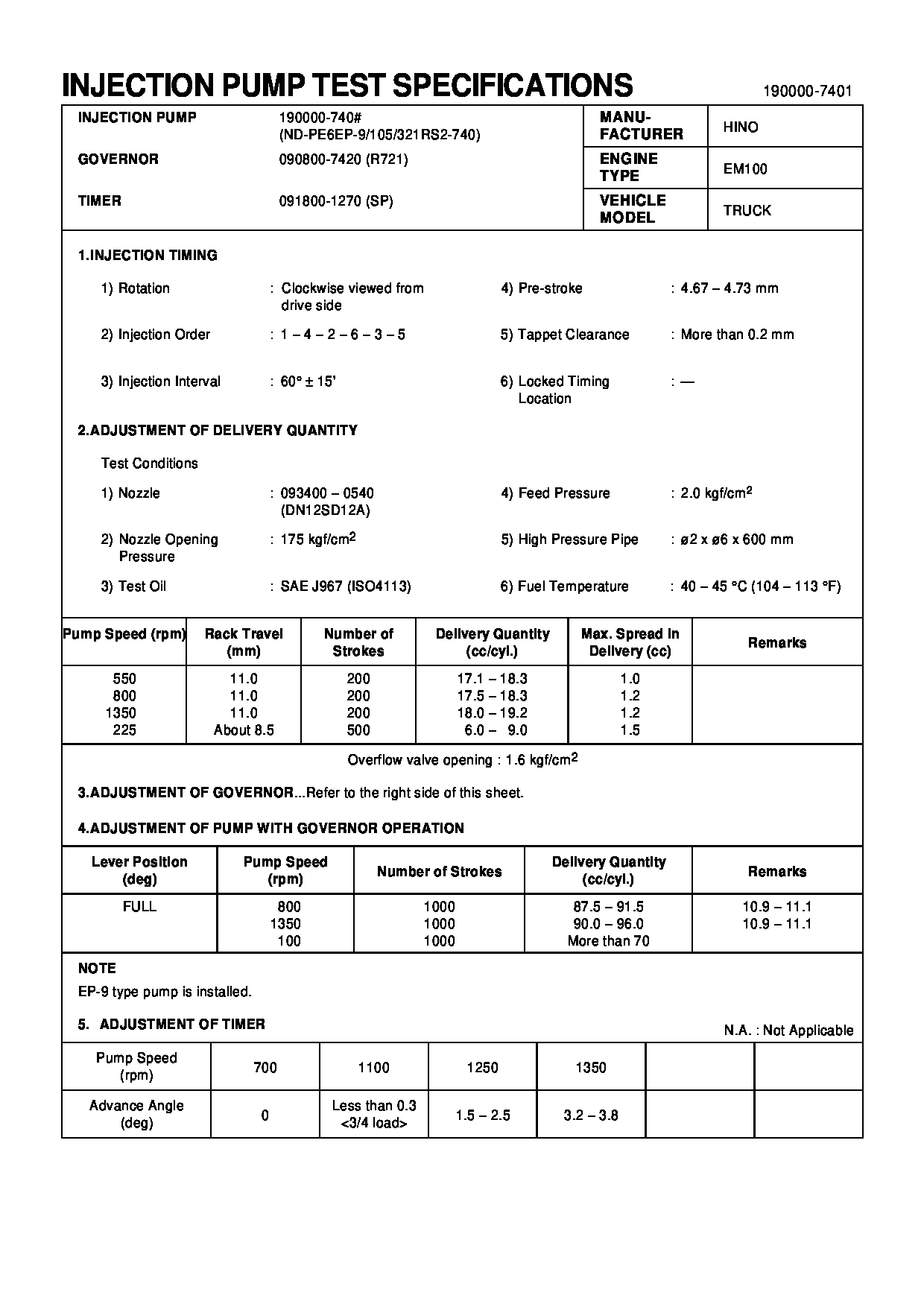

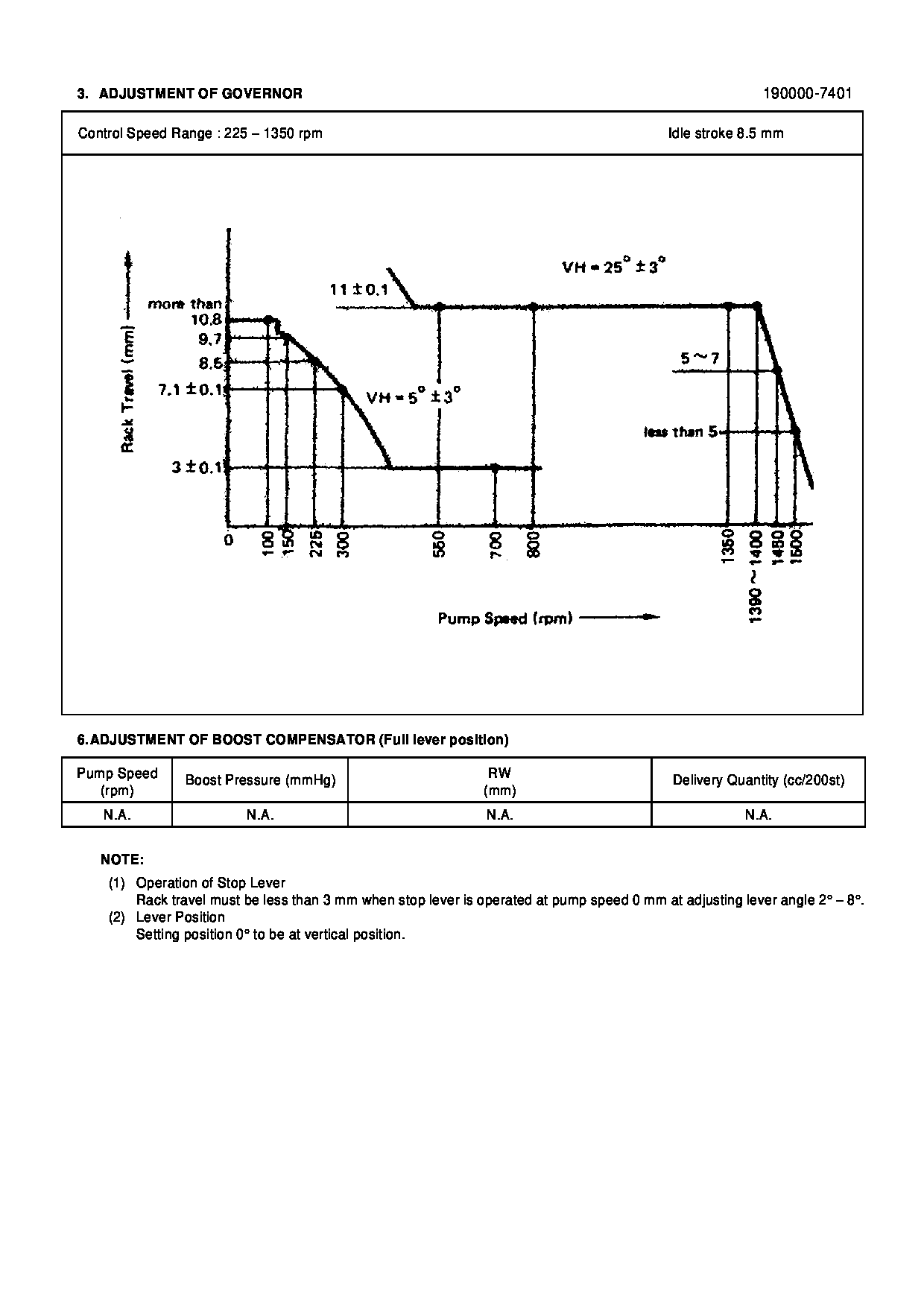

Test Calibration Data:

1900007400 22090-1120
1900007401




Information:

2. Turn the crankshaft until two pistons are at bottom center.3. Remove bolts (1) and the bearing caps. Push the rods and pistons up until the rings are out of the cylinder liners. 4. Remove pistons (2) and connecting rods from the cylinder liners.5. Do Steps 1 through 4 for the remainder of the pistons and connecting rods.Install Pistons And Connecting Rod Assemblies
1. Put clean engine oil on piston rings, connecting rod bearings and cylinder liners. 2. Use tool (A), and install piston (2) and the connecting rod in the cylinder liner. Be sure the number on the tab groove side of the connecting rod is on the opposite side from the camshaft.3. Install the bearing cap on the connecting rod with the number on the side of the bearing cap on the same side and same number as on the connecting rod.4. Put 2P2506 Thread Lubricant on the threads of the bolts. Install the nuts, and tighten them to a torque of 90 8 N m (67 6 lb.ft.). Put a mark on the nuts and cap, and tighten the nuts an extra 90 ° 5 °.5. Do Steps 1 through 4 for the remainder of the pistons and connecting rods.End By:a. install oil pumpb. install cylinder head assemblyc. install piston cooling tubesDisassemble & Assemble Pistons And Connecting Rod Assemblies
Start By:a. remove pistons and connecting rod assemblies 1. Remove bearings (3) from the connecting rod and connecting rod cap.2. Remove retainer ring (1) with tool (A).3. Remove pin (2) and connecting rod (4) from the piston. 4. Remove piston rings (5) from
